Military
Insulated
Terminals

Filter

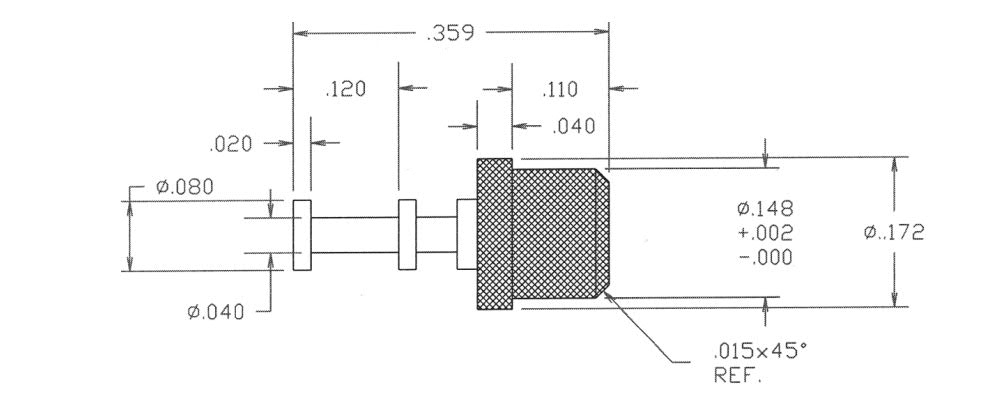

1102-14M-09515
1102-14M-09515
1102-14M-09515
0.359" - Press Fit 1/16 0.136 PTFE Green M55155/075I01 AA59126/075I01

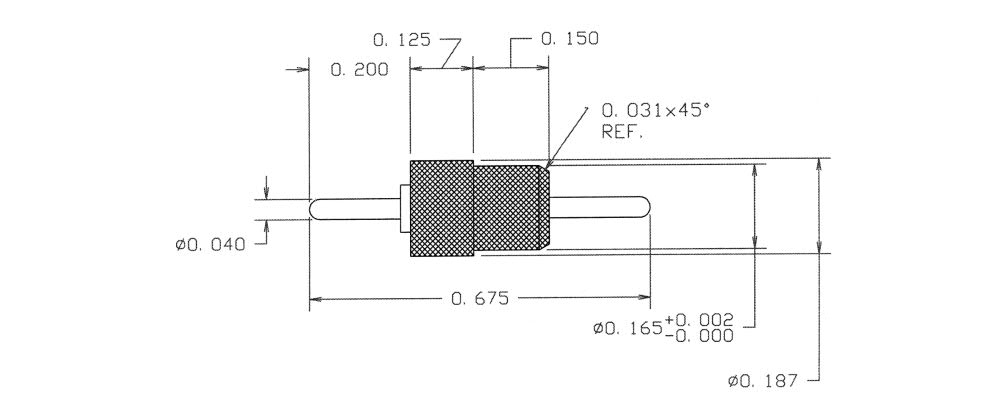

1110-40M-0513
1110-40M-0513
1110-40M-0513
0.675" Pin/Pin Press Fit 1/8 0.152 PTFE Orange M55155/033H03 AA59126/033H03
1125-45M-09516
1125-45M-09516
1125-45M-09516
0.890" - 6-32 Nut 1/8 0.144 PTFE Blue M55155/096I02 AA59126/096I02

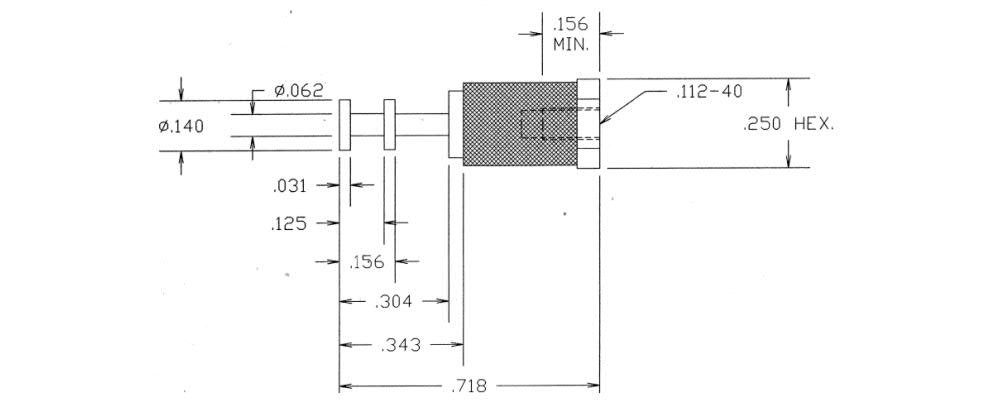

1127-04M-0514
1127-04M-0514
1127-04M-0514
0.718" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Yellow M55155/204H01 AA59126/204H01

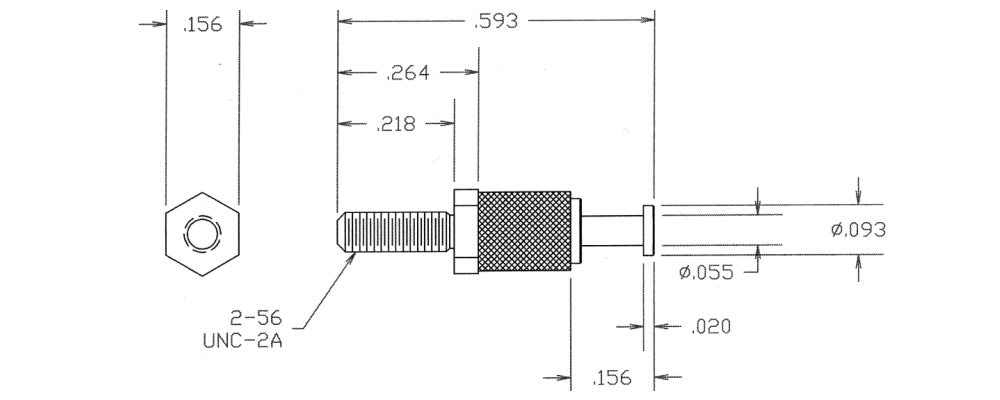

1127-68M-08812
1127-68M-08812
1127-68M-08812
0.593" - 2-56 Nut 3/32 0.094 DIALLYL PHTHALATE Red M55155/182J01 AA59126/182J01

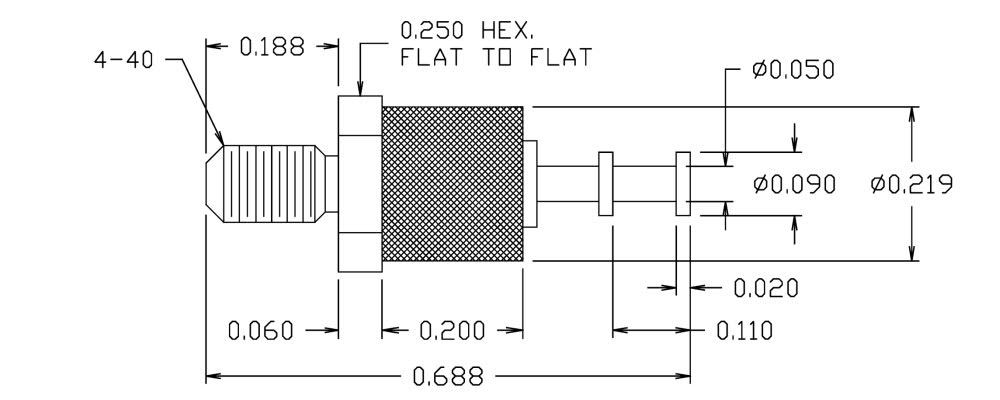

1169-36M-0515
1169-36M-0515
1169-36M-0515
0.688" - 4-40 Nut 5/64 0.120 DIALLYL PHTHALATE Green M55155/095H03 AA59126/095H03
1114-04M-09518
1114-04M-09518
1114-04M-09518
0.225" - Press Fit 1/32 0.086 PTFE Gray M55155/058I01 AA59126/058I01

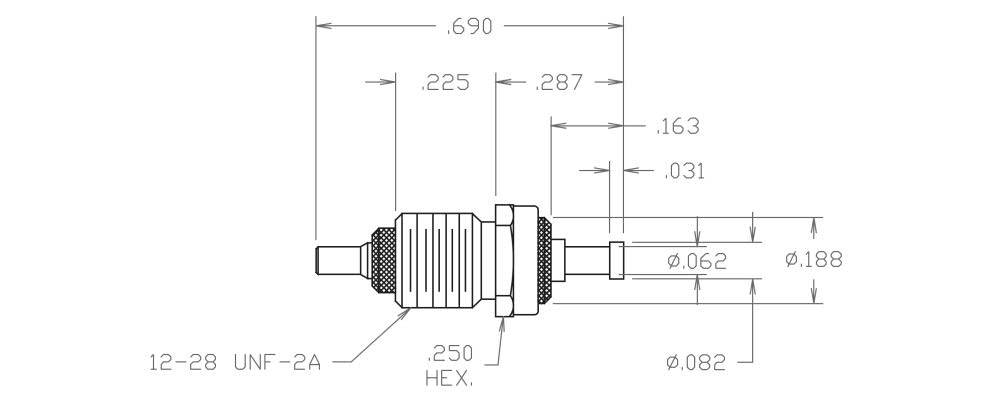

1117-01M-0516
1117-01M-0516
1117-01M-0516
0.690" TURRET/PIN 12-28 Nut 3/32 0.221 PTFE Blue M55155/026H01 AA59126/026H01
1102-14M-09515Z
1102-14M-09515Z
1102-14M-09515Z
0.359" - Press Fit 1/16 0.136 PTFE Green M55155/075C01 AA59126/075C01
1110-40M-0513Z
1110-40M-0513Z
1110-40M-0513Z
0.675" Pin/Pin Press Fit 1/8 0.152 PTFE Orange M55155/033B03 AA59126/033B03
1125-45M-09516Z
1125-45M-09516Z
1125-45M-09516Z
0.890" - 6-32 Nut 1/8 0.144 PTFE Blue M55155/096C02 AA59126/096C02
1127-04M-0514Z
1127-04M-0514Z
1127-04M-0514Z
0.718" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Yellow M55155/204B01 AA59126/204B01
1127-68M-08812Z
1127-68M-08812Z
1127-68M-08812Z
0.593" - 2-56 Nut 3/32 0.094 DIALLYL PHTHALATE Red M55155/182D01 AA59126/182D01
1169-36M-0515Z
1169-36M-0515Z
1169-36M-0515Z
0.688" - 4-40 Nut 5/64 0.120 DIALLYL PHTHALATE Green M55155/095B03 AA59126/095B03
1114-04M-09518Z
1114-04M-09518Z
1114-04M-09518Z
0.225" - Press Fit 1/32 0.086 PTFE Gray M55155/058C01 AA59126/058C01
1117-01M-0516Z
1117-01M-0516Z
1117-01M-0516Z
0.690" TURRET/PIN 12-28 Nut 3/32 0.221 PTFE Blue M55155/026B01 AA59126/026B01
1102-14M-09516
1102-14M-09516
1102-14M-09516
0.359" - Press Fit 1/16 0.136 PTFE Blue M55155/076I01 AA59126/076I01
1110-40M-0514
1110-40M-0514
1110-40M-0514
0.675" Pin/Pin Press Fit 1/8 0.152 PTFE Yellow M55155/034H03 AA59126/034H03
1125-45M-09517
1125-45M-09517
1125-45M-09517
0.890" - 6-32 Nut 1/8 0.144 PTFE Violet M55155/097I02 AA59126/097I02
1127-04M-0515
1127-04M-0515
1127-04M-0515
0.718" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Green M55155/205H01 AA59126/205H01

About the Company

CONCORD ELECTRONICS, INC. is a leading manufacturer of high reliability, precision-machined interconnect components, hardware and test accessories. A majority of our parts are proudly Made in the USA and used in a wide variety of industries including: automotive, avionics, energy, industrial, instrumentation, marine, medical, military and telecommunications.  We are a MIL-DTL-39024 recognized manufacturer of both MIL-T-55155 (Group A) and A-A-59126 components
