Military
Insulated
Terminals

Filter

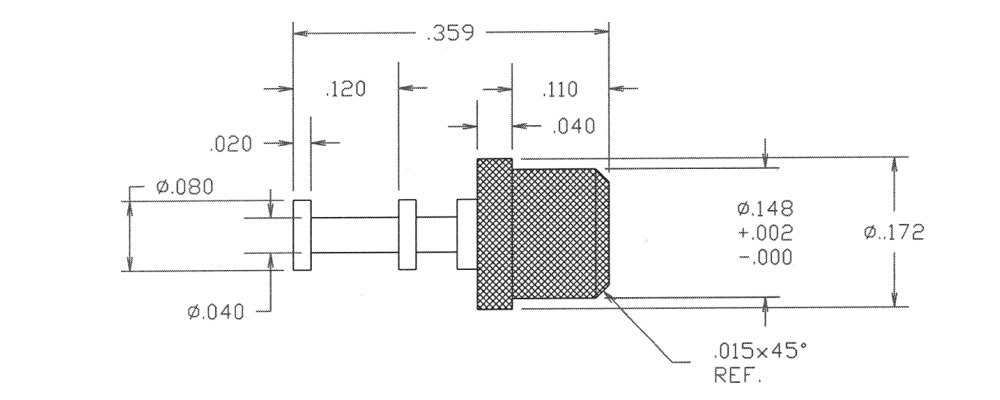

1102-14M-09512Z
1102-14M-09512Z
1102-14M-09512Z
0.359" - Press Fit 1/16 0.136 PTFE Red M55155/072C01 AA59126/072C01
1110-40M-0510Z
1110-40M-0510Z
1110-40M-0510Z
0.675" Pin/Pin Press Fit 1/8 0.152 PTFE Black M55155/030B03 AA59126/030B03

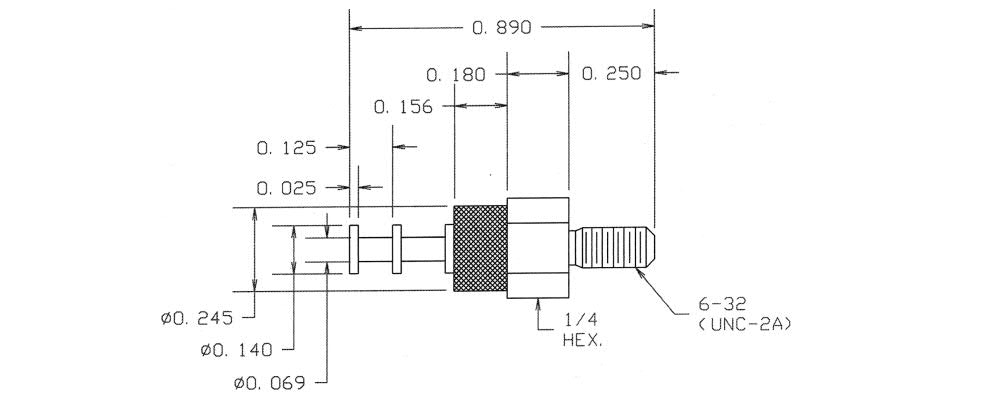

1125-45M-09513Z
1125-45M-09513Z
1125-45M-09513Z
0.890" - 6-32 Nut 1/8 0.144 PTFE Orange M55155/093C02 AA59126/093C02
1127-04M-0511Z
1127-04M-0511Z
1127-04M-0511Z
0.718" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Brown M55155/201B01 AA59126/201B01
1127-68M-0519Z
1127-68M-0519Z
1127-68M-0519Z
0.593" - 2-56 Nut 3/32 0.094 DIALLYL PHTHALATE White M55155/189B01 AA59126/189B01
1169-36M-0512Z
1169-36M-0512Z
1169-36M-0512Z
0.688" - 4-40 Nut 5/64 0.120 DIALLYL PHTHALATE Red M55155/092B03 AA59126/092B03

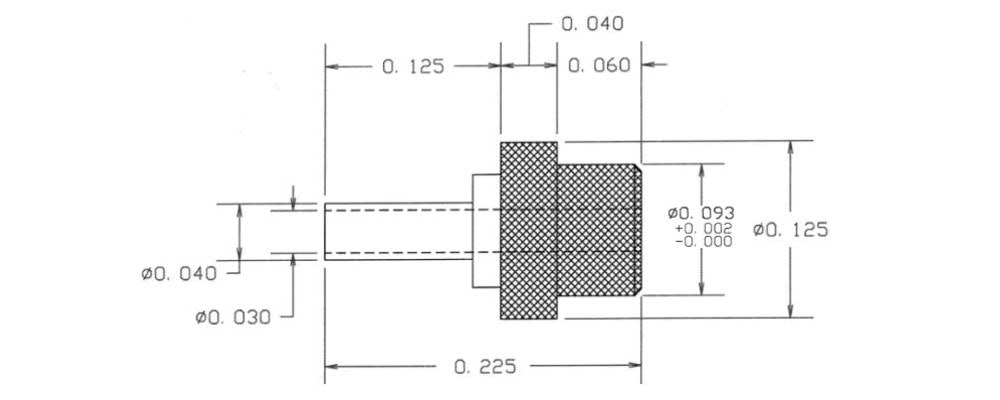

1114-04M-09515Z
1114-04M-09515Z
1114-04M-09515Z
0.225" - Press Fit 1/32 0.086 PTFE Green M55155/055C01 AA59126/055C01
1117-01M-0513Z
1117-01M-0513Z
1117-01M-0513Z
0.690" TURRET/PIN 12-28 Nut 3/32 0.221 PTFE Orange M55155/023B01 AA59126/023B01
1102-14M-09513
1102-14M-09513
1102-14M-09513
0.359" - Press Fit 1/16 0.136 PTFE Orange M55155/073I01 AA59126/073I01
1110-40M-0511
1110-40M-0511
1110-40M-0511
0.675" Pin/Pin Press Fit 1/8 0.152 PTFE Brown M55155/031H03 AA59126/031H03
1125-45M-09514
1125-45M-09514
1125-45M-09514
0.890" - 6-32 Nut 1/8 0.144 PTFE Yellow M55155/094I02 AA59126/094I02
1127-04M-0512
1127-04M-0512
1127-04M-0512
0.718" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Red M55155/202H01 AA59126/202H01
1127-68M-08810
1127-68M-08810
1127-68M-08810
0.593" - 2-56 Nut 3/32 0.094 DIALLYL PHTHALATE Black M55155/180J01 AA59126/180J01
1169-36M-0513
1169-36M-0513
1169-36M-0513
0.688" - 4-40 Nut 5/64 0.120 DIALLYL PHTHALATE Orange M55155/093H03 AA59126/093H03
1114-04M-09516
1114-04M-09516
1114-04M-09516
0.225" - Press Fit 1/32 0.086 PTFE Blue M55155/056I01 AA59126/056I01
1117-01M-0514
1117-01M-0514
1117-01M-0514
0.690" TURRET/PIN 12-28 Nut 3/32 0.221 PTFE Yellow M55155/024H01 AA59126/024H01
1102-14M-09513Z
1102-14M-09513Z
1102-14M-09513Z
0.359" - Press Fit 1/16 0.136 PTFE Orange M55155/073C01 AA59126/073C01
1110-40M-0511Z
1110-40M-0511Z
1110-40M-0511Z
0.675" Pin/Pin Press Fit 1/8 0.152 PTFE Brown M55155/031B03 AA59126/031B03
1125-45M-09514Z
1125-45M-09514Z
1125-45M-09514Z
0.890" - 6-32 Nut 1/8 0.144 PTFE Yellow M55155/094C02 AA59126/094C02
1127-04M-0512Z
1127-04M-0512Z
1127-04M-0512Z
0.718" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Red M55155/202B01 AA59126/202B01
