Military
Insulated
Terminals

Filter
1127-68M-08810Z
1127-68M-08810Z
1127-68M-08810Z
0.593" - 2-56 Nut 3/32 0.094 DIALLYL PHTHALATE Black M55155/180D01 AA59126/180D01
1169-36M-0513Z
1169-36M-0513Z
1169-36M-0513Z
0.688" - 4-40 Nut 5/64 0.120 DIALLYL PHTHALATE Orange M55155/093B03 AA59126/093B03

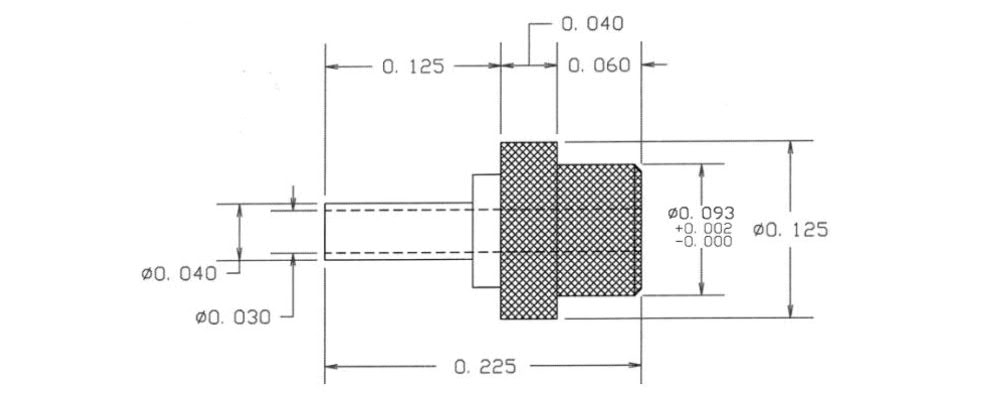

1114-04M-09516Z
1114-04M-09516Z
1114-04M-09516Z
0.225" - Press Fit 1/32 0.086 PTFE Blue M55155/056C01 AA59126/056C01
1117-01M-0514Z
1117-01M-0514Z
1117-01M-0514Z
0.690" TURRET/PIN 12-28 Nut 3/32 0.221 PTFE Yellow M55155/024B01 AA59126/024B01
1102-14M-09514
1102-14M-09514
1102-14M-09514
0.359" - Press Fit 1/16 0.136 PTFE Yellow M55155/074I01 AA59126/074I01
1110-40M-0512
1110-40M-0512
1110-40M-0512
0.675" Pin/Pin Press Fit 1/8 0.152 PTFE Red M55155/032H03 AA59126/032H03

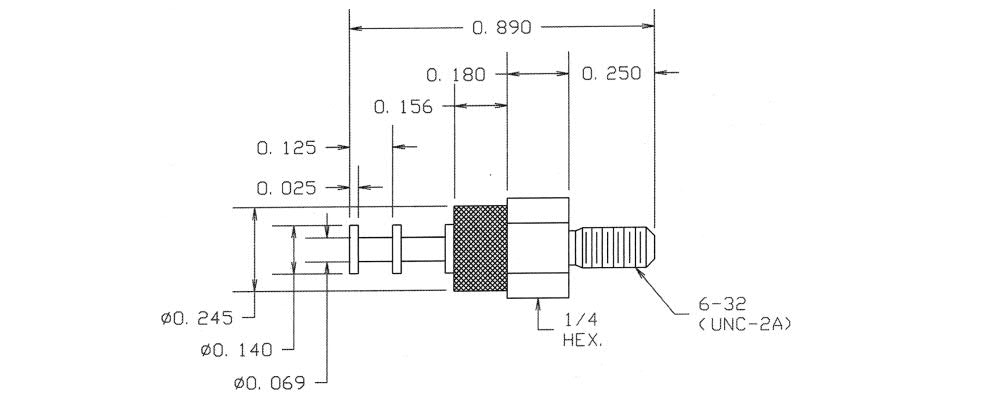

1125-45M-09515
1125-45M-09515
1125-45M-09515
0.890" - 6-32 Nut 1/8 0.144 PTFE Green M55155/095I02 AA59126/095I02
1127-04M-0513
1127-04M-0513
1127-04M-0513
0.718" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Orange M55155/203H01 AA59126/203H01
1127-68M-08811
1127-68M-08811
1127-68M-08811
0.593" - 2-56 Nut 3/32 0.094 DIALLYL PHTHALATE Brown M55155/181J01 AA59126/181J01
1169-36M-0514
1169-36M-0514
1169-36M-0514
0.688" - 4-40 Nut 5/64 0.120 DIALLYL PHTHALATE Yellow M55155/094H03 AA59126/094H03
1114-04M-09517
1114-04M-09517
1114-04M-09517
0.225" - Press Fit 1/32 0.086 PTFE Violet M55155/057I01 AA59126/057I01
1117-01M-0515
1117-01M-0515
1117-01M-0515
0.690" TURRET/PIN 12-28 Nut 3/32 0.221 PTFE Green M55155/025H01 AA59126/025H01

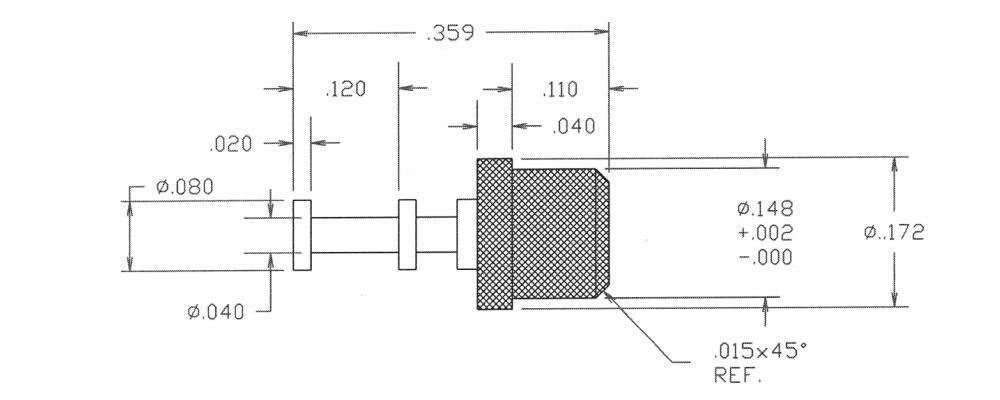

1102-14M-09514Z
1102-14M-09514Z
1102-14M-09514Z
0.359" - Press Fit 1/16 0.136 PTFE Yellow M55155/074C01 AA59126/074C01
1110-40M-0512Z
1110-40M-0512Z
1110-40M-0512Z
0.675" Pin/Pin Press Fit 1/8 0.152 PTFE Red M55155/032B03 AA59126/032B03
1125-45M-09515Z
1125-45M-09515Z
1125-45M-09515Z
0.890" - 6-32 Nut 1/8 0.144 PTFE Green M55155/095C02 AA59126/095C02
1127-04M-0513Z
1127-04M-0513Z
1127-04M-0513Z
0.718" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Orange M55155/203B01 AA59126/203B01
1127-68M-08811Z
1127-68M-08811Z
1127-68M-08811Z
0.593" - 2-56 Nut 3/32 0.094 DIALLYL PHTHALATE Brown M55155/181D01 AA59126/181D01
1169-36M-0514Z
1169-36M-0514Z
1169-36M-0514Z
0.688" - 4-40 Nut 5/64 0.120 DIALLYL PHTHALATE Yellow M55155/094B03 AA59126/094B03
1114-04M-09517Z
1114-04M-09517Z
1114-04M-09517Z
0.225" - Press Fit 1/32 0.086 PTFE Violet M55155/057C01 AA59126/057C01
1117-01M-0515Z
1117-01M-0515Z
1117-01M-0515Z
0.690" TURRET/PIN 12-28 Nut 3/32 0.221 PTFE Green M55155/025B01 AA59126/025B01
