Commercial
Non-Insulated
Terminals

Filter
10-209-3-04
10-209-3-04
10-209-3-04
0.360" - - Swage Mount 0.141" 3/32 0.094 Brass Electro-Tin YES
10-216-1-095
10-216-1-095
10-216-1-095
0.312" - - Swage Mount 0.075" 1/32 0.094 Brass Hot Solder Dip NO
10-226-1-03
10-226-1-03
10-226-1-03
0.435" - - Swage Mount 0.075" 1/32 0.206 Brass Gold YES
10-240-4-05
10-240-4-05
10-240-4-05
0.529" - - Swage Mount 0.165" 1/8 0.116 Brass Electro Solder NO

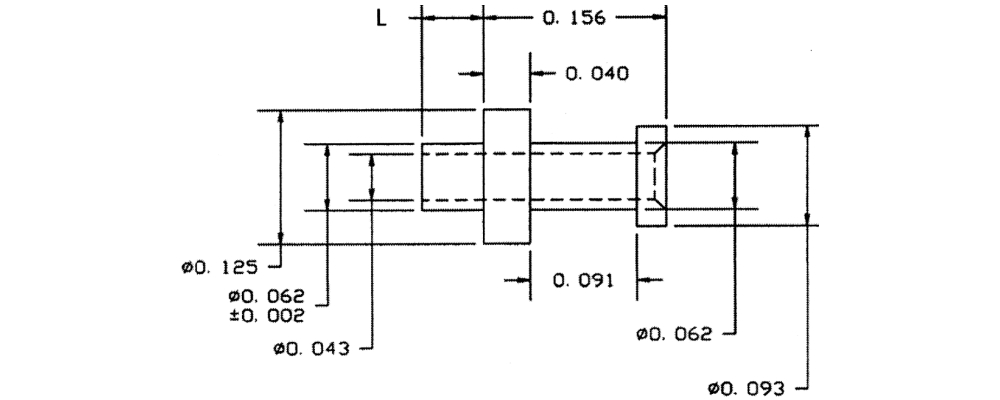

10-302-1-035
10-302-1-035
10-302-1-035
0.209" - - Swage Mount 0.053" 1/32 0.067 Brass Gold YES
10-310-3-035
10-310-3-035
10-310-3-035
0.338" - - Swage Mount 0.135" 3/32 0.116 Brass Gold YES

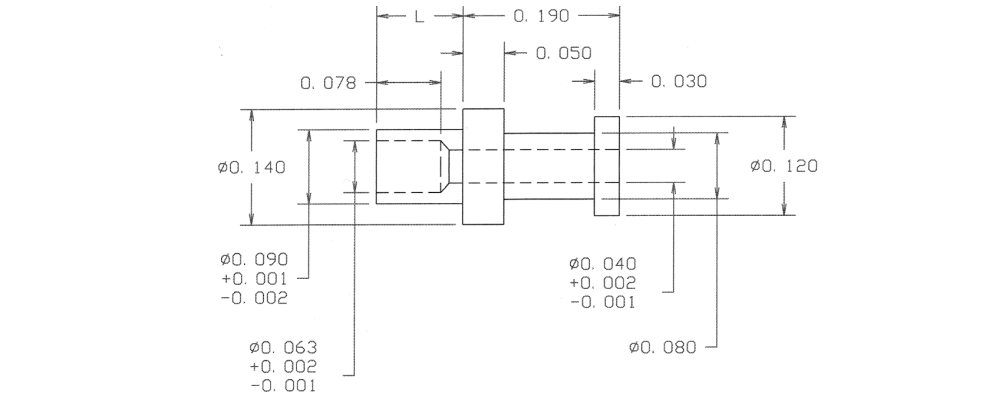

10-320-1-088
10-320-1-088
10-320-1-088
0.265" - - Swage Mount 0.075" 1/32 0.094 Brass Bright Tin-Lead NO

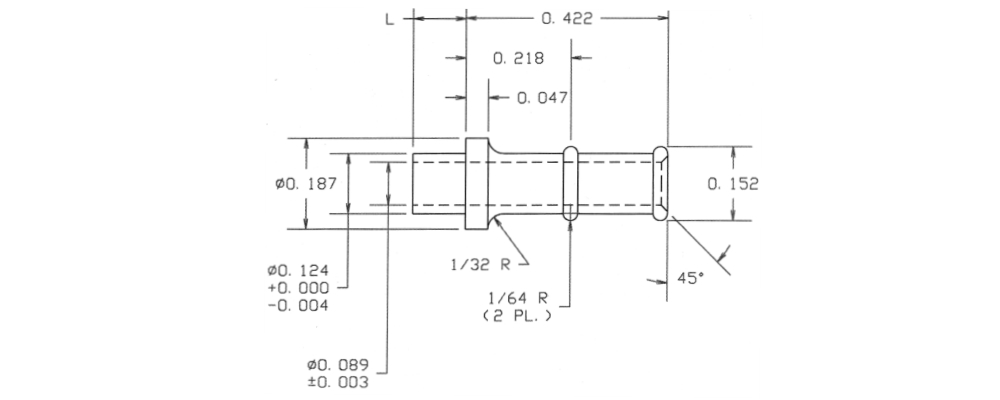

10-337-3-04
10-337-3-04
10-337-3-04
0.563" - - Swage Mount 0.141" 3/32 0.125 Brass Electro-Tin YES

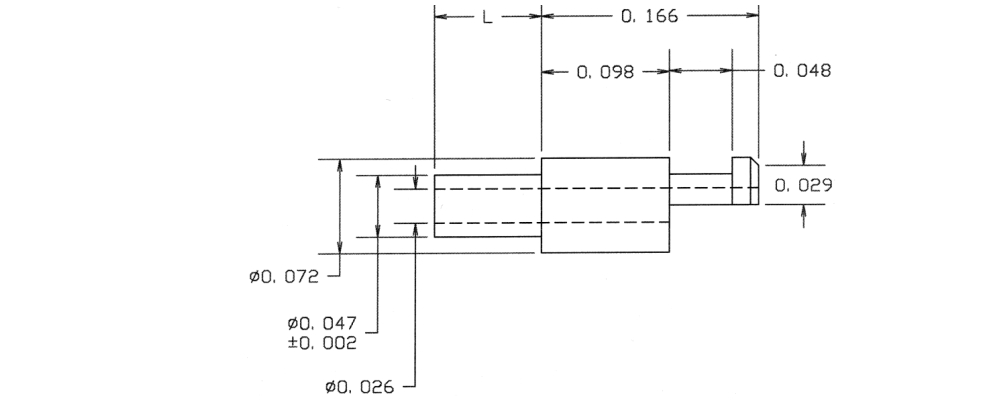

10-415-1-01
10-415-1-01
10-415-1-01
0.217" - - Swage Mount 0.051" 1/32 0.052 Brass Silver YES
10-422-5-03
10-422-5-03
10-422-5-03
0.507" - - Swage Mount 0.195" 5/32 0.116 Brass Gold YES
10-441-5-03
10-441-5-03
10-441-5-03
0.539" - - Swage Mount 0.195" 5/32 0.1405 Brass Gold YES

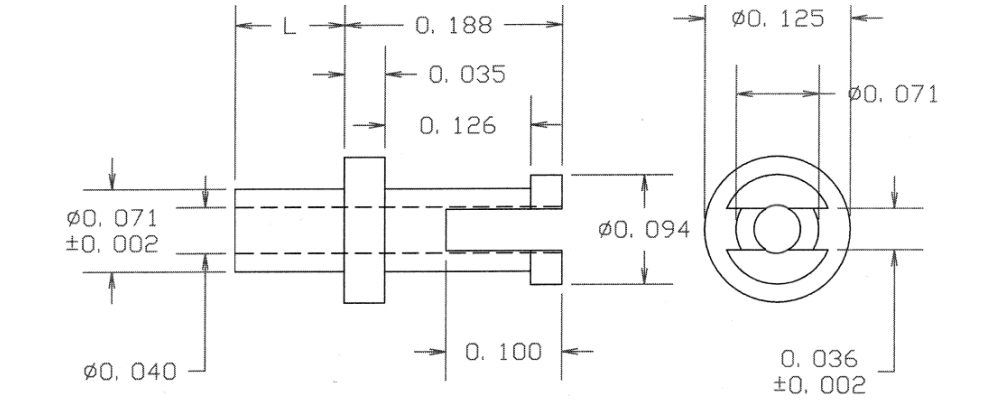

10-458-2-05
10-458-2-05
10-458-2-05
0.282" - - Swage Mount 0.094" 1/16 0.076 Brass Electro Solder NO

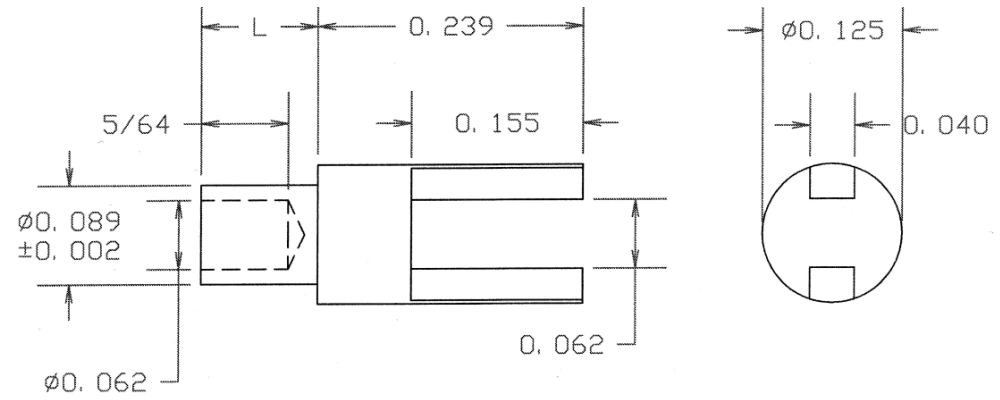

10-468-2-095
10-468-2-095
10-468-2-095
0.344" - - Swage Mount 0.105" 1/16 0.094 Brass Hot Solder Dip NO
10-501-4-035
10-501-4-035
10-501-4-035
0.331" - Turret/Turret Swage Mount 0.145" 1/8 0.076 Brass Gold YES
10-507-4-035
10-507-4-035
10-507-4-035
0.641" - Turret/Turret Swage Mount 0.172" 1/8 0.185 Brass Gold YES
10-513-3-035
10-513-3-035
10-513-3-035
0.454" - TURRET/DOUBLE TURRET Swage Mount 0.135" 3/32 0.129 Brass Gold YES
10-522-5-035
10-522-5-035
10-522-5-035
0.664" - Turret/Turret Swage Mount 0.195" 5/32 0.206 Brass Gold YES
10-542-4-035
10-542-4-035
10-542-4-035
0.519" - TURRET/DOUBLE TURRET Swage Mount 0.156" 1/8 0.094 Brass Gold YES
10-559-2-035
10-559-2-035
10-559-2-035
0.379" - TURRET/DOUBLE TURRET Swage Mount 0.084" 1/16 0.076 Brass Gold YES

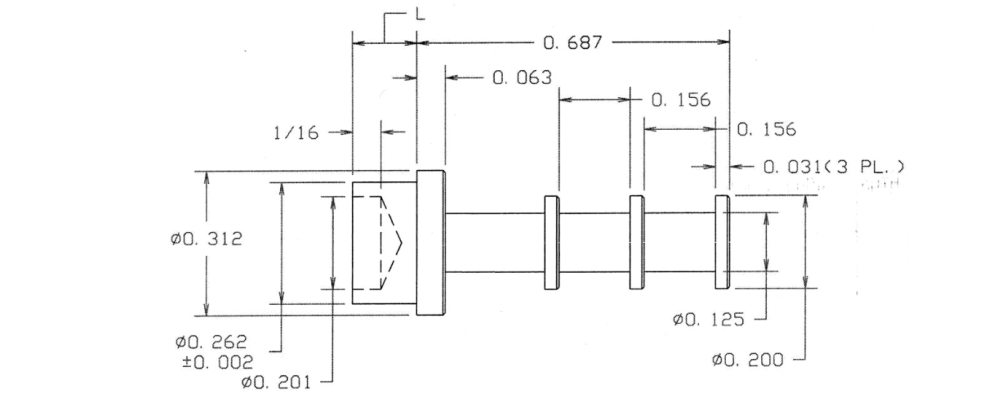

10-604-4-088
10-604-4-088
10-604-4-088
0.859" - - Swage Mount 0.172" 1/8 0.266 Brass Bright Tin-Lead NO
