Commercial
Non-Insulated
Terminals

Filter
10-862-3-04
10-862-3-04
10-862-3-04
0.375" 0.040 - Swage Mount 0.125" 3/32 0.094 Brass Electro-Tin YES

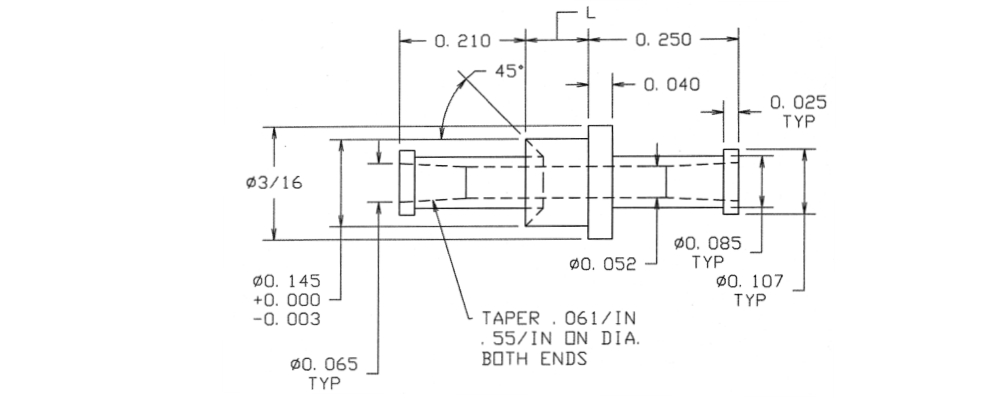

10-882-4-03
10-882-4-03
10-882-4-03
0.625" - Turret/Turret Swage Mount 0.165" 1/8 0.147 Brass Gold YES
10-902-3-01
10-902-3-01
10-902-3-01
0.313" 0.060 - Swage Mount 0.125" 3/32 0.064 Brass Silver YES
10-917-2-088
10-917-2-088
10-917-2-088
0.252" 0.040 - Swage Mount 0.082" 1/16 0.043 Brass Bright Tin-Lead NO

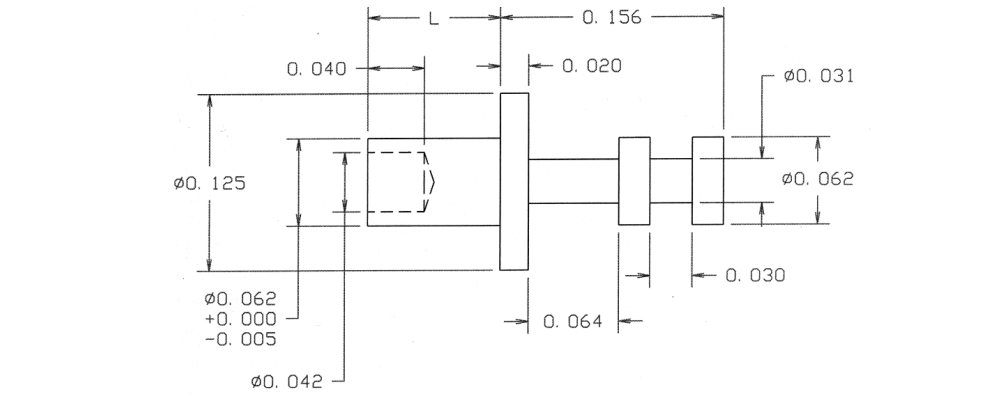

10-931-2-05
10-931-2-05
10-931-2-05
0.250" - - Swage Mount 0.094" 1/16 0.0635 Brass Electro Solder NO
10-974-3-04
10-974-3-04
10-974-3-04
1.133" 0.040 - Swage Mount 0.113" 3/32 0.043 Brass Electro-Tin YES

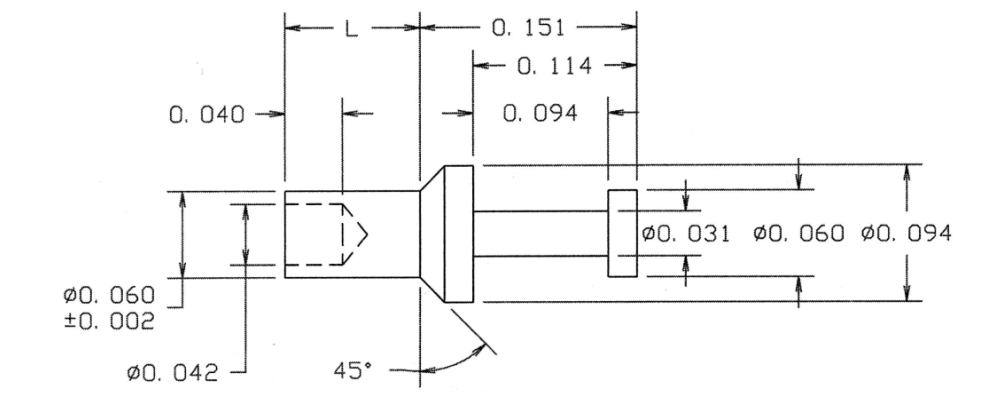

14-946-1-01
14-946-1-01
14-946-1-01
0.213" - - Swage Mount 0.062" 1/32 0.063 LEADED Red Brass Silver YES

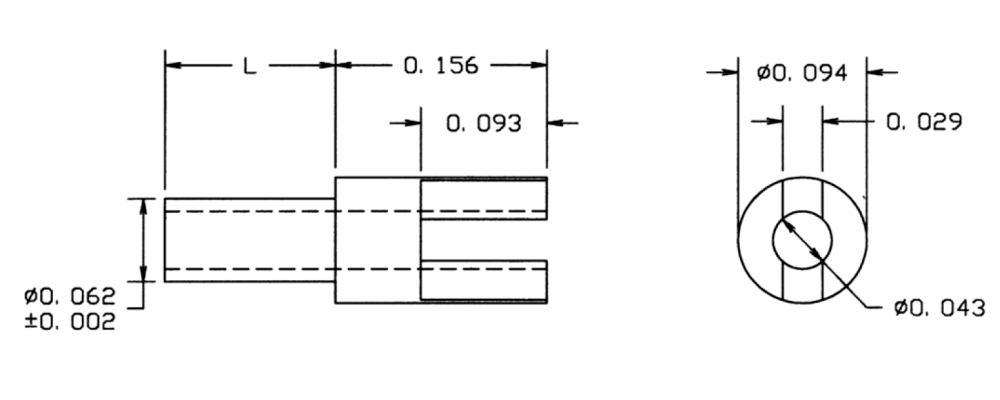

10-401-3-01
10-401-3-01
10-401-3-01
0.281" - - Swage Mount 0.125" 3/32 0.067 Brass Silver YES

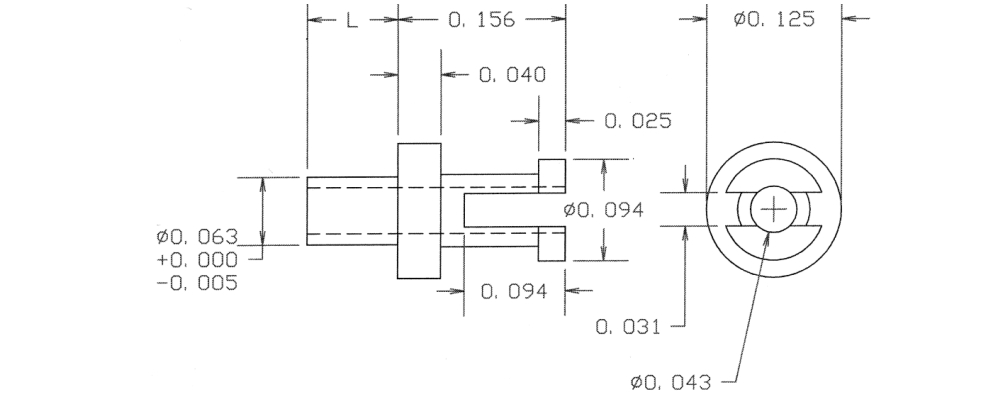

10-416-1-044
10-416-1-044
10-416-1-044
0.209" - - Swage Mount 0.053" 1/32 0.064 Brass Bright Tin YES
10-450-2-03
10-450-2-03
10-450-2-03
0.293" - - Swage Mount 0.105" 1/16 0.116 Brass Gold YES
10-472-3-05
10-472-3-05
10-472-3-05
0.479" - - Swage Mount 0.135" 3/32 0.116 Brass Electro Solder NO
14-414-4-035
14-414-4-035
14-414-4-035
0.302" - - Swage Mount 0.145" 1/8 0.052 LEADED Red Brass Gold YES

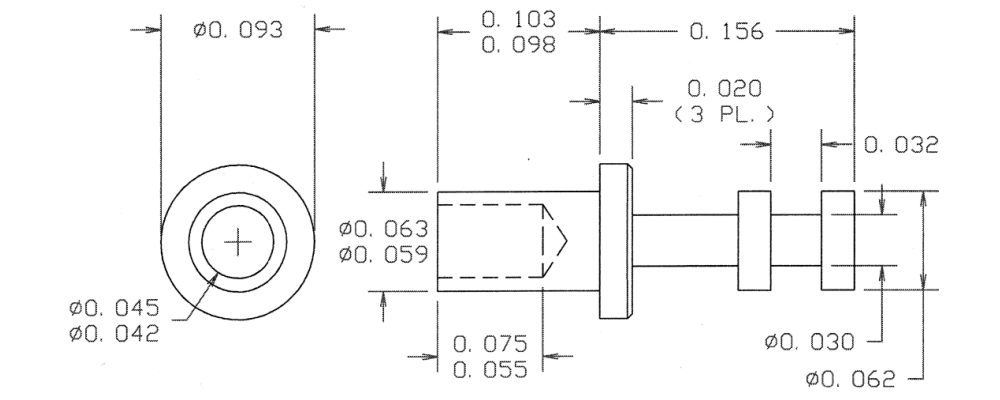

09-0056-2-01
09-0056-2-01
09-0056-2-01
0.259" - - Swage Mount 0.100" 1/16 0.067 Brass Silver YES

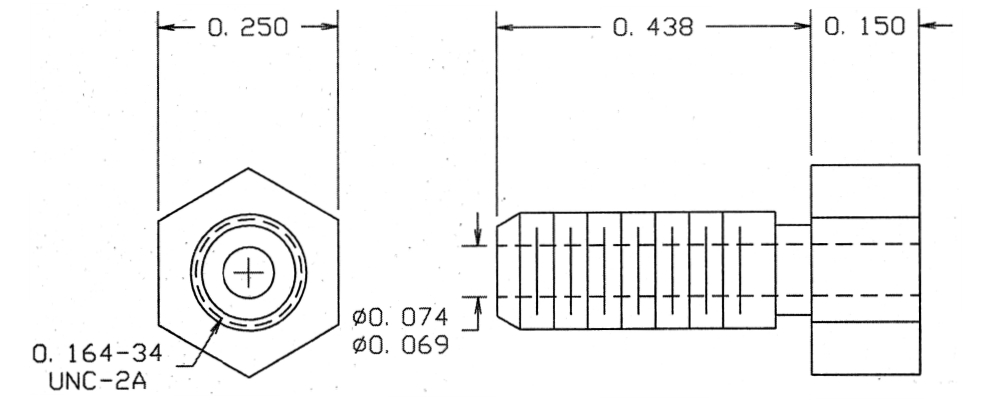

09-0144-2-01
09-0144-2-01
09-0144-2-01
0.588" - - 8-32 - - 8-32 THREAD Brass Silver YES
09-0181-1-044
09-0181-1-044
09-0181-1-044
0.492" - - Swage Mount 0.062" 1/32 0.062 Brass Bright Tin YES

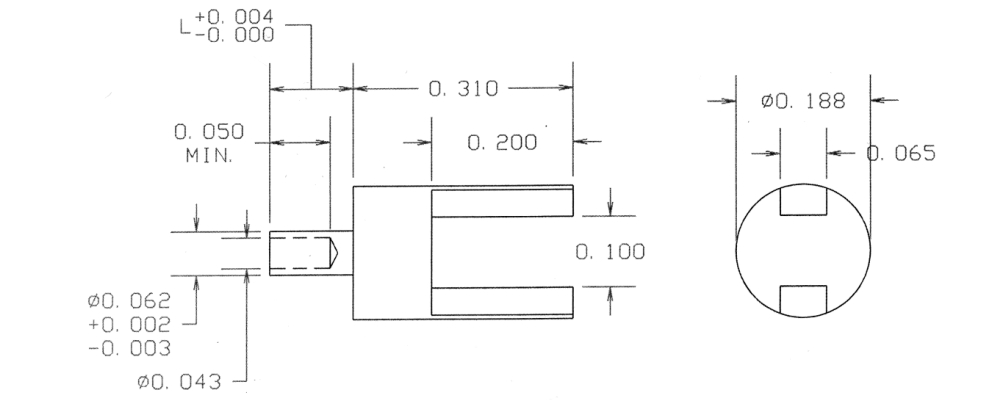

09-0219-4-05
09-0219-4-05
09-0219-4-05
0.458" - - Swage Mount 0.148" 1/8 0.067 Brass Electro Solder NO

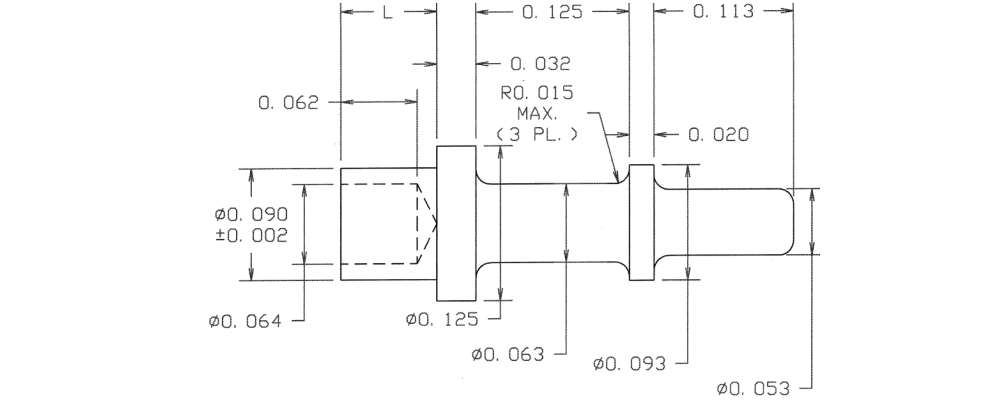

09-0268-2-03
09-0268-2-03
09-0268-2-03
0.399" - - Swage Mount 0.109" 1/16 0.094 Brass Gold YES

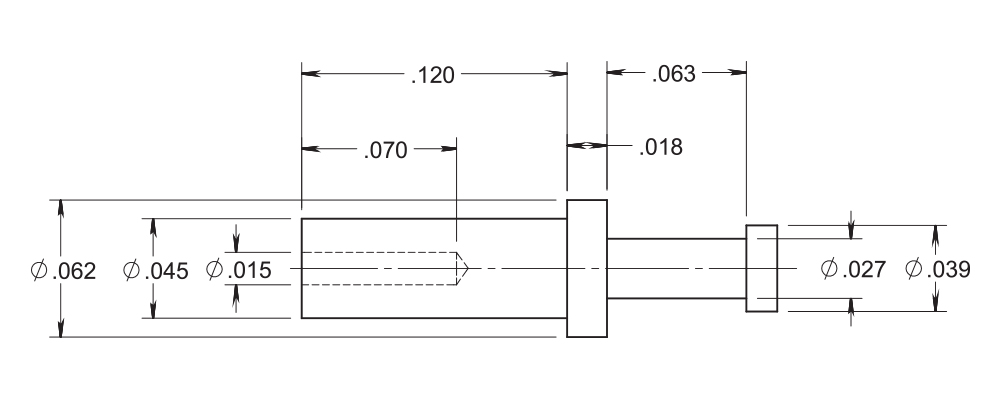

09-0316-3-088
09-0316-3-088
09-0316-3-088
0.215" - - Swage Mount 0.120" 3/32 0.047 Brass Bright Tin-Lead NO

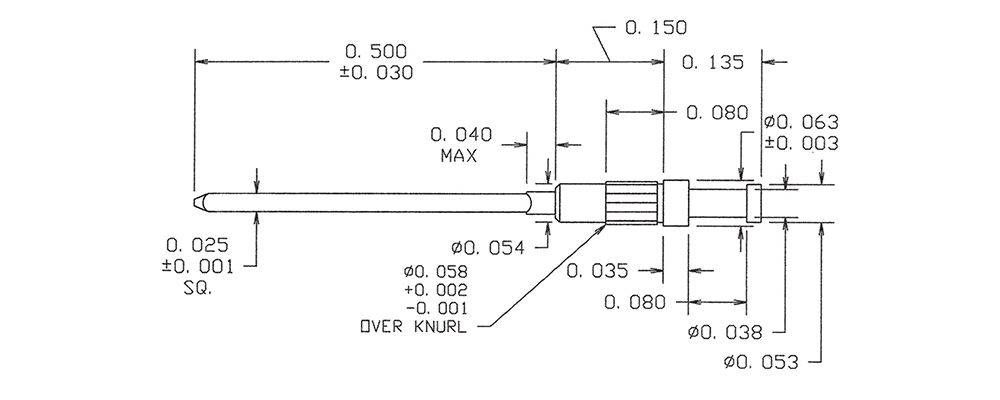

09-6001-1-05
09-6001-1-05
09-6001-1-05
0.785" 0.025 SQ. TURRET/SQUARE-WRAP PC PIN Press Fit/Solder 0.150" 1/16 TO 1/8 0.055 Brass Electro Solder NO
09-7020-3-03
09-7020-3-03
09-7020-3-03
0.257" - - Swage Mount 0.117" 3/32 0.059 Brass Gold YES
