Commercial
Non-Insulated
Terminals

Filter
09-7136-2-05
09-7136-2-05
09-7136-2-05
0.367" 0.040 - RIVET MOUNT 0.087" 1/16 0.044 Brass Electro Solder NO
09-7164-1-035
09-7164-1-035
09-7164-1-035
0.458" 0.0405 - RIVET MOUNT 0.088" 1/16 0.044 Brass Gold YES

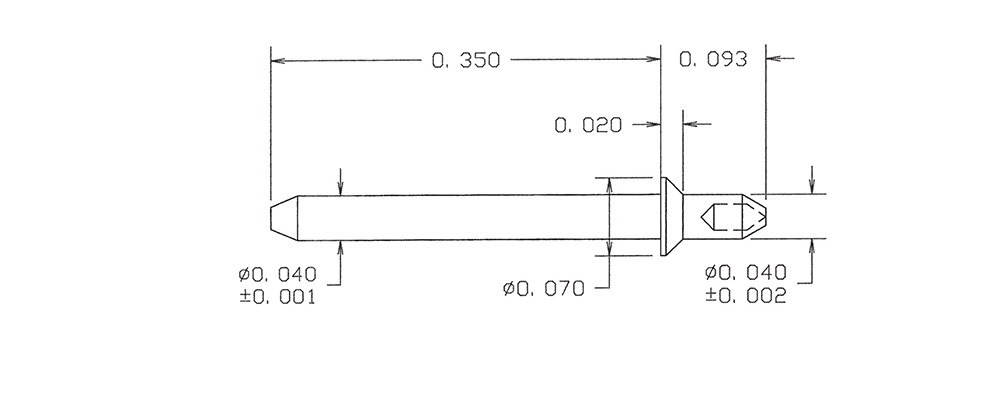

09-7197-1-088
09-7197-1-088
09-7197-1-088
0.443" 0.040 - RIVET MOUNT 0.048" 1/64 0.043 Brass Bright Tin-Lead NO

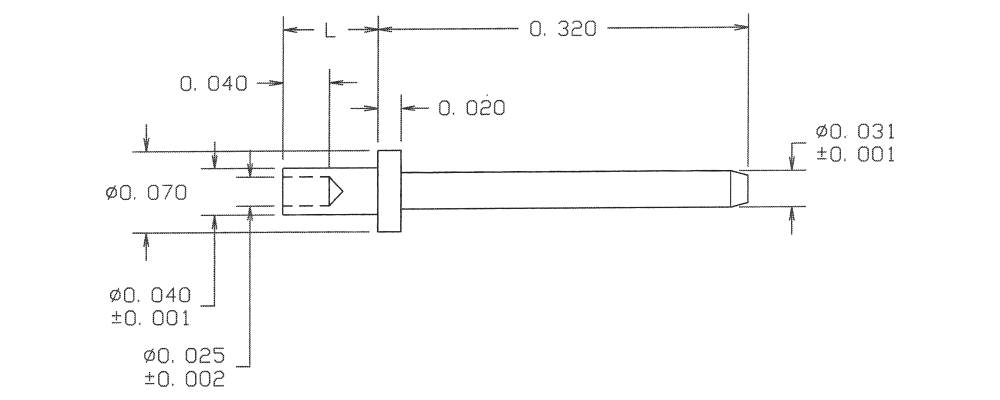

09-8044-1-04
09-8044-1-04
09-8044-1-04
0.371" 0.031 - Swage Mount 0.051" 1/32 0.043 Brass Electro-Tin YES

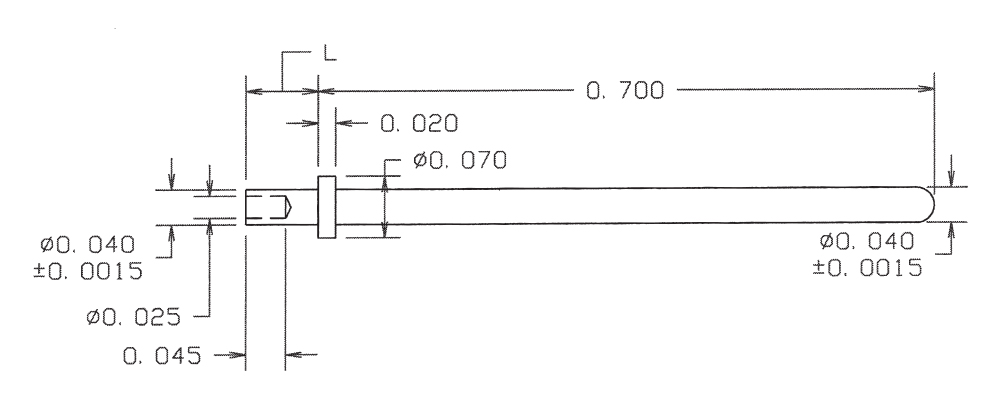

09-8076-1-088
09-8076-1-088
09-8076-1-088
0.751" 0.0405 - Swage Mount 0.051" 1/32 0.043 Brass Bright Tin-Lead NO

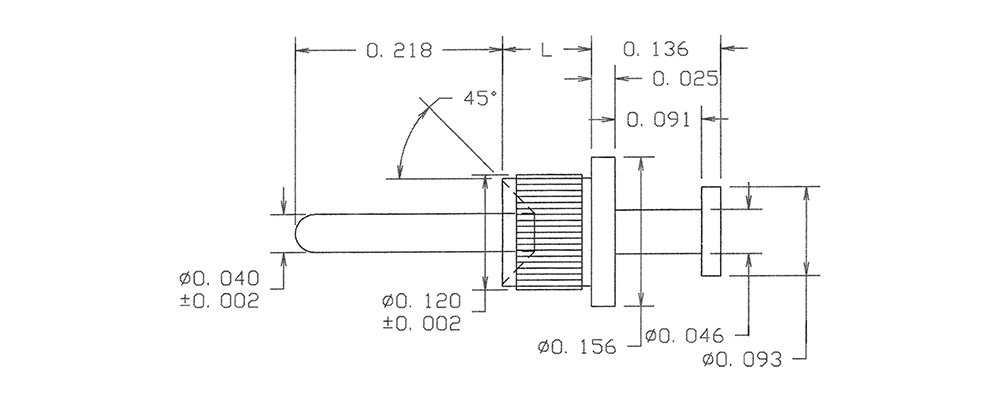

09-8136-3-04
09-8136-3-04
09-8136-3-04
0.479" 0.040 TURRET/PIN Swage Mount 0.125" 3/32 0.125 Brass Electro-Tin YES

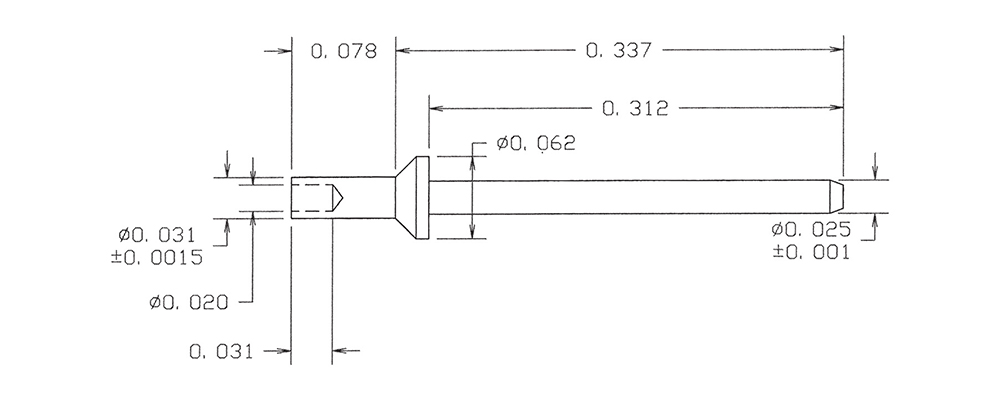

09-8170-2-01
09-8170-2-01
09-8170-2-01
0.415" 0.025 - Swage Mount 0.078" 1/16 0.035 Brass Silver YES
09-8296-2-01
09-8296-2-01
09-8296-2-01
0.382" 0.0475 - Swage Mount 0.082" 1/16 0.052 Brass Silver YES

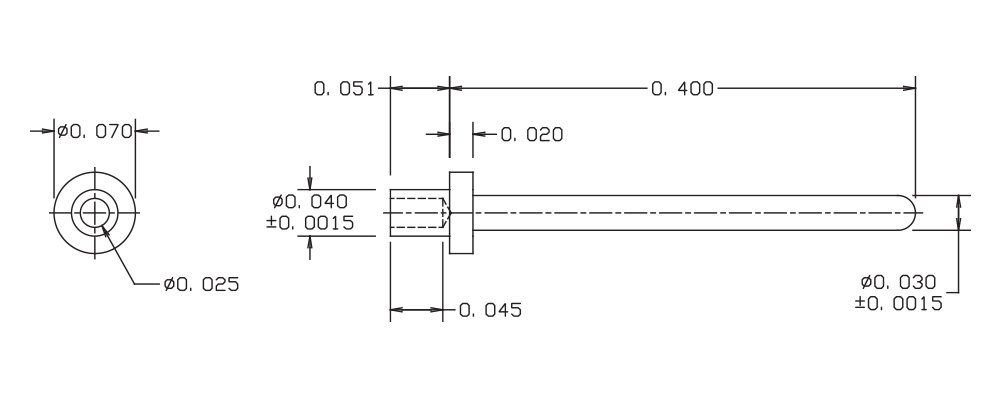

09-8463-1-04
09-8463-1-04
09-8463-1-04
0.451" 0.030 ± 0.015 - Swage Mount 0.051" 1/32 0.0465 Brass Electro-Tin YES

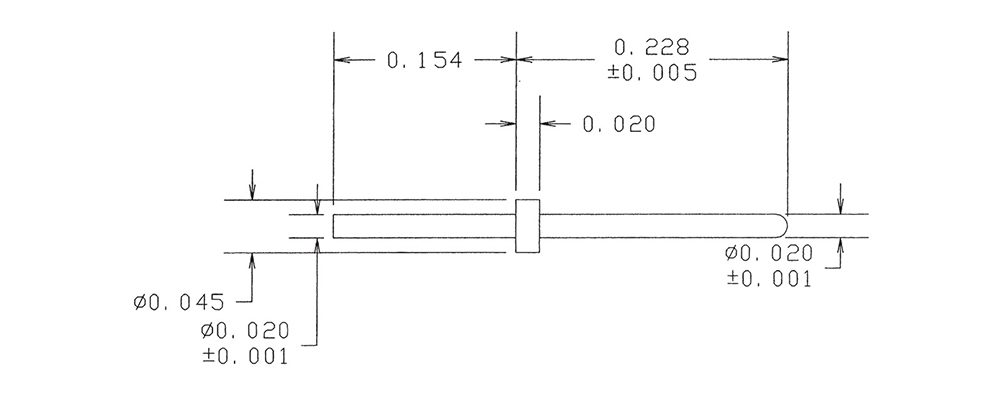

09-8654-2-04
09-8654-2-04
09-8654-2-04
0.382" 0.020 - Solder 0.154" 1/64 TO 1/8 0.022 Brass Electro-Tin YES

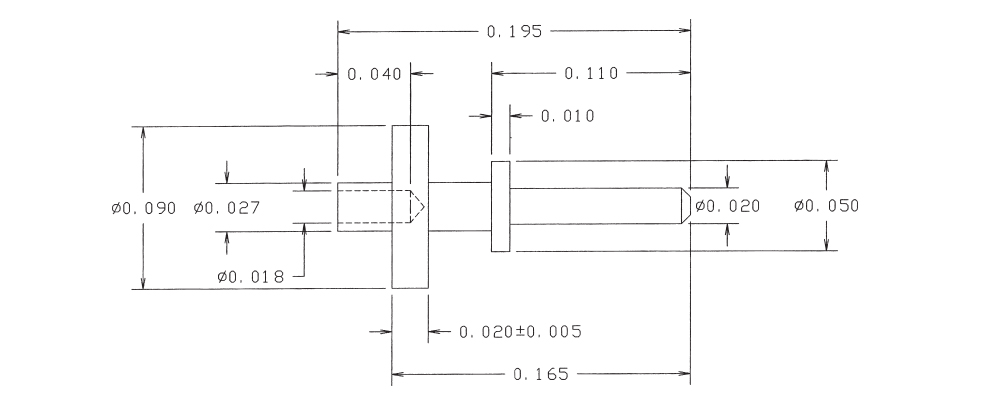

09-8768-11-01
09-8768-11-01
09-8768-11-01
0.195" 0.020 - Swage Mount 0.030" 1/64 0.028 Brass Silver YES
09-8849-1-03
09-8849-1-03
09-8849-1-03
0.815" 0.042 - Solder - - 0.044 Brass Gold YES
10-103-1-01
10-103-1-01
10-103-1-01
0.312" - - Swage Mount 0.078" 1/32 0.116 Brass Silver YES
10-109-2-044
10-109-2-044
10-109-2-044
0.253" - - Swage Mount 0.094" 1/16 0.094 Brass Bright Tin YES

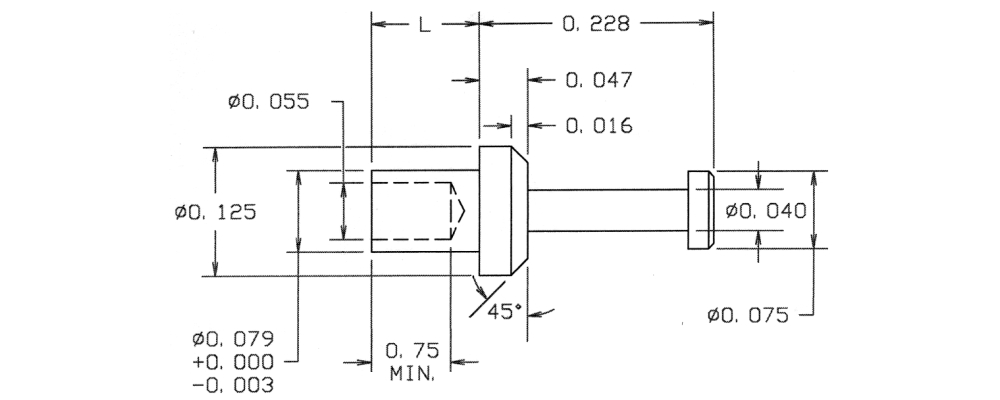

10-119-4-01
10-119-4-01
10-119-4-01
0.393" - - Swage Mount 0.165" 1/8 0.082 Brass Silver YES
10-201-1-035
10-201-1-035
10-201-1-035
0.237" - - Swage Mount 0.051" 1/32 0.076 Brass Gold YES
10-209-3-035
10-209-3-035
10-209-3-035
0.360" - - Swage Mount 0.141" 3/32 0.094 Brass Gold YES

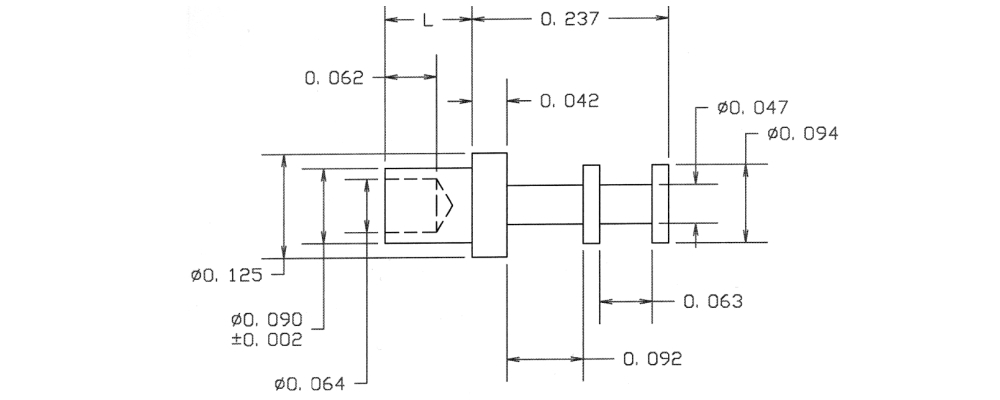

10-216-1-088
10-216-1-088
10-216-1-088
0.312" - - Swage Mount 0.075" 1/32 0.094 Brass Bright Tin-Lead NO
10-226-1-01
10-226-1-01
10-226-1-01
0.435" - - Swage Mount 0.075" 1/32 0.206 Brass Silver YES
10-240-4-044
10-240-4-044
10-240-4-044
0.529" - - Swage Mount 0.165" 1/8 0.116 Brass Bright Tin YES
