Commercial
Non-Insulated
Terminals

Filter
10-522-4-088
10-522-4-088
10-522-4-088
0.634" - Turret/Turret Swage Mount 0.165" 1/8 0.206 Brass Bright Tin-Lead NO

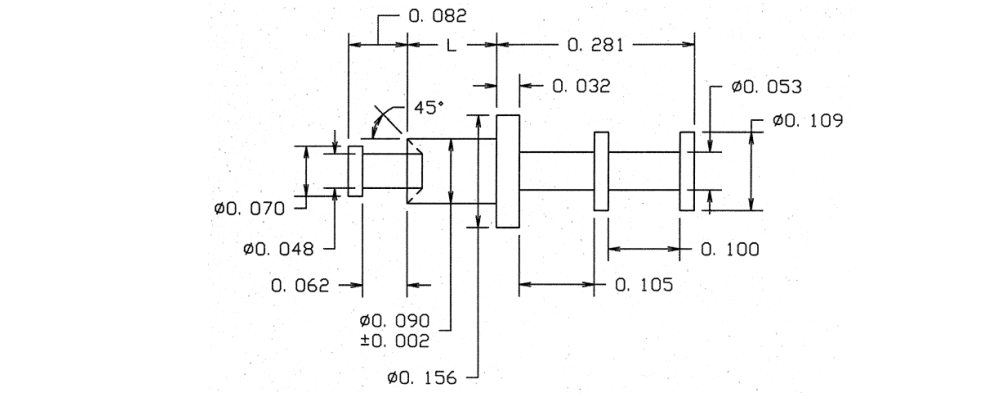

10-542-3-088
10-542-3-088
10-542-3-088
0.488" - TURRET/DOUBLE TURRET Swage Mount 0.125" 3/32 0.094 Brass Bright Tin-Lead NO
10-559-1-088
10-559-1-088
10-559-1-088
0.348" - TURRET/DOUBLE TURRET Swage Mount 0.053" 1/32 0.076 Brass Bright Tin-Lead NO
10-604-4-035
10-604-4-035
10-604-4-035
0.859" - - Swage Mount 0.172" 1/8 0.266 Brass Gold YES
10-704-8-03
10-704-8-03
10-704-8-03
0.406" - - 4-40 - - 4-40 THREAD Brass Gold YES
10-8011-4-044
10-8011-4-044
10-8011-4-044
0.422" - - Swage Mount 0.172" 1/8 0.116 Brass Bright Tin YES
10-8022-3-03
10-8022-3-03
10-8022-3-03
0.683" 0.040 - Swage Mount 0.113" 3/32 0.043 Brass Gold YES
10-806-6-03
10-806-6-03
10-806-6-03
0.661" - - Swage Mount 0.234" 3/16 0.094 Brass Gold YES
10-812-3-05
10-812-3-05
10-812-3-05
0.625" - Turret/Turret Swage Mount 0.125" 3/32 0.147 Brass Electro Solder NO
10-823-1-03
10-823-1-03
10-823-1-03
0.534" 0.037 (TAPER) DOUBLE TURRET/TAPER PIN Swage Mount 0.057" 1/32 0.120 Brass Gold YES
10-832-4-01
10-832-4-01
10-832-4-01
0.406" 0.050 - Swage Mount 0.156" 1/8 0.064 Brass Silver YES

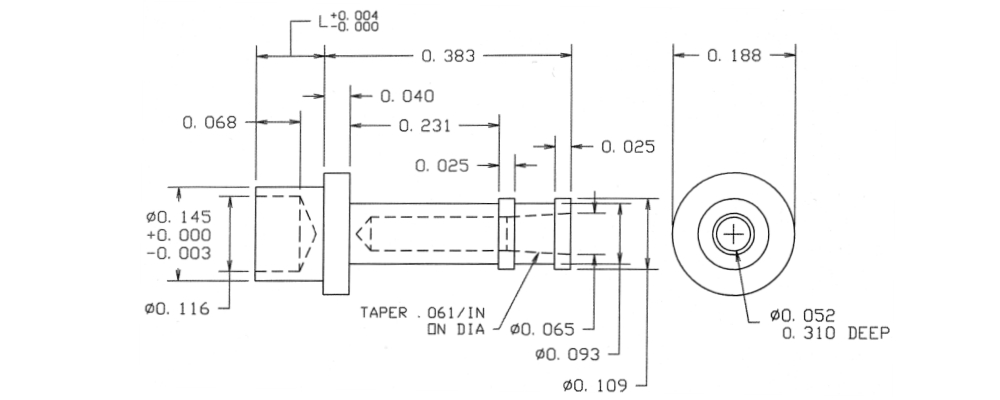

10-840-2-044
10-840-2-044
10-840-2-044
0.488" - - Swage Mount 0.105" 1/16 0.1495 Brass Bright Tin YES
10-862-3-03
10-862-3-03
10-862-3-03
0.375" 0.040 - Swage Mount 0.125" 3/32 0.094 Brass Gold YES
10-882-3-088
10-882-3-088
10-882-3-088
0.595" - Turret/Turret Swage Mount 0.135" 3/32 0.147 Brass Bright Tin-Lead NO

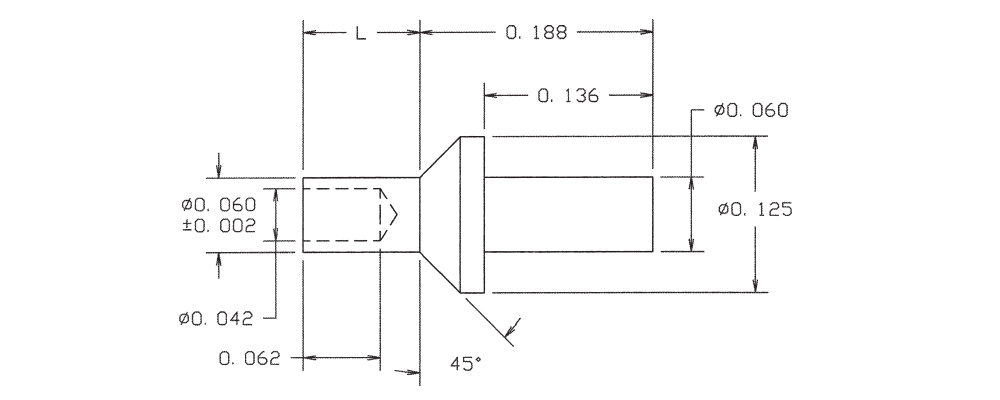

10-902-2-05
10-902-2-05
10-902-2-05
0.282" 0.060 - Swage Mount 0.094" 1/16 0.064 Brass Electro Solder NO
10-917-2-044
10-917-2-044
10-917-2-044
0.252" 0.040 - Swage Mount 0.082" 1/16 0.043 Brass Bright Tin YES
10-931-2-04
10-931-2-04
10-931-2-04
0.250" - - Swage Mount 0.094" 1/16 0.0635 Brass Electro-Tin YES
10-974-3-03
10-974-3-03
10-974-3-03
1.133" 0.040 - Swage Mount 0.113" 3/32 0.043 Brass Gold YES
14-916-3-05
14-916-3-05
14-916-3-05
0.433" 0.040 - Swage Mount 0.113" 3/32 0.043 LEADED Red Brass Electro Solder NO
10-401-2-05
10-401-2-05
10-401-2-05
0.250" - - Swage Mount 0.094" 1/16 0.067 Brass Electro Solder NO
