Commercial
Non-Insulated
Terminals

Filter
09-8463-1-03
09-8463-1-03
09-8463-1-03
0.451" 0.030 ± 0.015 - Swage Mount 0.051" 1/32 0.0465 Brass Gold YES

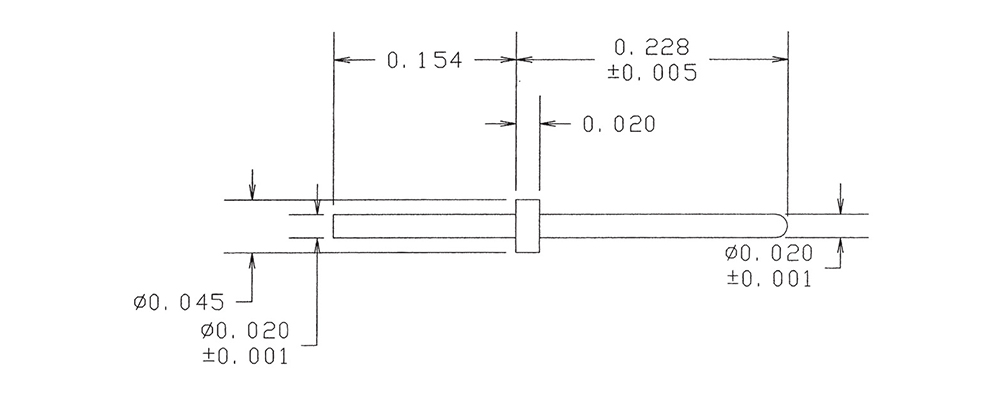

09-8654-2-03
09-8654-2-03
09-8654-2-03
0.382" 0.020 - Solder 0.154" 1/64 TO 1/8 0.022 Brass Gold YES
09-8766-2-05
09-8766-2-05
09-8766-2-05
0.719" 0.090 - Swage Mount 0.094" 1/16 0.094 Brass Electro Solder NO

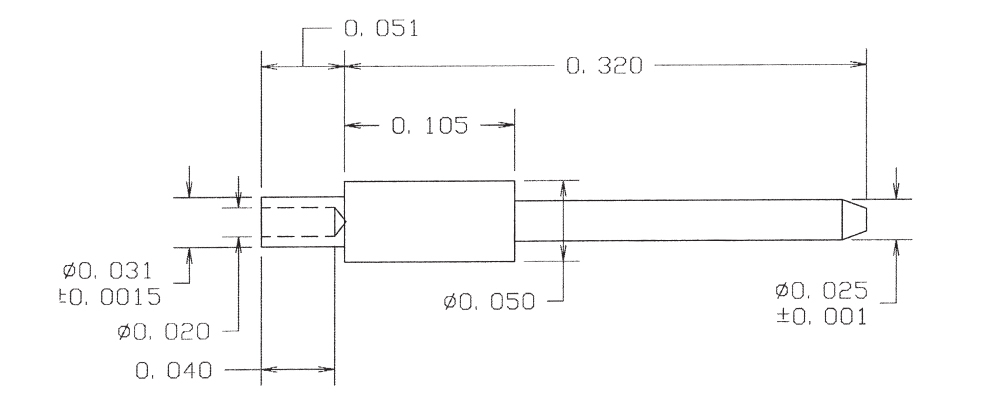

09-8848-1-088
09-8848-1-088
09-8848-1-088
0.371" 0.025 - Swage Mount 0.051" 1/32 0.035 Brass Bright Tin-Lead NO
10-102-4-088
10-102-4-088
10-102-4-088
0.359" - - Swage Mount 0.172" 1/8 0.082 Brass Bright Tin-Lead NO
10-109-2-035
10-109-2-035
10-109-2-035
0.253" - - Swage Mount 0.094" 1/16 0.094 Brass Gold YES

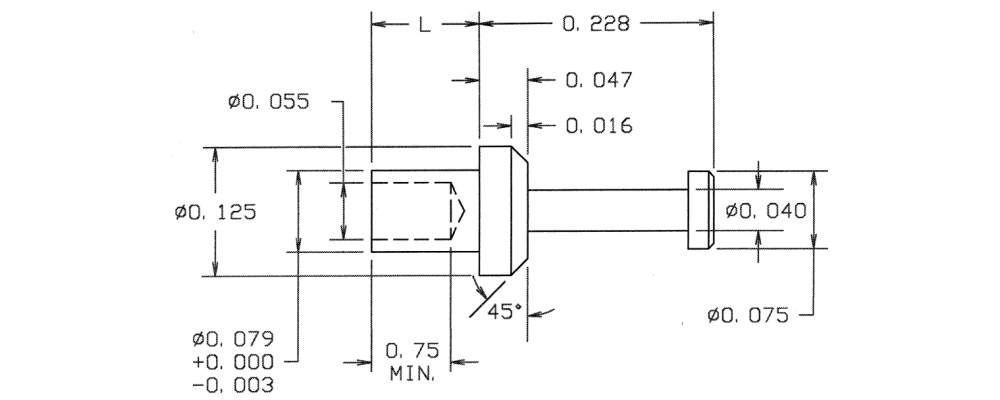

10-119-3-088
10-119-3-088
10-119-3-088
0.363" - - Swage Mount 0.135" 3/32 0.082 Brass Bright Tin-Lead NO
10-201-1-01
10-201-1-01
10-201-1-01
0.237" - - Swage Mount 0.051" 1/32 0.076 Brass Silver YES
10-209-3-01
10-209-3-01
10-209-3-01
0.360" - - Swage Mount 0.141" 3/32 0.094 Brass Silver YES
10-216-1-044
10-216-1-044
10-216-1-044
0.312" - - Swage Mount 0.075" 1/32 0.094 Brass Bright Tin YES
10-225-6-088
10-225-6-088
10-225-6-088
0.363" - - Swage Mount 0.209" 3/16 0.067 Brass Bright Tin-Lead NO
10-240-4-035
10-240-4-035
10-240-4-035
0.529" - - Swage Mount 0.165" 1/8 0.116 Brass Gold YES
10-301-4-088
10-301-4-088
10-301-4-088
0.343" - - Swage Mount 0.156" 1/8 0.076 Brass Bright Tin-Lead NO
10-310-2-088
10-310-2-088
10-310-2-088
0.308" - - Swage Mount 0.105" 1/16 0.116 Brass Bright Tin-Lead NO
10-320-1-04
10-320-1-04
10-320-1-04
0.265" - - Swage Mount 0.075" 1/32 0.094 Brass Electro-Tin YES

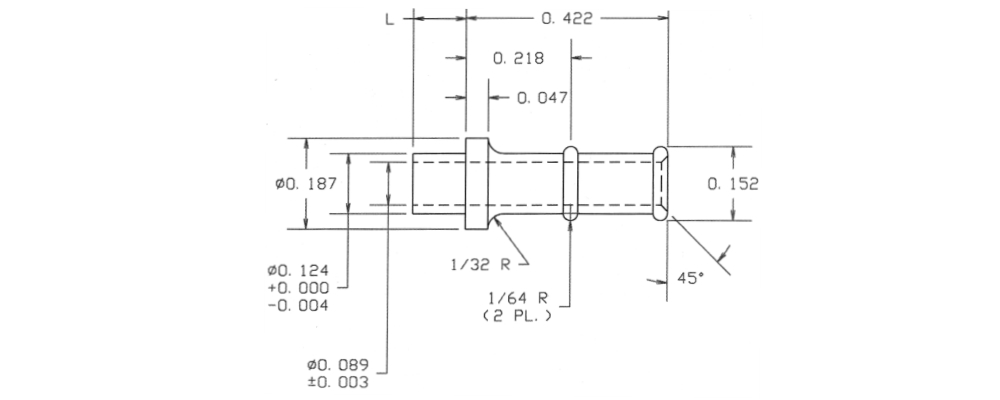

10-337-3-01
10-337-3-01
10-337-3-01
0.563" - - Swage Mount 0.141" 3/32 0.125 Brass Silver YES
10-411-6-044
10-411-6-044
10-411-6-044
0.562" - - Swage Mount 0.234" 3/16 0.116 Brass Bright Tin YES

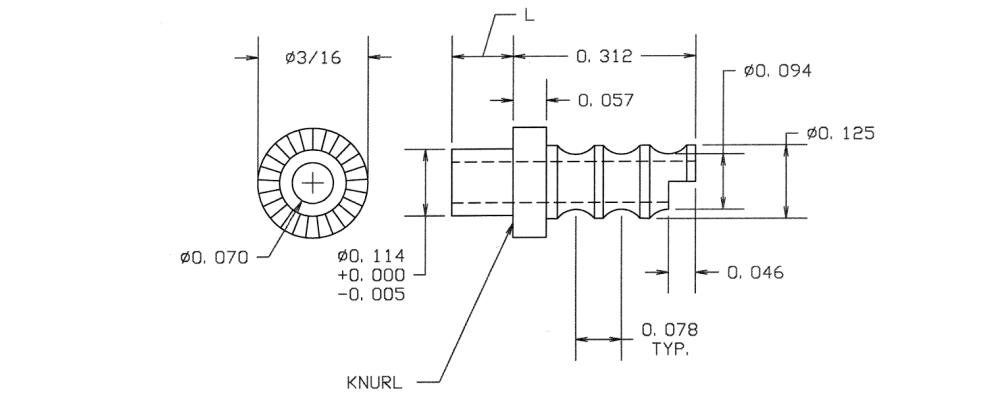

10-422-4-05
10-422-4-05
10-422-4-05
0.477" - - Swage Mount 0.165" 1/8 0.116 Brass Electro Solder NO
10-441-4-05
10-441-4-05
10-441-4-05
0.509" - - Swage Mount 0.165" 1/8 0.1405 Brass Electro Solder NO

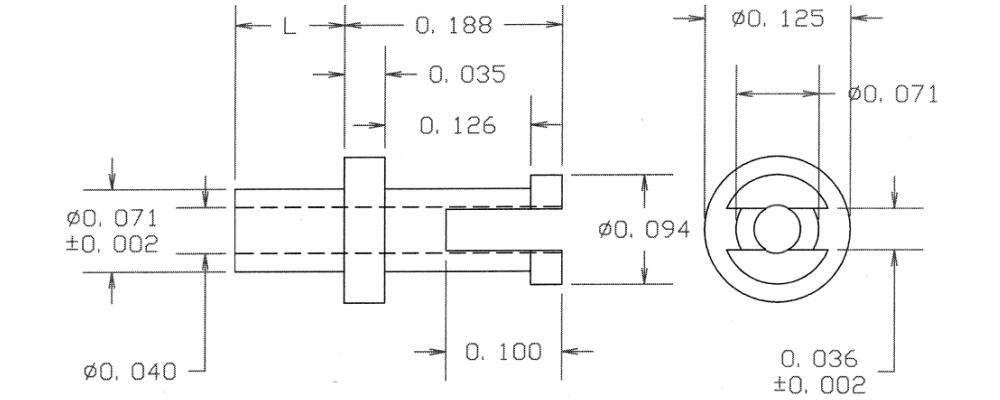

10-458-2-035
10-458-2-035
10-458-2-035
0.282" - - Swage Mount 0.094" 1/16 0.076 Brass Gold YES
