Commercial
Non-Insulated
Terminals

Filter
09-0053-2-044
09-0053-2-044
09-0053-2-044
0.269" - - Press Fit/Solder 0.078" 1/16 0.073 Brass Bright Tin YES
09-0142-2-044
09-0142-2-044
09-0142-2-044
0.344" - - Swage Mount 0.094" 1/16 0.116 Brass Bright Tin YES
09-0181-1-03
09-0181-1-03
09-0181-1-03
0.492" - - Swage Mount 0.062" 1/32 0.062 Brass Gold YES

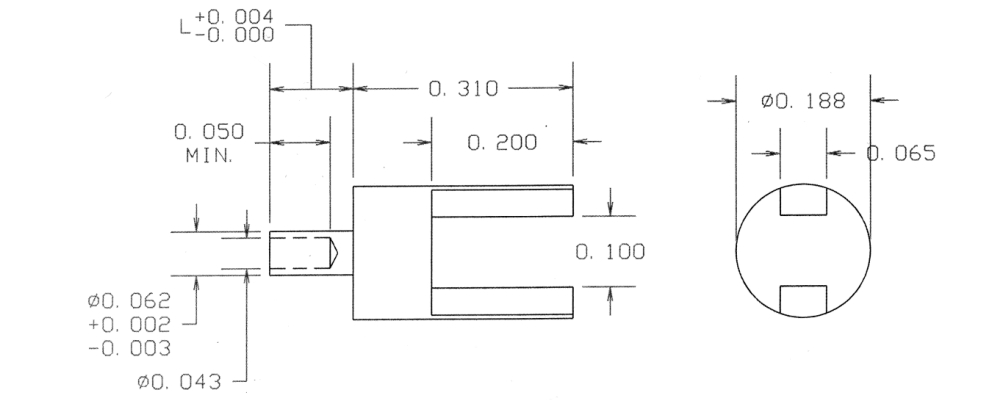

09-0219-4-035
09-0219-4-035
09-0219-4-035
0.458" - - Swage Mount 0.148" 1/8 0.067 Brass Gold YES
09-0268-1-088
09-0268-1-088
09-0268-1-088
0.368" - - Swage Mount 0.078" 1/32 0.094 Brass Bright Tin-Lead NO

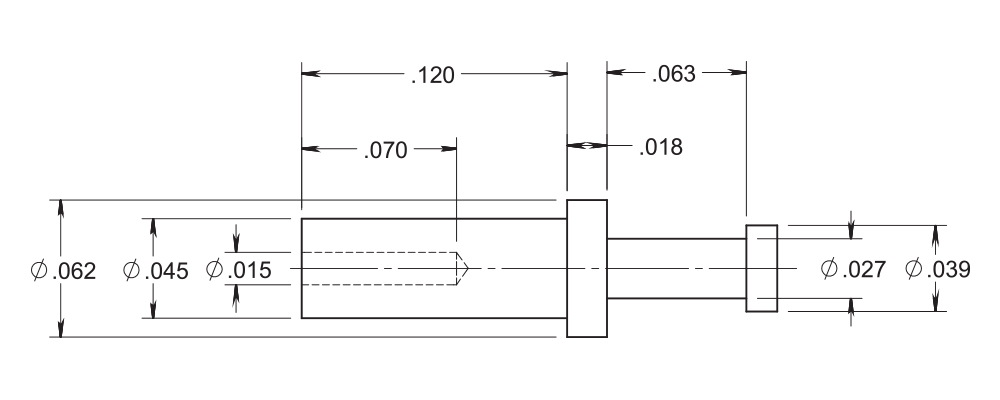

09-0316-3-04
09-0316-3-04
09-0316-3-04
0.215" - - Swage Mount 0.120" 3/32 0.047 Brass Electro-Tin YES

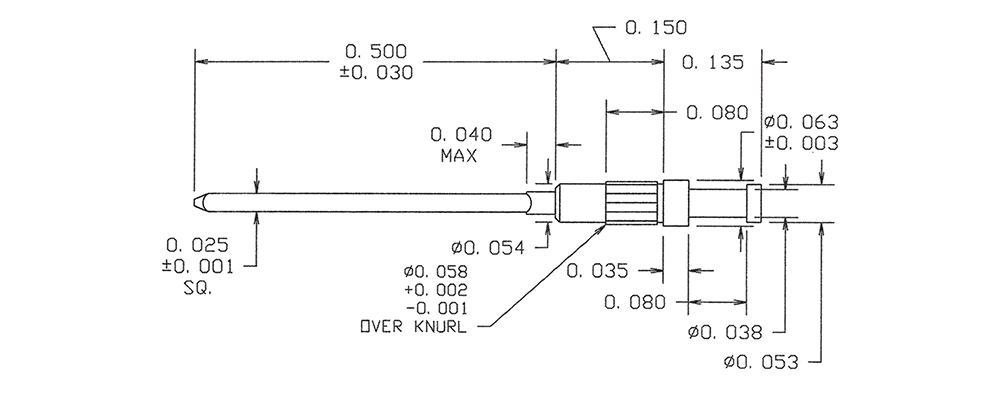

09-6001-1-035
09-6001-1-035
09-6001-1-035
0.785" 0.025 SQ. TURRET/SQUARE-WRAP PC PIN Press Fit/Solder 0.150" 1/16 TO 1/8 0.055 Brass Gold YES

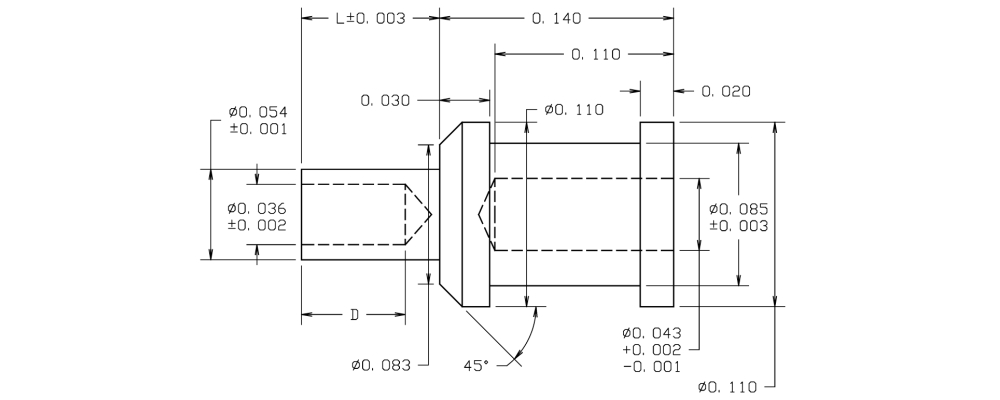

09-7020-2B-05
09-7020-2B-05
09-7020-2B-05
0.245" - - Swage Mount 0.105" 1/16 0.059 Brass Electro Solder NO

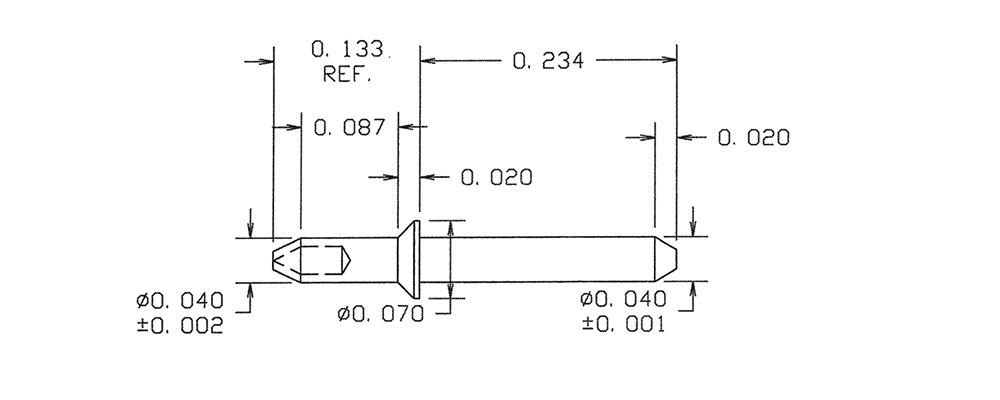

09-7136-2-035
09-7136-2-035
09-7136-2-035
0.367" 0.040 - RIVET MOUNT 0.087" 1/16 0.044 Brass Gold YES
09-7163-1-088
09-7163-1-088
09-7163-1-088
0.183" 0.026 - RIVET MOUNT 0.051" 1/32 0.035 Brass Bright Tin-Lead NO
09-7197-1-04
09-7197-1-04
09-7197-1-04
0.443" 0.040 - RIVET MOUNT 0.048" 1/64 0.043 Brass Electro-Tin YES

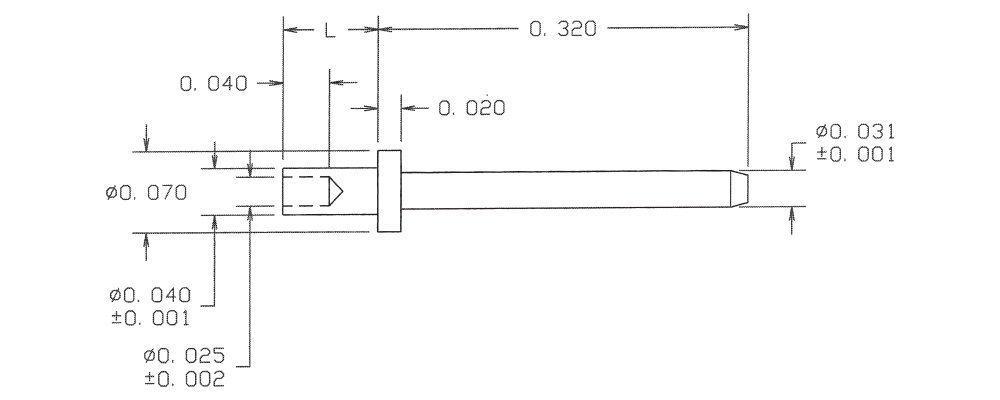

09-8044-1-01
09-8044-1-01
09-8044-1-01
0.371" 0.031 - Swage Mount 0.051" 1/32 0.043 Brass Silver YES
09-8076-1-04
09-8076-1-04
09-8076-1-04
0.751" 0.0405 - Swage Mount 0.051" 1/32 0.043 Brass Electro-Tin YES
09-8136-3-01
09-8136-3-01
09-8136-3-01
0.479" 0.040 TURRET/PIN Swage Mount 0.125" 3/32 0.125 Brass Silver YES

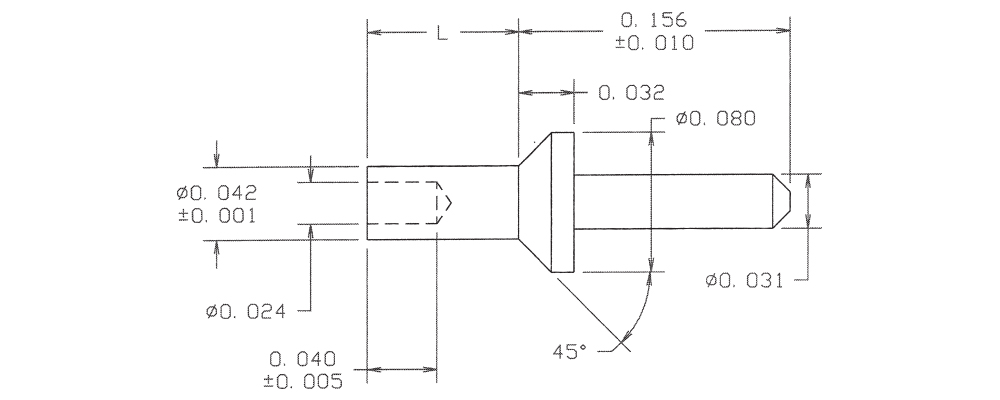

09-8169-2-044
09-8169-2-044
09-8169-2-044
0.243" 0.031 - Swage Mount 0.087" 1/16 0.0465 Brass Bright Tin YES
09-8260-2-044
09-8260-2-044
09-8260-2-044
0.234" - - Press Fit/Solder 0.078" 1/16 0.104 Brass Bright Tin YES
09-8463-1-01
09-8463-1-01
09-8463-1-01
0.451" 0.030 ± 0.015 - Swage Mount 0.051" 1/32 0.0465 Brass Silver YES

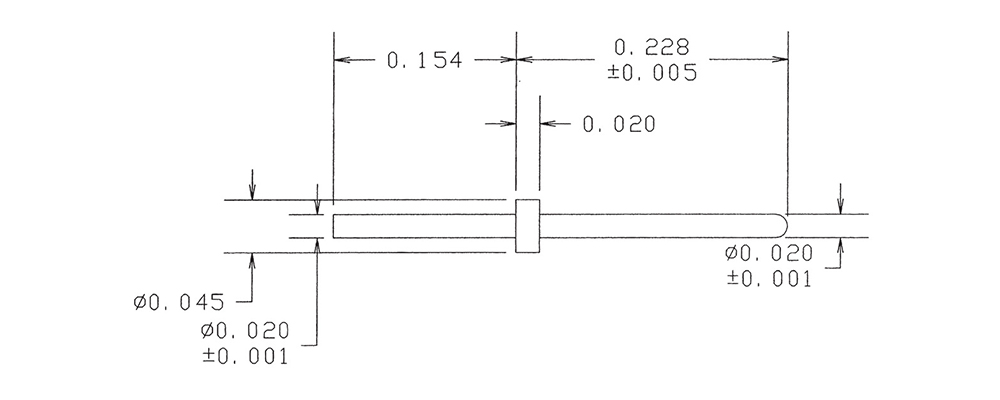

09-8654-2-01
09-8654-2-01
09-8654-2-01
0.382" 0.020 - Solder 0.154" 1/64 TO 1/8 0.022 Brass Silver YES
09-8766-2-044
09-8766-2-044
09-8766-2-044
0.719" 0.090 - Swage Mount 0.094" 1/16 0.094 Brass Bright Tin YES

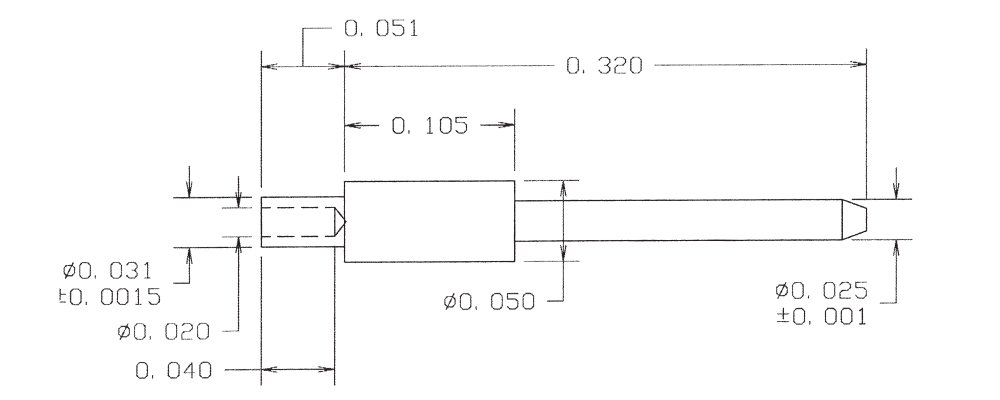

09-8848-1-05
09-8848-1-05
09-8848-1-05
0.371" 0.025 - Swage Mount 0.051" 1/32 0.035 Brass Electro Solder NO
