Commercial
Non-Insulated
Terminals

Filter
10-704-8-01
10-704-8-01
10-704-8-01
0.406" - - 4-40 - - 4-40 THREAD Brass Silver YES
10-8011-4-04
10-8011-4-04
10-8011-4-04
0.422" - - Swage Mount 0.172" 1/8 0.116 Brass Electro-Tin YES
10-8022-3-01
10-8022-3-01
10-8022-3-01
0.683" 0.040 - Swage Mount 0.113" 3/32 0.043 Brass Silver YES

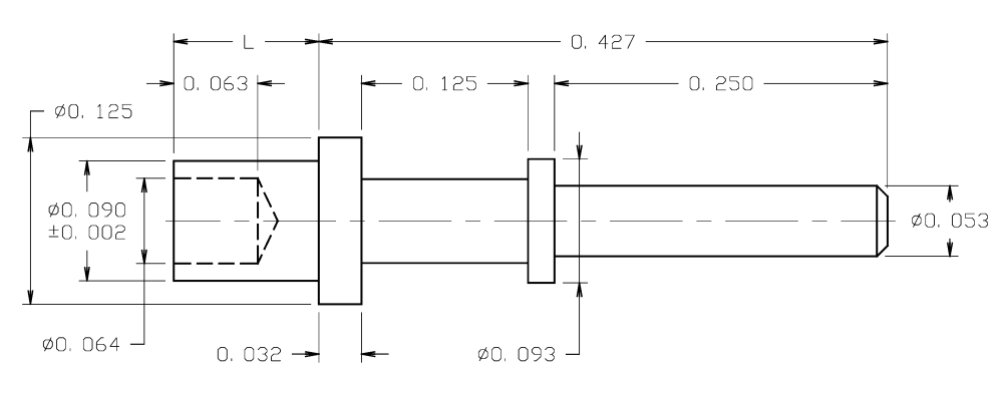

10-806-6-01
10-806-6-01
10-806-6-01
0.661" - - Swage Mount 0.234" 3/16 0.094 Brass Silver YES

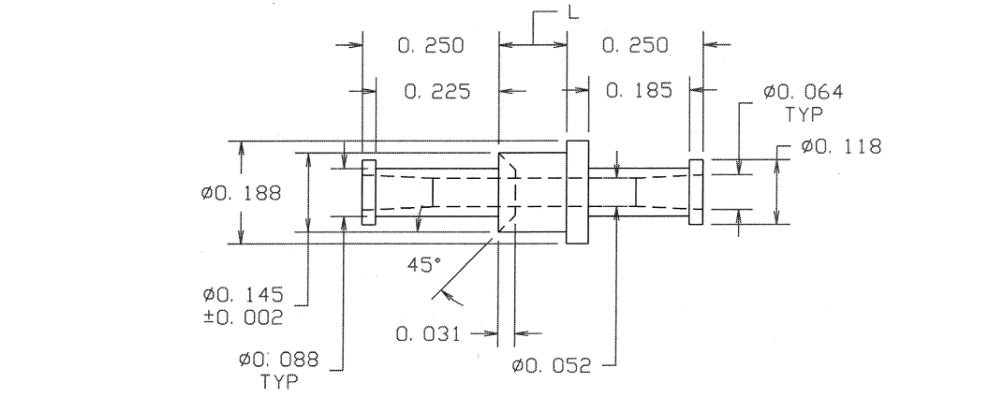

10-812-3-044
10-812-3-044
10-812-3-044
0.625" - Turret/Turret Swage Mount 0.125" 3/32 0.147 Brass Bright Tin YES

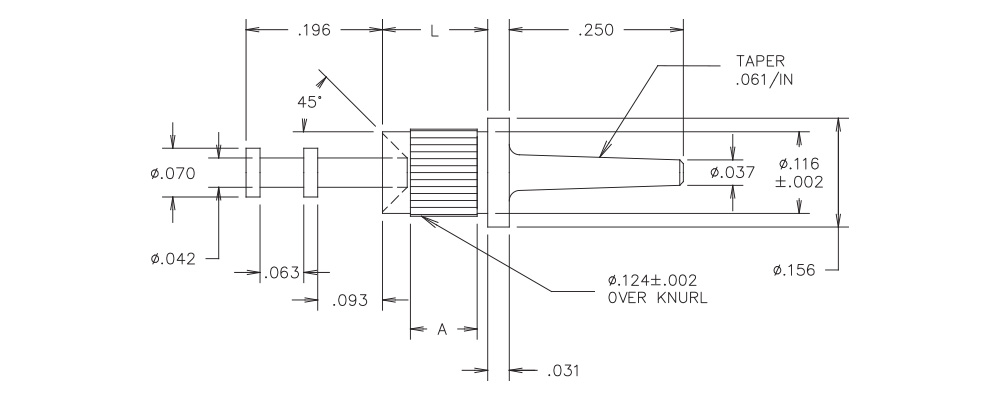

10-823-1-01
10-823-1-01
10-823-1-01
0.534" 0.037 (TAPER) DOUBLE TURRET/TAPER PIN Swage Mount 0.057" 1/32 0.120 Brass Silver YES
10-832-3-088
10-832-3-088
10-832-3-088
0.375" 0.050 - Swage Mount 0.125" 3/32 0.064 Brass Bright Tin-Lead NO

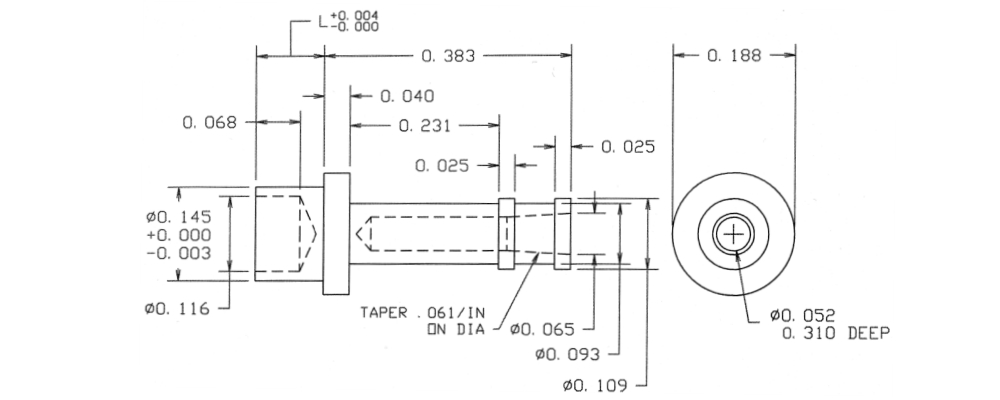

10-840-2-04
10-840-2-04
10-840-2-04
0.488" - - Swage Mount 0.105" 1/16 0.1495 Brass Electro-Tin YES
10-862-3-01
10-862-3-01
10-862-3-01
0.375" 0.040 - Swage Mount 0.125" 3/32 0.094 Brass Silver YES
10-882-3-05
10-882-3-05
10-882-3-05
0.595" - Turret/Turret Swage Mount 0.135" 3/32 0.147 Brass Electro Solder NO
10-902-2-044
10-902-2-044
10-902-2-044
0.282" 0.060 - Swage Mount 0.094" 1/16 0.064 Brass Bright Tin YES

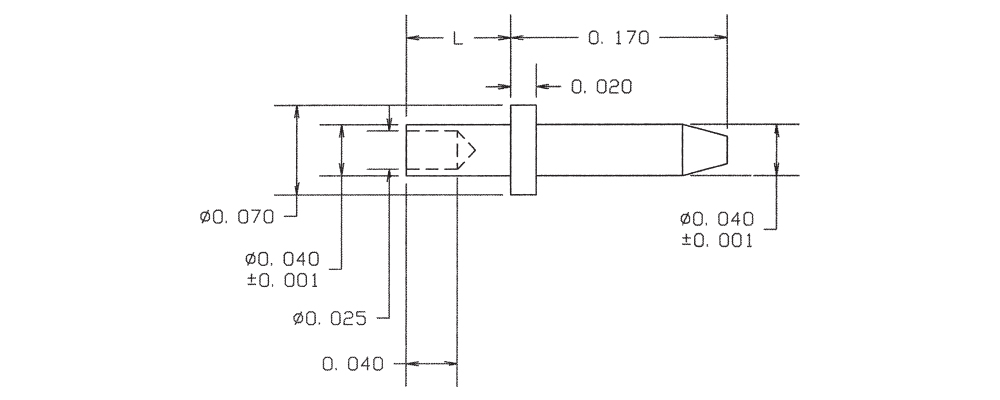

10-917-2-04
10-917-2-04
10-917-2-04
0.252" 0.040 - Swage Mount 0.082" 1/16 0.043 Brass Electro-Tin YES
10-931-2-035
10-931-2-035
10-931-2-035
0.250" - - Swage Mount 0.094" 1/16 0.0635 Brass Gold YES

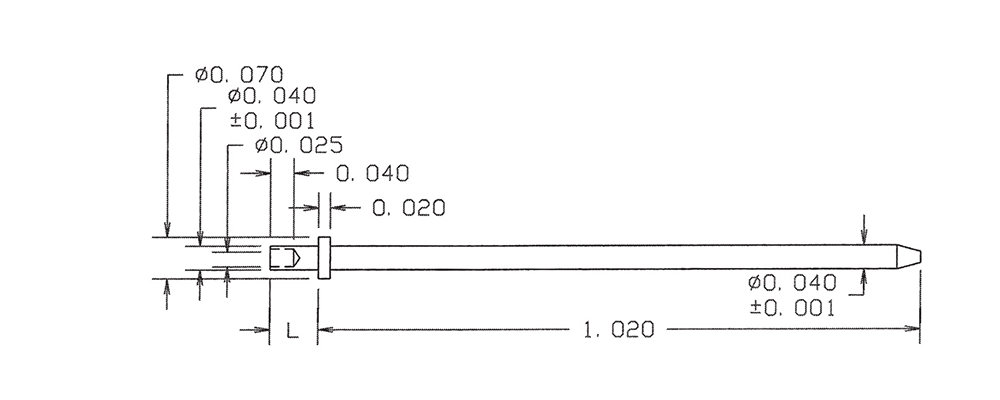

10-974-3-01
10-974-3-01
10-974-3-01
1.133" 0.040 - Swage Mount 0.113" 3/32 0.043 Brass Silver YES
14-916-3-044
14-916-3-044
14-916-3-044
0.433" 0.040 - Swage Mount 0.113" 3/32 0.043 LEADED Red Brass Bright Tin YES
10-401-2-044
10-401-2-044
10-401-2-044
0.250" - - Swage Mount 0.094" 1/16 0.067 Brass Bright Tin YES
10-416-1-03
10-416-1-03
10-416-1-03
0.209" - - Swage Mount 0.053" 1/32 0.064 Brass Gold YES
10-450-1-05
10-450-1-05
10-450-1-05
0.263" - - Swage Mount 0.075" 1/32 0.116 Brass Electro Solder NO
10-472-3-035
10-472-3-035
10-472-3-035
0.479" - - Swage Mount 0.135" 3/32 0.116 Brass Gold YES

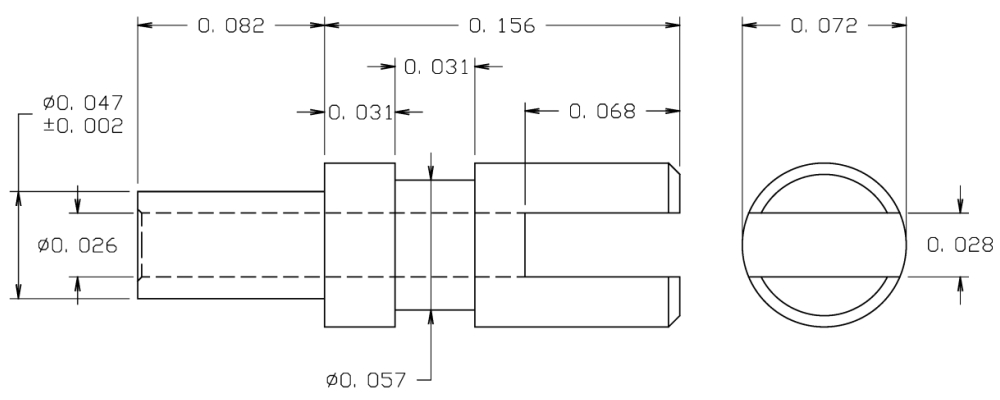

14-414-3-088
14-414-3-088
14-414-3-088
0.270" - - Swage Mount 0.113" 3/32 0.052 LEADED Red Brass Bright Tin-Lead NO
