Commercial
Non-Insulated
Terminals

Filter
10-102-4-05
10-102-4-05
10-102-4-05
0.359" - - Swage Mount 0.172" 1/8 0.082 Brass Electro Solder NO

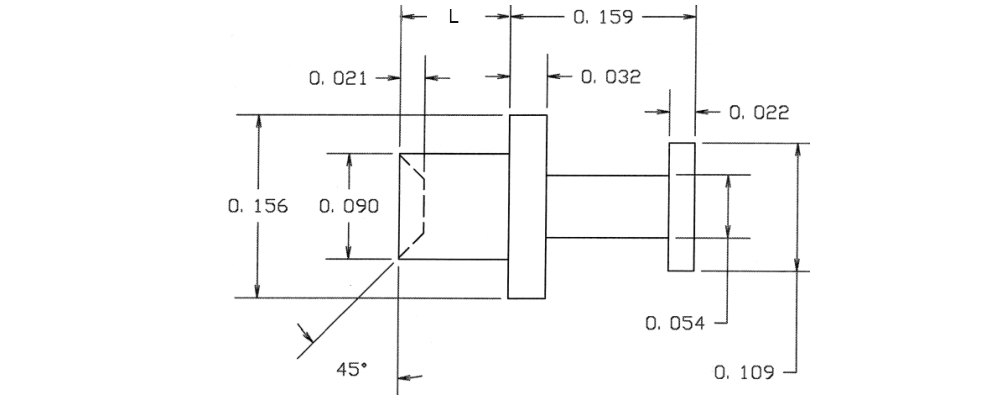

10-109-2-03
10-109-2-03
10-109-2-03
0.253" - - Swage Mount 0.094" 1/16 0.094 Brass Gold YES

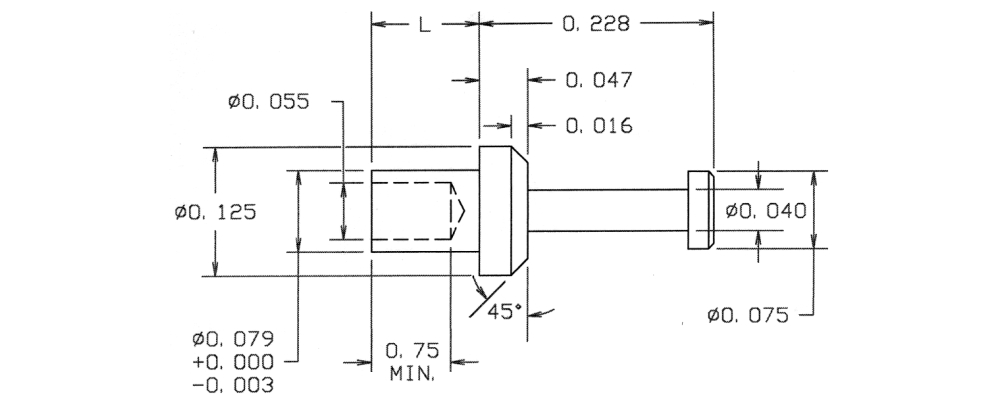

10-119-3-05
10-119-3-05
10-119-3-05
0.363" - - Swage Mount 0.135" 3/32 0.082 Brass Electro Solder NO
10-138-4-095
10-138-4-095
10-138-4-095
0.406" - - Swage Mount 0.156" 1/8 0.067 Brass Hot Solder Dip NO
10-209-2-095
10-209-2-095
10-209-2-095
0.328" - - Swage Mount 0.109" 1/16 0.094 Brass Hot Solder Dip NO
10-216-1-04
10-216-1-04
10-216-1-04
0.312" - - Swage Mount 0.075" 1/32 0.094 Brass Electro-Tin YES
10-225-6-05
10-225-6-05
10-225-6-05
0.363" - - Swage Mount 0.209" 3/16 0.067 Brass Electro Solder NO
10-240-4-03
10-240-4-03
10-240-4-03
0.529" - - Swage Mount 0.165" 1/8 0.116 Brass Gold YES
10-301-4-05
10-301-4-05
10-301-4-05
0.343" - - Swage Mount 0.156" 1/8 0.076 Brass Electro Solder NO

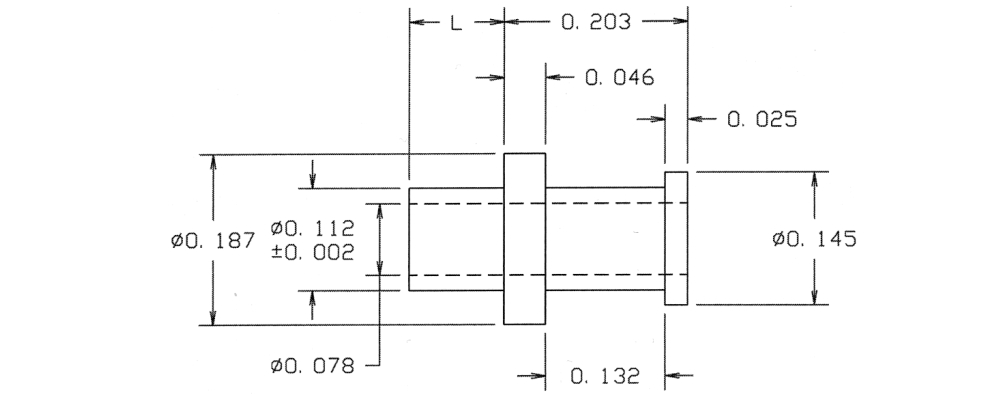

10-310-2-05
10-310-2-05
10-310-2-05
0.308" - - Swage Mount 0.105" 1/16 0.116 Brass Electro Solder NO

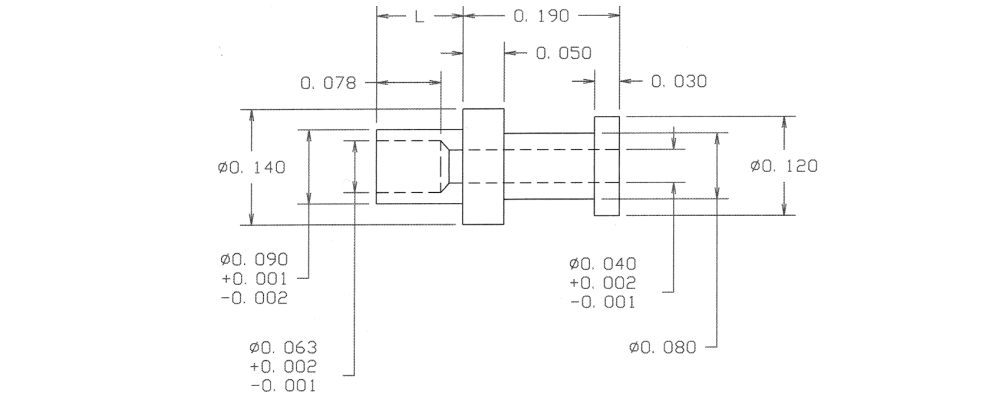

10-320-1-035
10-320-1-035
10-320-1-035
0.265" - - Swage Mount 0.075" 1/32 0.094 Brass Gold YES
10-337-2-088
10-337-2-088
10-337-2-088
0.531" - - Swage Mount 0.109" 1/16 0.125 Brass Bright Tin-Lead NO
10-411-6-04
10-411-6-04
10-411-6-04
0.562" - - Swage Mount 0.234" 3/16 0.116 Brass Electro-Tin YES
10-422-4-044
10-422-4-044
10-422-4-044
0.477" - - Swage Mount 0.165" 1/8 0.116 Brass Bright Tin YES
10-441-4-044
10-441-4-044
10-441-4-044
0.509" - - Swage Mount 0.165" 1/8 0.1405 Brass Bright Tin YES

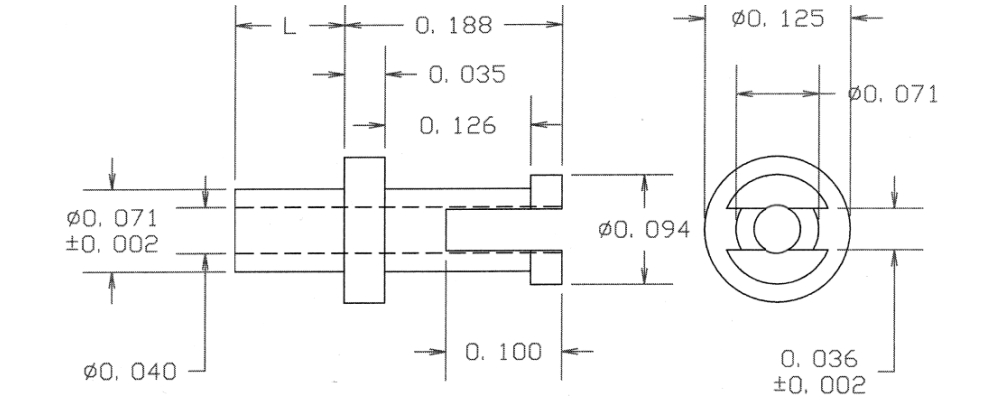

10-458-2-03
10-458-2-03
10-458-2-03
0.282" - - Swage Mount 0.094" 1/16 0.076 Brass Gold YES
10-468-2-04
10-468-2-04
10-468-2-04
0.344" - - Swage Mount 0.105" 1/16 0.094 Brass Electro-Tin YES
10-501-3-088
10-501-3-088
10-501-3-088
0.299" - Turret/Turret Swage Mount 0.113" 3/32 0.076 Brass Bright Tin-Lead NO
10-507-3-088
10-507-3-088
10-507-3-088
0.610" - Turret/Turret Swage Mount 0.141" 3/32 0.185 Brass Bright Tin-Lead NO

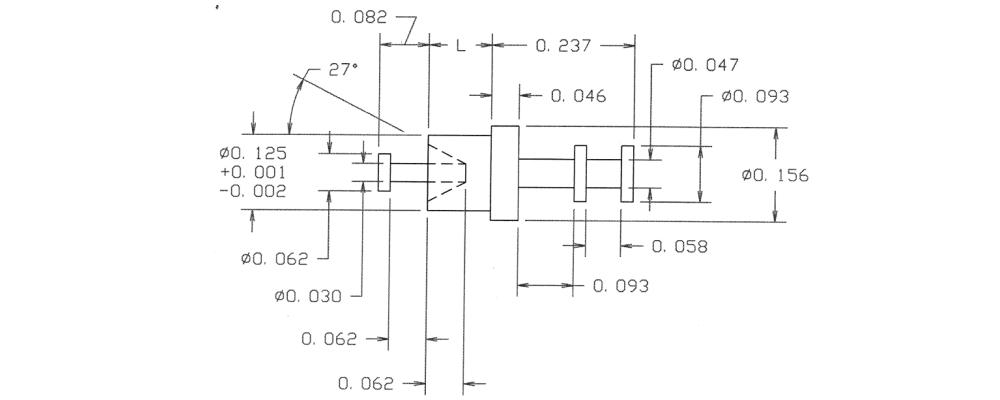

10-513-2-088
10-513-2-088
10-513-2-088
0.424" - TURRET/DOUBLE TURRET Swage Mount 0.105" 1/16 0.129 Brass Bright Tin-Lead NO
