Commercial
Non-Insulated
Terminals

Filter
09-8064-4-035
09-8064-4-035
09-8064-4-035
0.250" 0.020 (+0.000/-0.001) - Swage Mount 0.051" 1/32 0.033 Brass Gold YES
09-8114-2-088
09-8114-2-088
09-8114-2-088
0.410" 0.040 TURRET/PIN Swage Mount 0.082" 1/16 0.086 Brass Bright Tin-Lead NO
09-8159-1-04
09-8159-1-04
09-8159-1-04
0.621" 0.0405 - Swage Mount 0.051" 1/32 0.043 Brass Electro-Tin YES
09-8188-1-01
09-8188-1-01
09-8188-1-01
0.137" 0.025 - Swage Mount 0.047" 1/32 0.035 Brass Silver YES
09-8405-8-088
09-8405-8-088
09-8405-8-088
0.640" - - Swage Mount 0.297" 1/4 0.096 Brass Bright Tin-Lead NO
09-8631-1-03
09-8631-1-03
09-8631-1-03
0.704" 0.032 - Swage Mount 0.051" 1/32 0.055 Brass Gold YES
09-8735-2-088
09-8735-2-088
09-8735-2-088
0.613" 0.060 - Swage Mount 0.113" 3/32 0.094 Brass Bright Tin-Lead NO
09-8832-1-05
09-8832-1-05
09-8832-1-05
0.327" 0.025 TURRET/PIN Swage Mount 0.051" 1/32 0.062 Brass Electro Solder NO

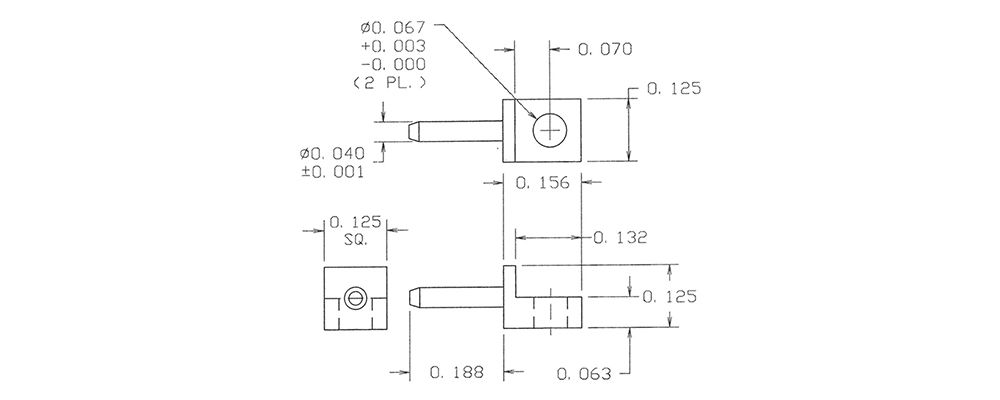

09-9506-1-088
09-9506-1-088
09-9506-1-088
0.344" 0.040 - 0-80 Screw - 1/32 TO 1/16 CLEARANCE FOR #0 Screw Brass Bright Tin-Lead NO
10-107-11-04
10-107-11-04
10-107-11-04
0.118" - - Swage Mount 0.025" 1/64 0.067 Brass Electro-Tin YES
10-115-1-095
10-115-1-095
10-115-1-095
0.176" - - Swage Mount 0.051" 1/32 0.037 Brass Hot Solder Dip NO

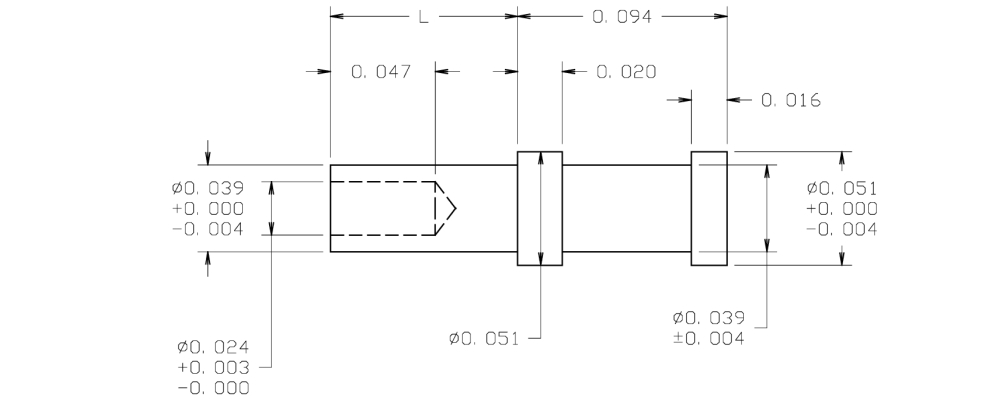

10-136-2-03
10-136-2-03
10-136-2-03
0.178" - - Swage Mount 0.084" 1/16 0.041 Brass Gold YES
10-205-6-044
10-205-6-044
10-205-6-044
0.590" - - Swage Mount 0.230" 3/16 0.116 Brass Bright Tin YES
10-214-4-05
10-214-4-05
10-214-4-05
0.303" - - Swage Mount 0.147" 1/8 0.067 Brass Electro Solder NO
10-221-4-044
10-221-4-044
10-221-4-044
0.360" - - Swage Mount 0.147" 1/8 0.076 Brass Bright Tin YES
10-236-3A-01
10-236-3A-01
10-236-3A-01
0.556" - - Swage Mount 0.136" 3/32 0.116 Brass Silver YES
10-259-4-044
10-259-4-044
10-259-4-044
0.375" - - Swage Mount 0.156" 1/8 0.094 Brass Bright Tin YES
10-308-1-044
10-308-1-044
10-308-1-044
0.138" - - Swage Mount 0.045" 1/32 0.067 Brass Bright Tin YES

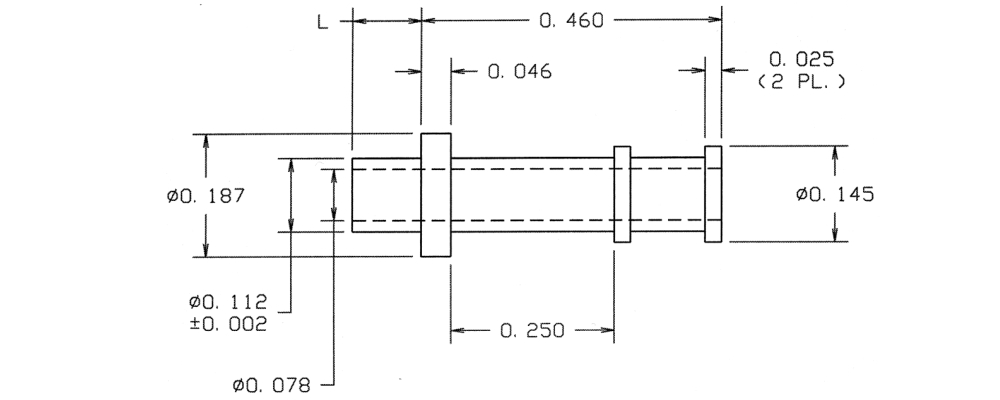

10-316-2-03
10-316-2-03
10-316-2-03
0.569" - - Swage Mount 0.105" 1/16 0.116 Brass Gold YES
10-330-3-05
10-330-3-05
10-330-3-05
0.359" - - Swage Mount 0.141" 3/32 0.086 Brass Electro Solder NO
