Commercial
Non-Insulated
Terminals

Filter
10-413-2-088
10-413-2-088
10-413-2-088
0.238" - - Swage Mount 0.082" 1/16 0.052 Brass Bright Tin-Lead NO
10-447-4-04
10-447-4-04
10-447-4-04
0.428" - - Swage Mount 0.147" 1/8 0.063 Brass Electro-Tin YES

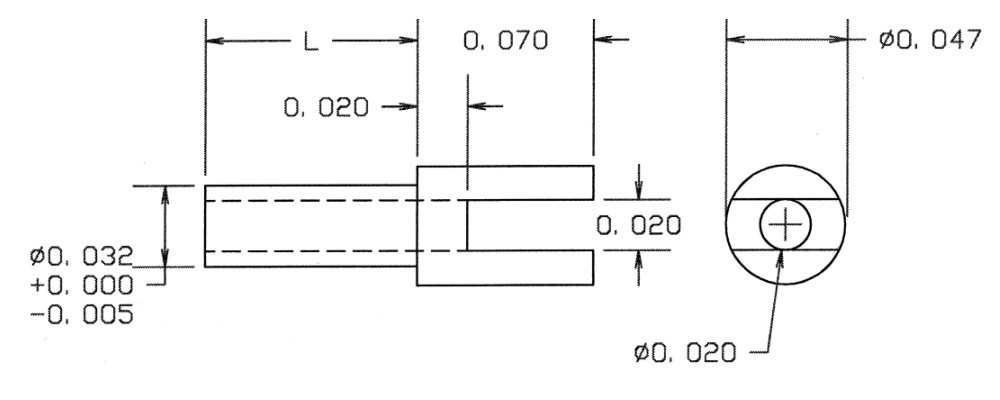

10-464-2-01
10-464-2-01
10-464-2-01
0.154" - - Swage Mount 0.084" 1/16 0.035 Brass Silver YES
10-940-2-044
10-940-2-044
10-940-2-044
0.282" - - Swage Mount 0.094" 1/16 0.0635 Brass Bright Tin YES
09-0040-1-088
09-0040-1-088
09-0040-1-088
1.1875" 0.055 - - - - - Brass Bright Tin-Lead NO
09-0107-3-035
09-0107-3-035
09-0107-3-035
0.266" - - Swage Mount 0.125" 3/32 0.067 LEADED Red Brass Gold YES
09-0172-2-03
09-0172-2-03
09-0172-2-03
0.187" - - Swage Mount 0.094" 1/16 0.032 Brass Gold YES
09-0210-6-035
09-0210-6-035
09-0210-6-035
0.260" - - 2-56 - - 2-56 THREAD Brass Gold YES
09-0253-2-044
09-0253-2-044
09-0253-2-044
0.268" - - Swage Mount 0.082" 1/16 0.081 Brass Bright Tin YES
09-0303-2-04
09-0303-2-04
09-0303-2-04
0.241" - - Swage Mount 0.084" 1/16 0.063 Brass Electro-Tin YES
09-0361-1-04
09-0361-1-04
09-0361-1-04
0.315" - - Press Fit/Solder 0.138" 3/32 0.052 Brass Electro-Tin YES
09-7016-1-044
09-7016-1-044
09-7016-1-044
0.222" - - Swage Mount 0.062" 1/32 0.055 Brass Bright Tin YES
09-7125-1-01
09-7125-1-01
09-7125-1-01
0.382" 0.0405 - RIVET MOUNT 0.056" 1/32 0.044 Brass Silver YES
09-7154-2-044
09-7154-2-044
09-7154-2-044
0.155" 0.023 - RIVET MOUNT 0.036" 1/100 0.035 Brass Bright Tin YES
09-7186-2-03
09-7186-2-03
09-7186-2-03
0.237" - - RIVET MOUNT 0.087" 1/16 0.044 Brass Gold YES
09-8031-1-05
09-8031-1-05
09-8031-1-05
0.631" 0.020 - Swage Mount 0.051" 1/32 0.043 Brass Electro Solder NO
09-8064-4-03
09-8064-4-03
09-8064-4-03
0.250" 0.020 (+0.000/-0.001) - Swage Mount 0.051" 1/32 0.033 Brass Gold YES
09-8114-2-05
09-8114-2-05
09-8114-2-05
0.410" 0.040 TURRET/PIN Swage Mount 0.082" 1/16 0.086 Brass Electro Solder NO

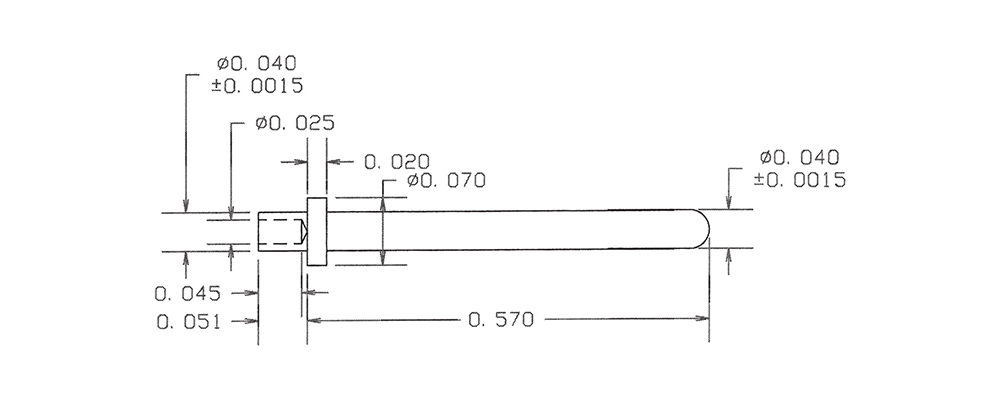

09-8159-1-035
09-8159-1-035
09-8159-1-035
0.621" 0.0405 - Swage Mount 0.051" 1/32 0.043 Brass Gold YES
09-8187-2-088
09-8187-2-088
09-8187-2-088
0.645" 0.020 - Solder 0.100" 1/64 TO 1/16 0.024 Brass Bright Tin-Lead NO
