Commercial
Non-Insulated
Terminals

Filter
10-465-3-088
10-465-3-088
10-465-3-088
0.516" - - Swage Mount 0.141" 3/32 0.1405 Brass Bright Tin-Lead NO
10-490-5-03
10-490-5-03
10-490-5-03
0.602" - TURRET/SLOTTED Swage Mount 0.196" 5/32 0.120 Brass Gold YES
10-505-2-095
10-505-2-095
10-505-2-095
0.417" - TURRET/DOUBLE TURRET Swage Mount 0.094" 1/16 0.094 Brass Hot Solder Dip NO
10-511-3-095
10-511-3-095
10-511-3-095
0.807" - Double Turret/Double Turret Swage Mount 0.135" 3/32 0.116 Brass Hot Solder Dip NO
10-520-5-095
10-520-5-095
10-520-5-095
1.132" - Double Turret/Double Turret Swage Mount 0.195" 5/32 0.266 Brass Hot Solder Dip NO
10-532-6-095
10-532-6-095
10-532-6-095
0.698" - Double Turret/Double Turret Swage Mount 0.230" 3/16 0.159 Brass Hot Solder Dip NO
10-550-5-095
10-550-5-095
10-550-5-095
0.664" - TURRET/DOUBLE TURRET Swage Mount 0.195" 5/32 0.206 Brass Hot Solder Dip NO
10-602-2-095
10-602-2-095
10-602-2-095
0.593" - - Swage Mount 0.109" 1/16 0.116 Brass Hot Solder Dip NO
10-702-6-088
10-702-6-088
10-702-6-088
0.545" - - 4-40 - - 4-40 THREAD Brass Bright Tin-Lead NO
10-8007-4-04
10-8007-4-04
10-8007-4-04
0.747" 0.080 DOUBLE TURRET/PIN Swage Mount 0.165" 1/8 0.120 Brass Electro-Tin YES
10-8019-1-03
10-8019-1-03
10-8019-1-03
0.371" 0.025 - Swage Mount 0.051" 1/32 0.035 Brass Gold YES

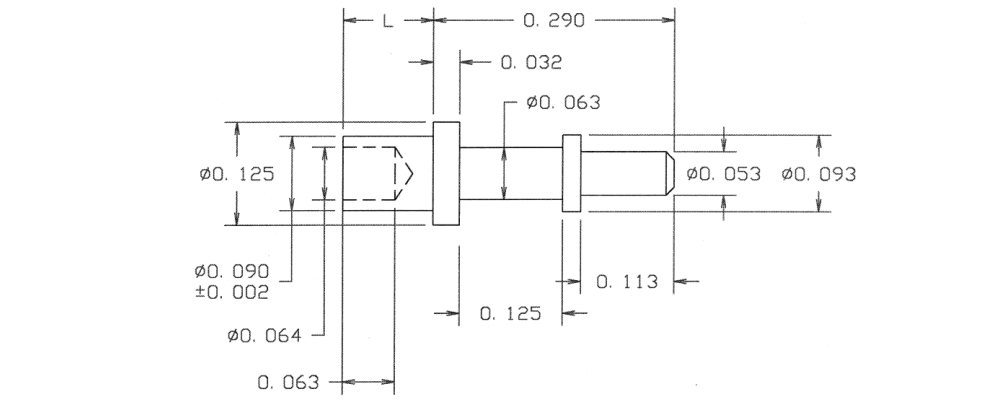

10-805-1-035
10-805-1-035
10-805-1-035
0.368" - - Swage Mount 0.078" 1/32 0.094 Brass Gold YES
10-810-4-04
10-810-4-04
10-810-4-04
0.484" - - Swage Mount 0.172" 1/8 0.1495 Brass Electro-Tin YES
10-817-6-01
10-817-6-01
10-817-6-01
0.754" - - Swage Mount 0.234" 3/16 0.1495 Brass Silver YES
10-829-3-095
10-829-3-095
10-829-3-095
0.250" 0.050 - Swage Mount 0.125" 3/32 0.063 Brass Hot Solder Dip NO
10-838-3-035
10-838-3-035
10-838-3-035
0.656" 0.050 Pin/Pin Swage Mount 0.125" 3/32 0.111 Brass Gold YES
10-857-3-088
10-857-3-088
10-857-3-088
0.453" 0.040 Pin/Pin Swage Mount 0.125" 3/32 0.094 Brass Bright Tin-Lead NO

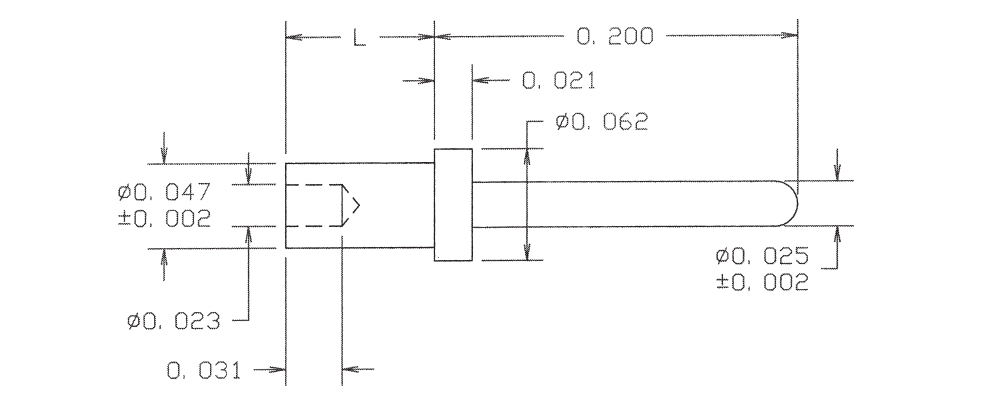

10-876-2-044
10-876-2-044
10-876-2-044
0.281" 0.025 - Swage Mount 0.081" 1/16 0.052 Brass Bright Tin YES
10-895-5-02
10-895-5-02
10-895-5-02
0.600" 0.032 - - - - - Brass Nickel YES
10-914-3-044
10-914-3-044
10-914-3-044
0.313" - - Swage Mount 0.125" 3/32 0.0635 Brass Bright Tin YES
