Commercial
Non-Insulated
Terminals

Filter
09-7125-1-035
09-7125-1-035
09-7125-1-035
0.382" 0.0405 - RIVET MOUNT 0.056" 1/32 0.044 Brass Gold YES
09-7154-2-088
09-7154-2-088
09-7154-2-088
0.155" 0.023 - RIVET MOUNT 0.036" 1/100 0.035 Brass Bright Tin-Lead NO

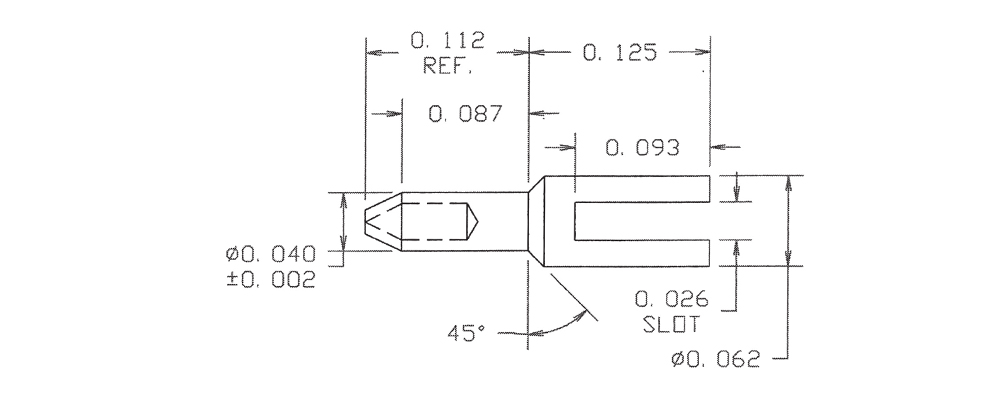

09-7186-2-04
09-7186-2-04
09-7186-2-04
0.237" - - RIVET MOUNT 0.087" 1/16 0.044 Brass Electro-Tin YES
09-8031-2-01
09-8031-2-01
09-8031-2-01
0.662" 0.020 - Swage Mount 0.082" 1/16 0.043 Brass Silver YES
09-8064-4-04
09-8064-4-04
09-8064-4-04
0.250" 0.020 (+0.000/-0.001) - Swage Mount 0.051" 1/32 0.033 Brass Electro-Tin YES
09-8115-2-01
09-8115-2-01
09-8115-2-01
0.240" 0.040 - Swage Mount 0.090" 1/16 0.043 Brass Silver YES

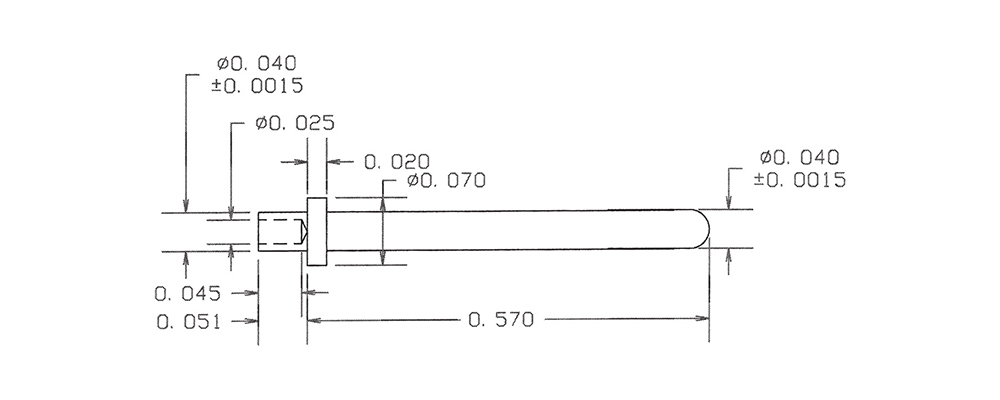

09-8159-1-044
09-8159-1-044
09-8159-1-044
0.621" 0.0405 - Swage Mount 0.051" 1/32 0.043 Brass Bright Tin YES

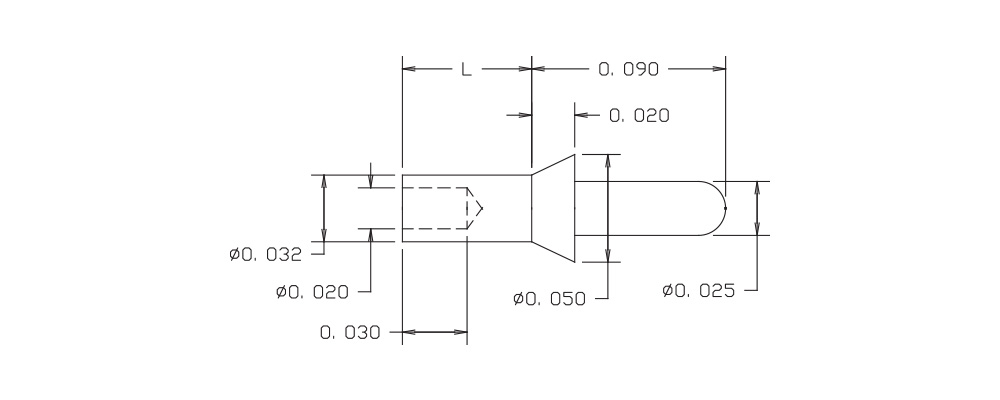

09-8188-1-03
09-8188-1-03
09-8188-1-03
0.137" 0.025 - Swage Mount 0.047" 1/32 0.035 Brass Gold YES

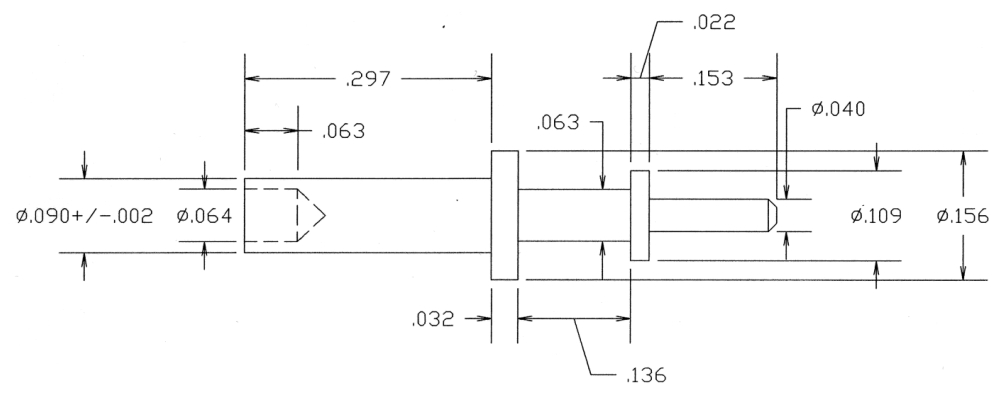

09-8405-8-095
09-8405-8-095
09-8405-8-095
0.640" - - Swage Mount 0.297" 1/4 0.096 Brass Hot Solder Dip NO
09-8631-1-035
09-8631-1-035
09-8631-1-035
0.704" 0.032 - Swage Mount 0.051" 1/32 0.055 Brass Gold YES
09-8735-2-095
09-8735-2-095
09-8735-2-095
0.613" 0.060 - Swage Mount 0.113" 3/32 0.094 Brass Hot Solder Dip NO
09-8832-1-088
09-8832-1-088
09-8832-1-088
0.327" 0.025 TURRET/PIN Swage Mount 0.051" 1/32 0.062 Brass Bright Tin-Lead NO
10-101-1-01
10-101-1-01
10-101-1-01
0.155" - - Swage Mount 0.051" 1/32 0.076 Brass Silver YES
10-107-11-044
10-107-11-044
10-107-11-044
0.118" - - Swage Mount 0.025" 1/64 0.067 Brass Bright Tin YES
10-115-2-01
10-115-2-01
10-115-2-01
0.209" - - Swage Mount 0.084" 1/16 0.037 Brass Silver YES
10-136-2-035
10-136-2-035
10-136-2-035
0.178" - - Swage Mount 0.084" 1/16 0.041 Brass Gold YES
10-205-6-05
10-205-6-05
10-205-6-05
0.590" - - Swage Mount 0.230" 3/16 0.116 Brass Electro Solder NO
10-214-4-088
10-214-4-088
10-214-4-088
0.303" - - Swage Mount 0.147" 1/8 0.067 Brass Bright Tin-Lead NO
10-221-4-05
10-221-4-05
10-221-4-05
0.360" - - Swage Mount 0.147" 1/8 0.076 Brass Electro Solder NO

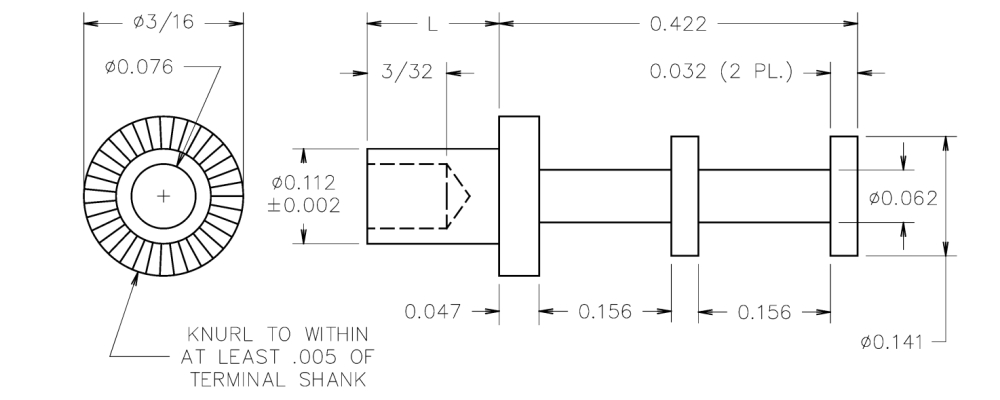

10-236-3A-03
10-236-3A-03
10-236-3A-03
0.556" - - Swage Mount 0.136" 3/32 0.116 Brass Gold YES
