Commercial
Non-Insulated
Terminals

Filter
09-8405-8-05
09-8405-8-05
09-8405-8-05
0.640" - - Swage Mount 0.297" 1/4 0.096 Brass Electro Solder NO
09-8631-1-01
09-8631-1-01
09-8631-1-01
0.704" 0.032 - Swage Mount 0.051" 1/32 0.055 Brass Silver YES
09-8735-2-05
09-8735-2-05
09-8735-2-05
0.613" 0.060 - Swage Mount 0.113" 3/32 0.094 Brass Electro Solder NO
09-8832-1-044
09-8832-1-044
09-8832-1-044
0.327" 0.025 TURRET/PIN Swage Mount 0.051" 1/32 0.062 Brass Bright Tin YES
09-9506-1-05
09-9506-1-05
09-9506-1-05
0.344" 0.040 - 0-80 Screw - 1/32 TO 1/16 CLEARANCE FOR #0 Screw Brass Electro Solder NO

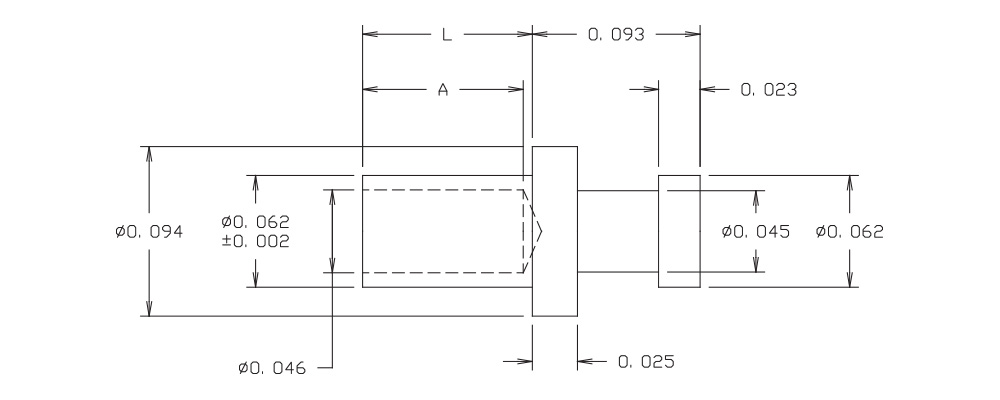

10-107-11-035
10-107-11-035
10-107-11-035
0.118" - - Swage Mount 0.025" 1/64 0.067 Brass Gold YES
10-115-1-088
10-115-1-088
10-115-1-088
0.176" - - Swage Mount 0.051" 1/32 0.037 Brass Bright Tin-Lead NO
10-136-2-01
10-136-2-01
10-136-2-01
0.178" - - Swage Mount 0.084" 1/16 0.041 Brass Silver YES
10-205-6-04
10-205-6-04
10-205-6-04
0.590" - - Swage Mount 0.230" 3/16 0.116 Brass Electro-Tin YES
10-214-4-044
10-214-4-044
10-214-4-044
0.303" - - Swage Mount 0.147" 1/8 0.067 Brass Bright Tin YES
10-221-4-04
10-221-4-04
10-221-4-04
0.360" - - Swage Mount 0.147" 1/8 0.076 Brass Electro-Tin YES
10-236-3-088
10-236-3-088
10-236-3-088
0.545" - - Swage Mount 0.125" 3/32 0.116 Brass Bright Tin-Lead NO
10-259-4-04
10-259-4-04
10-259-4-04
0.375" - - Swage Mount 0.156" 1/8 0.094 Brass Electro-Tin YES
10-308-1-04
10-308-1-04
10-308-1-04
0.138" - - Swage Mount 0.045" 1/32 0.067 Brass Electro-Tin YES
10-316-2-01
10-316-2-01
10-316-2-01
0.569" - - Swage Mount 0.105" 1/16 0.116 Brass Silver YES
10-330-3-044
10-330-3-044
10-330-3-044
0.359" - - Swage Mount 0.141" 3/32 0.086 Brass Bright Tin YES
10-405-3-03
10-405-3-03
10-405-3-03
0.458" - - Swage Mount 0.141" 3/32 0.116 Brass Gold YES
10-419-4-04
10-419-4-04
10-419-4-04
0.556" - SLOTTED/DOUBLE TURRET Swage Mount 0.165" 1/8 0.094 Brass Electro-Tin YES
10-433-3-035
10-433-3-035
10-433-3-035
0.829" - - Swage Mount 0.141" 3/32 0.182 Brass Gold YES
10-451-3-088
10-451-3-088
10-451-3-088
0.485" - - Swage Mount 0.141" 3/32 0.116 Brass Bright Tin-Lead NO
