Commercial
Non-Insulated
Terminals

Filter
10-462-3-095
10-462-3-095
10-462-3-095
0.271" - - Swage Mount 0.115" 3/32 0.052 Brass Hot Solder Dip NO
10-489-4-095
10-489-4-095
10-489-4-095
0.312" - - Swage Mount 0.156" 1/8 0.067 Brass Hot Solder Dip NO
10-504-3-03
10-504-3-03
10-504-3-03
0.532" - Double Turret/Double Turret Swage Mount 0.125" 3/32 0.094 Brass Gold YES
10-510-3-03
10-510-3-03
10-510-3-03
0.502" - TURRET/DOUBLE TURRET Swage Mount 0.135" 3/32 0.116 Brass Gold YES
10-520-2-03
10-520-2-03
10-520-2-03
1.042" - Double Turret/Double Turret Swage Mount 0.105" 1/16 0.266 Brass Gold YES
10-532-3-03
10-532-3-03
10-532-3-03
0.603" - Double Turret/Double Turret Swage Mount 0.135" 3/32 0.159 Brass Gold YES
10-550-2-03
10-550-2-03
10-550-2-03
0.574" - TURRET/DOUBLE TURRET Swage Mount 0.105" 1/16 0.206 Brass Gold YES
10-601-4-03
10-601-4-03
10-601-4-03
0.457" - - Swage Mount 0.156" 1/8 0.094 Brass Gold YES
10-615-4-05
10-615-4-05
10-615-4-05
0.505" - - Swage Mount 0.165" 1/8 0.090 Brass Electro Solder NO

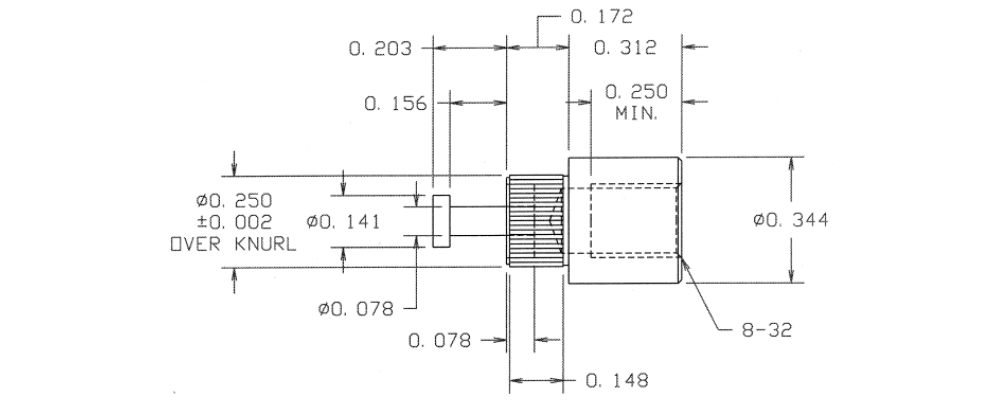

10-754-4-03
10-754-4-03
10-754-4-03
0.687" - TURRET/THREAD Swage Mount 0.172" 1/8 0.242 Brass Gold YES

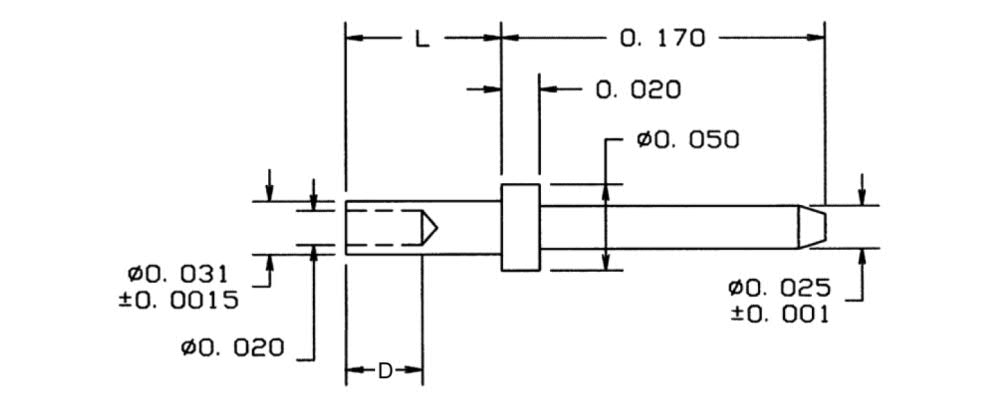

10-8017-2-01
10-8017-2-01
10-8017-2-01
0.252" 0.025 - Swage Mount 0.082" 1/16 0.035 Brass Silver YES

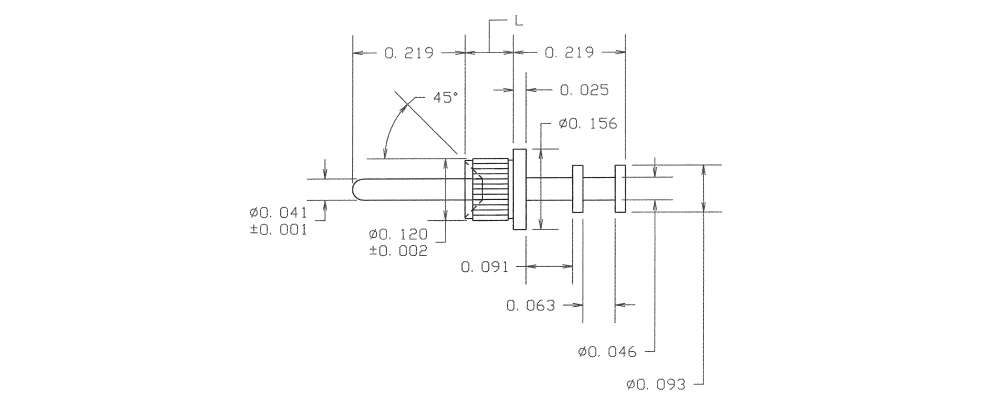

10-804-1-01
10-804-1-01
10-804-1-01
0.500" 0.041 DOUBLE TURRET/PIN Swage Mount 0.062" 1/32 0.125 Brass Silver YES
10-809-8-03
10-809-8-03
10-809-8-03
0.383" - - Swage Mount 0.297" 1/4 0.116 Brass Gold YES
10-816-6-05
10-816-6-05
10-816-6-05
0.430" - - Swage Mount 0.230" 3/16 0.1495 Brass Electro Solder NO
10-829-1-03
10-829-1-03
10-829-1-03
0.188" 0.050 - Swage Mount 0.063" 1/32 0.063 Brass Gold YES
10-837-6-01
10-837-6-01
10-837-6-01
0.563" 0.050 Pin/Pin Swage Mount 0.219" 3/16 0.111 Brass Silver YES
10-850-4-044
10-850-4-044
10-850-4-044
0.483" 0.040 - Swage Mount 0.153" 1/8 0.094 Brass Bright Tin YES

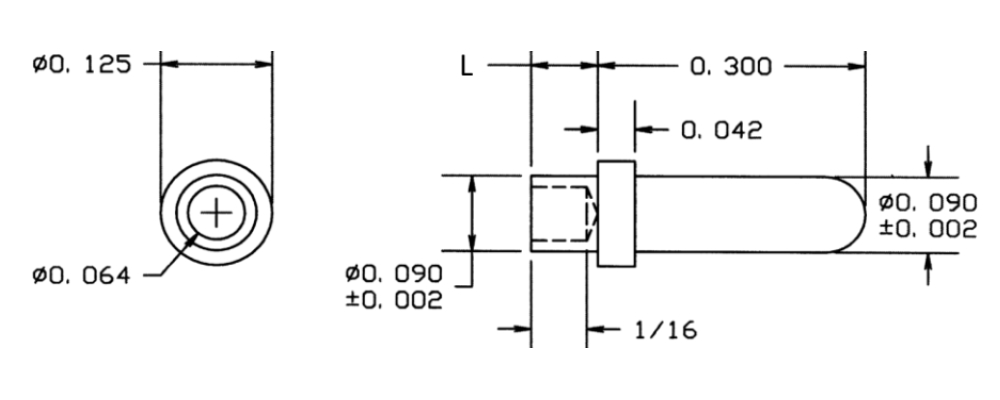

10-874-3-04
10-874-3-04
10-874-3-04
0.435" 0.090 - Swage Mount 0.135" 3/32 0.094 Brass Electro-Tin YES
10-895-12-035
10-895-12-035
10-895-12-035
0.900" 0.062 - - - - - Brass Gold YES

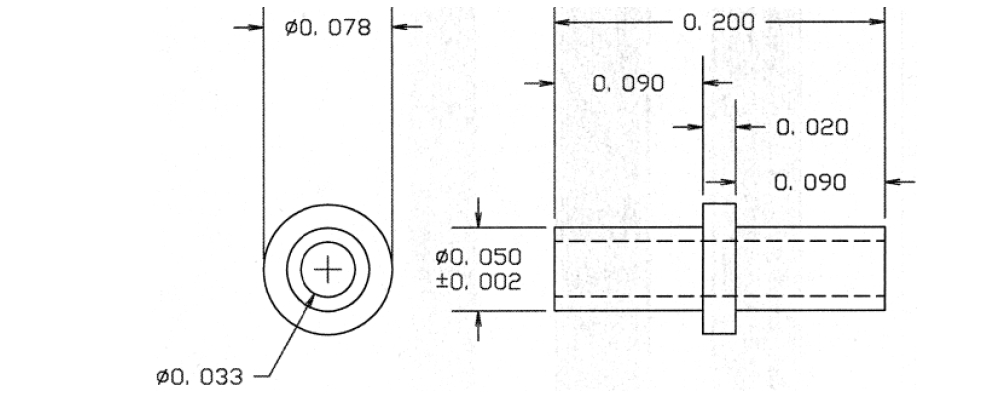

10-912-2-044
10-912-2-044
10-912-2-044
0.200" 0.050 - Swage Mount 0.090" 1/16 0.055 Brass Bright Tin YES
