Commercial
Non-Insulated
Terminals

Filter

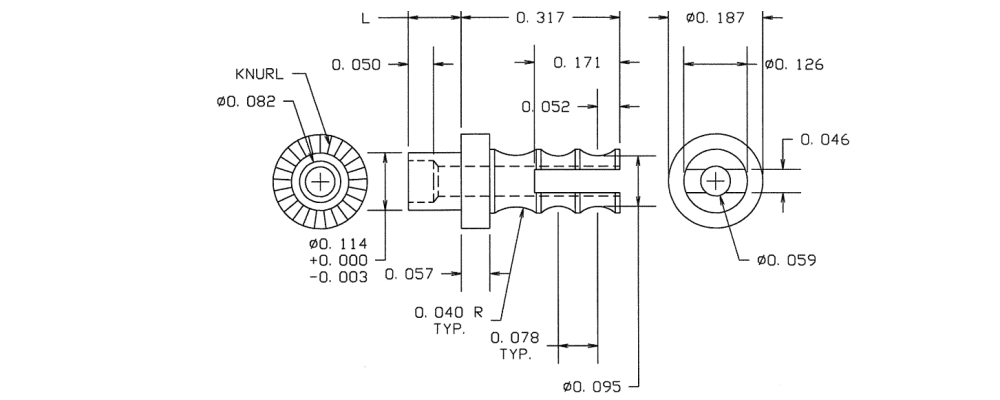

10-404-3-01
10-404-3-01
10-404-3-01
0.452" - - Swage Mount 0.135" 3/32 0.116 Brass Silver YES
10-418-4A-05
10-418-4A-05
10-418-4A-05
0.684" - Turret/Turret Swage Mount 0.153" 1/8 0.120 Brass Electro Solder NO

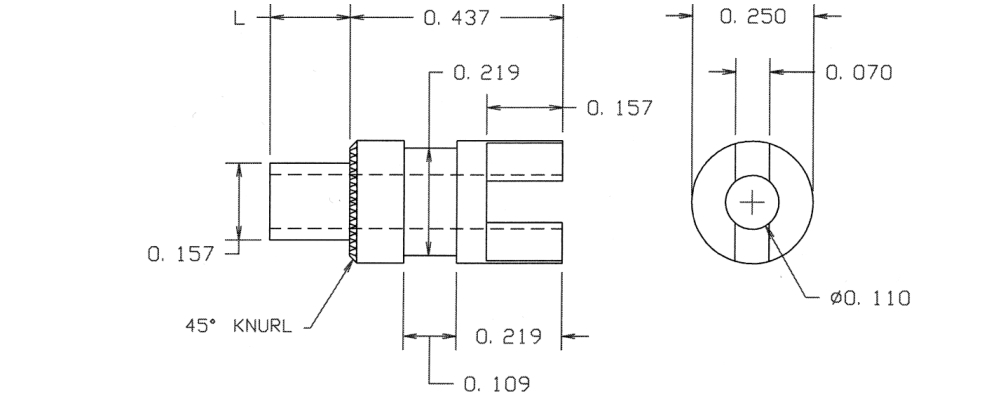

10-432-4-03
10-432-4-03
10-432-4-03
0.602" - - Swage Mount 0.165" 1/8 0.161 Brass Gold YES
10-446-3-01
10-446-3-01
10-446-3-01
0.507" - SLOTTED/DOUBLE TURRET Swage Mount 0.125" 3/32 0.096 Brass Silver YES

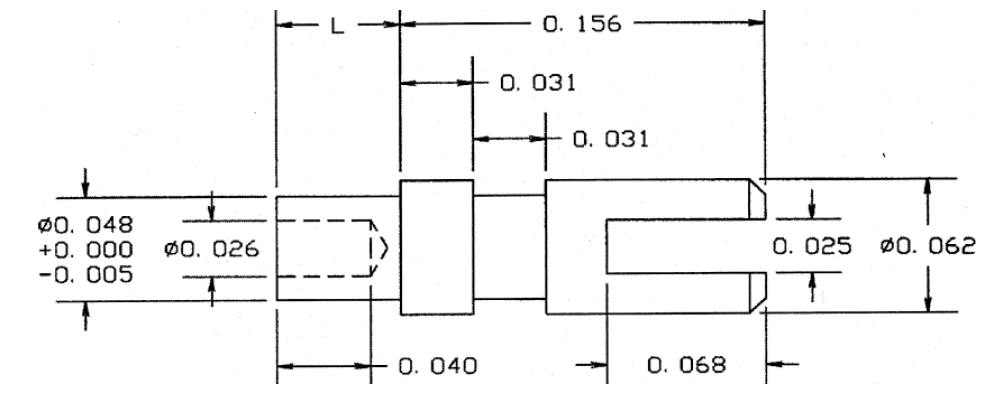

10-462-4-01
10-462-4-01
10-462-4-01
0.303" - - Swage Mount 0.147" 1/8 0.052 Brass Silver YES

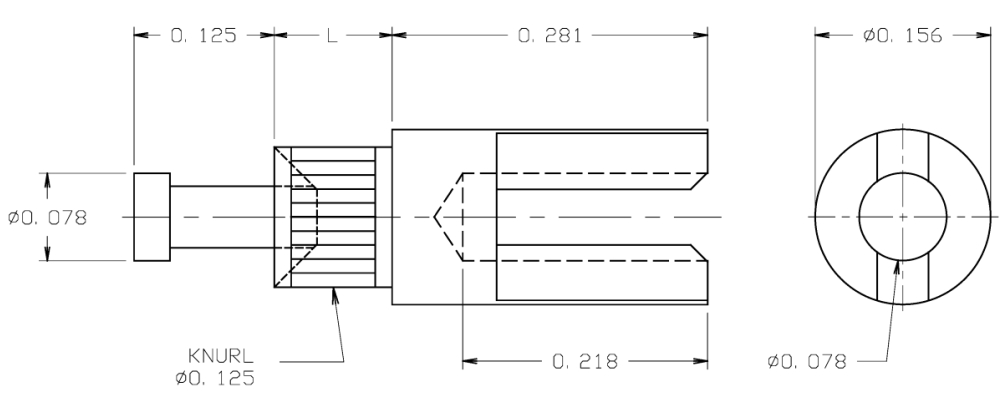

10-490-1-01
10-490-1-01
10-490-1-01
0.481" - TURRET/SLOTTED Swage Mount 0.075" 1/32 0.120 Brass Silver YES

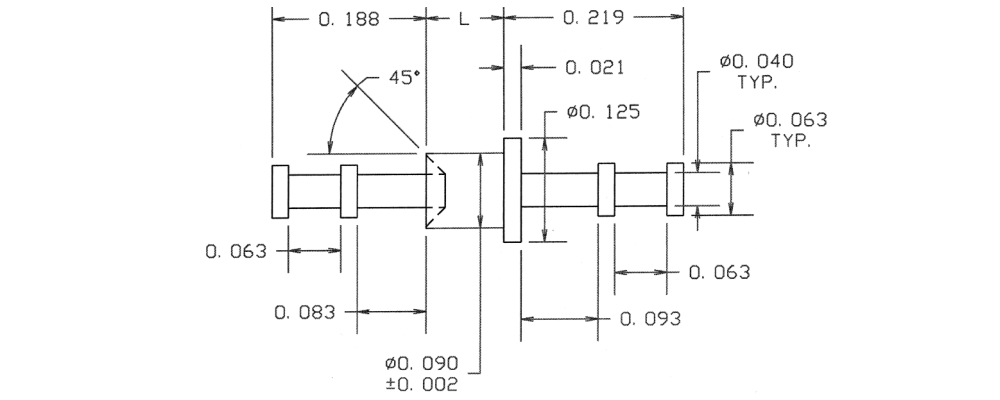

10-504-3-035
10-504-3-035
10-504-3-035
0.532" - Double Turret/Double Turret Swage Mount 0.125" 3/32 0.094 Brass Gold YES

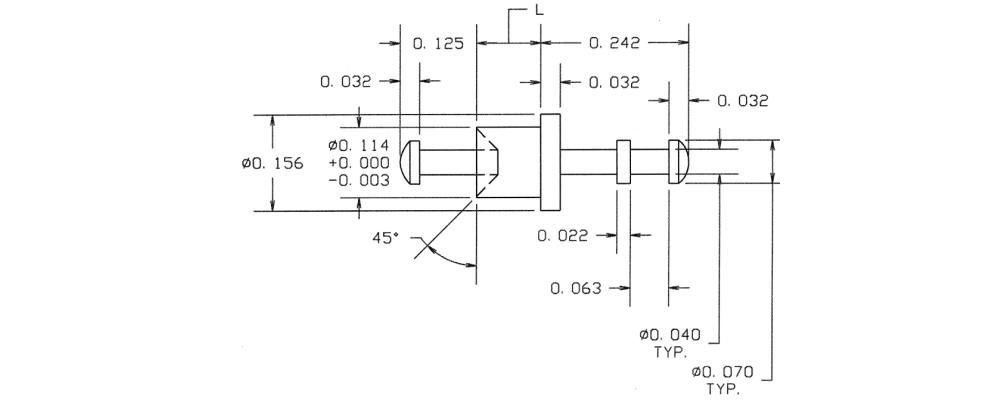

10-510-3-035
10-510-3-035
10-510-3-035
0.502" - TURRET/DOUBLE TURRET Swage Mount 0.135" 3/32 0.116 Brass Gold YES

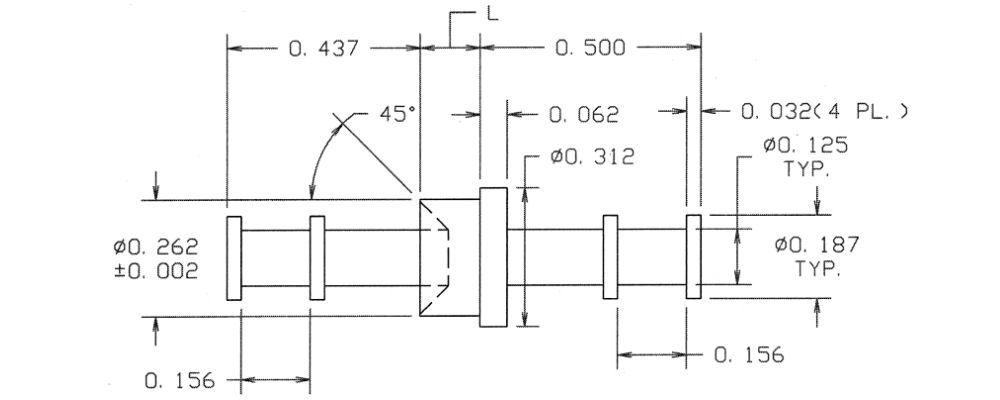

10-520-2-035
10-520-2-035
10-520-2-035
1.042" - Double Turret/Double Turret Swage Mount 0.105" 1/16 0.266 Brass Gold YES

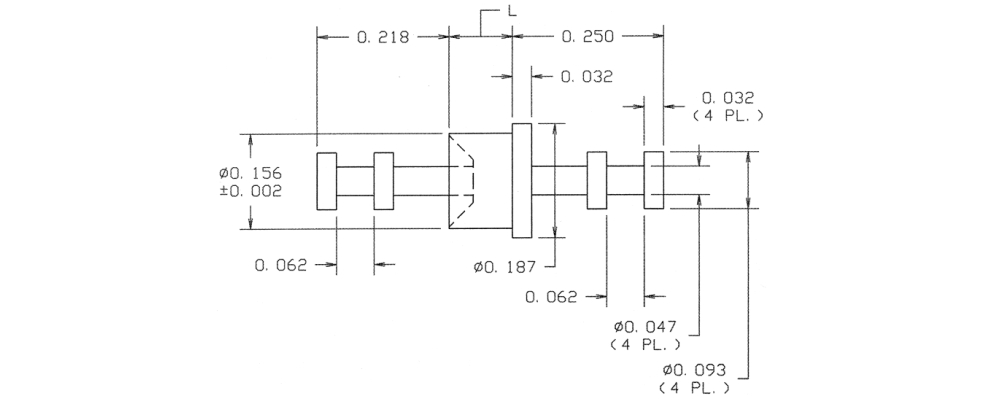

10-532-3-035
10-532-3-035
10-532-3-035
0.603" - Double Turret/Double Turret Swage Mount 0.135" 3/32 0.159 Brass Gold YES

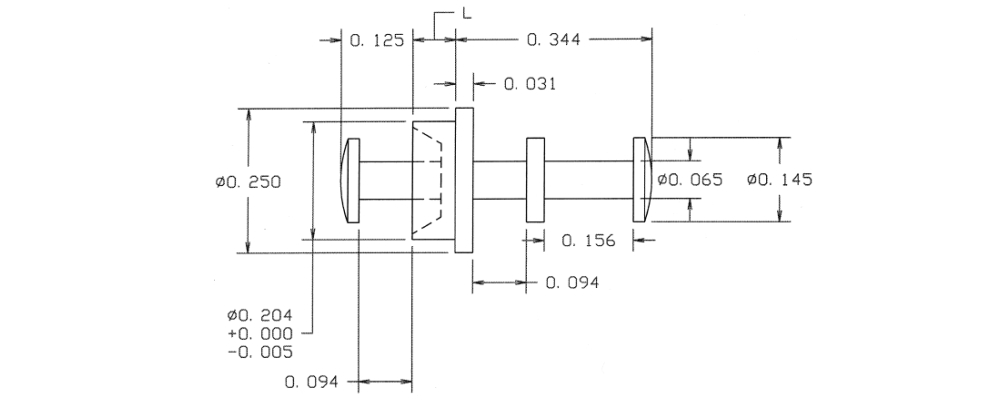

10-550-2-035
10-550-2-035
10-550-2-035
0.574" - TURRET/DOUBLE TURRET Swage Mount 0.105" 1/16 0.206 Brass Gold YES

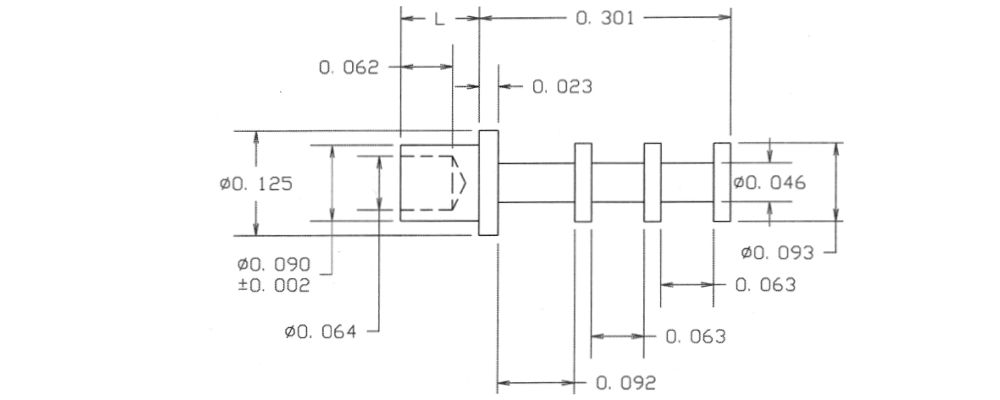

10-601-4-035
10-601-4-035
10-601-4-035
0.457" - - Swage Mount 0.156" 1/8 0.094 Brass Gold YES
10-615-4-088
10-615-4-088
10-615-4-088
0.505" - - Swage Mount 0.165" 1/8 0.090 Brass Bright Tin-Lead NO
10-754-4-035
10-754-4-035
10-754-4-035
0.687" - TURRET/THREAD Swage Mount 0.172" 1/8 0.242 Brass Gold YES
10-8017-2-03
10-8017-2-03
10-8017-2-03
0.252" 0.025 - Swage Mount 0.082" 1/16 0.035 Brass Gold YES

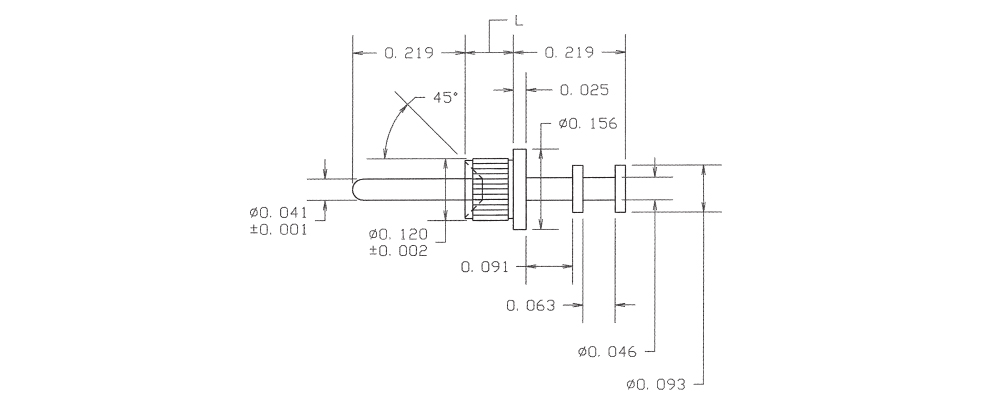

10-804-1-03
10-804-1-03
10-804-1-03
0.500" 0.041 DOUBLE TURRET/PIN Swage Mount 0.062" 1/32 0.125 Brass Gold YES

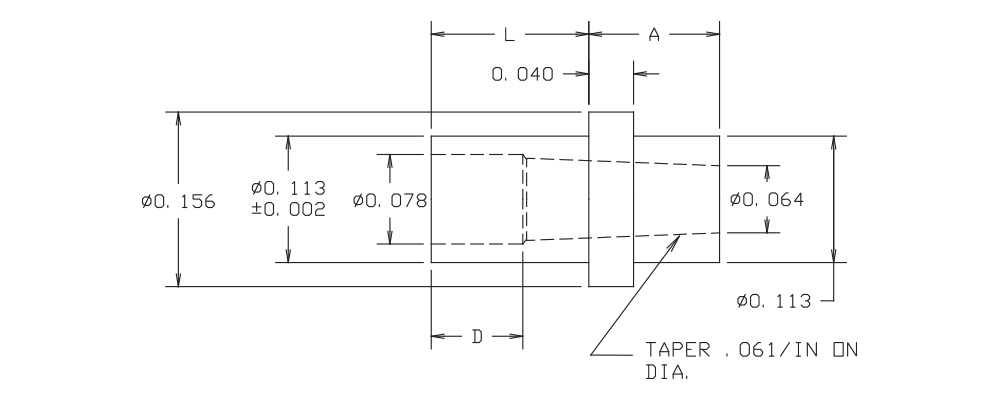

10-809-8-035
10-809-8-035
10-809-8-035
0.383" - - Swage Mount 0.297" 1/4 0.116 Brass Gold YES

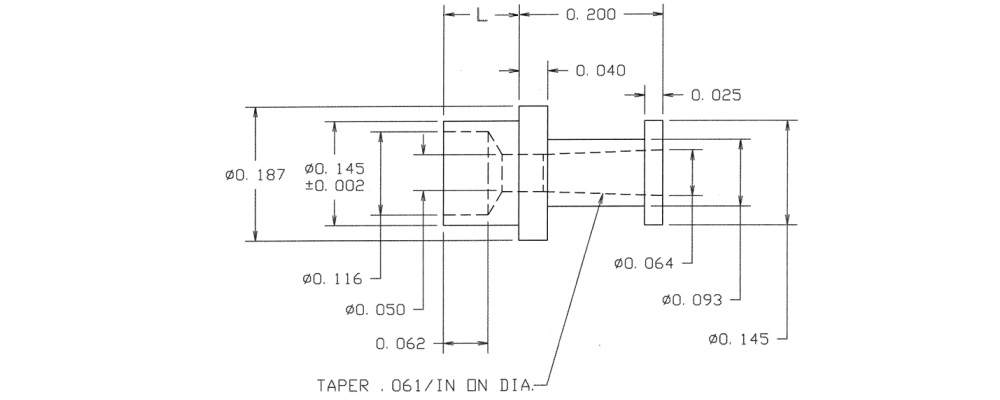

10-816-6-088
10-816-6-088
10-816-6-088
0.430" - - Swage Mount 0.230" 3/16 0.1495 Brass Bright Tin-Lead NO

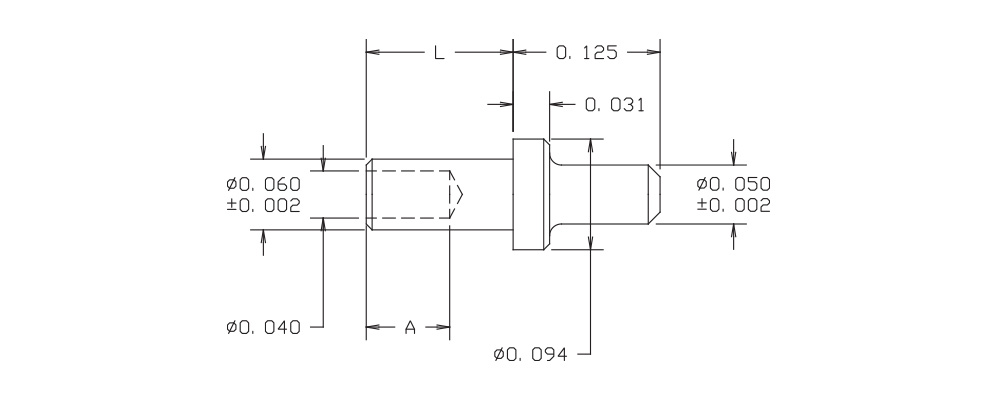

10-829-1-035
10-829-1-035
10-829-1-035
0.188" 0.050 - Swage Mount 0.063" 1/32 0.063 Brass Gold YES

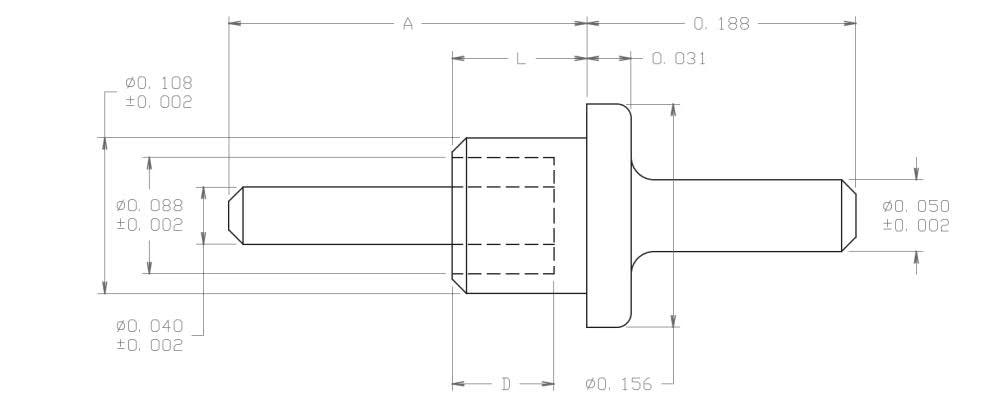

10-837-6-03
10-837-6-03
10-837-6-03
0.563" 0.050 Pin/Pin Swage Mount 0.219" 3/16 0.111 Brass Gold YES
