Commercial
Non-Insulated
Terminals

Part No	Length	Pin Diameter	Feed Thru Combination	Mounting	Shank Length	Board Thickness	Hole Size	Terminal Material	Terminal Finish	RoHS
09-8404-1-03	0.160"	0.025	-	-	-	-	-	Brass	Gold	YES
09-8420-2-04	0.150"	0.040	-	Solder	-	-	0.042	Brass	Electro-Tin	YES

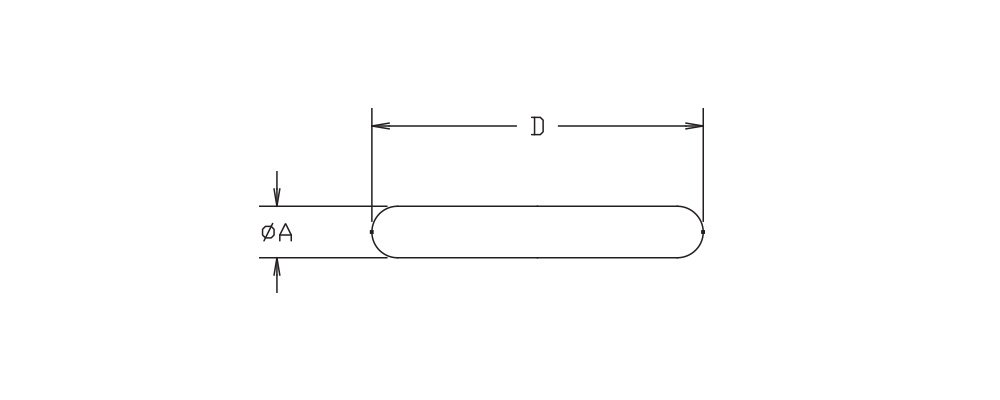

10-895-12-035	0.900"	0.062	-	-	-	-	-	Brass	Gold	YES
10-895-4-05	0.400"	0.032	-	-	-	-	-	Brass	Electro Solder	NO
10-924-1-088	0.275"	0.025	-	-	-	-	-	Brass	Bright Tin-Lead	NO
09-0187-2-035	0.500"	0.025	SLOTTED/PIN	Solder	0.080"	1/16	0.062	Brass	Gold	YES
09-7161-1-05	0.252"	0.040	-	RIVET MOUNT	0.064"	1/32	0.0625	Brass	Electro Solder	NO
10-109-1-095	0.221"	-	-	Swage Mount	0.062"	1/32	0.094	Brass	Hot Solder Dip	NO
10-106-3-01	0.316"	-	-	Swage Mount	0.135"	3/32	0.094	Brass	Silver	YES
10-106-2-05	0.286"	-	-	Swage Mount	0.105"	1/16	0.094	Brass	Electro Solder	NO

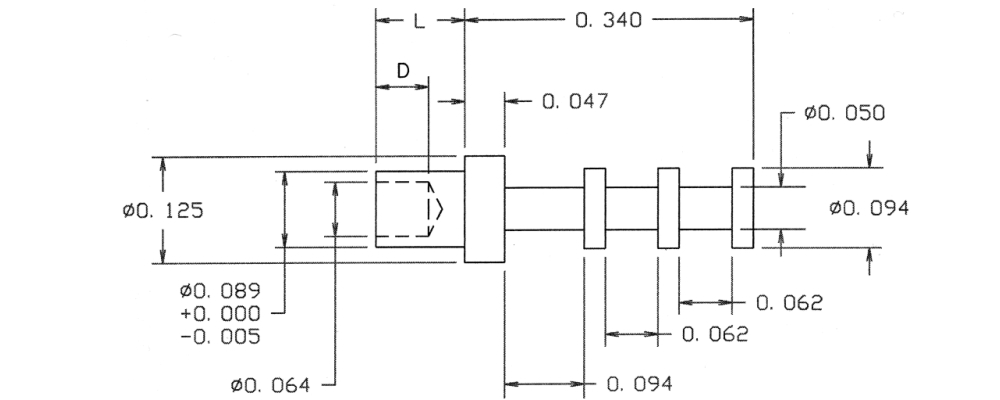

10-615-4-05	0.505"	-	-	Swage Mount	0.165"	1/8	0.090	Brass	Electro Solder	NO
10-703-6-05	0.368"	-	-	2-56	-	-	2-56 THREAD	Brass	Electro Solder	NO
09-0175-2-095	0.240"	-	-	Swage Mount	0.084"	1/16	0.063	Brass	Hot Solder Dip	NO
09-0175-2-088	0.240"	-	-	Swage Mount	0.084"	1/16	0.063	Brass	Bright Tin-Lead	NO
10-459-3-05	0.271"	-	-	Swage Mount	0.115"	3/32	0.064	Brass	Electro Solder	NO
10-459-2-05	0.240"	-	-	Swage Mount	0.084"	1/16	0.064	Brass	Electro Solder	NO
10-459-2-04	0.240"	-	-	Swage Mount	0.084"	1/16	0.064	Brass	Electro-Tin	YES
10-459-2-044	0.240"	-	-	Swage Mount	0.084"	1/16	0.064	Brass	Bright Tin	YES
09-8348-3-088	0.410"	0.020	-	Solder	0.140"	1/64 TO 1/8	0.0225	Brass	Bright Tin-Lead	NO
09-8637-1-01	0.170"	0.020	-	Solder	-	-	0.022	Beryllium Copper	Silver	YES
