Commercial
Non-Insulated
Terminals

Filter
09-8836-1-04
09-8836-1-04
09-8836-1-04
0.760" 0.040 - Swage Mount 0.053" 1/32 0.043 Brass Electro-Tin YES
09-8356-2-04
09-8356-2-04
09-8356-2-04
0.332" 0.040 - Swage Mount 0.082" 1/16 0.043 Brass Electro-Tin YES
10-503-1-05
10-503-1-05
10-503-1-05
0.401" - Double Turret/Double Turret Swage Mount 0.051" 1/32 0.076 Brass Electro Solder NO
10-455-3-04
10-455-3-04
10-455-3-04
0.375" - - Swage Mount 0.125" 3/32 0.076 Brass Electro-Tin YES
10-503-1-088
10-503-1-088
10-503-1-088
0.401" - Double Turret/Double Turret Swage Mount 0.051" 1/32 0.076 Brass Bright Tin-Lead NO
10-522-4-04
10-522-4-04
10-522-4-04
0.634" - Turret/Turret Swage Mount 0.165" 1/8 0.206 Brass Electro-Tin YES
09-8056-2-04
09-8056-2-04
09-8056-2-04
0.245" 0.020 - Swage Mount 0.085" 1/16 0.031 Brass Electro-Tin YES
10-918-1-04
10-918-1-04
10-918-1-04
0.371" 0.040 - Swage Mount 0.051" 1/32 0.043 Brass Electro-Tin YES
10-8015-2-04
10-8015-2-04
10-8015-2-04
0.457" 0.040 TURRET/PIN Swage Mount 0.082" 1/16 0.076 Brass Electro-Tin YES
09-0025-1-04
09-0025-1-04
09-0025-1-04
0.210" - - Swage Mount 0.054" 1/32 0.052 Brass Electro-Tin YES
09-8028-2-04
09-8028-2-04
09-8028-2-04
0.135" 0.020 - Swage Mount 0.085" 1/16 0.031 Brass Electro-Tin YES
10-503-3-035
10-503-3-035
10-503-3-035
0.463" - Double Turret/Double Turret Swage Mount 0.113" 3/32 0.076 Brass Gold YES
10-114-3-04
10-114-3-04
10-114-3-04
0.209" - - Swage Mount 0.115" 3/32 0.043 Brass Electro-Tin YES
10-533-4-04
10-533-4-04
10-533-4-04
0.411" - Turret/Turret Swage Mount 0.165" 1/8 0.094 Brass Electro-Tin YES
10-521-5-04
10-521-5-04
10-521-5-04
0.648" 0.094 Pin/Pin Swage Mount 0.195" 5/32 0.185 Brass Electro-Tin YES

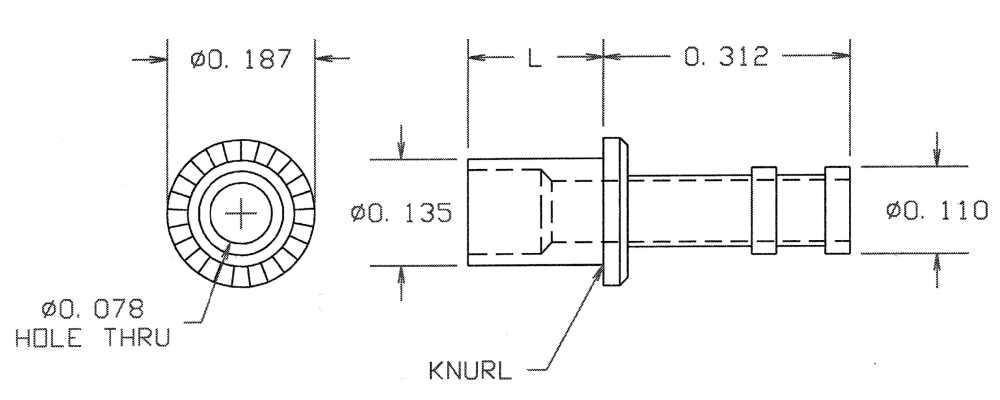

09-0168-2-04
09-0168-2-04
09-0168-2-04
0.421" - - Swage Mount 0.109" 1/16 0.141 Brass Electro-Tin YES

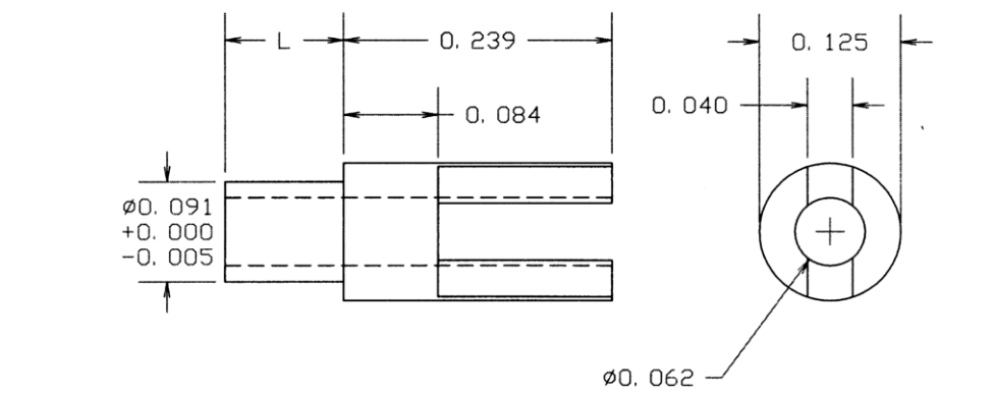

10-412-4-04
10-412-4-04
10-412-4-04
0.404" - - Swage Mount 0.165" 1/8 0.094 Brass Electro-Tin YES
09-8148-1-04
09-8148-1-04
09-8148-1-04
0.633" 0.030 - Swage Mount 0.053" 1/32 0.067 Brass Electro-Tin YES
09-0375-2-04
09-0375-2-04
09-0375-2-04
0.242" 0.062 - 0-80 Screw - 1/16 CLEARANCE FOR #0 Screw Brass Electro-Tin YES
10-456-4-04
10-456-4-04
10-456-4-04
0.484" - - Swage Mount 0.172" 1/8 0.116 Brass Electro-Tin YES
