Commercial
Non-Insulated
Terminals

Filter

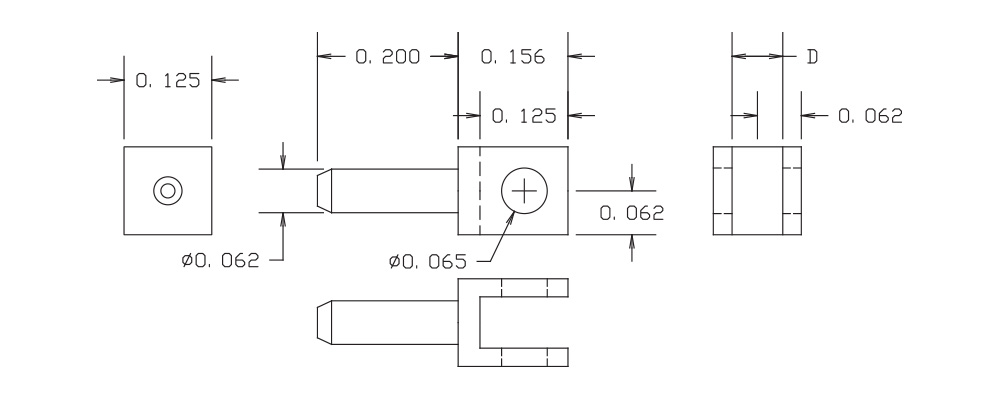

09-9503-2-035
09-9503-2-035
09-9503-2-035
0.356" 0.062 - 0-80 Screw - 1/16 CLEARANCE FOR #0 Screw Brass Gold YES

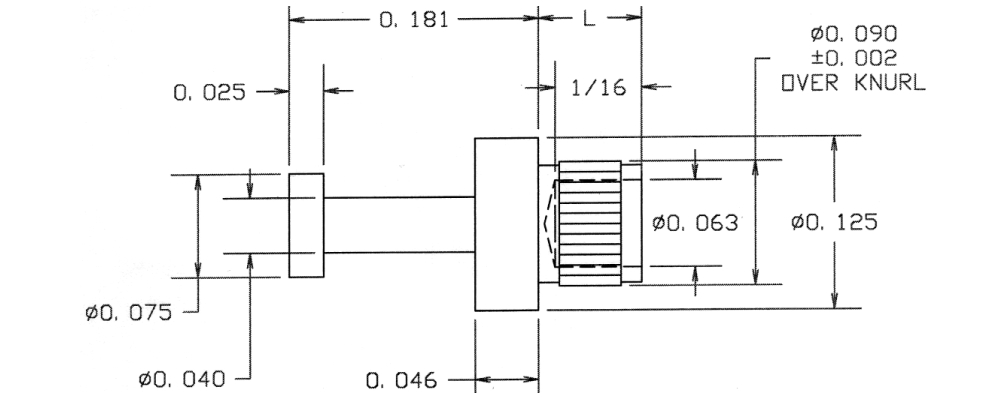

10-106-2-01
10-106-2-01
10-106-2-01
0.286" - - Swage Mount 0.105" 1/16 0.094 Brass Silver YES
10-114-11-095
10-114-11-095
10-114-11-095
0.131" - - Swage Mount 0.037" 1/64 0.043 Brass Hot Solder Dip NO
10-135-2-03
10-135-2-03
10-135-2-03
0.468" - - Swage Mount 0.109" 1/16 0.116 Brass Gold YES
10-205-2-01
10-205-2-01
10-205-2-01
0.465" - - Swage Mount 0.105" 1/16 0.116 Brass Silver YES
10-214-11-05
10-214-11-05
10-214-11-05
0.193" - - Swage Mount 0.037" 1/64 0.067 Brass Electro Solder NO
10-220-4-04
10-220-4-04
10-220-4-04
0.303" - - Swage Mount 0.147" 1/8 0.064 Brass Electro-Tin YES

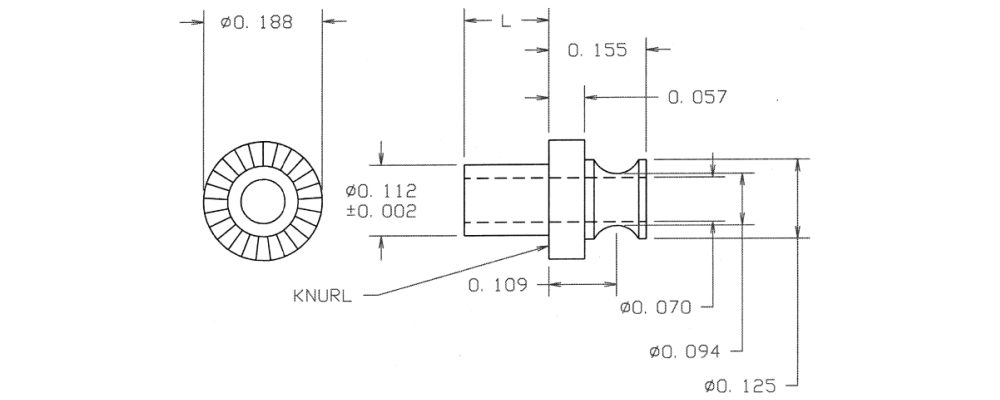

10-231-4-088
10-231-4-088
10-231-4-088
0.320" - - Swage Mount 0.165" 1/8 0.116 Brass Bright Tin-Lead NO
10-254-4-044
10-254-4-044
10-254-4-044
0.303" - - Swage Mount 0.147" 1/8 0.063 Brass Bright Tin YES

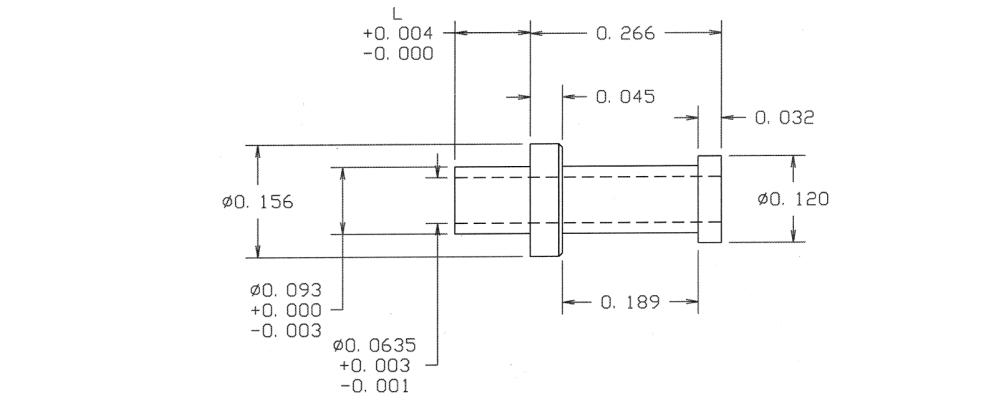

10-307-1-01
10-307-1-01
10-307-1-01
0.341" - - Swage Mount 0.075" 1/32 0.096 Brass Silver YES
10-315-1-044
10-315-1-044
10-315-1-044
0.403" - - Swage Mount 0.075" 1/32 0.082 Brass Bright Tin YES
10-329-5-03
10-329-5-03
10-329-5-03
0.531" - - Swage Mount 0.203" 5/32 0.125 Brass Gold YES
10-404-2-05
10-404-2-05
10-404-2-05
0.422" - - Swage Mount 0.105" 1/16 0.116 Brass Electro Solder NO
10-418-4A-04
10-418-4A-04
10-418-4A-04
0.684" - Turret/Turret Swage Mount 0.153" 1/8 0.120 Brass Electro-Tin YES
10-432-3-088
10-432-3-088
10-432-3-088
0.572" - - Swage Mount 0.135" 3/32 0.161 Brass Bright Tin-Lead NO
10-446-2-088
10-446-2-088
10-446-2-088
0.476" - SLOTTED/DOUBLE TURRET Swage Mount 0.094" 1/16 0.096 Brass Bright Tin-Lead NO
10-462-3-088
10-462-3-088
10-462-3-088
0.271" - - Swage Mount 0.115" 3/32 0.052 Brass Bright Tin-Lead NO
10-489-4-088
10-489-4-088
10-489-4-088
0.312" - - Swage Mount 0.156" 1/8 0.067 Brass Bright Tin-Lead NO
10-504-3-01
10-504-3-01
10-504-3-01
0.532" - Double Turret/Double Turret Swage Mount 0.125" 3/32 0.094 Brass Silver YES
10-510-3-01
10-510-3-01
10-510-3-01
0.502" - TURRET/DOUBLE TURRET Swage Mount 0.135" 3/32 0.116 Brass Silver YES
