Commercial
Non-Insulated
Terminals

Filter

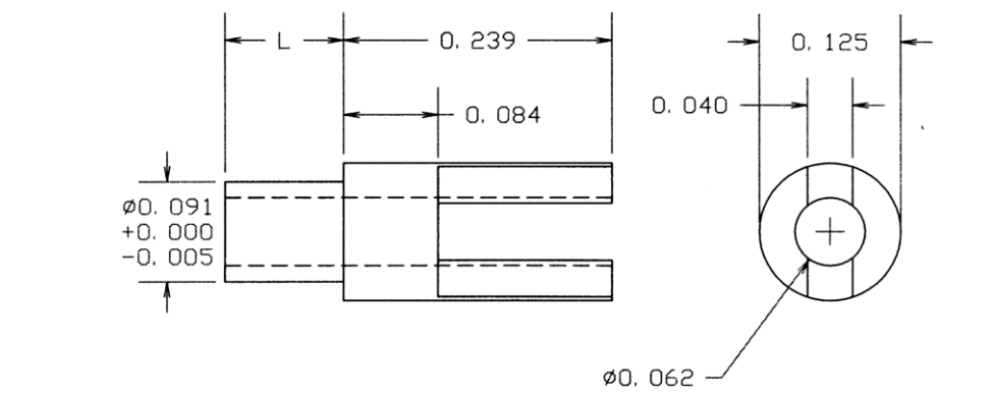

10-412-3-044
10-412-3-044
10-412-3-044
0.374" - - Swage Mount 0.135" 3/32 0.094 Brass Bright Tin YES

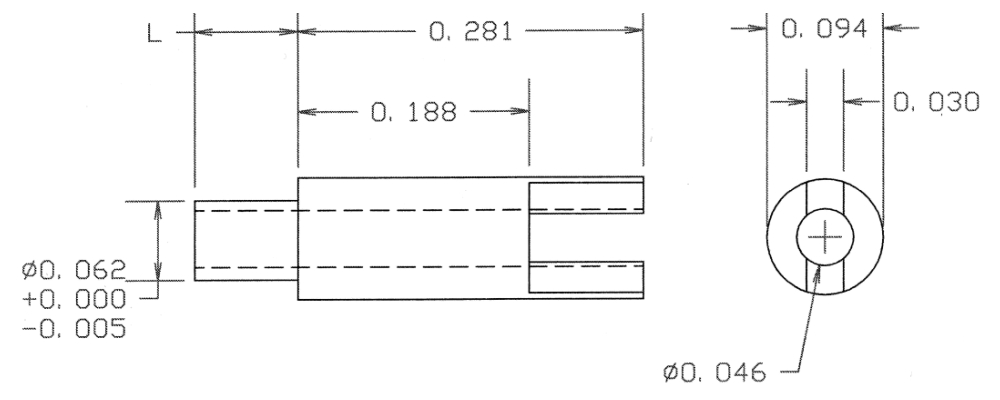

10-447-1-03
10-447-1-03
10-447-1-03
0.334" - - Swage Mount 0.053" 1/32 0.063 Brass Gold YES
10-461-2-05
10-461-2-05
10-461-2-05
0.396" - - Swage Mount 0.084" 1/16 0.043 Brass Electro Solder NO

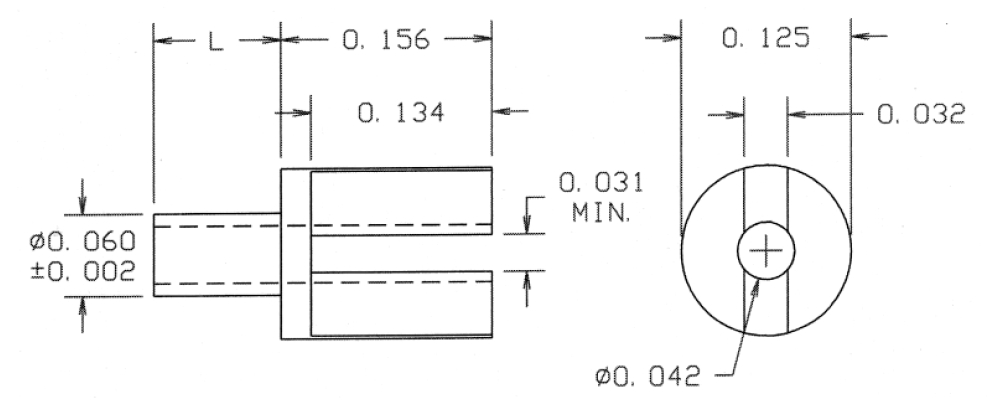

10-932-2-035
10-932-2-035
10-932-2-035
0.250" - - Swage Mount 0.094" 1/16 0.0635 Brass Gold YES

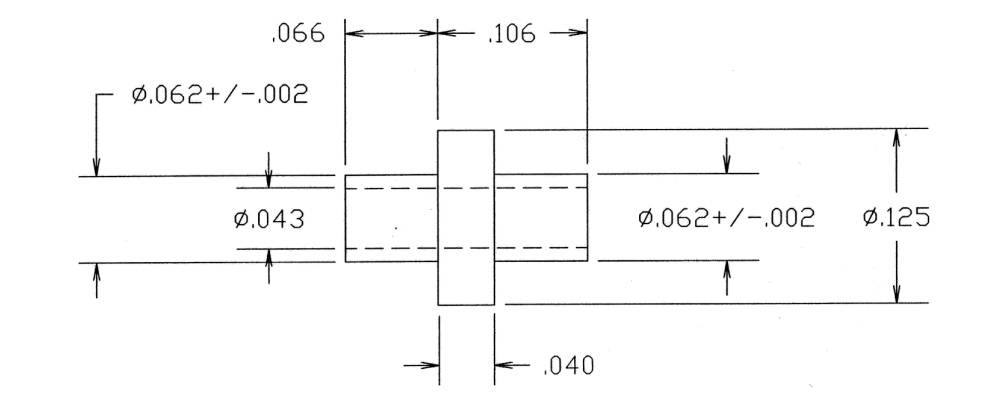

09-0034-1-088
09-0034-1-088
09-0034-1-088
0.172" - - Swage Mount 0.066" 1/32 0.067 Brass Bright Tin-Lead NO

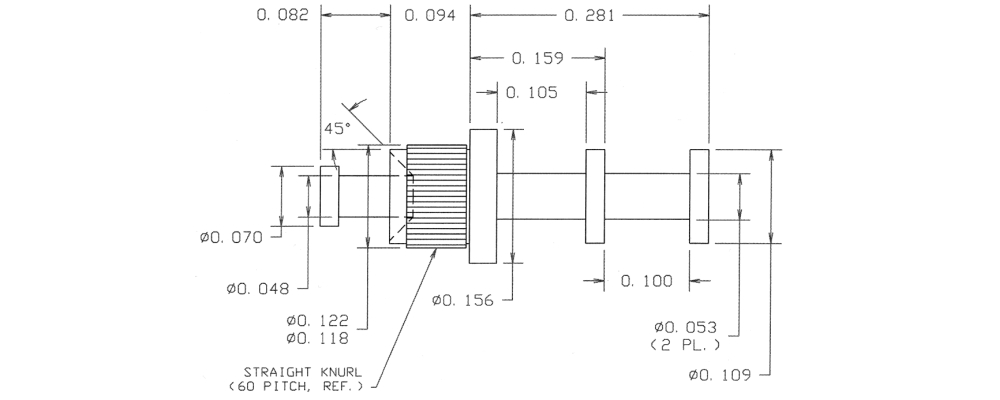

09-0090-2-01
09-0090-2-01
09-0090-2-01
0.457" - Turret/Turret Swage Mount 0.094" 1/16 0.125 Brass Silver YES

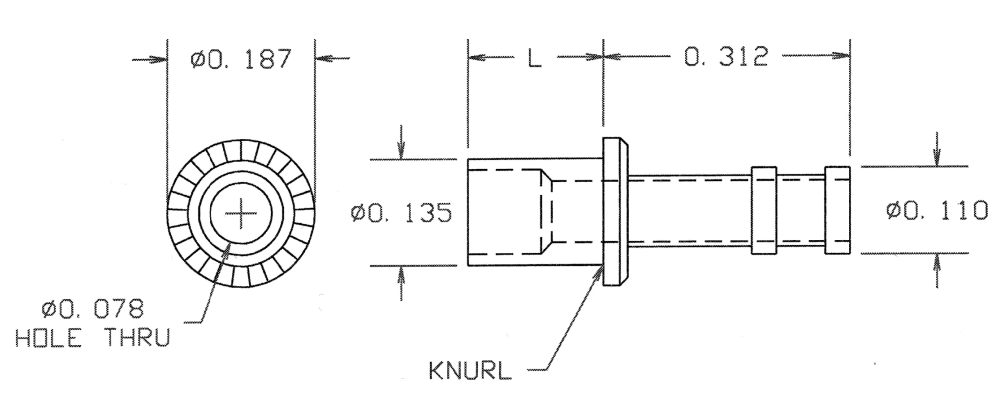

09-0168-3-03
09-0168-3-03
09-0168-3-03
0.453" - - Swage Mount 0.141" 3/32 0.141 Brass Gold YES

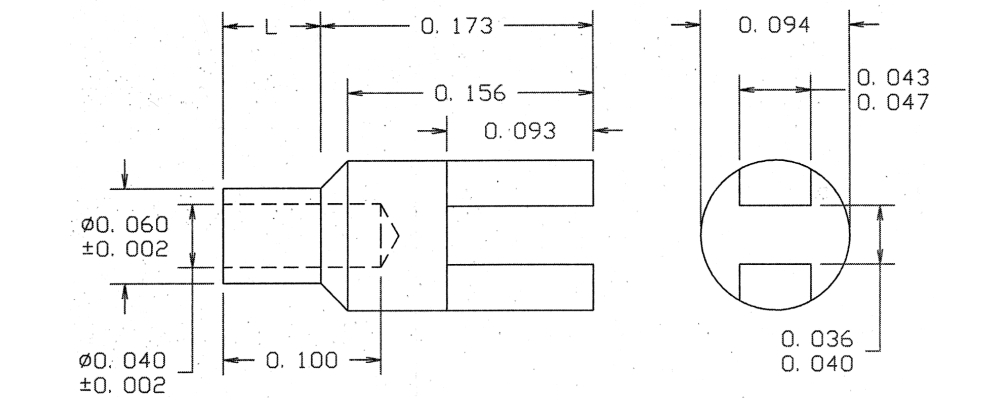

09-0208-3-04
09-0208-3-04
09-0208-3-04
0.298" - - Swage Mount 0.125" 3/32 0.067 LEADED Red Brass Electro-Tin YES

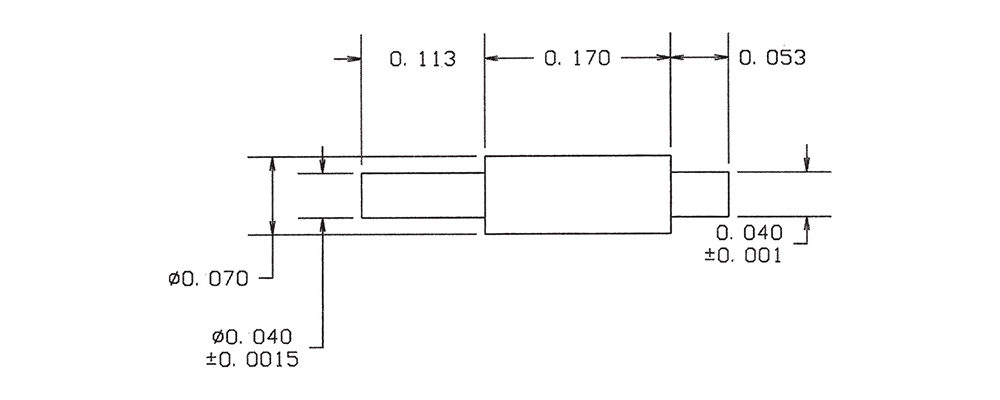

09-0245-3-04
09-0245-3-04
09-0245-3-04
0.336" 0.040 - Solder 0.113" 1/64 TO 3/32 0.043 Brass Electro-Tin YES

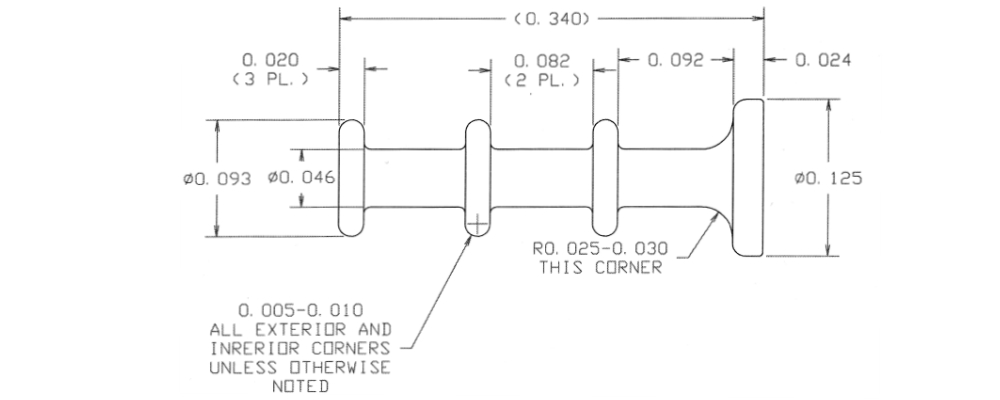

09-0293-1-035
09-0293-1-035
09-0293-1-035
0.340" - - Solder - - - Brass Gold YES
09-0353-5-035
09-0353-5-035
09-0353-5-035
0.468" - - Swage Mount 0.178" 5/32 0.067 Brass Gold YES

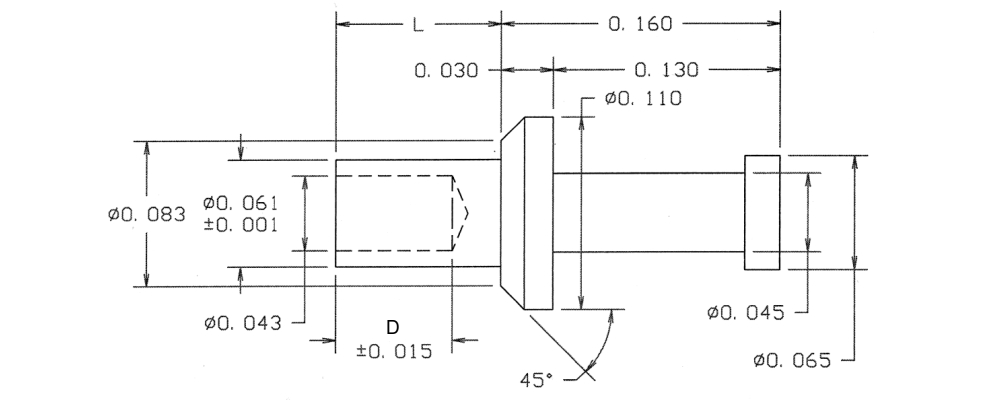

09-7013-1-088
09-7013-1-088
09-7013-1-088
0.222" - - Swage Mount 0.062" 1/32 0.067 LEADED Red Brass Bright Tin-Lead NO

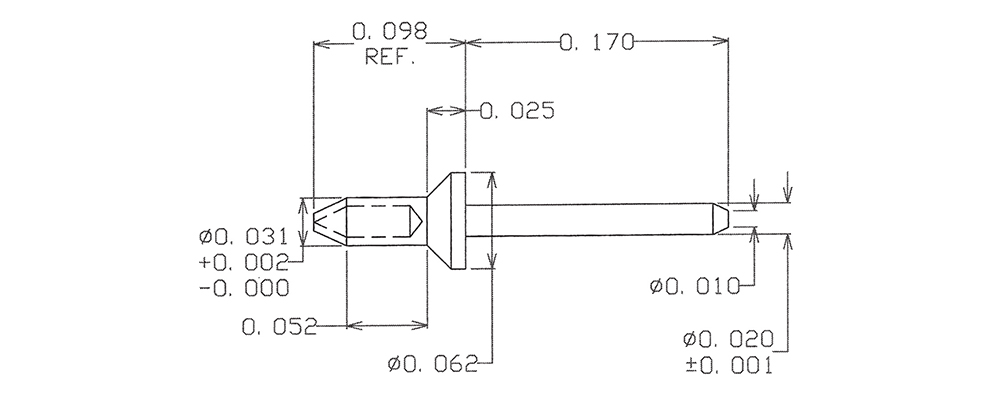

09-7120-1-05
09-7120-1-05
09-7120-1-05
0.268" 0.020 - RIVET MOUNT 0.052" 1/32 0.035 Brass Electro Solder NO

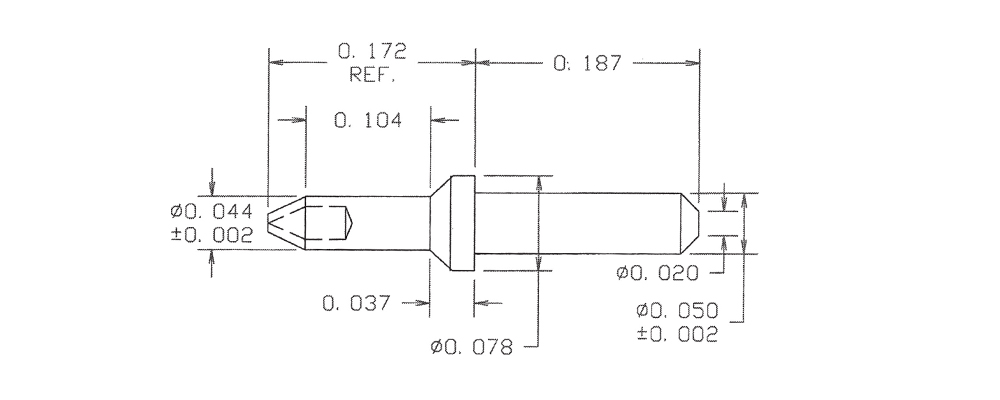

09-7150-2-035
09-7150-2-035
09-7150-2-035
0.359" 0.050 - RIVET MOUNT 0.104" 1/16 0.048 Brass Gold YES

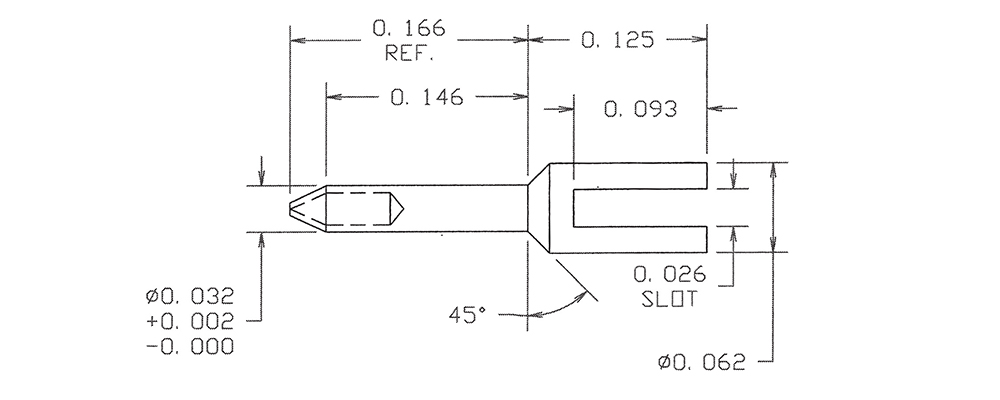

09-7181-4-088
09-7181-4-088
09-7181-4-088
0.291" - - RIVET MOUNT 0.146" 1/8 0.036 Brass Bright Tin-Lead NO

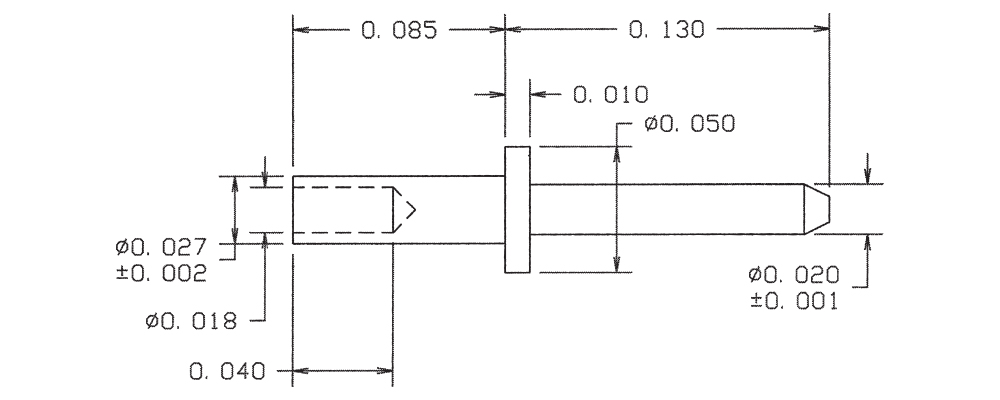

09-8027-2-04
09-8027-2-04
09-8027-2-04
0.215" 0.020 - Swage Mount 0.085" 1/16 0.031 Brass Electro-Tin YES

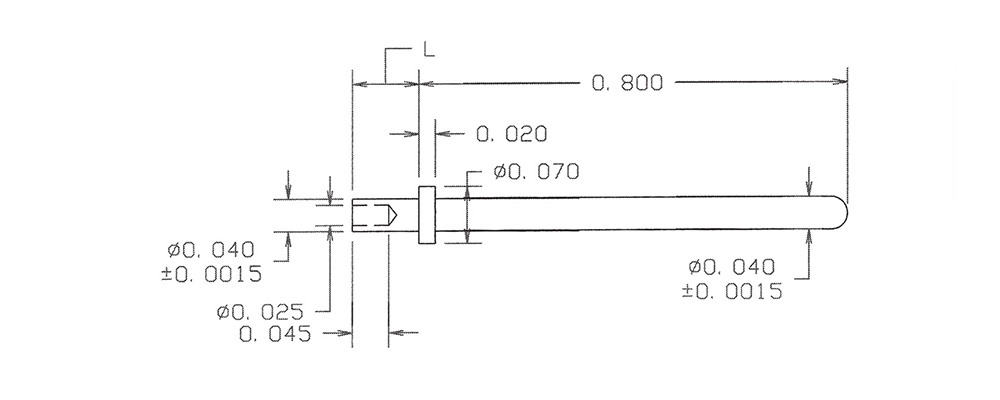

09-8060-1-088
09-8060-1-088
09-8060-1-088
0.851" 0.0405 - Swage Mount 0.051" 1/32 0.043 Brass Bright Tin-Lead NO

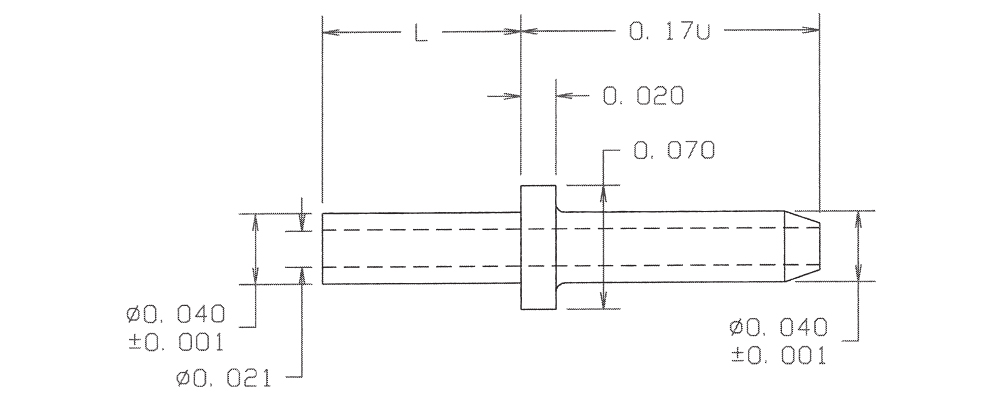

09-8112-3-04
09-8112-3-04
09-8112-3-04
0.283" 0.040 - Swage Mount 0.113" 3/32 0.043 Brass Electro-Tin YES

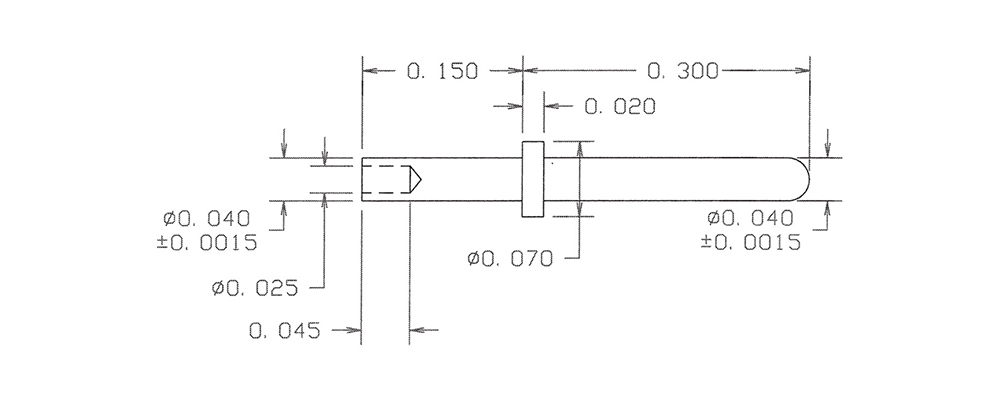

09-8156-4-01
09-8156-4-01
09-8156-4-01
0.450" 0.0405 - Swage Mount 0.150" 1/8 0.043 Brass Silver YES

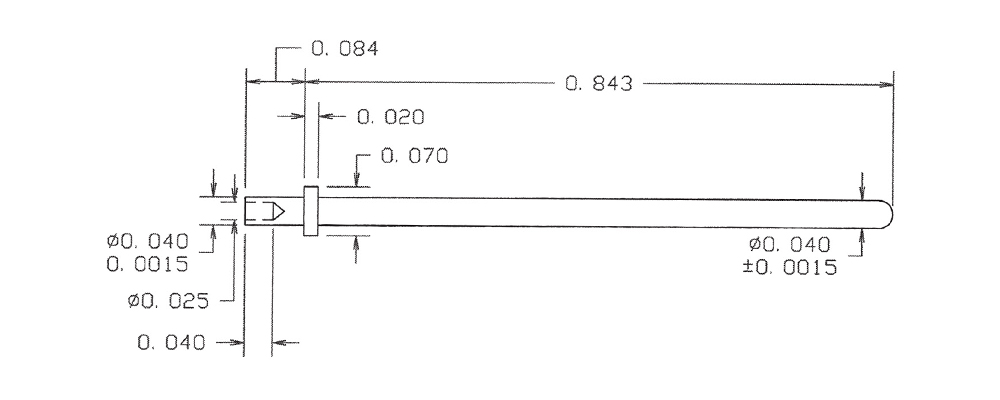

09-8185-2-044
09-8185-2-044
09-8185-2-044
0.927" 0.0405 - Swage Mount 0.084" 1/16 0.043 Brass Bright Tin YES
