Commercial
Non-Insulated
Terminals

Part No	Length	Pin Diameter	Feed Thru Combination	Mounting	Shank Length	Board Thickness	Hole Size	Terminal Material	Terminal Finish	RoHS
10-8011-1-044	0.359"	-	-	Swage Mount	0.078"	1/32	0.116	Brass	Bright Tin	YES
10-401-2-044	0.250"	-	-	Swage Mount	0.094"	1/16	0.067	Brass	Bright Tin	YES
10-316-2-044	0.569"	-	-	Swage Mount	0.105"	1/16	0.116	Brass	Bright Tin	YES
10-438-6-044	0.546"	-	-	Swage Mount	0.234"	3/16	0.116	Brass	Bright Tin	YES
09-8480-3-044	0.263"	0.025	-	Swage Mount	0.113"	3/32	0.0465	Brass	Bright Tin	YES
10-414-11-044	0.191"	-	-	Swage Mount	0.035"	1/64	0.052	Brass	Bright Tin	YES
10-313-1-044	0.403"	-	-	Swage Mount	0.075"	1/32	0.081	Brass	Bright Tin	YES
10-423-1-044	0.318"	-	-	Swage Mount	0.075"	1/32	0.094	Brass	Bright Tin	YES
10-948-3-044	0.298"	-	-	Swage Mount	0.125"	3/32	0.0635	Brass	Bright Tin	YES
10-992-3-01	0.300"	0.032	-	-	-	-	-	Brass	Silver	YES

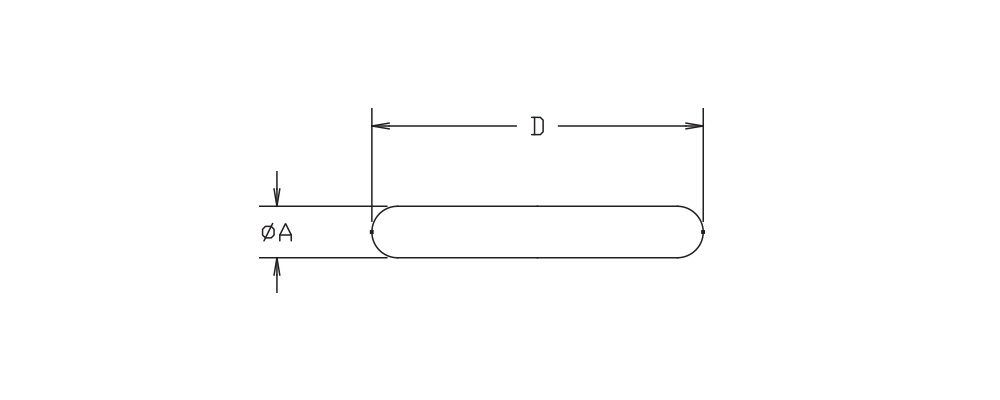

10-895-6-04	0.900"	0.032	-	-	-	-	-	Brass	Electro-Tin	YES
09-8631-1-03	0.704"	0.032	-	Swage Mount	0.051"	1/32	0.055	Brass	Gold	YES
09-8147-1-05	0.472"	0.0305	-	Swage Mount	0.051"	1/32	0.033	Brass	Electro Solder	NO
10-885-1-01	0.395"	0.030	-	-	-	-	-	Brass	Silver	YES
10-717-12-035	0.844"	-	-	6-32	-	-	6-32 THREAD	Brass	Gold	YES
09-8114-2-03	0.410"	0.040	TURRET/PIN	Swage Mount	0.082"	1/16	0.086	Brass	Gold	YES
09-8642-2-04	0.202"	0.040	-	Swage Mount	0.082"	1/16	0.043	Brass	Electro-Tin	YES
09-9502-2-035	0.356"	0.040	-	0-80 Screw	-	1/16	CLEARANCE FOR #0 Screw	Brass	Gold	YES
09-9501-1-05	0.344"	0.040	-	0-80 Screw	-	1/16	CLEARANCE FOR #0 Screw	Brass	Electro Solder	NO
09-8764-1-03	0.370"	0.040	-	-	-	-	-	Brass	Gold	YES
