Commercial
Non-Insulated
Terminals

Filter
10-482-3-044
10-482-3-044
10-482-3-044
0.469" - - Swage Mount 0.141" 3/32 0.116 Brass Bright Tin YES
10-503-2-03
10-503-2-03
10-503-2-03
0.432" - Double Turret/Double Turret Swage Mount 0.082" 1/16 0.076 Brass Gold YES
10-509-3-03
10-509-3-03
10-509-3-03
0.782" - Double Turret/Double Turret Swage Mount 0.125" 3/32 0.204 Brass Gold YES
10-515-5-03
10-515-5-03
10-515-5-03
0.961" 0.094 TURRET/PIN Swage Mount 0.195" 5/32 0.185 Brass Gold YES
10-530-2-03
10-530-2-03
10-530-2-03
0.574" - TURRET/DOUBLE TURRET Swage Mount 0.105" 1/16 0.159 Brass Gold YES
10-544-6-03
10-544-6-03
10-544-6-03
0.460" - Turret/Turret Swage Mount 0.219" 3/16 0.094 Brass Gold YES
10-562-6-03
10-562-6-03
10-562-6-03
0.698" - Double Turret/Double Turret Swage Mount 0.230" 3/16 0.159 Brass Gold YES
10-607-1-05
10-607-1-05
10-607-1-05
0.496" - - Swage Mount 0.075" 1/32 0.116 Brass Electro Solder NO
10-714-2-03
10-714-2-03
10-714-2-03
0.667" - DOUBLE TURRET/THREAD Swage Mount 0.105" 1/16 0.204 Brass Gold YES
10-8015-6-03
10-8015-6-03
10-8015-6-03
0.582" 0.040 TURRET/PIN Swage Mount 0.207" 3/16 0.076 Brass Gold YES
10-8025-4-088
10-8025-4-088
10-8025-4-088
0.442" 0.040 TURRET/PIN Swage Mount 0.145" 1/8 0.076 Brass Bright Tin-Lead NO
10-808-4-044
10-808-4-044
10-808-4-044
0.643" - - Swage Mount 0.172" 1/8 0.094 Brass Bright Tin YES
10-815-4-05
10-815-4-05
10-815-4-05
0.365" - - Swage Mount 0.165" 1/8 0.1495 Brass Electro Solder NO
10-825-3-03
10-825-3-03
10-825-3-03
0.463" - - Swage Mount 0.135" 3/32 0.081 Brass Gold YES
10-835-4-01
10-835-4-01
10-835-4-01
0.594" 0.050 - Swage Mount 0.156" 1/8 0.064 Brass Silver YES
10-846-4-044
10-846-4-044
10-846-4-044
0.493" - - Swage Mount 0.165" 1/8 0.116 Brass Bright Tin YES

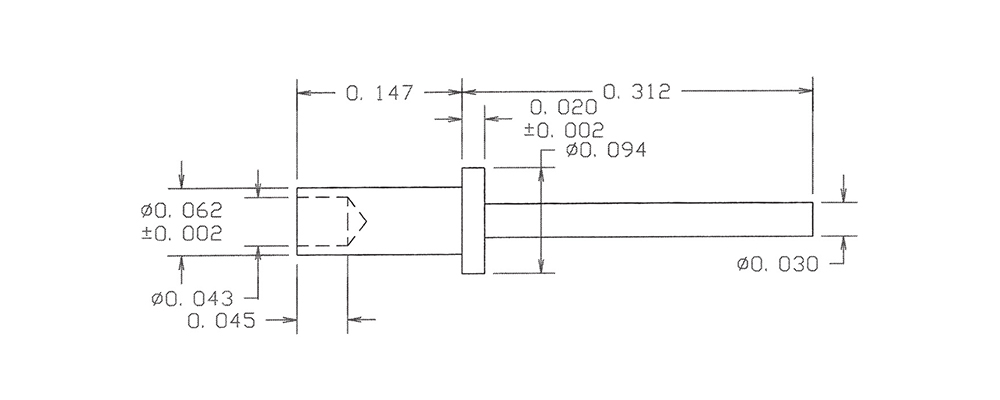

10-870-4-03
10-870-4-03
10-870-4-03
0.459" 0.030 - Swage Mount 0.147" 1/8 0.067 Brass Gold YES

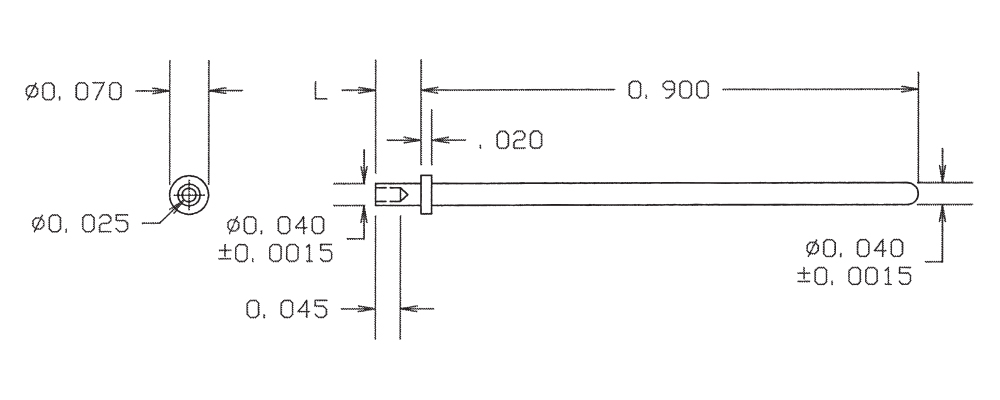

10-893-2-088
10-893-2-088
10-893-2-088
0.982" 0.0405 - Swage Mount 0.082" 1/16 0.043 Brass Bright Tin-Lead NO
10-906-2-044
10-906-2-044
10-906-2-044
0.230" - - Swage Mount 0.094" 1/16 0.0635 Brass Bright Tin YES
10-921-3-044
10-921-3-044
10-921-3-044
0.333" 0.045 - Swage Mount 0.125" 3/32 0.064 Brass Bright Tin YES
