Commercial
Non-Insulated
Terminals

Filter

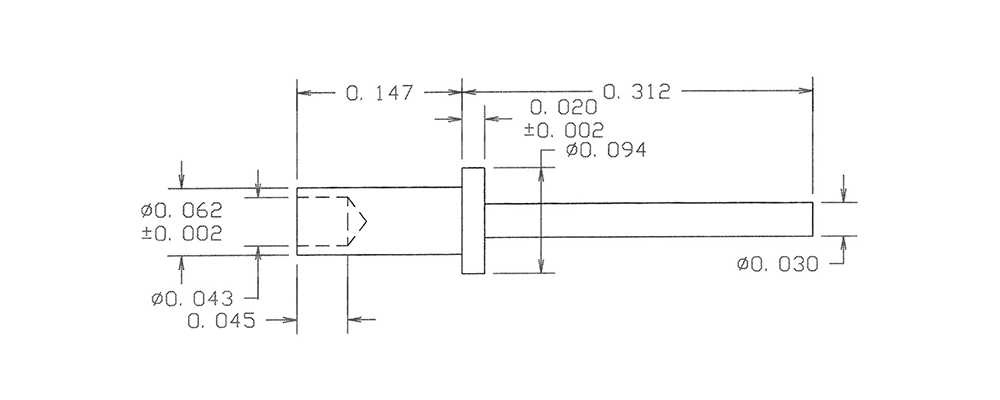

10-870-4-035
10-870-4-035
10-870-4-035
0.459" 0.030 - Swage Mount 0.147" 1/8 0.067 Brass Gold YES

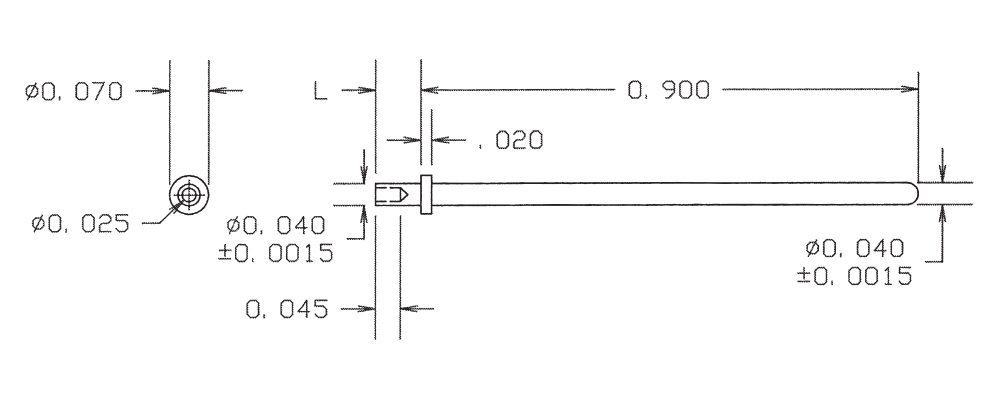

10-893-3-01
10-893-3-01
10-893-3-01
1.013" 0.0405 - Swage Mount 0.113" 3/32 0.043 Brass Silver YES
10-906-2-05
10-906-2-05
10-906-2-05
0.230" - - Swage Mount 0.094" 1/16 0.0635 Brass Electro Solder NO
10-921-3-05
10-921-3-05
10-921-3-05
0.333" 0.045 - Swage Mount 0.125" 3/32 0.064 Brass Electro Solder NO
10-938-11-03
10-938-11-03
10-938-11-03
0.370" 0.038 - Swage Mount 0.045" 1/64 0.042 Brass Gold YES
14-346-3-035
14-346-3-035
14-346-3-035
0.323" - - Swage Mount 0.135" 3/32 0.082 LEADED Red Brass Gold YES
19-246-3-044
19-246-3-044
19-246-3-044
0.500" - - Swage Mount 0.141" 3/32 0.116 LEADED Red Brass Bright Tin YES
10-408-5-088
10-408-5-088
10-408-5-088
0.507" - - Swage Mount 0.195" 5/32 0.116 Brass Bright Tin-Lead NO
10-438-4-04
10-438-4-04
10-438-4-04
0.484" - - Swage Mount 0.172" 1/8 0.116 Brass Electro-Tin YES
10-457-2-01
10-457-2-01
10-457-2-01
0.250" - - Swage Mount 0.094" 1/16 0.076 Brass Silver YES
10-483-2-044
10-483-2-044
10-483-2-044
0.433" - - Swage Mount 0.105" 1/16 0.116 Brass Bright Tin YES

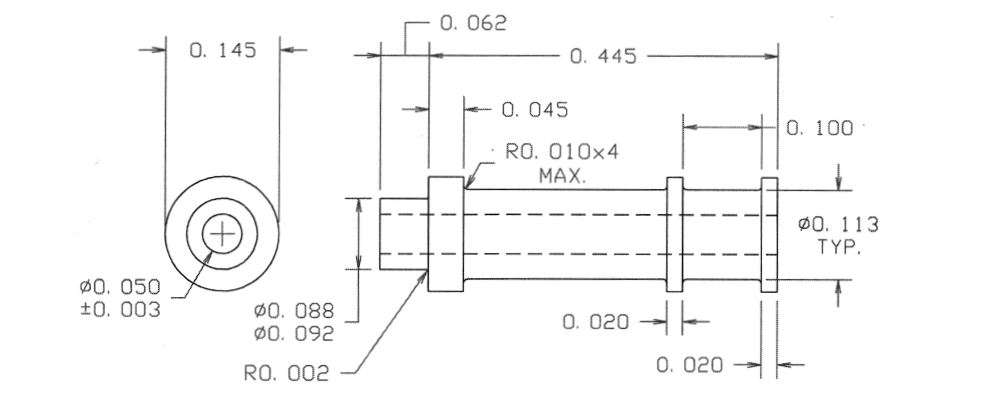

09-0024-1-05
09-0024-1-05
09-0024-1-05
0.507" - - Swage Mount 0.062" 1/32 0.094 Brass Electro Solder NO
09-0078-1-044
09-0078-1-044
09-0078-1-044
0.209" - - Swage Mount 0.053" 1/32 0.076 Brass Bright Tin YES

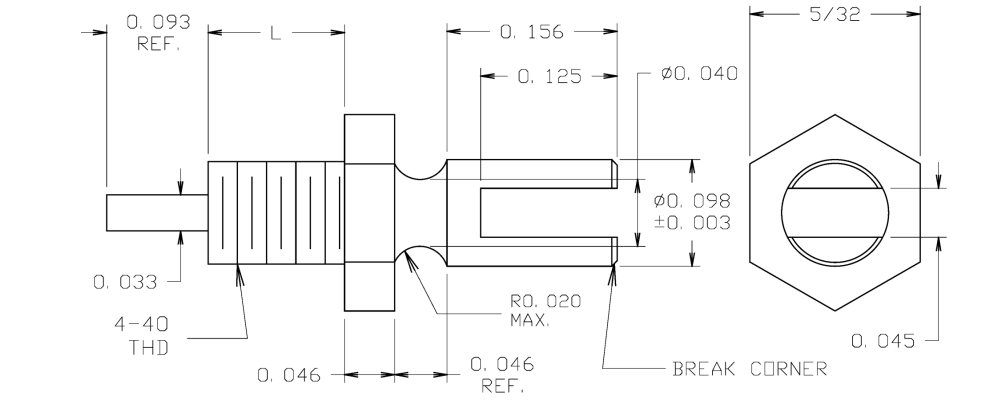

09-0163-4-05
09-0163-4-05
09-0163-4-05
0.500" 0.033 SLOTTED/PIN 4-40 Nut - 1/16 0.120 Brass Electro Solder NO

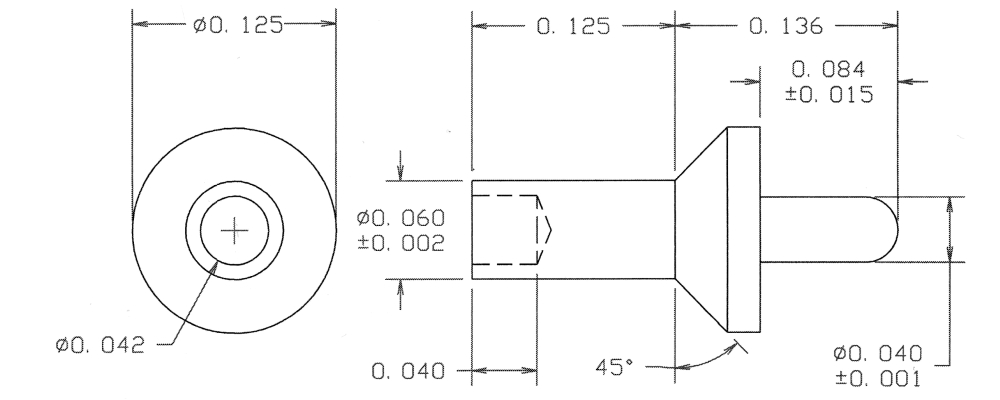

09-0190-3-04
09-0190-3-04
09-0190-3-04
0.261" 0.040 - Swage Mount 0.125" 3/32 0.067 Brass Electro-Tin YES

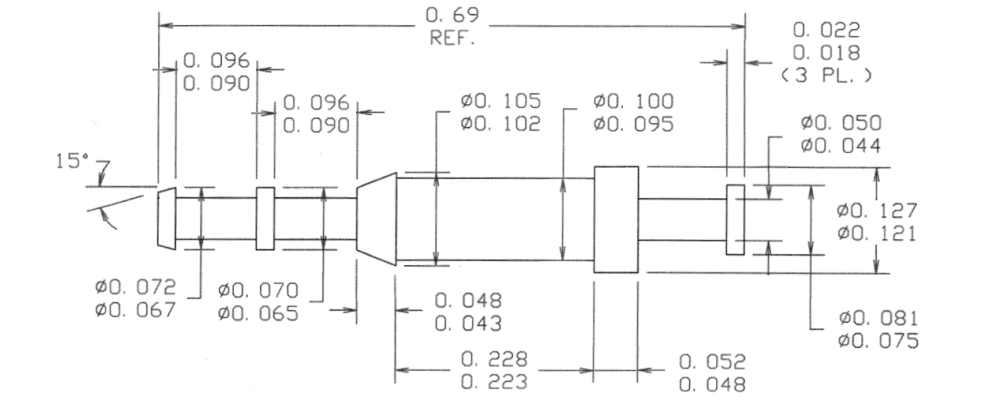

09-0235-1-01
09-0235-1-01
09-0235-1-01
0.690" - TURRET/DOUBLE TURRET Solder 0.228" 3/32 0.106 LEADED Red Brass Silver YES

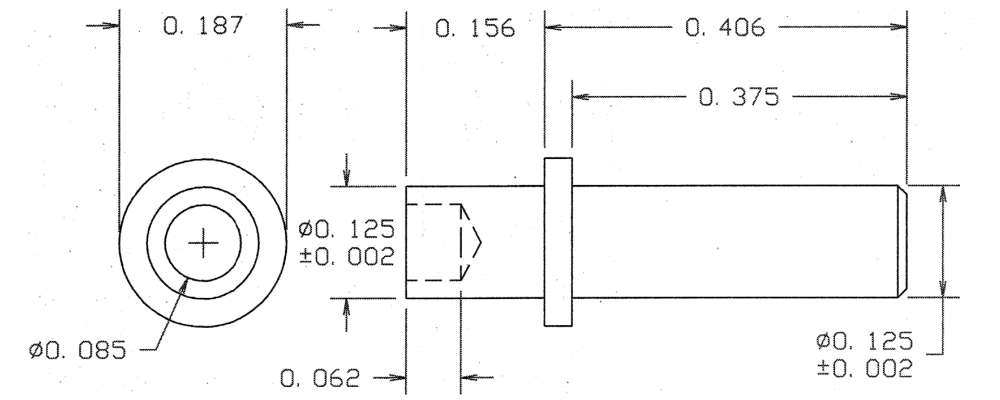

09-0282-4-03
09-0282-4-03
09-0282-4-03
0.562" 0.125 - Swage Mount 0.156" 1/8 0.129 Brass Gold YES
09-0345-1-01
09-0345-1-01
09-0345-1-01
0.260" - - Press Fit/Solder 0.100" 1/16 0.047 Brass Silver YES
09-7010-3-01
09-7010-3-01
09-7010-3-01
0.265" 0.050 - Swage Mount 0.125" 3/32 0.055 Brass Silver YES

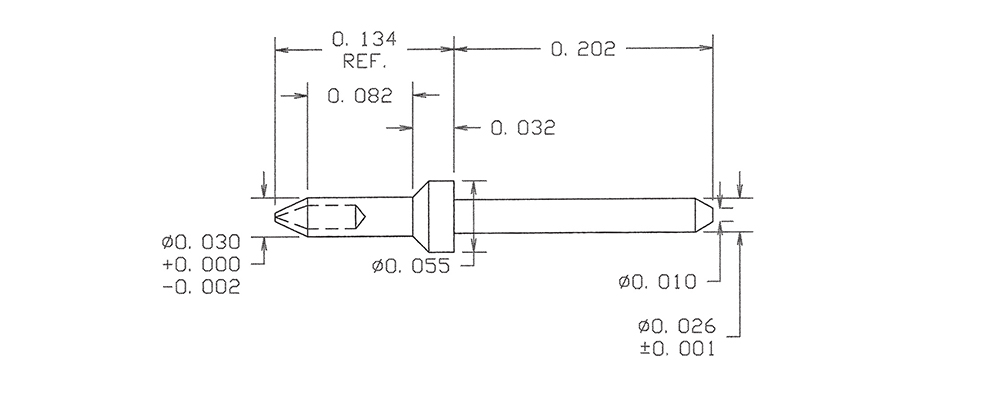

09-7111-2-01
09-7111-2-01
09-7111-2-01
0.336" 0.026 - RIVET MOUNT 0.082" 1/16 0.032 Brass Silver YES
