Commercial
Non-Insulated
Terminals

Filter
10-530-2-01
10-530-2-01
10-530-2-01
0.574" - TURRET/DOUBLE TURRET Swage Mount 0.105" 1/16 0.159 Brass Silver YES
10-544-6-01
10-544-6-01
10-544-6-01
0.460" - Turret/Turret Swage Mount 0.219" 3/16 0.094 Brass Silver YES
10-562-6-01
10-562-6-01
10-562-6-01
0.698" - Double Turret/Double Turret Swage Mount 0.230" 3/16 0.159 Brass Silver YES
10-607-1-044
10-607-1-044
10-607-1-044
0.496" - - Swage Mount 0.075" 1/32 0.116 Brass Bright Tin YES
10-714-2-01
10-714-2-01
10-714-2-01
0.667" - DOUBLE TURRET/THREAD Swage Mount 0.105" 1/16 0.204 Brass Silver YES
10-8015-6-01
10-8015-6-01
10-8015-6-01
0.582" 0.040 TURRET/PIN Swage Mount 0.207" 3/16 0.076 Brass Silver YES
10-8025-4-05
10-8025-4-05
10-8025-4-05
0.442" 0.040 TURRET/PIN Swage Mount 0.145" 1/8 0.076 Brass Electro Solder NO
10-808-4-04
10-808-4-04
10-808-4-04
0.643" - - Swage Mount 0.172" 1/8 0.094 Brass Electro-Tin YES
10-815-4-044
10-815-4-044
10-815-4-044
0.365" - - Swage Mount 0.165" 1/8 0.1495 Brass Bright Tin YES
10-825-3-01
10-825-3-01
10-825-3-01
0.463" - - Swage Mount 0.135" 3/32 0.081 Brass Silver YES
10-835-3-088
10-835-3-088
10-835-3-088
0.563" 0.050 - Swage Mount 0.125" 3/32 0.064 Brass Bright Tin-Lead NO
10-846-4-04
10-846-4-04
10-846-4-04
0.493" - - Swage Mount 0.165" 1/8 0.116 Brass Electro-Tin YES

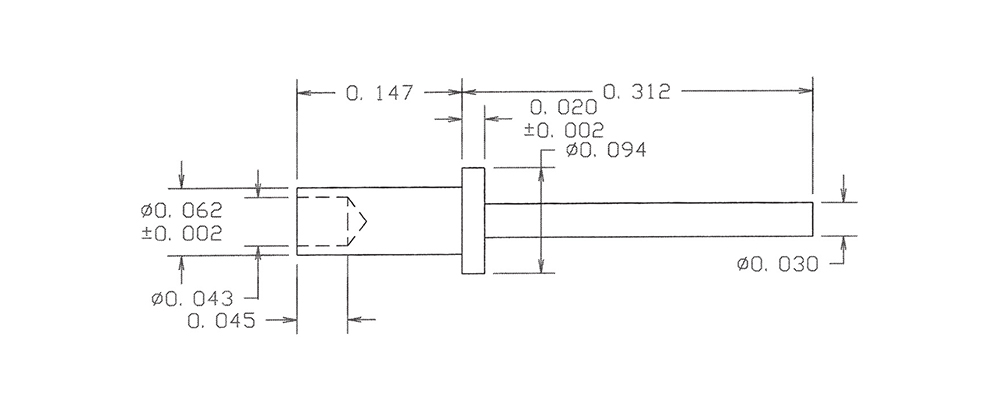

10-870-4-01
10-870-4-01
10-870-4-01
0.459" 0.030 - Swage Mount 0.147" 1/8 0.067 Brass Silver YES

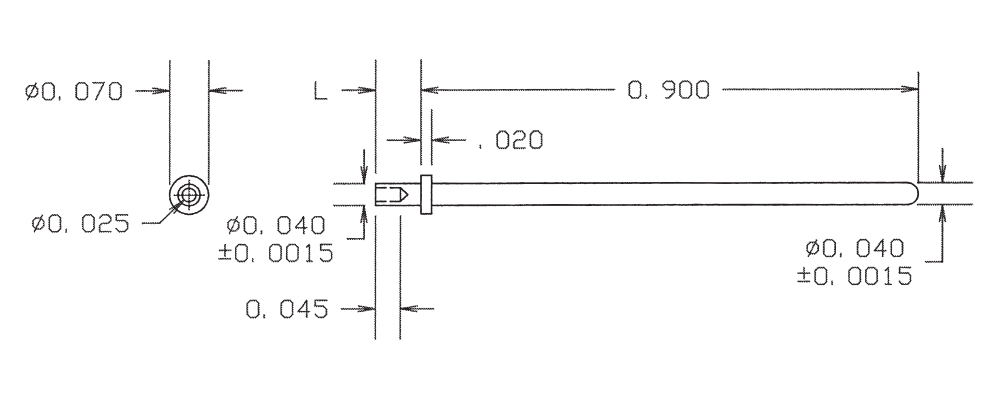

10-893-2-05
10-893-2-05
10-893-2-05
0.982" 0.0405 - Swage Mount 0.082" 1/16 0.043 Brass Electro Solder NO
10-906-2-04
10-906-2-04
10-906-2-04
0.230" - - Swage Mount 0.094" 1/16 0.0635 Brass Electro-Tin YES
10-921-3-04
10-921-3-04
10-921-3-04
0.333" 0.045 - Swage Mount 0.125" 3/32 0.064 Brass Electro-Tin YES
10-938-1-088
10-938-1-088
10-938-1-088
0.385" 0.038 - Swage Mount 0.060" 1/32 0.042 Brass Bright Tin-Lead NO
14-346-3-01
14-346-3-01
14-346-3-01
0.323" - - Swage Mount 0.135" 3/32 0.082 LEADED Red Brass Silver YES
19-246-3-035
19-246-3-035
19-246-3-035
0.500" - - Swage Mount 0.141" 3/32 0.116 LEADED Red Brass Gold YES
10-408-5-044
10-408-5-044
10-408-5-044
0.507" - - Swage Mount 0.195" 5/32 0.116 Brass Bright Tin YES

About the Company

CONCORD ELECTRONICS, INC. is a leading manufacturer of high reliability, precision-machined interconnect components, hardware and test accessories. A majority of our parts are proudly Made in the USA and used in a wide variety of industries including: automotive, avionics, energy, industrial, instrumentation, marine, medical, military and telecommunications.  We are a MIL-DTL-39024 recognized manufacturer of both MIL-T-55155 (Group A) and A-A-59126 components
