Commercial
Non-Insulated
Terminals

Filter
10-417-6-095
10-417-6-095
10-417-6-095
0.625" - - Swage Mount 0.234" 3/16 0.116 Brass Hot Solder Dip NO
10-426-4-035
10-426-4-035
10-426-4-035
0.384" - - Swage Mount 0.165" 1/8 0.094 Brass Gold YES
10-444-2-05
10-444-2-05
10-444-2-05
0.209" - - Swage Mount 0.084" 1/16 0.043 Brass Electro Solder NO
10-460-2-01
10-460-2-01
10-460-2-01
0.365" - - Swage Mount 0.084" 1/16 0.063 Brass Silver YES
10-482-3-05
10-482-3-05
10-482-3-05
0.469" - - Swage Mount 0.141" 3/32 0.116 Brass Electro Solder NO
10-503-2-035
10-503-2-035
10-503-2-035
0.432" - Double Turret/Double Turret Swage Mount 0.082" 1/16 0.076 Brass Gold YES
10-509-3-035
10-509-3-035
10-509-3-035
0.782" - Double Turret/Double Turret Swage Mount 0.125" 3/32 0.204 Brass Gold YES
10-515-5-035
10-515-5-035
10-515-5-035
0.961" 0.094 TURRET/PIN Swage Mount 0.195" 5/32 0.185 Brass Gold YES
10-530-2-035
10-530-2-035
10-530-2-035
0.574" - TURRET/DOUBLE TURRET Swage Mount 0.105" 1/16 0.159 Brass Gold YES
10-544-6-035
10-544-6-035
10-544-6-035
0.460" - Turret/Turret Swage Mount 0.219" 3/16 0.094 Brass Gold YES
10-562-6-035
10-562-6-035
10-562-6-035
0.698" - Double Turret/Double Turret Swage Mount 0.230" 3/16 0.159 Brass Gold YES
10-607-1-088
10-607-1-088
10-607-1-088
0.496" - - Swage Mount 0.075" 1/32 0.116 Brass Bright Tin-Lead NO
10-714-2-035
10-714-2-035
10-714-2-035
0.667" - DOUBLE TURRET/THREAD Swage Mount 0.105" 1/16 0.204 Brass Gold YES
10-8015-6-035
10-8015-6-035
10-8015-6-035
0.582" 0.040 TURRET/PIN Swage Mount 0.207" 3/16 0.076 Brass Gold YES

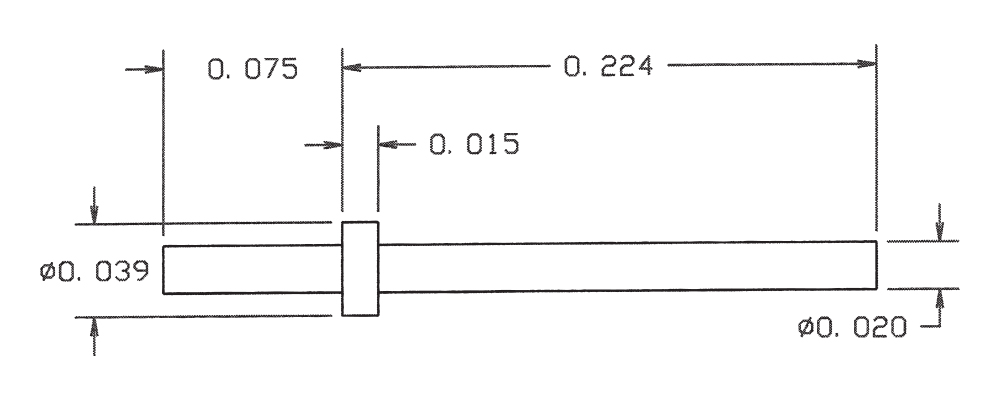

10-8027-1-01
10-8027-1-01
10-8027-1-01
0.299" 0.020 - Solder 0.075" 1/64 TO 1/32 0.043 Brass Silver YES
10-808-4-05
10-808-4-05
10-808-4-05
0.643" - - Swage Mount 0.172" 1/8 0.094 Brass Electro Solder NO
10-815-4-088
10-815-4-088
10-815-4-088
0.365" - - Swage Mount 0.165" 1/8 0.1495 Brass Bright Tin-Lead NO
10-825-3-035
10-825-3-035
10-825-3-035
0.463" - - Swage Mount 0.135" 3/32 0.081 Brass Gold YES
10-835-4-03
10-835-4-03
10-835-4-03
0.594" 0.050 - Swage Mount 0.156" 1/8 0.064 Brass Gold YES
10-846-4-05
10-846-4-05
10-846-4-05
0.493" - - Swage Mount 0.165" 1/8 0.116 Brass Electro Solder NO
