Commercial
Non-Insulated
Terminals

Filter

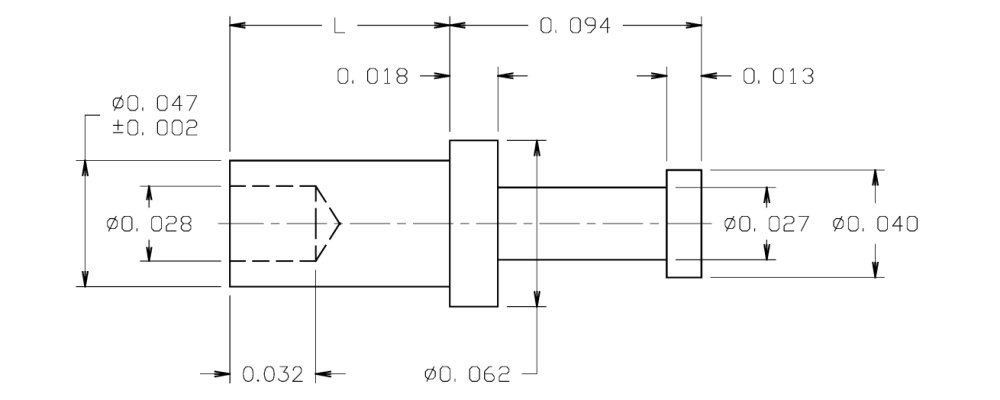

10-104-3-095
10-104-3-095
10-104-3-095
0.207" - - Swage Mount 0.113" 3/32 0.052 Brass Hot Solder Dip NO

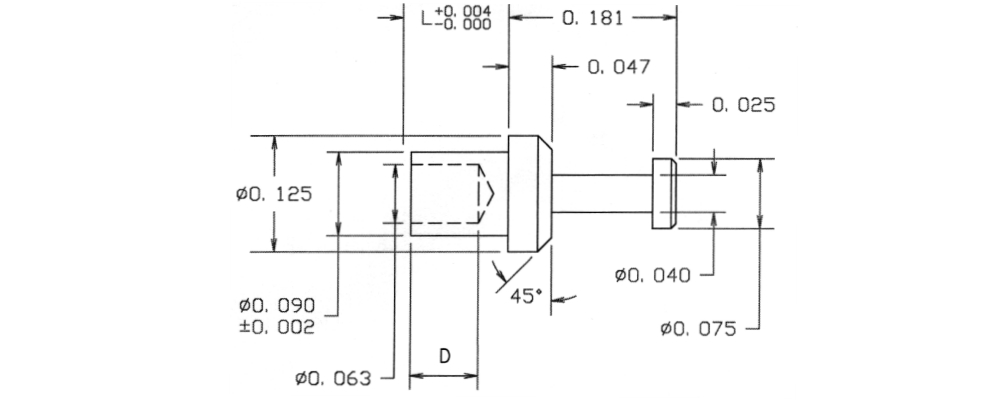

10-111-4-095
10-111-4-095
10-111-4-095
0.346" - - Swage Mount 0.165" 1/8 0.094 Brass Hot Solder Dip NO

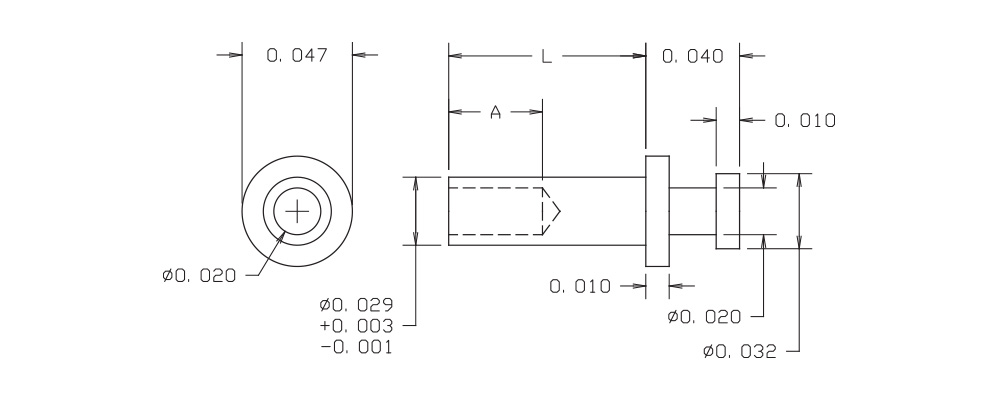

10-133-2-03
10-133-2-03
10-133-2-03
0.124" - - Swage Mount 0.084" 1/16 0.033 Brass Gold YES

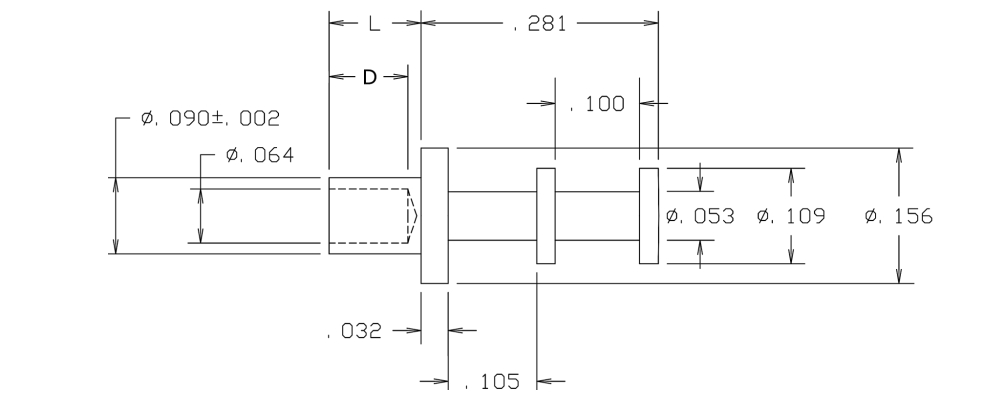

10-203-8-095
10-203-8-095
10-203-8-095
0.578" - - Swage Mount 0.297" 1/4 0.094 Brass Hot Solder Dip NO

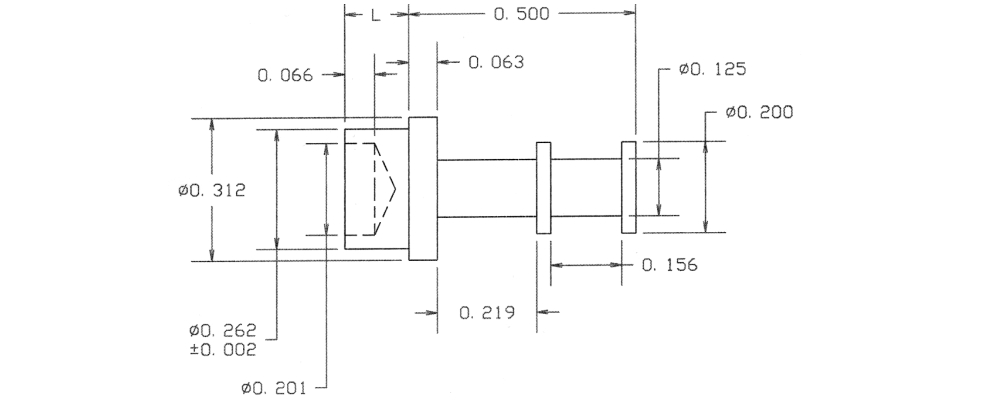

10-211-6-03
10-211-6-03
10-211-6-03
0.734" - - Swage Mount 0.234" 3/16 0.266 Brass Gold YES

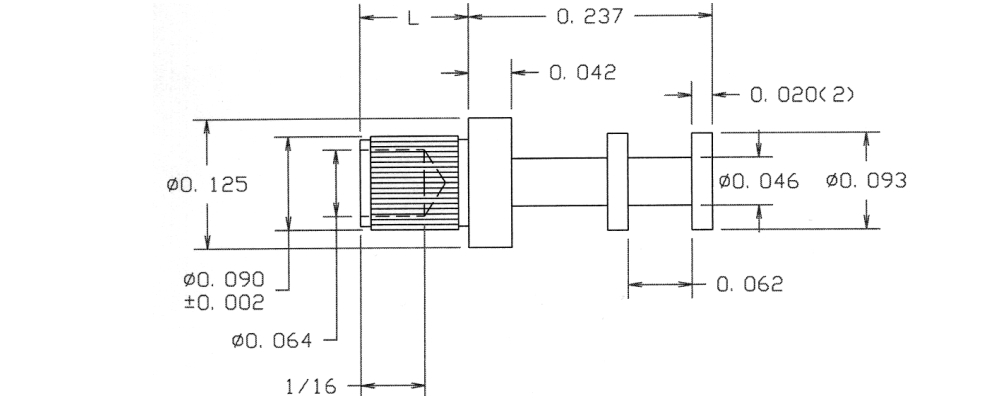

10-218-1-04
10-218-1-04
10-218-1-04
0.312" - - Swage Mount 0.075" 1/32 0.094 Brass Electro-Tin YES

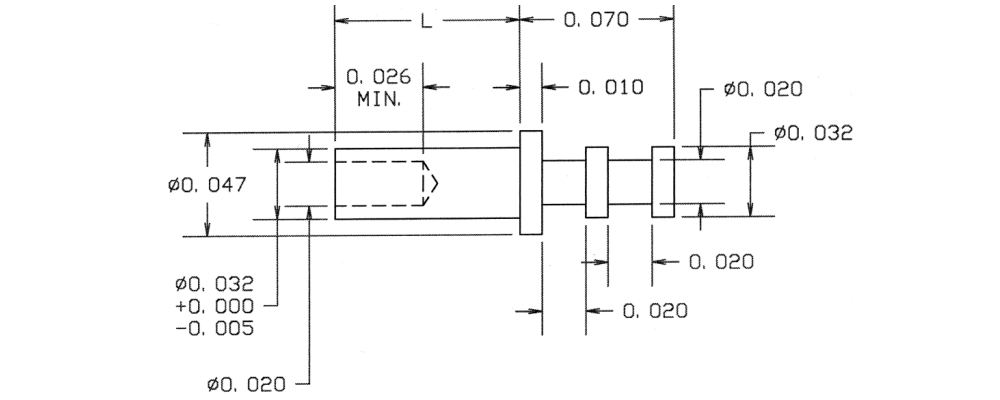

10-229-2-03
10-229-2-03
10-229-2-03
0.154" - - Swage Mount 0.084" 1/16 0.035 Brass Gold YES
10-248-2-044
10-248-2-044
10-248-2-044
0.417" - - Swage Mount 0.105" 1/16 0.073 Brass Bright Tin YES

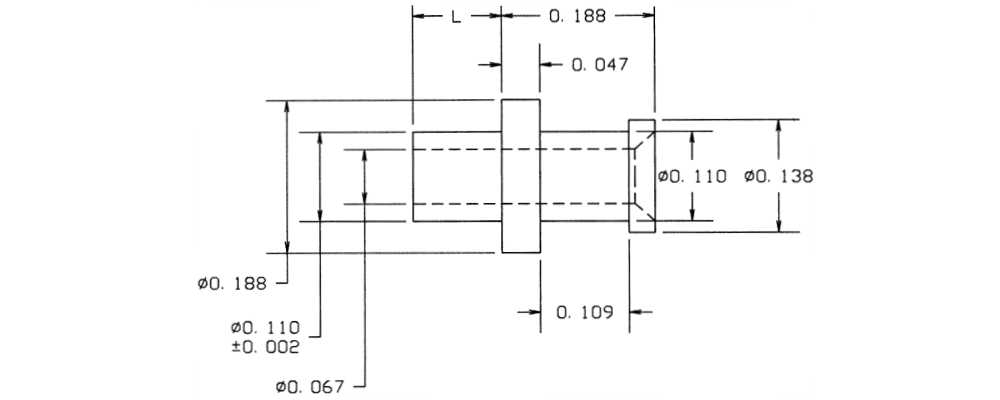

10-305-1-01
10-305-1-01
10-305-1-01
0.266" - - Swage Mount 0.078" 1/32 0.113 Brass Silver YES

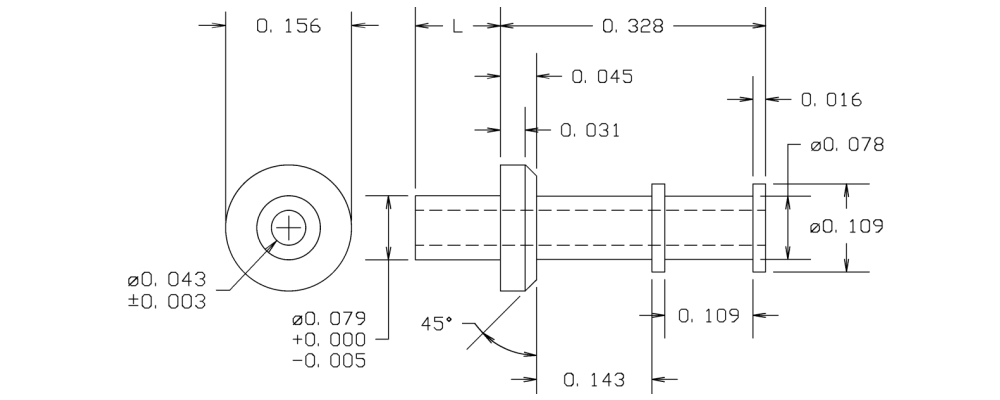

10-312-3-044
10-312-3-044
10-312-3-044
0.463" - - Swage Mount 0.135" 3/32 0.082 Brass Bright Tin YES

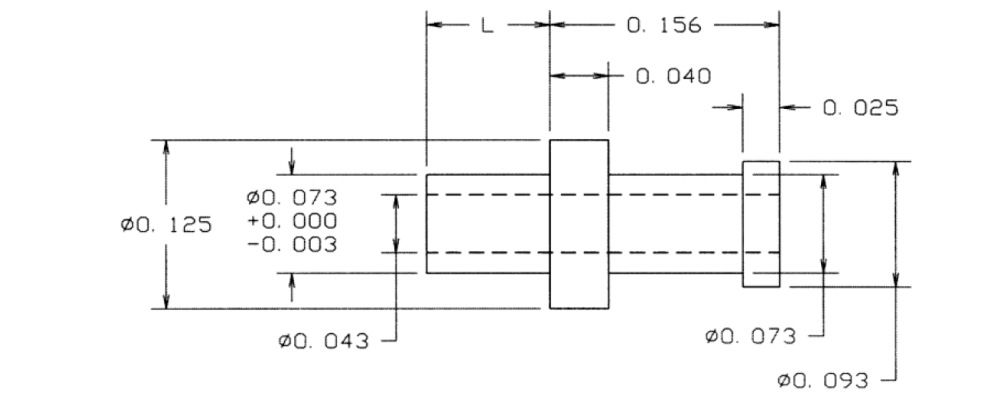

10-323-5-03
10-323-5-03
10-323-5-03
0.334" - - Swage Mount 0.178" 5/32 0.076 Brass Gold YES

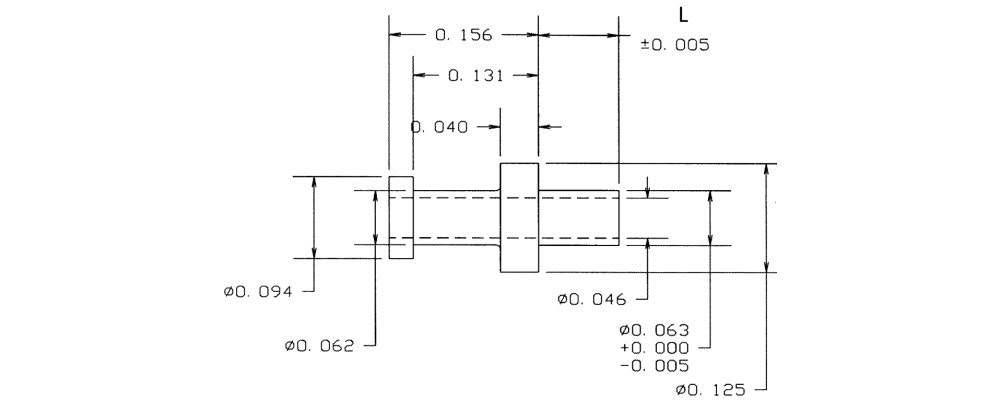

10-372-11-05
10-372-11-05
10-372-11-05
0.121" - - Swage Mount 0.037" 1/64 0.064 Brass Electro Solder NO
10-417-6-05
10-417-6-05
10-417-6-05
0.625" - - Swage Mount 0.234" 3/16 0.116 Brass Electro Solder NO

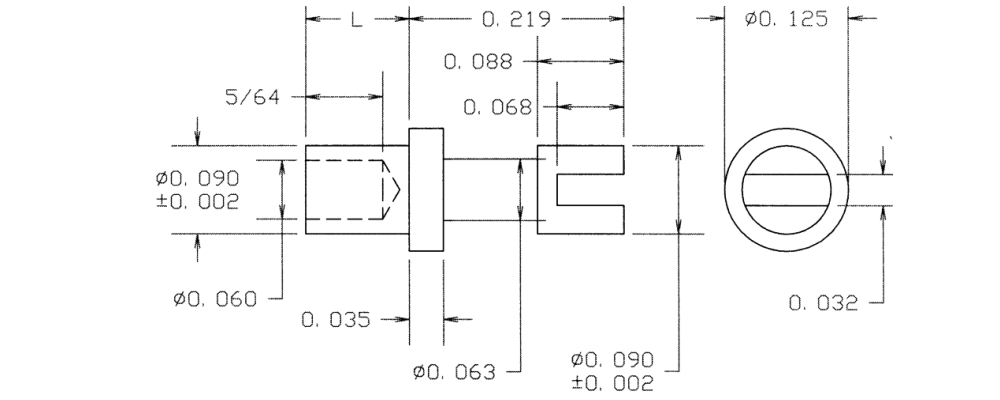

10-426-4-01
10-426-4-01
10-426-4-01
0.384" - - Swage Mount 0.165" 1/8 0.094 Brass Silver YES

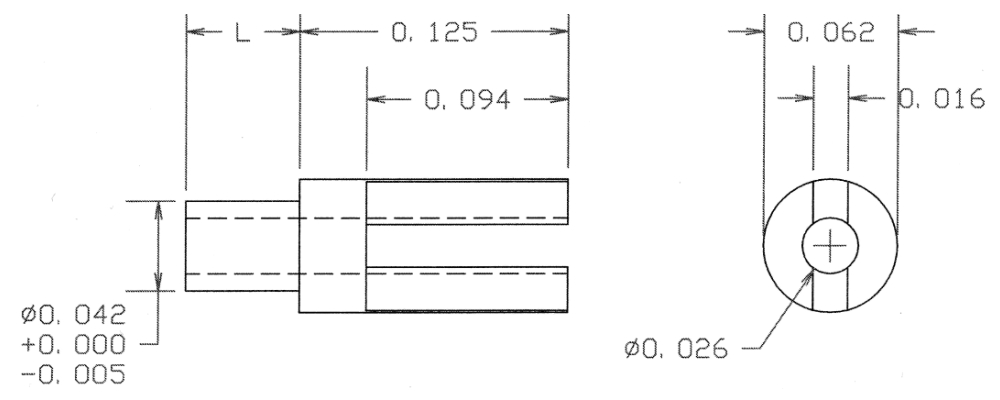

10-444-2-04
10-444-2-04
10-444-2-04
0.209" - - Swage Mount 0.084" 1/16 0.043 Brass Electro-Tin YES
10-460-11-088
10-460-11-088
10-460-11-088
0.318" - - Swage Mount 0.037" 1/64 0.063 Brass Bright Tin-Lead NO

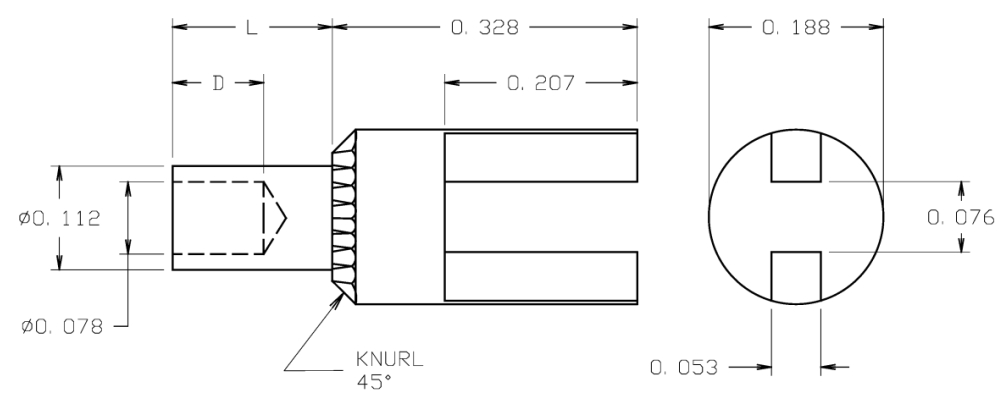

10-482-3-04
10-482-3-04
10-482-3-04
0.469" - - Swage Mount 0.141" 3/32 0.116 Brass Electro-Tin YES

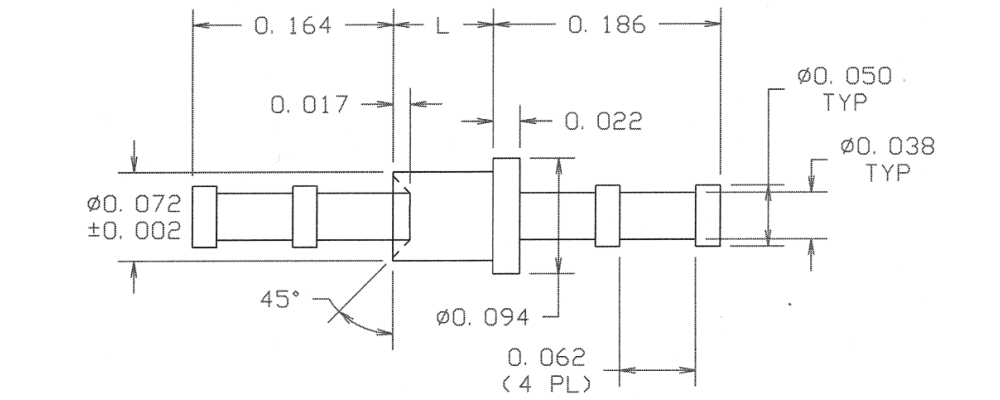

10-503-2-01
10-503-2-01
10-503-2-01
0.432" - Double Turret/Double Turret Swage Mount 0.082" 1/16 0.076 Brass Silver YES

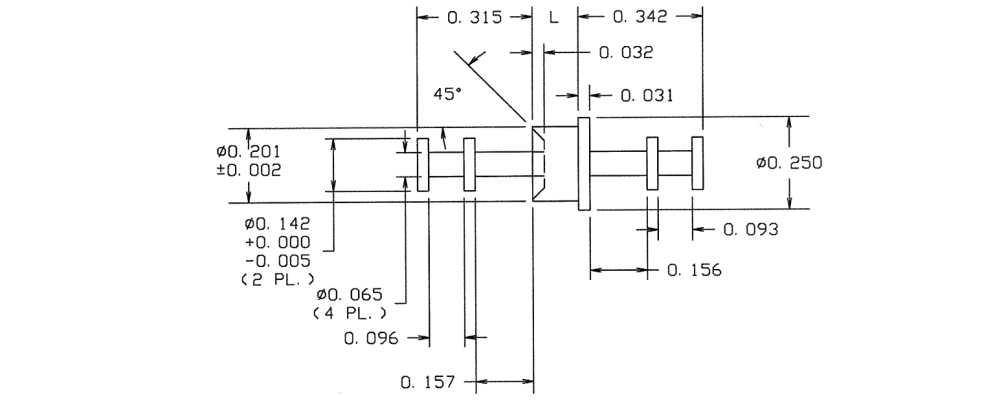

10-509-3-01
10-509-3-01
10-509-3-01
0.782" - Double Turret/Double Turret Swage Mount 0.125" 3/32 0.204 Brass Silver YES

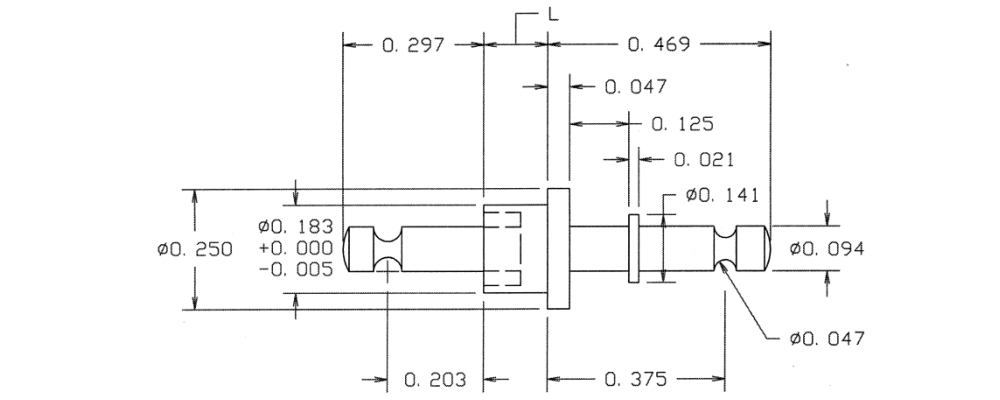

10-515-5-01
10-515-5-01
10-515-5-01
0.961" 0.094 TURRET/PIN Swage Mount 0.195" 5/32 0.185 Brass Silver YES
