Commercial
Non-Insulated
Terminals

Filter

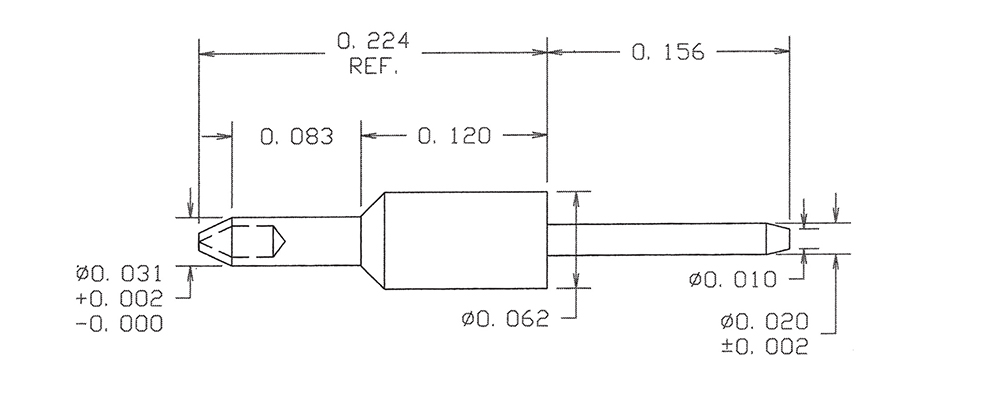

09-7119-2-044
09-7119-2-044
09-7119-2-044
0.380" 0.020 - RIVET MOUNT 0.083" 1/16 0.035 Brass Bright Tin YES

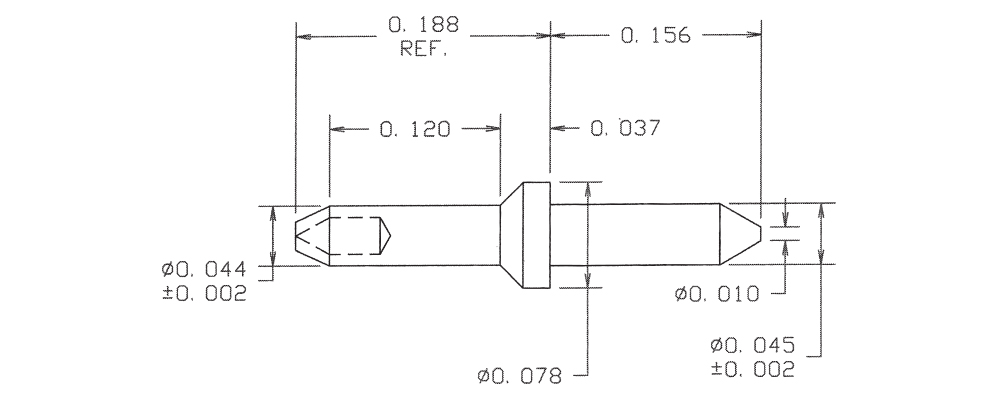

09-7149-3-03
09-7149-3-03
09-7149-3-03
0.344" 0.045 - RIVET MOUNT 0.120" 3/32 0.048 Brass Gold YES

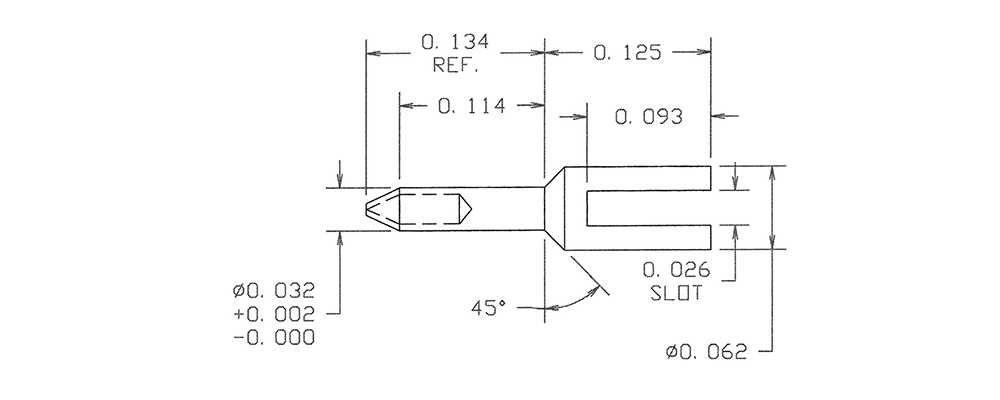

09-7181-3-05
09-7181-3-05
09-7181-3-05
0.259" - - RIVET MOUNT 0.114" 3/32 0.036 Brass Electro Solder NO

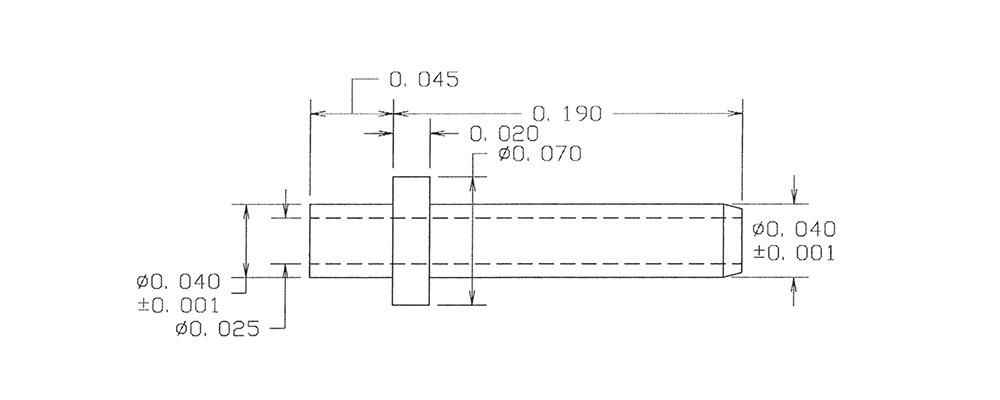

09-8025-1-035
09-8025-1-035
09-8025-1-035
0.235" 0.040 - Swage Mount 0.045" 1/64 0.043 Brass Gold YES

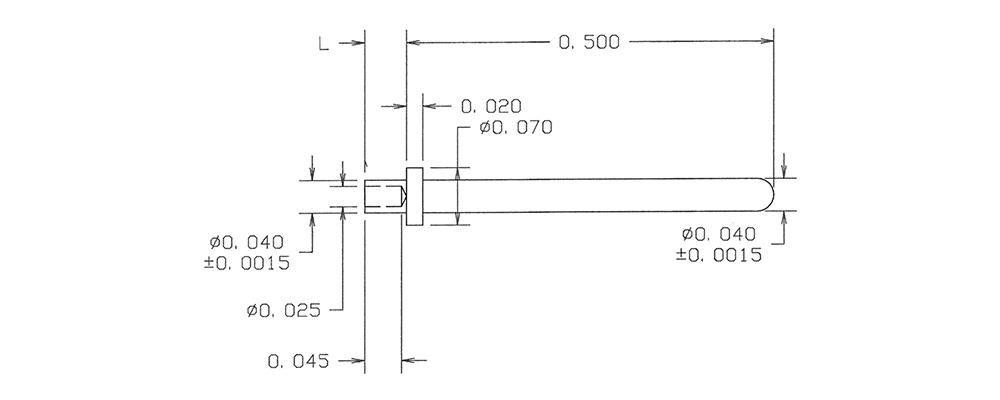

09-8059-2-05
09-8059-2-05
09-8059-2-05
0.582" 0.0405 - Swage Mount 0.082" 1/16 0.043 Brass Electro Solder NO

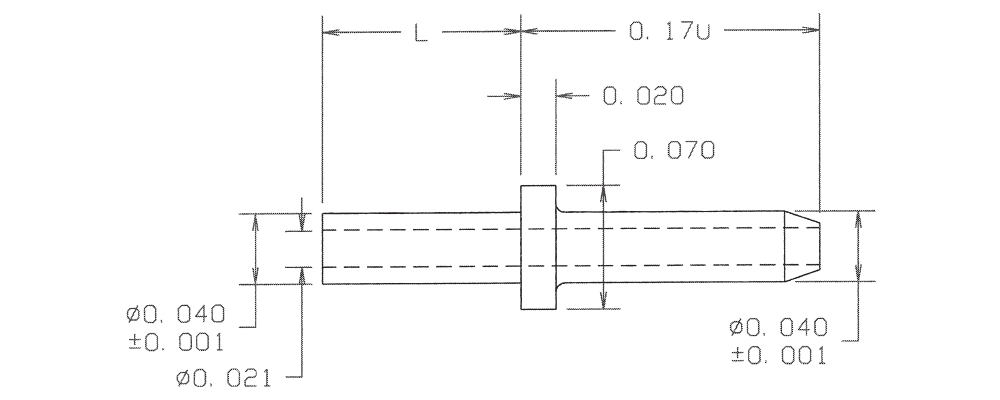

09-8112-2-035
09-8112-2-035
09-8112-2-035
0.252" 0.040 - Swage Mount 0.082" 1/16 0.043 Brass Gold YES

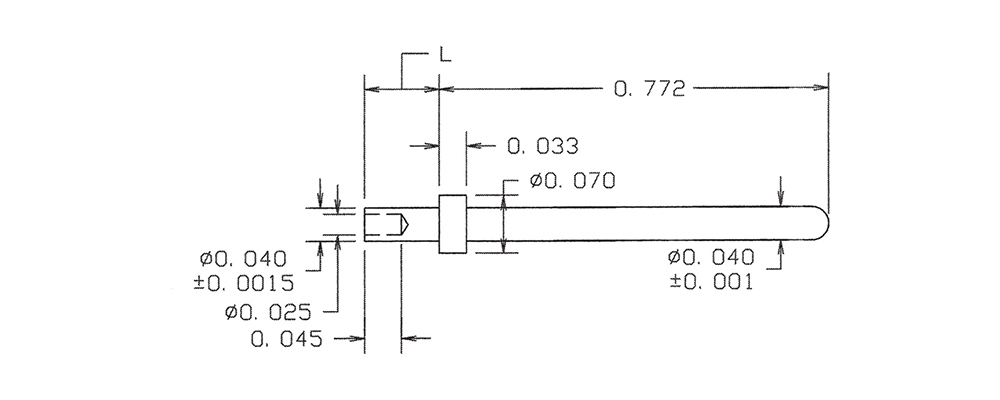

09-8155-1-088
09-8155-1-088
09-8155-1-088
0.823" 0.040 - Swage Mount 0.051" 1/32 0.043 Brass Bright Tin-Lead NO

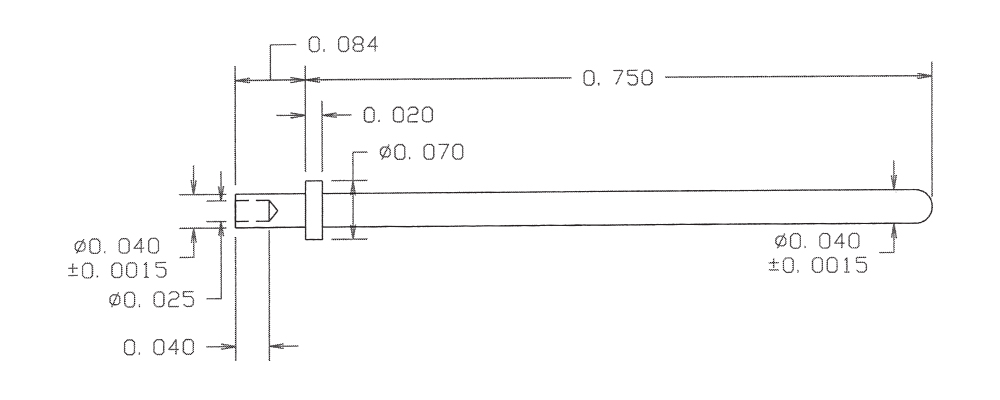

09-8184-2-04
09-8184-2-04
09-8184-2-04
0.834" 0.0405 - Swage Mount 0.084" 1/16 0.043 Brass Electro-Tin YES

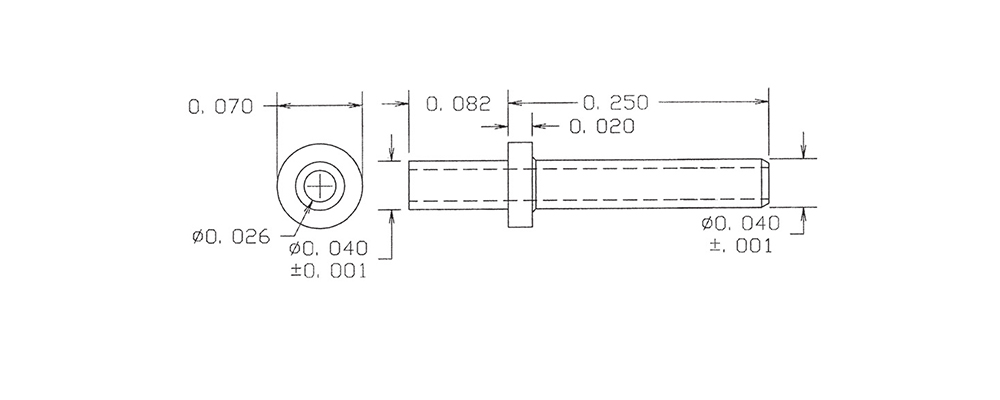

09-8356-2-035
09-8356-2-035
09-8356-2-035
0.332" 0.040 - Swage Mount 0.082" 1/16 0.043 Brass Gold YES

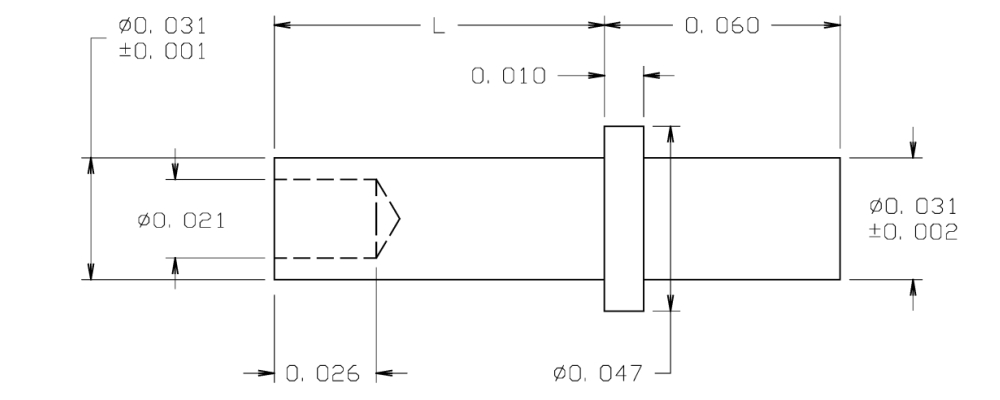

09-8598-3A-01
09-8598-3A-01
09-8598-3A-01
0.182" - - Swage Mount 0.122" 3/32 0.035 Brass Silver YES

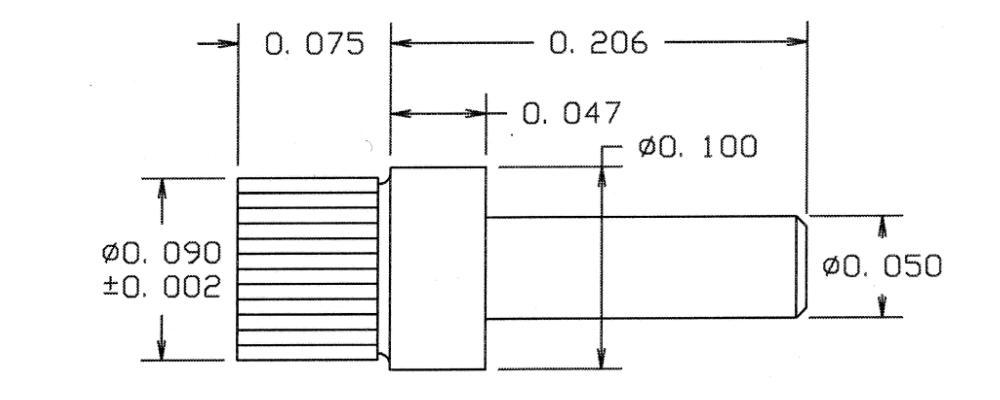

09-8706-1-044
09-8706-1-044
09-8706-1-044
0.281" 0.050 - Press Fit/Solder 0.075" 1/16 0.086 Brass Bright Tin YES

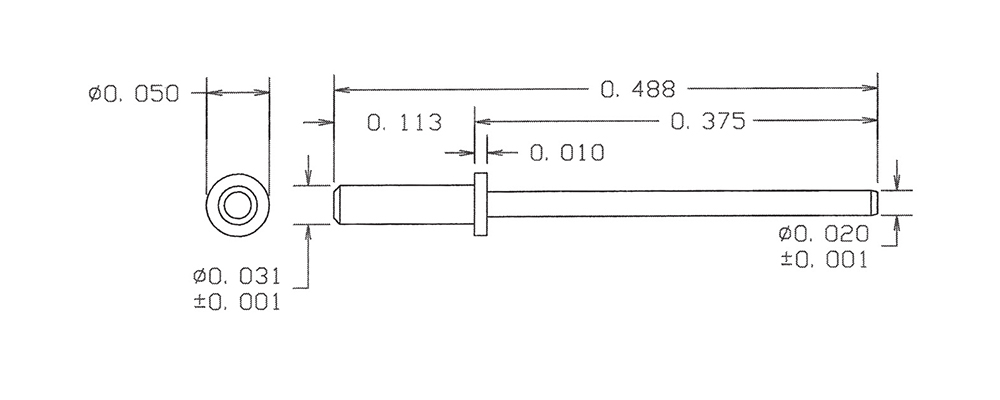

09-8825-1-03
09-8825-1-03
09-8825-1-03
0.488" 0.020 - Solder 0.113" 1/64 TO 3/32 0.035 Brass Gold YES
09-9503-1-035
09-9503-1-035
09-9503-1-035
0.356" 0.062 - 0-80 Screw - 1/32 CLEARANCE FOR #0 Screw Brass Gold YES

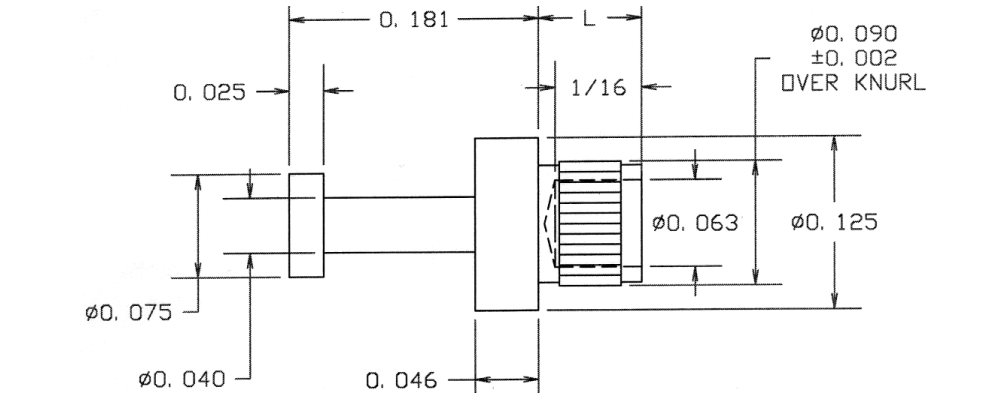

10-106-1-01
10-106-1-01
10-106-1-01
0.256" - - Swage Mount 0.075" 1/32 0.094 Brass Silver YES

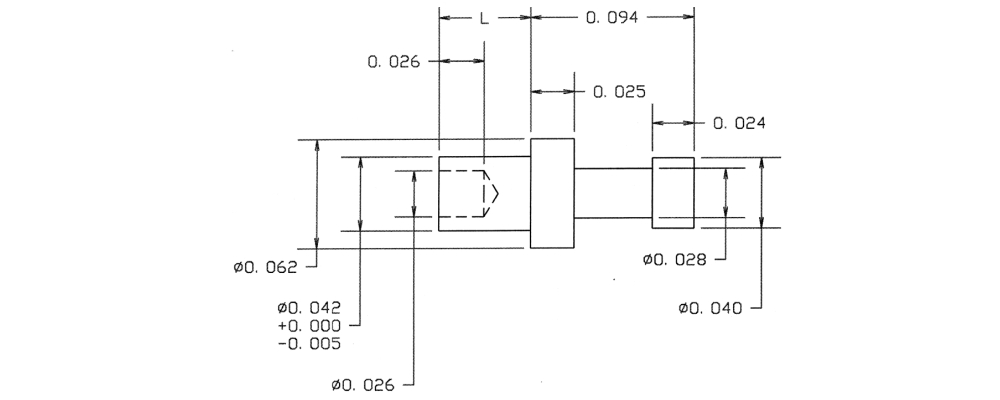

10-114-11-01
10-114-11-01
10-114-11-01
0.131" - - Swage Mount 0.037" 1/64 0.043 Brass Silver YES

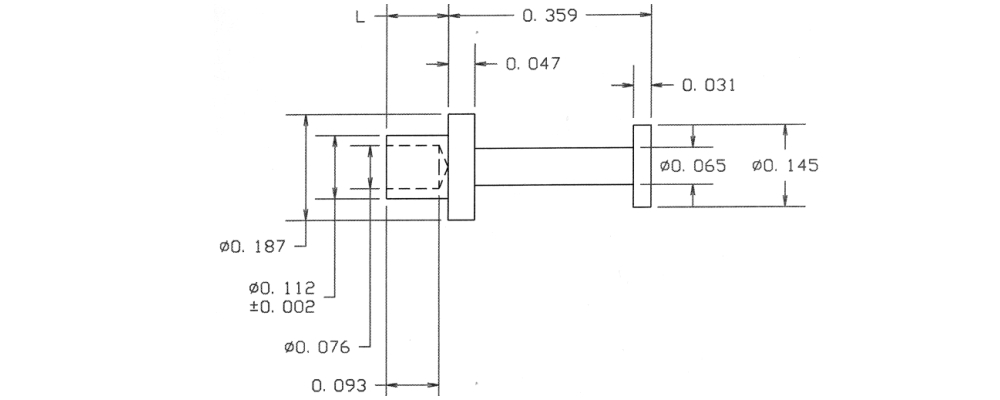

10-135-1-035
10-135-1-035
10-135-1-035
0.437" - - Swage Mount 0.078" 1/32 0.116 Brass Gold YES

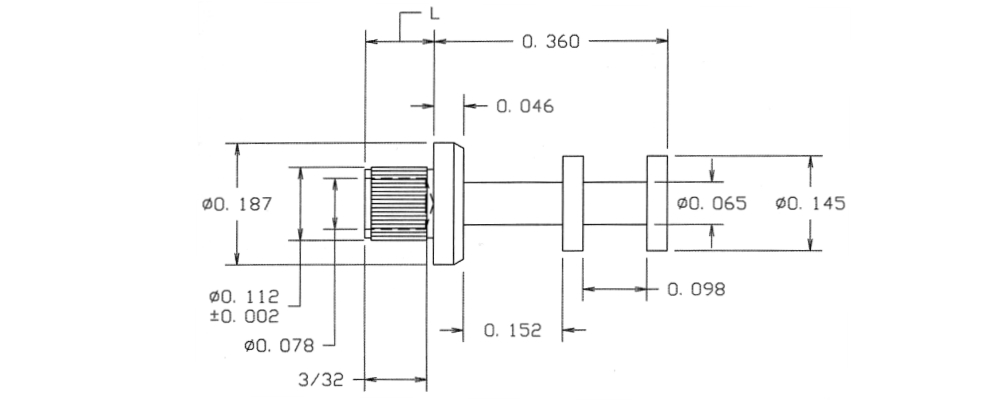

10-205-1-01
10-205-1-01
10-205-1-01
0.435" - - Swage Mount 0.075" 1/32 0.116 Brass Silver YES

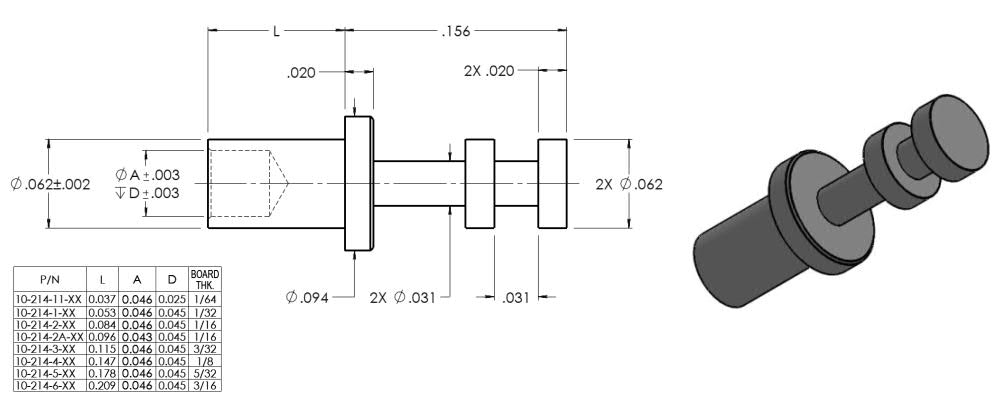

10-214-1-088
10-214-1-088
10-214-1-088
0.209" - - Swage Mount 0.053" 1/32 0.067 Brass Bright Tin-Lead NO

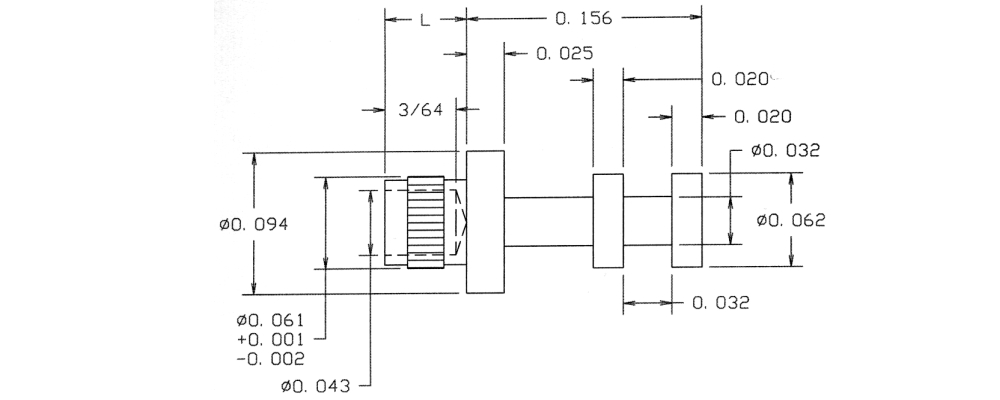

10-220-3-04
10-220-3-04
10-220-3-04
0.271" - - Swage Mount 0.115" 3/32 0.064 Brass Electro-Tin YES

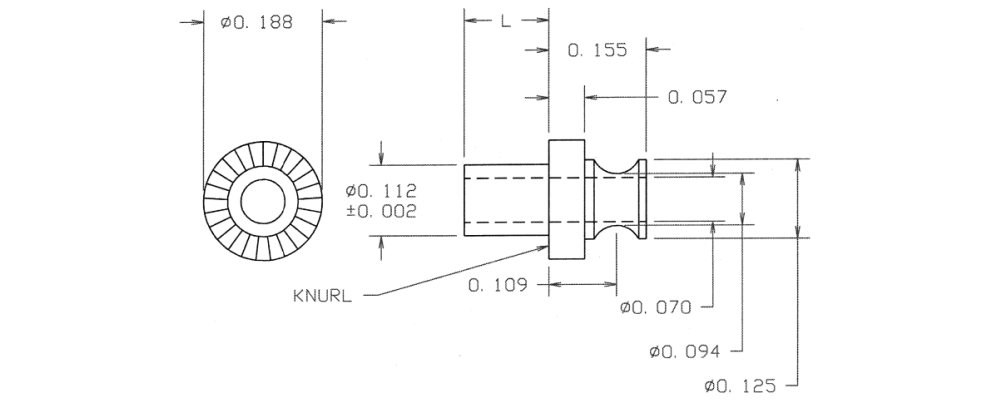

10-231-3-088
10-231-3-088
10-231-3-088
0.290" - - Swage Mount 0.135" 3/32 0.116 Brass Bright Tin-Lead NO
