Commercial
Non-Insulated
Terminals

Filter
10-462-2-05
10-462-2-05
10-462-2-05
0.240" - - Swage Mount 0.084" 1/16 0.052 Brass Electro Solder NO
10-489-3-05
10-489-3-05
10-489-3-05
0.281" - - Swage Mount 0.125" 3/32 0.067 Brass Electro Solder NO
10-504-1-095
10-504-1-095
10-504-1-095
0.469" - Double Turret/Double Turret Swage Mount 0.062" 1/32 0.094 Brass Hot Solder Dip NO
10-510-1-095
10-510-1-095
10-510-1-095
0.442" - TURRET/DOUBLE TURRET Swage Mount 0.075" 1/32 0.116 Brass Hot Solder Dip NO
10-519-6-095
10-519-6-095
10-519-6-095
1.155" - Double Turret/Double Turret Swage Mount 0.219" 3/16 0.266 Brass Hot Solder Dip NO
10-532-1-095
10-532-1-095
10-532-1-095
0.543" - Double Turret/Double Turret Swage Mount 0.075" 1/32 0.159 Brass Hot Solder Dip NO
10-549-6-095
10-549-6-095
10-549-6-095
0.909" - Double Turret/Double Turret Swage Mount 0.230" 3/16 0.206 Brass Hot Solder Dip NO
10-601-2-095
10-601-2-095
10-601-2-095
0.395" - - Swage Mount 0.094" 1/16 0.094 Brass Hot Solder Dip NO
10-615-3-04
10-615-3-04
10-615-3-04
0.475" - - Swage Mount 0.135" 3/32 0.090 Brass Electro-Tin YES

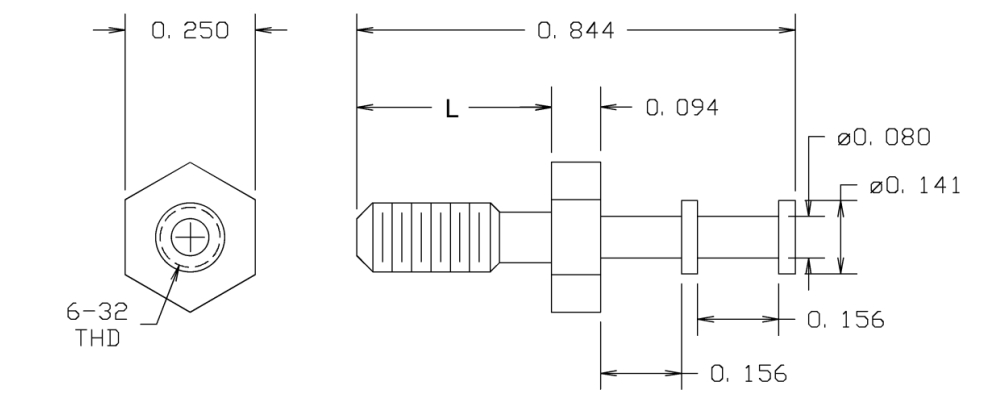

10-717-8-05
10-717-8-05
10-717-8-05
0.719" - - 6-32 - - 6-32 THREAD Brass Electro Solder NO

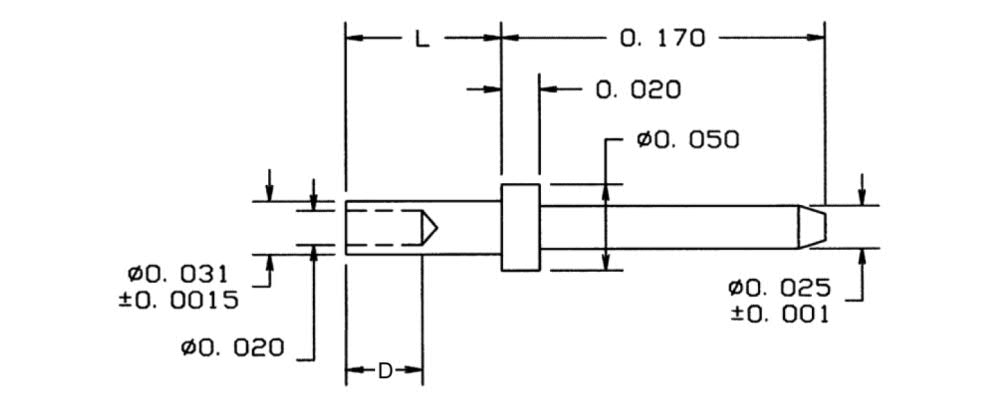

10-8017-1-044
10-8017-1-044
10-8017-1-044
0.221" 0.025 - Swage Mount 0.051" 1/32 0.035 Brass Bright Tin YES
10-803-6-088
10-803-6-088
10-803-6-088
0.582" 0.040 TURRET/PIN Swage Mount 0.207" 3/16 0.076 Brass Bright Tin-Lead NO
10-809-4-05
10-809-4-05
10-809-4-05
0.258" - - Swage Mount 0.172" 1/8 0.116 Brass Electro Solder NO
10-816-5-035
10-816-5-035
10-816-5-035
0.395" - - Swage Mount 0.195" 5/32 0.1495 Brass Gold YES
10-826-5-05
10-826-5-05
10-826-5-05
0.523" - - Swage Mount 0.195" 5/32 0.081 Brass Electro Solder NO
10-837-3-044
10-837-3-044
10-837-3-044
0.469" 0.050 Pin/Pin Swage Mount 0.125" 3/32 0.111 Brass Bright Tin YES
10-850-3-03
10-850-3-03
10-850-3-03
0.423" 0.040 - Swage Mount 0.123" 3/32 0.094 Brass Gold YES
10-874-2-03
10-874-2-03
10-874-2-03
0.405" 0.090 - Swage Mount 0.105" 1/16 0.094 Brass Gold YES
10-895-11-02
10-895-11-02
10-895-11-02
0.600" 0.062 - - - - - Brass Nickel YES

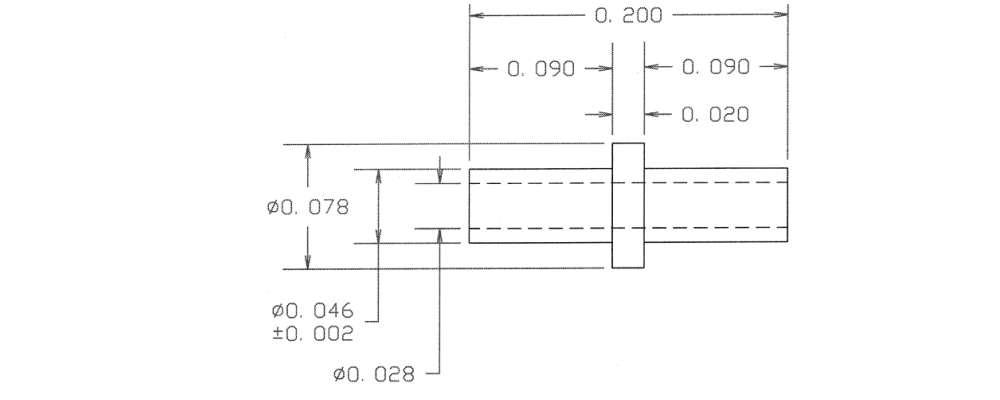

10-911-2-03
10-911-2-03
10-911-2-03
0.200" 0.046 - Swage Mount 0.090" 1/16 0.052 Brass Gold YES
