Commercial
Non-Insulated
Terminals

Filter

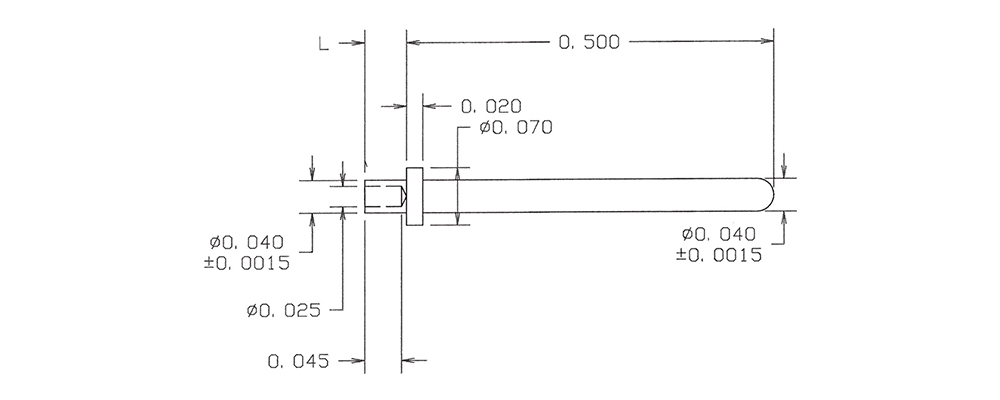

09-8059-2-044
09-8059-2-044
09-8059-2-044
0.582" 0.0405 - Swage Mount 0.082" 1/16 0.043 Brass Bright Tin YES

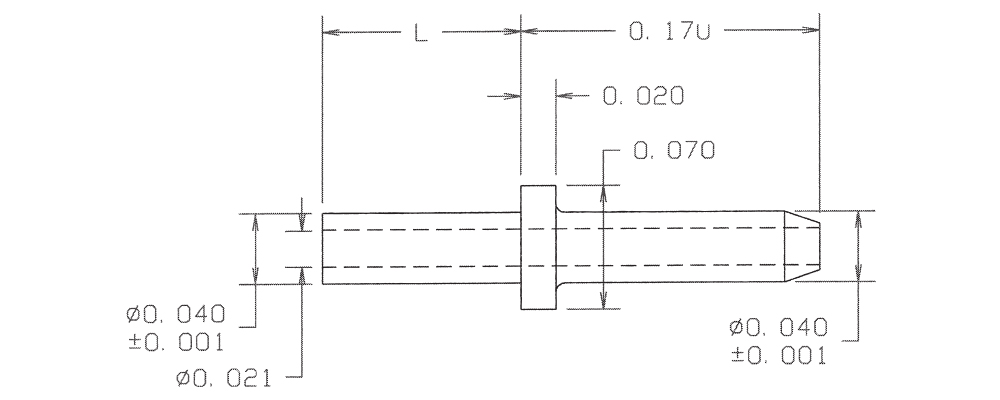

09-8112-2-03
09-8112-2-03
09-8112-2-03
0.252" 0.040 - Swage Mount 0.082" 1/16 0.043 Brass Gold YES

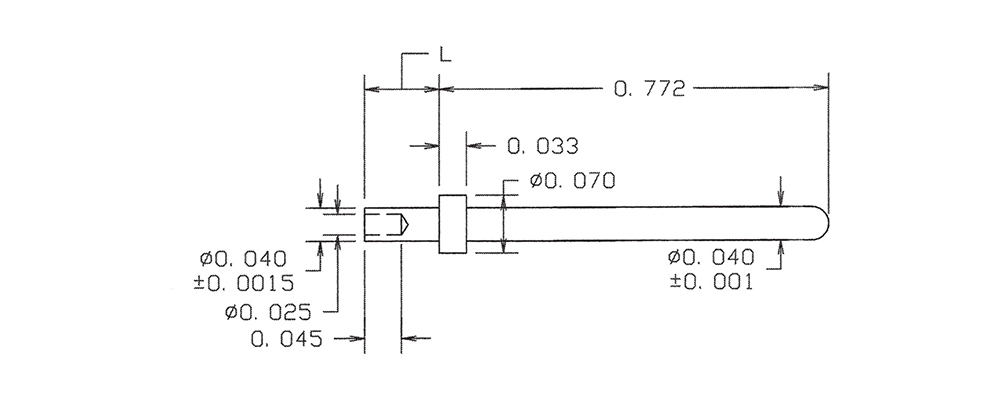

09-8155-1-05
09-8155-1-05
09-8155-1-05
0.823" 0.040 - Swage Mount 0.051" 1/32 0.043 Brass Electro Solder NO
09-8184-2-035
09-8184-2-035
09-8184-2-035
0.834" 0.0405 - Swage Mount 0.084" 1/16 0.043 Brass Gold YES

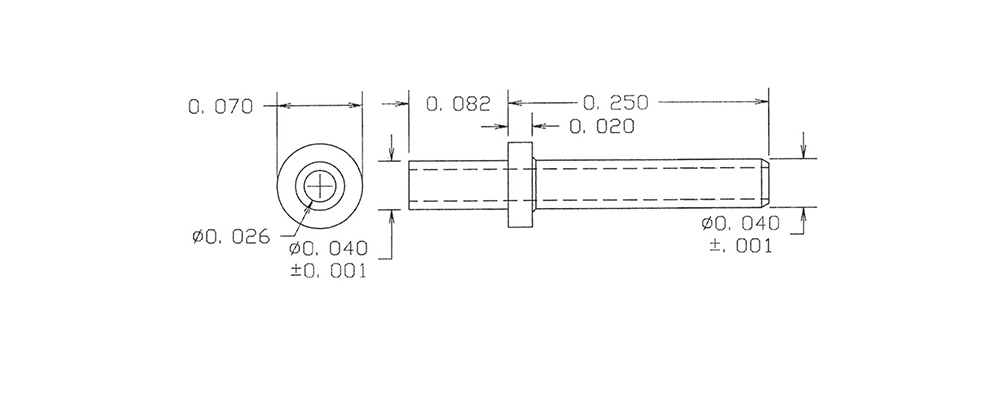

09-8356-2-03
09-8356-2-03
09-8356-2-03
0.332" 0.040 - Swage Mount 0.082" 1/16 0.043 Brass Gold YES

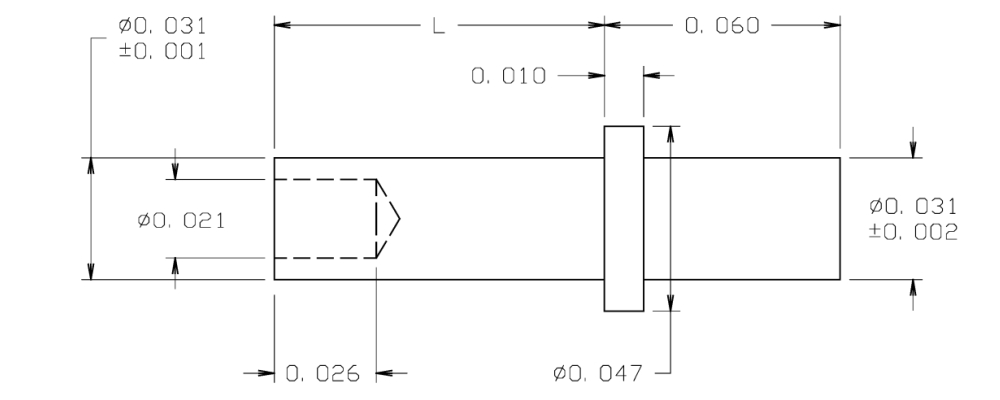

09-8598-2-095
09-8598-2-095
09-8598-2-095
0.144" - - Swage Mount 0.084" 1/16 0.035 Brass Hot Solder Dip NO

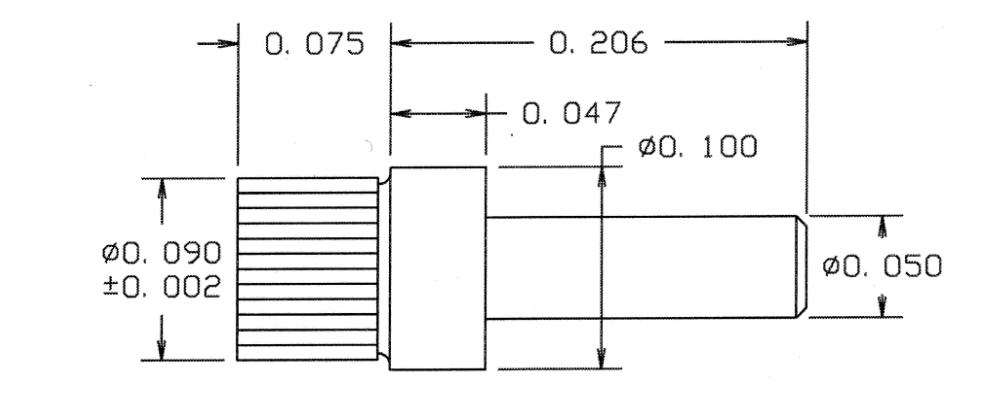

09-8706-1-04
09-8706-1-04
09-8706-1-04
0.281" 0.050 - Press Fit/Solder 0.075" 1/16 0.086 Brass Electro-Tin YES

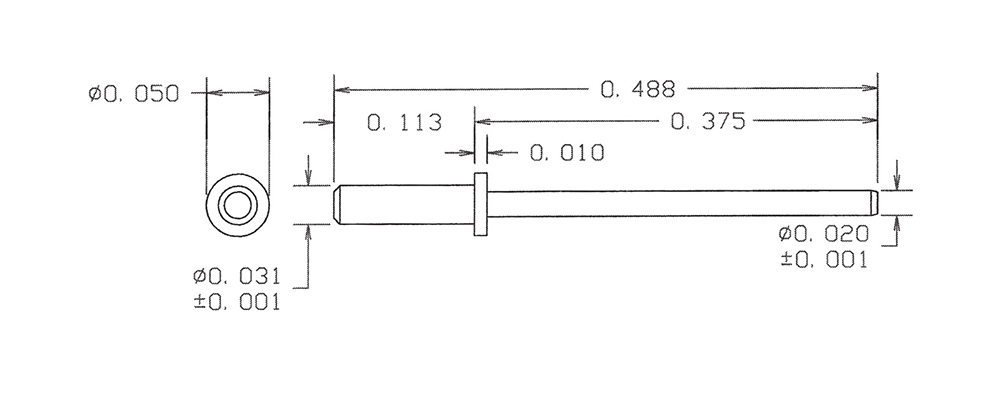

09-8825-1-01
09-8825-1-01
09-8825-1-01
0.488" 0.020 - Solder 0.113" 1/64 TO 3/32 0.035 Brass Silver YES

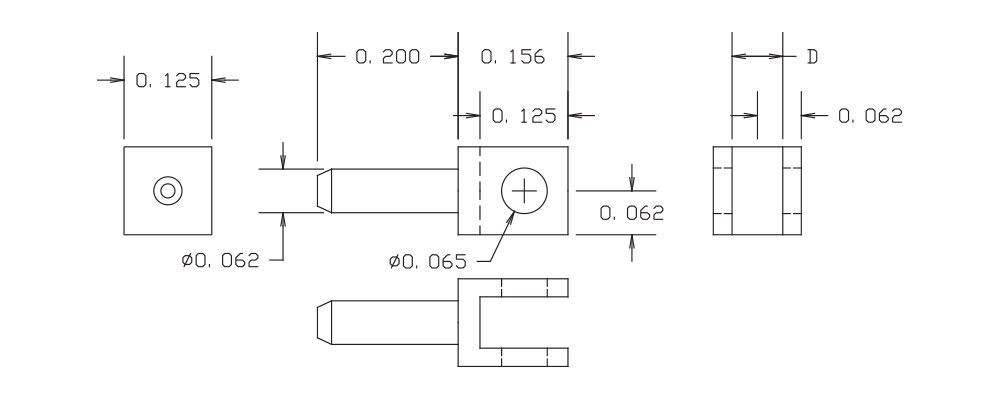

09-9503-1-03
09-9503-1-03
09-9503-1-03
0.356" 0.062 - 0-80 Screw - 1/32 CLEARANCE FOR #0 Screw Brass Gold YES

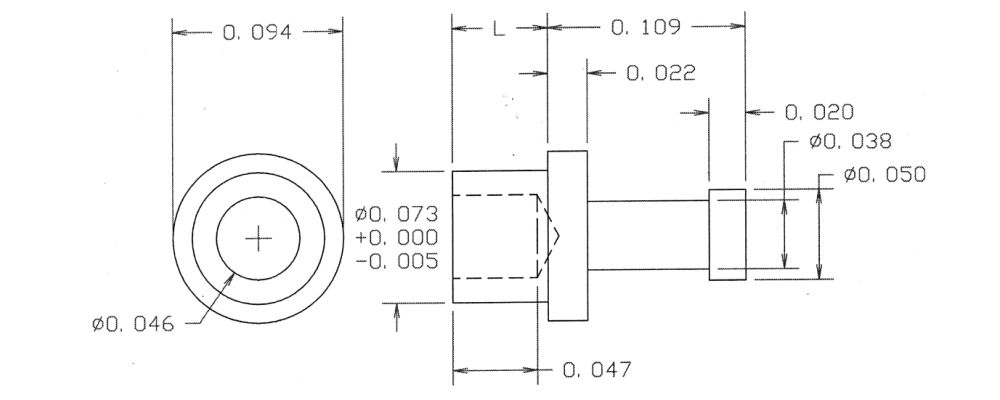

10-105-4-095
10-105-4-095
10-105-4-095
0.256" - - Swage Mount 0.147" 1/8 0.076 Brass Hot Solder Dip NO

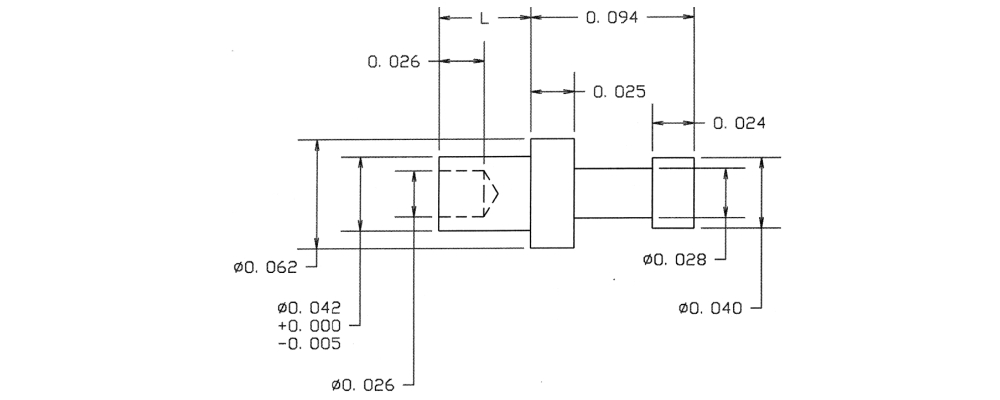

10-114-1-095
10-114-1-095
10-114-1-095
0.147" - - Swage Mount 0.053" 1/32 0.043 Brass Hot Solder Dip NO

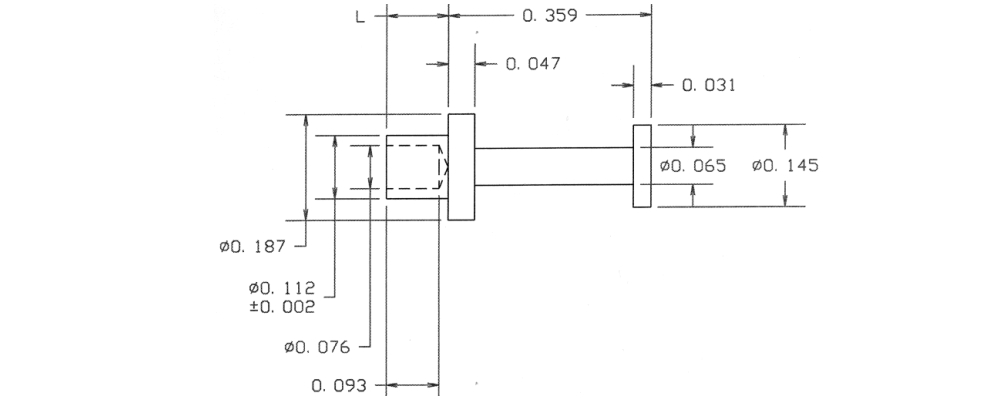

10-135-1-03
10-135-1-03
10-135-1-03
0.437" - - Swage Mount 0.078" 1/32 0.116 Brass Gold YES

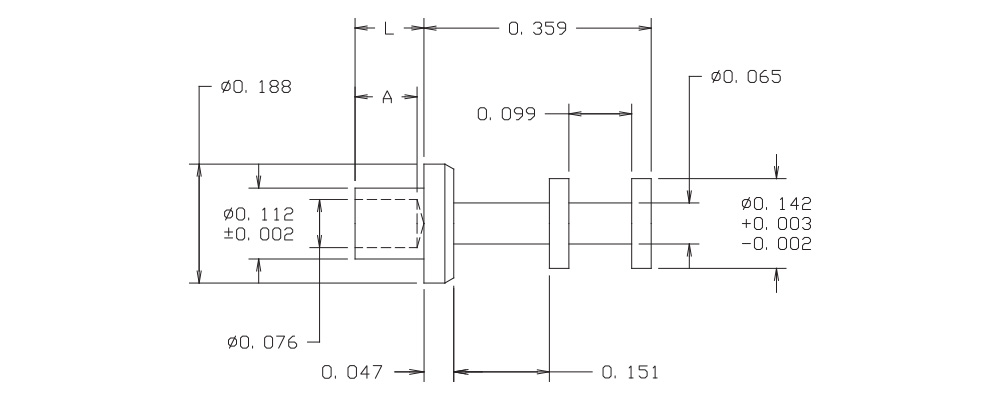

10-204-8-095
10-204-8-095
10-204-8-095
0.656" - - Swage Mount 0.297" 1/4 0.116 Brass Hot Solder Dip NO

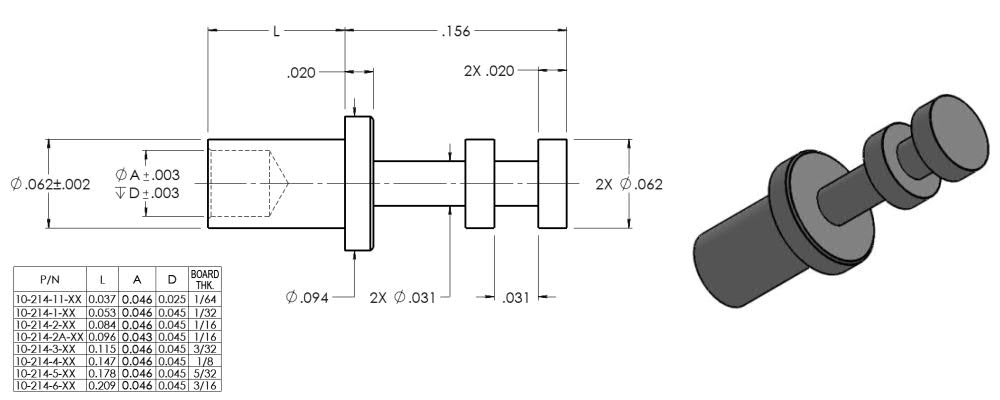

10-214-1-05
10-214-1-05
10-214-1-05
0.209" - - Swage Mount 0.053" 1/32 0.067 Brass Electro Solder NO

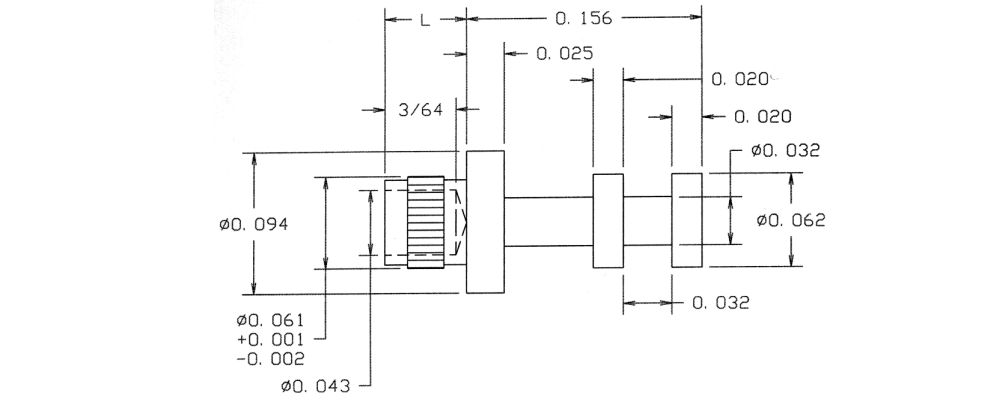

10-220-3-035
10-220-3-035
10-220-3-035
0.271" - - Swage Mount 0.115" 3/32 0.064 Brass Gold YES

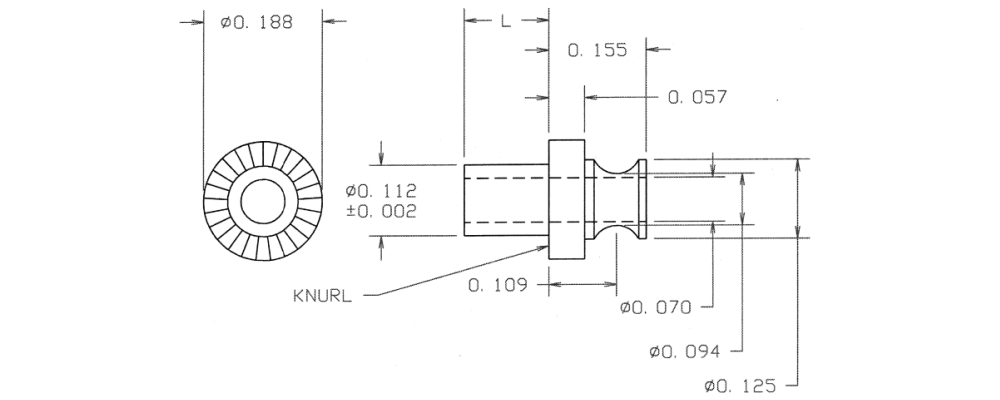

10-231-3-05
10-231-3-05
10-231-3-05
0.290" - - Swage Mount 0.135" 3/32 0.116 Brass Electro Solder NO

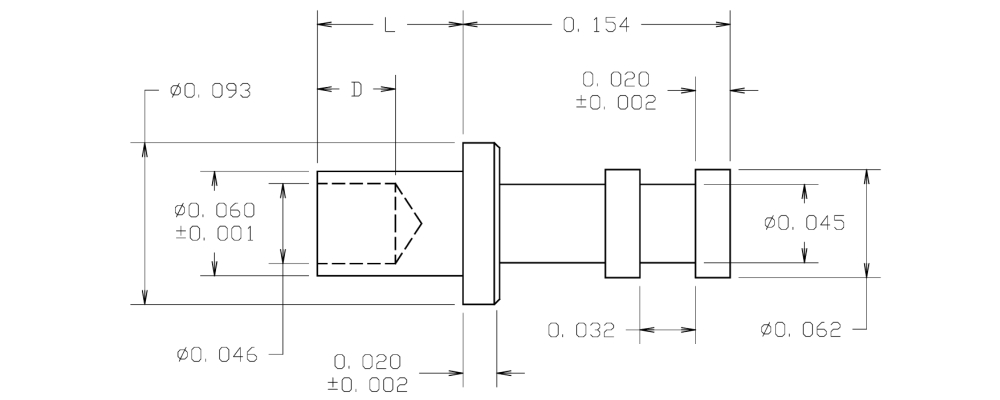

10-254-3-044
10-254-3-044
10-254-3-044
0.271" - - Swage Mount 0.115" 3/32 0.063 Brass Bright Tin YES

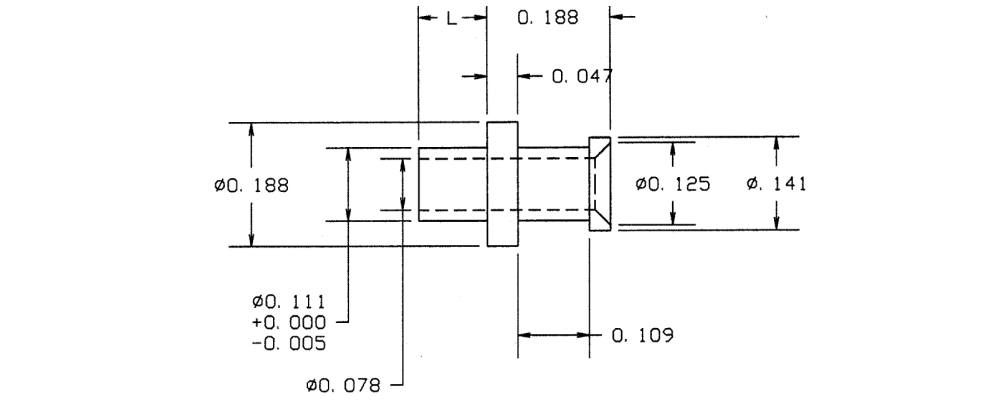

10-306-3-088
10-306-3-088
10-306-3-088
0.323" - - Swage Mount 0.135" 3/32 0.113 Brass Bright Tin-Lead NO
10-313-4-04
10-313-4-04
10-313-4-04
0.493" - - Swage Mount 0.165" 1/8 0.081 Brass Electro-Tin YES

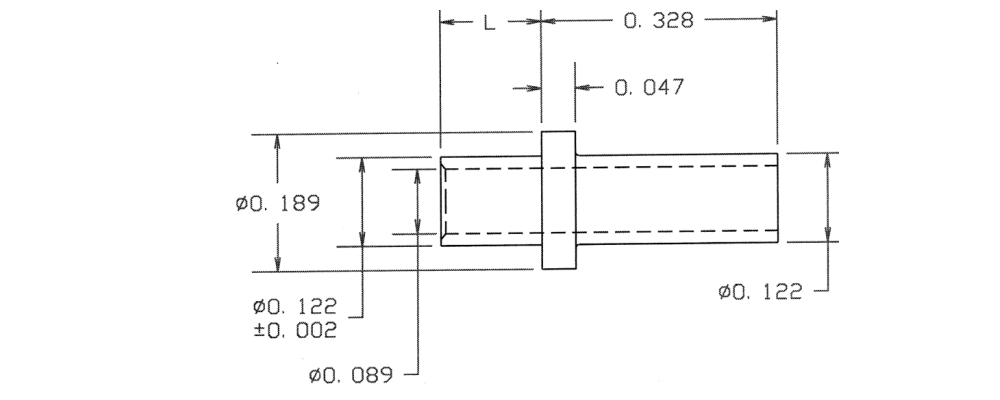

10-329-4-01
10-329-4-01
10-329-4-01
0.500" - - Swage Mount 0.172" 1/8 0.125 Brass Silver YES
