Commercial
Non-Insulated
Terminals

Filter
10-254-3-05
10-254-3-05
10-254-3-05
0.271" - - Swage Mount 0.115" 3/32 0.063 Brass Electro Solder NO
10-306-4-01
10-306-4-01
10-306-4-01
0.353" - - Swage Mount 0.165" 1/8 0.113 Brass Silver YES
10-313-4-044
10-313-4-044
10-313-4-044
0.493" - - Swage Mount 0.165" 1/8 0.081 Brass Bright Tin YES
10-329-4-03
10-329-4-03
10-329-4-03
0.500" - - Swage Mount 0.172" 1/8 0.125 Brass Gold YES
10-404-1-05
10-404-1-05
10-404-1-05
0.392" - - Swage Mount 0.075" 1/32 0.116 Brass Electro Solder NO
10-418-4-04
10-418-4-04
10-418-4-04
0.696" - Turret/Turret Swage Mount 0.165" 1/8 0.120 Brass Electro-Tin YES
10-432-2-088
10-432-2-088
10-432-2-088
0.542" - - Swage Mount 0.105" 1/16 0.161 Brass Bright Tin-Lead NO
10-446-1-095
10-446-1-095
10-446-1-095
0.445" - SLOTTED/DOUBLE TURRET Swage Mount 0.062" 1/32 0.096 Brass Hot Solder Dip NO
10-462-2-095
10-462-2-095
10-462-2-095
0.240" - - Swage Mount 0.084" 1/16 0.052 Brass Hot Solder Dip NO
10-489-3-095
10-489-3-095
10-489-3-095
0.281" - - Swage Mount 0.125" 3/32 0.067 Brass Hot Solder Dip NO
10-504-2-03
10-504-2-03
10-504-2-03
0.501" - Double Turret/Double Turret Swage Mount 0.094" 1/16 0.094 Brass Gold YES
10-510-2-03
10-510-2-03
10-510-2-03
0.472" - TURRET/DOUBLE TURRET Swage Mount 0.105" 1/16 0.116 Brass Gold YES
10-519-8-03
10-519-8-03
10-519-8-03
1.217" - Double Turret/Double Turret Swage Mount 0.281" 1/4 0.266 Brass Gold YES
10-532-2-03
10-532-2-03
10-532-2-03
0.573" - Double Turret/Double Turret Swage Mount 0.105" 1/16 0.159 Brass Gold YES
10-550-1-03
10-550-1-03
10-550-1-03
0.544" - TURRET/DOUBLE TURRET Swage Mount 0.075" 1/32 0.206 Brass Gold YES
10-601-3-03
10-601-3-03
10-601-3-03
0.426" - - Swage Mount 0.125" 3/32 0.094 Brass Gold YES
10-615-3-05
10-615-3-05
10-615-3-05
0.475" - - Swage Mount 0.135" 3/32 0.090 Brass Electro Solder NO

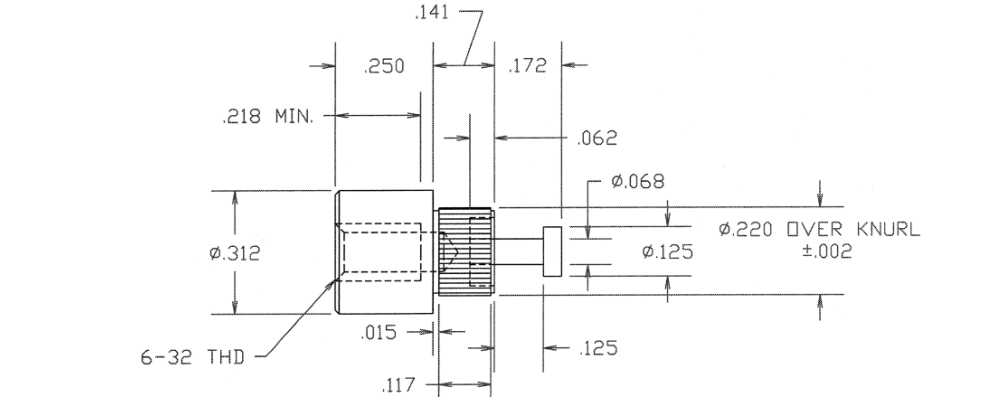

10-753-3-01
10-753-3-01
10-753-3-01
0.563" - TURRET/THREAD Swage Mount 0.141" 3/32 0.213 Brass Silver YES

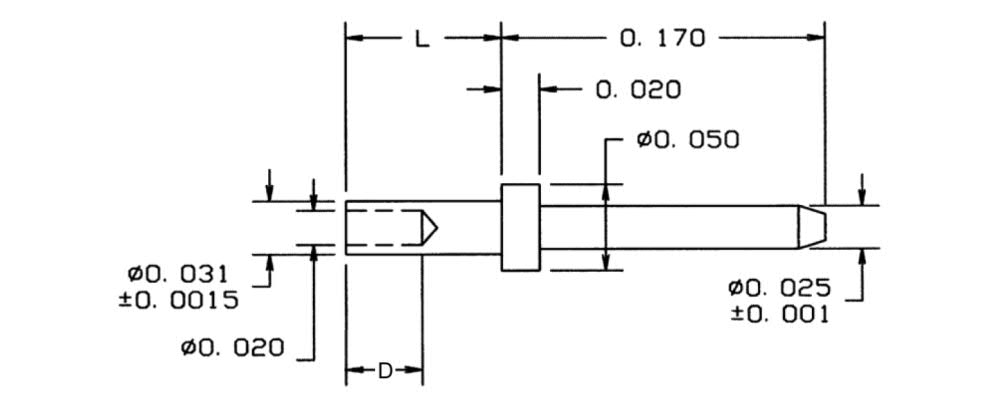

10-8017-1-088
10-8017-1-088
10-8017-1-088
0.221" 0.025 - Swage Mount 0.051" 1/32 0.035 Brass Bright Tin-Lead NO
10-803-8-01
10-803-8-01
10-803-8-01
0.645" 0.040 TURRET/PIN Swage Mount 0.270" 1/4 0.076 Brass Silver YES
