Commercial
Non-Insulated
Terminals

Filter

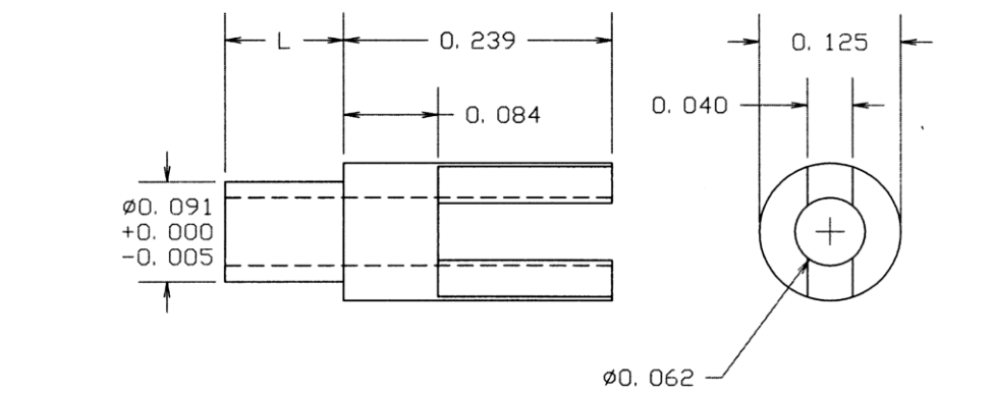

10-412-2-03
10-412-2-03
10-412-2-03
0.344" - - Swage Mount 0.105" 1/16 0.094 Brass Gold YES
10-439-5-05
10-439-5-05
10-439-5-05
0.676" - - Swage Mount 0.195" 5/32 0.1875 Brass Electro Solder NO
10-461-11-035
10-461-11-035
10-461-11-035
0.349" - - Swage Mount 0.037" 1/64 0.043 Brass Gold YES
10-903-4-088
10-903-4-088
10-903-4-088
0.344" - - Swage Mount 0.156" 1/8 0.063 Brass Bright Tin-Lead NO

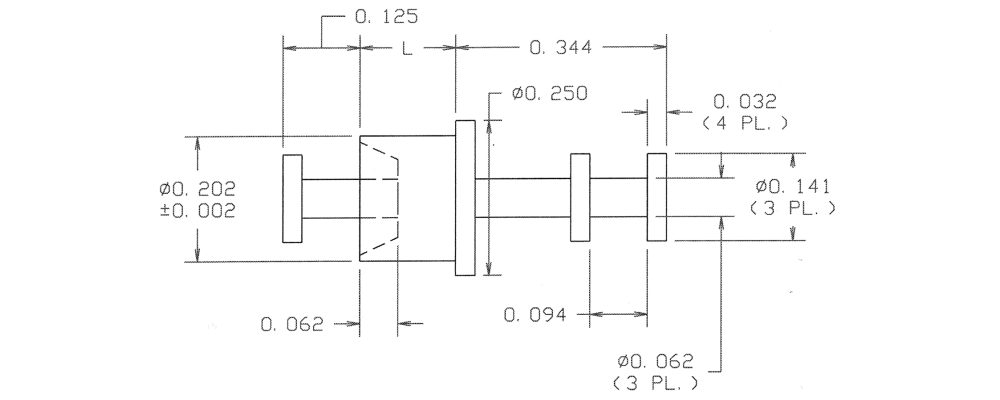

09-0033-3-044
09-0033-3-044
09-0033-3-044
0.625" - TURRET/DOUBLE TURRET Swage Mount 0.156" 1/8 0.206 Brass Bright Tin YES

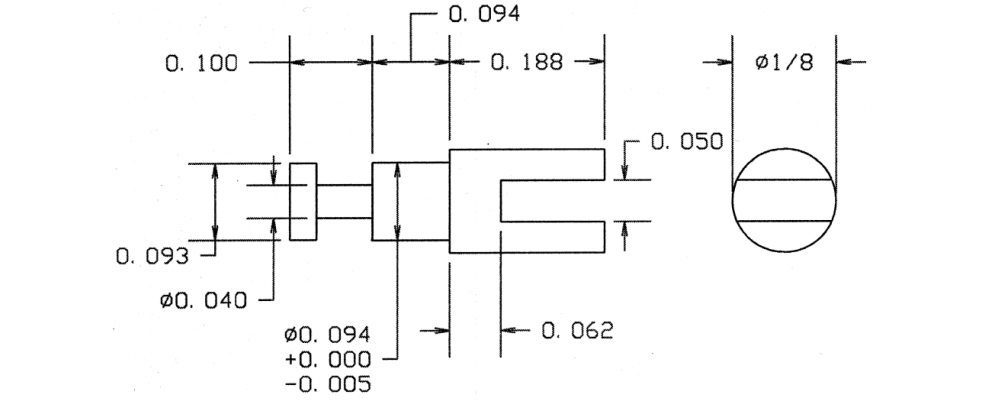

09-0087-2-05
09-0087-2-05
09-0087-2-05
0.382" - SLOTTED/TURRET Solder 0.094" 1/16 0.096 Brass Electro Solder NO

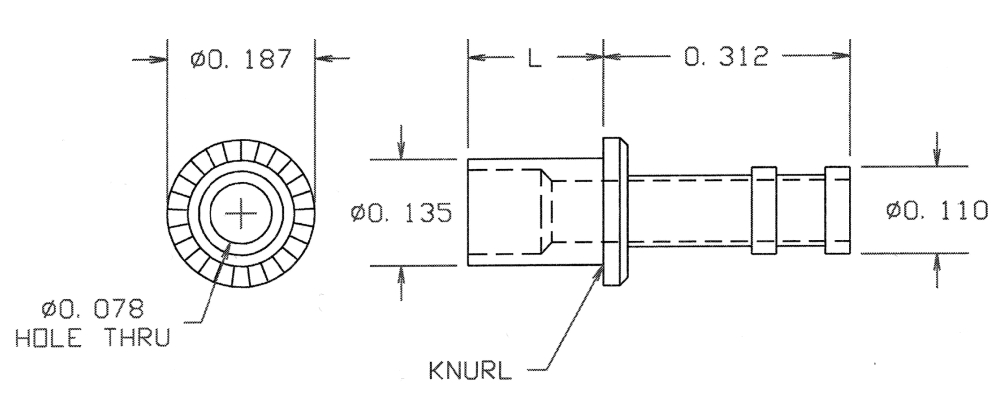

09-0168-1-05
09-0168-1-05
09-0168-1-05
0.390" - - Swage Mount 0.078" 1/32 0.141 Brass Electro Solder NO

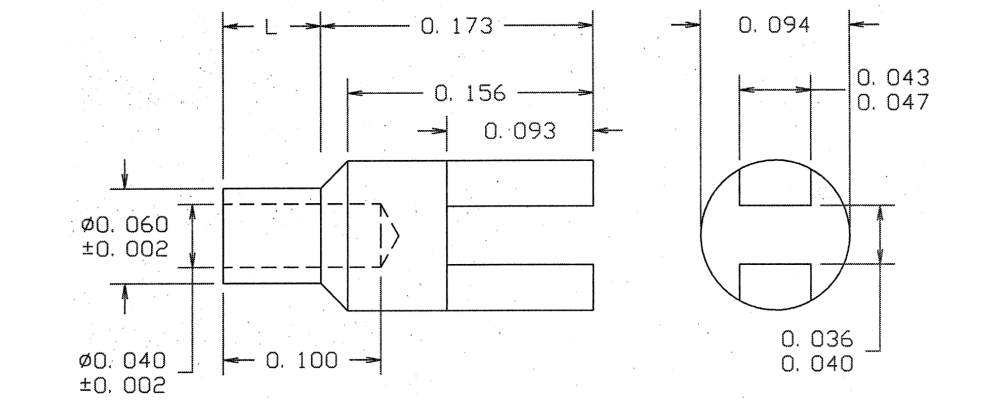

09-0208-2-03
09-0208-2-03
09-0208-2-03
0.267" - - Swage Mount 0.094" 1/16 0.067 LEADED Red Brass Gold YES

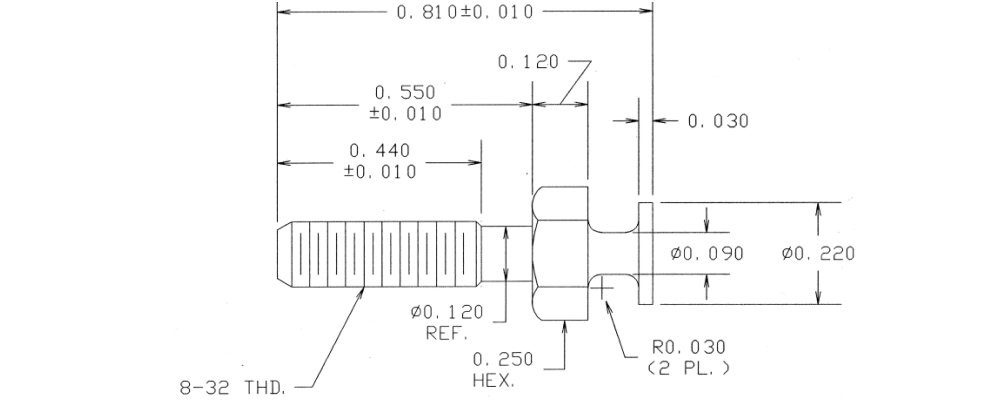

09-0244-1-01
09-0244-1-01
09-0244-1-01
0.810" - - 8-32 - - 8-32 THREAD Brass Silver YES

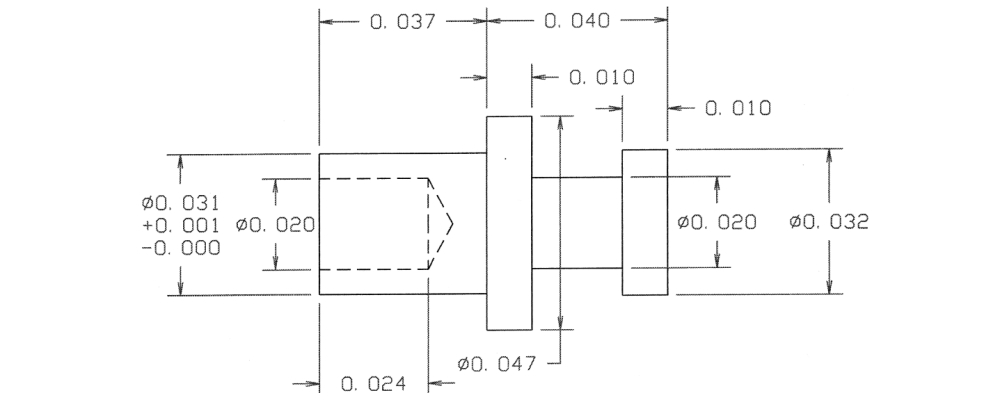

09-0288-1-095
09-0288-1-095
09-0288-1-095
0.077" - - Swage Mount 0.037" 1/64 0.035 Brass Hot Solder Dip NO
09-0353-4-01
09-0353-4-01
09-0353-4-01
0.438" - - Swage Mount 0.148" 1/8 0.067 Brass Silver YES

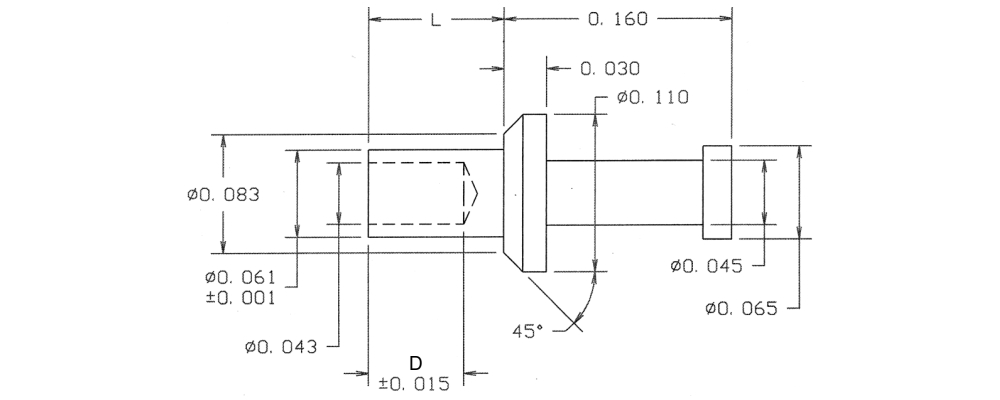

09-7012-4-044
09-7012-4-044
09-7012-4-044
0.310" - - Swage Mount 0.150" 1/8 0.067 Brass Bright Tin YES

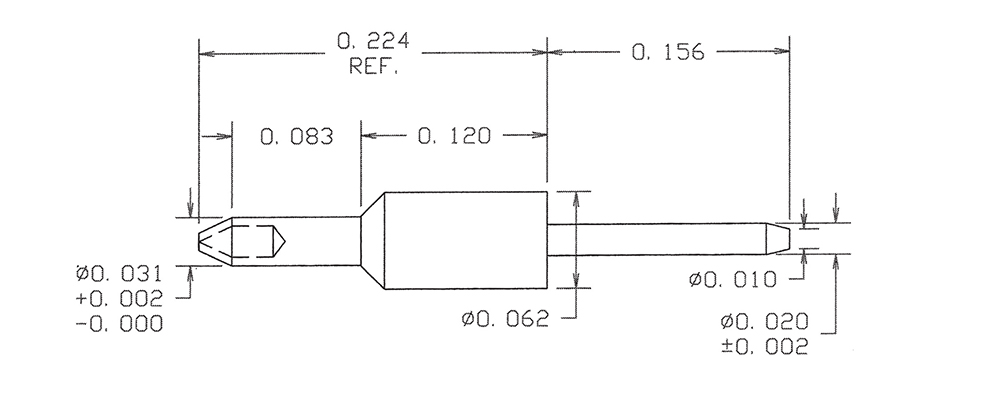

09-7119-2-035
09-7119-2-035
09-7119-2-035
0.380" 0.020 - RIVET MOUNT 0.083" 1/16 0.035 Brass Gold YES

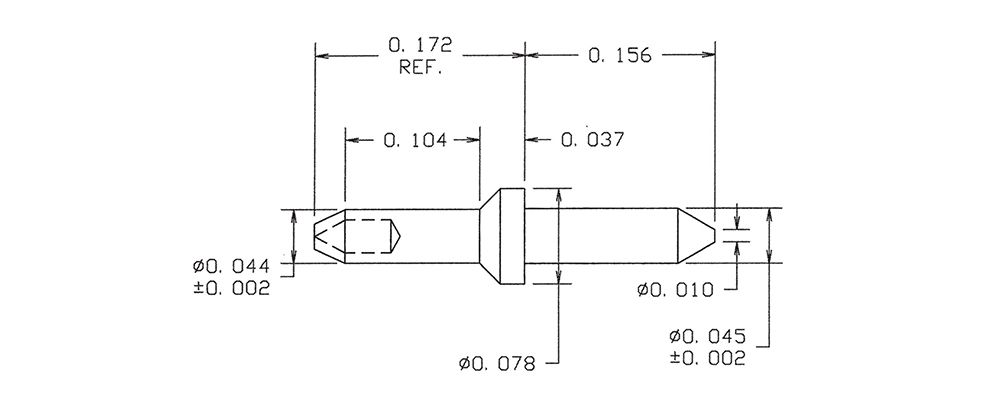

09-7149-2-088
09-7149-2-088
09-7149-2-088
0.328" 0.045 - RIVET MOUNT 0.104" 1/16 0.048 Brass Bright Tin-Lead NO
09-7181-3-04
09-7181-3-04
09-7181-3-04
0.259" - - RIVET MOUNT 0.114" 3/32 0.036 Brass Electro-Tin YES

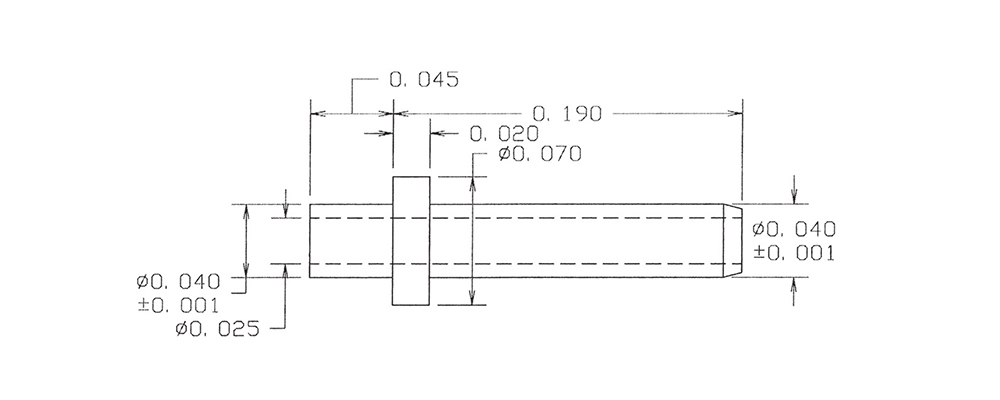

09-8025-1-01
09-8025-1-01
09-8025-1-01
0.235" 0.040 - Swage Mount 0.045" 1/64 0.043 Brass Silver YES

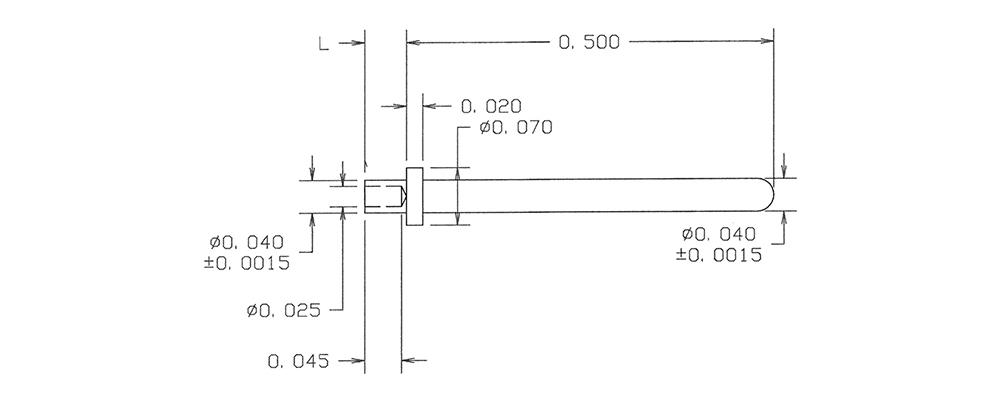

09-8059-2-04
09-8059-2-04
09-8059-2-04
0.582" 0.0405 - Swage Mount 0.082" 1/16 0.043 Brass Electro-Tin YES
09-8112-2-01
09-8112-2-01
09-8112-2-01
0.252" 0.040 - Swage Mount 0.082" 1/16 0.043 Brass Silver YES

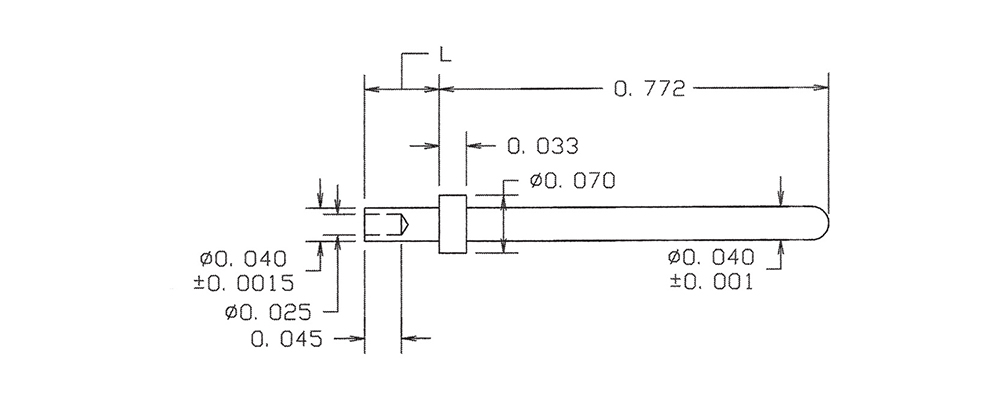

09-8155-1-044
09-8155-1-044
09-8155-1-044
0.823" 0.040 - Swage Mount 0.051" 1/32 0.043 Brass Bright Tin YES

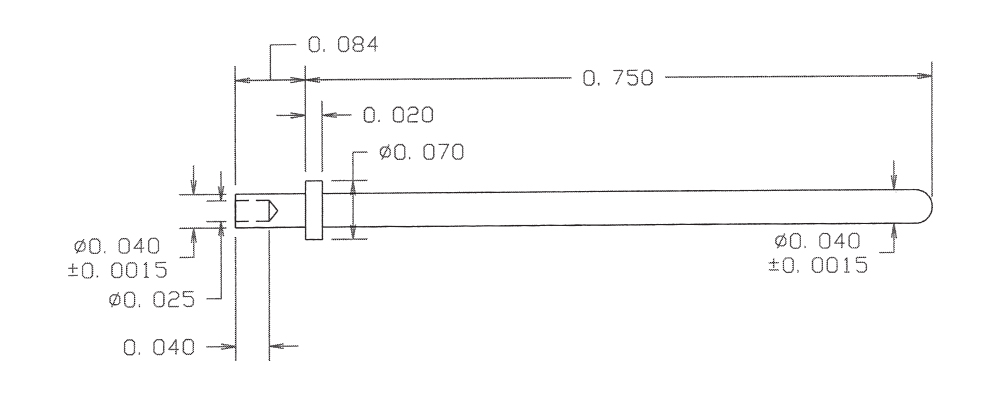

09-8184-2-03
09-8184-2-03
09-8184-2-03
0.834" 0.0405 - Swage Mount 0.084" 1/16 0.043 Brass Gold YES
