Commercial
Non-Insulated
Terminals

Filter

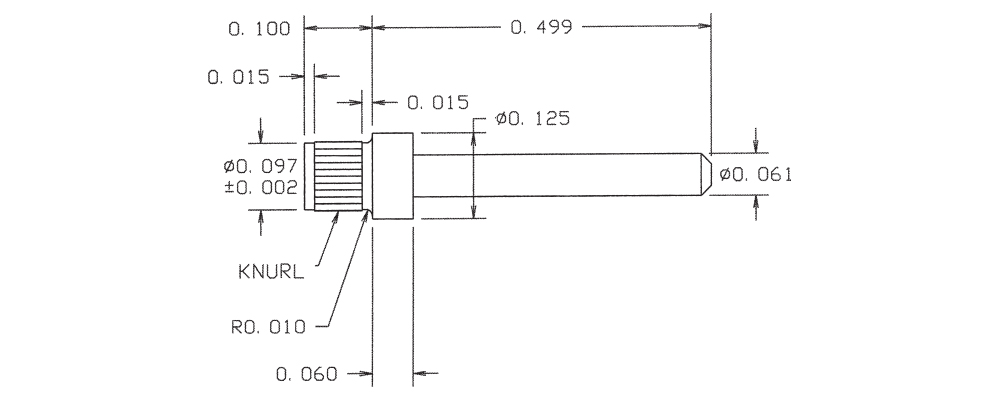

09-8088-2-05
09-8088-2-05
09-8088-2-05
0.599" 0.061 - Press Fit/Solder 0.100" 1/16 0.094 Brass Electro Solder NO

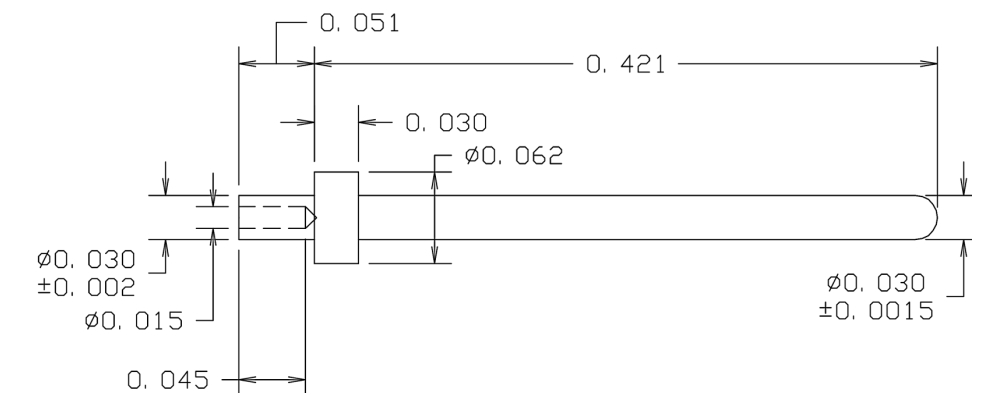

09-8147-1-035
09-8147-1-035
09-8147-1-035
0.472" 0.0305 - Swage Mount 0.051" 1/32 0.033 Brass Gold YES

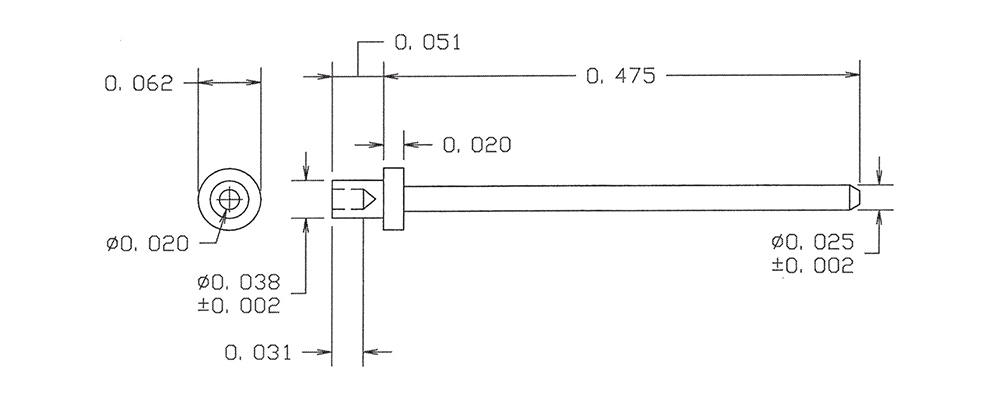

09-8175-1-088
09-8175-1-088
09-8175-1-088
0.526" 0.025 - Swage Mount 0.051" 1/32 0.042 Brass Bright Tin-Lead NO

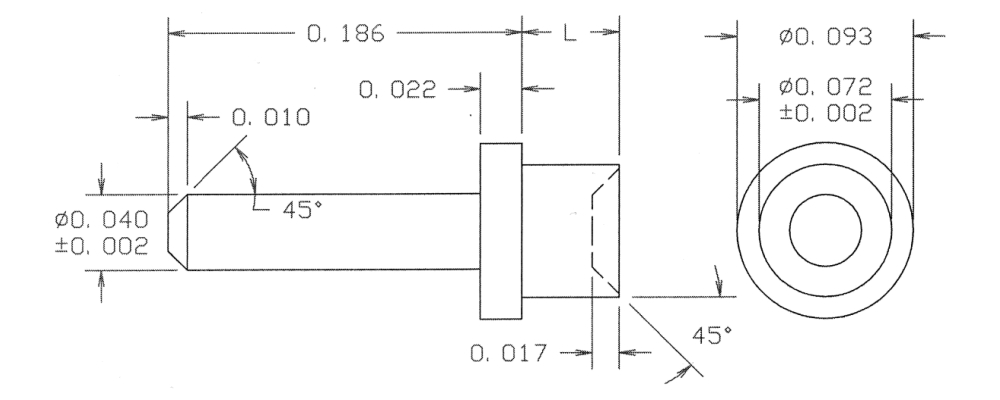

09-8311-1-088
09-8311-1-088
09-8311-1-088
0.237" 0.040 - Swage Mount 0.051" 1/32 0.076 Brass Bright Tin-Lead NO
09-8564-2-01
09-8564-2-01
09-8564-2-01
0.214" 0.030 - Swage Mount 0.098" 1/16 0.067 LEADED Red Brass Silver YES

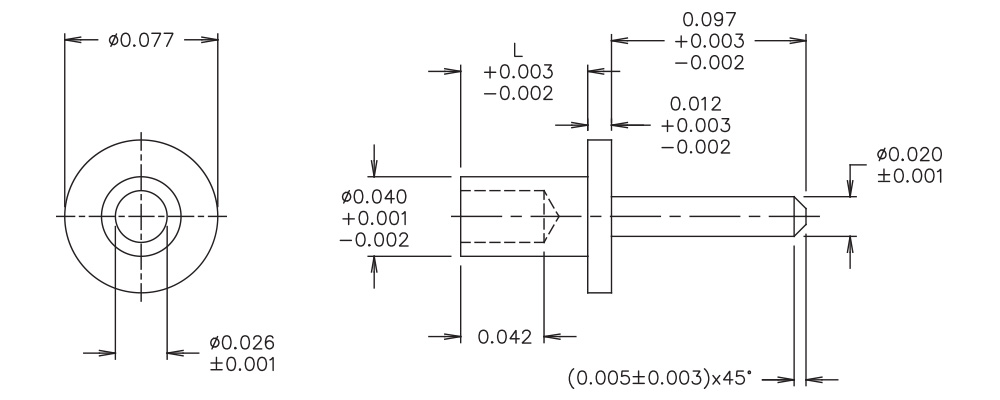

09-8689-3-05
09-8689-3-05
09-8689-3-05
0.204" 0.020 - Swage Mount 0.094" 1/16 0.043 Brass Electro Solder NO

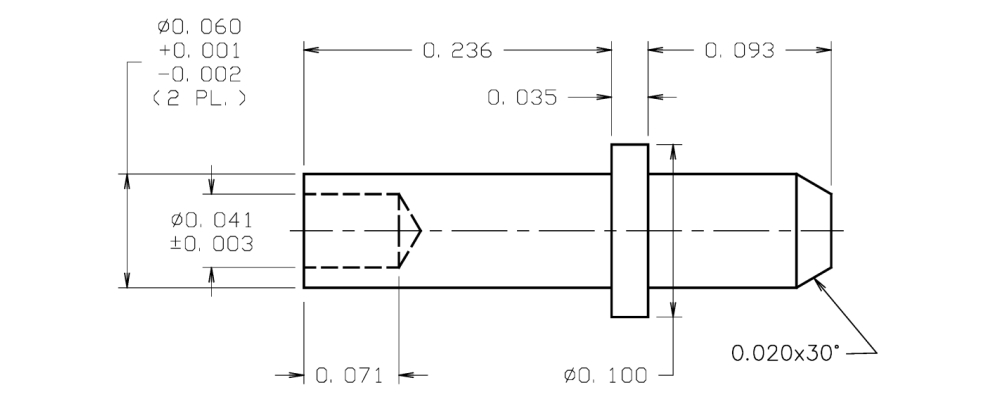

09-8802-6-044
09-8802-6-044
09-8802-6-044
0.364" 0.060 (+0.001/-0.002) - Swage Mount 0.236" 3/16 0.063 Brass Bright Tin YES

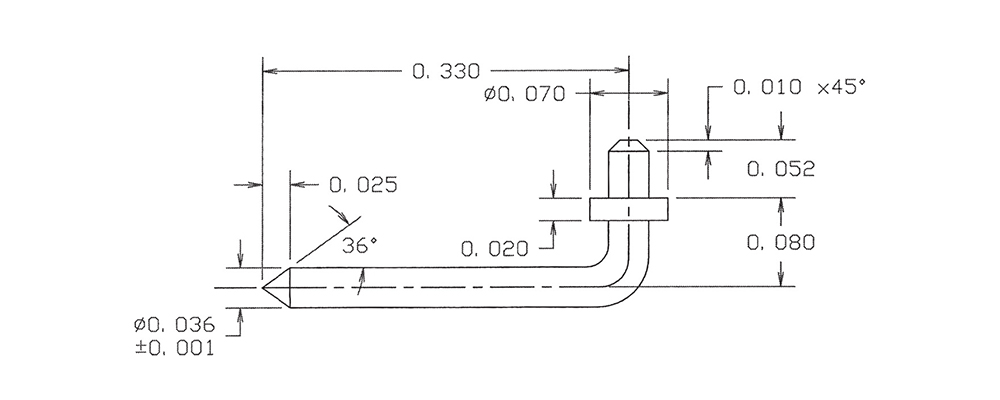

09-8861-1-088
09-8861-1-088
09-8861-1-088
0.365" 0.036 - Solder 0.052" 1/64 TO 1/32 0.039 Brass Bright Tin-Lead NO

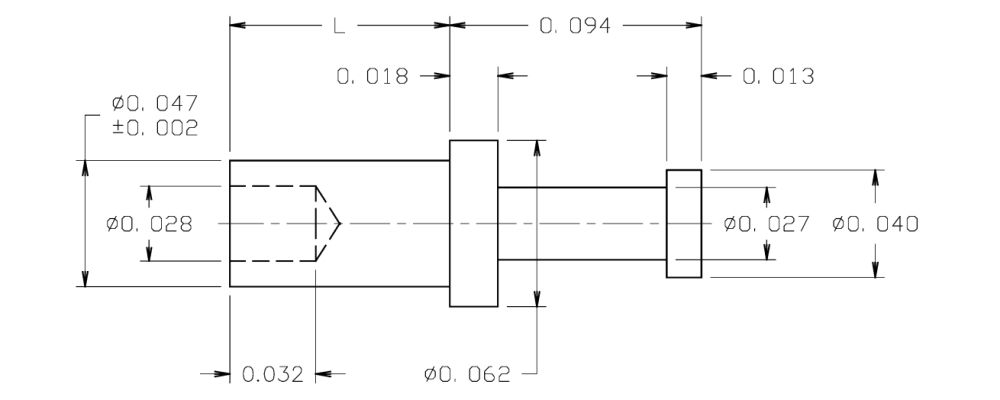

10-104-11-05
10-104-11-05
10-104-11-05
0.129" - - Swage Mount 0.035" 1/64 0.052 Brass Electro Solder NO

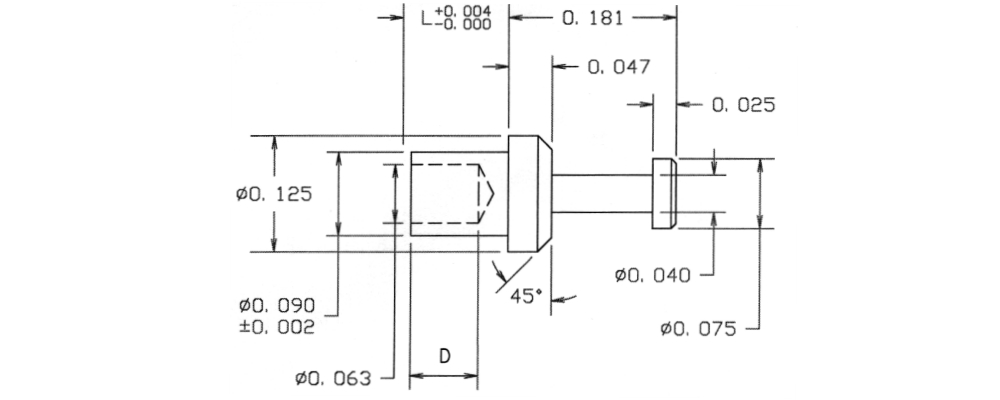

10-111-2-05
10-111-2-05
10-111-2-05
0.286" - - Swage Mount 0.105" 1/16 0.094 Brass Electro Solder NO

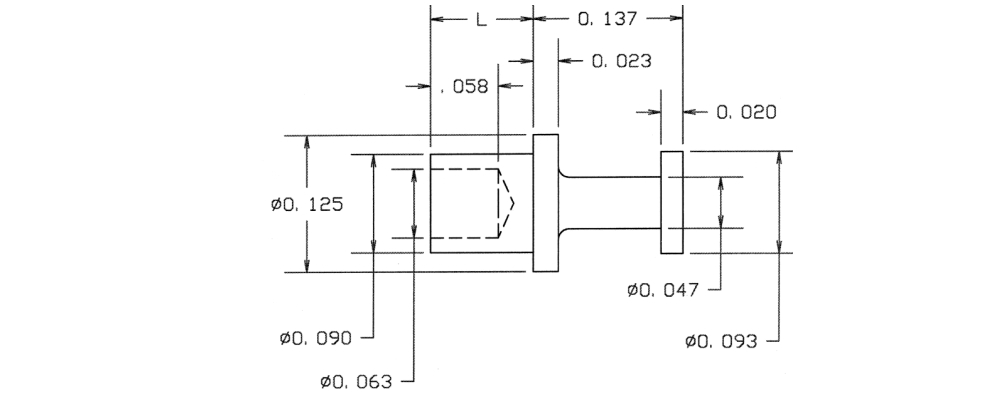

10-130-4-095
10-130-4-095
10-130-4-095
0.278" - - Swage Mount 0.141" 1/8 0.094 Brass Hot Solder Dip NO

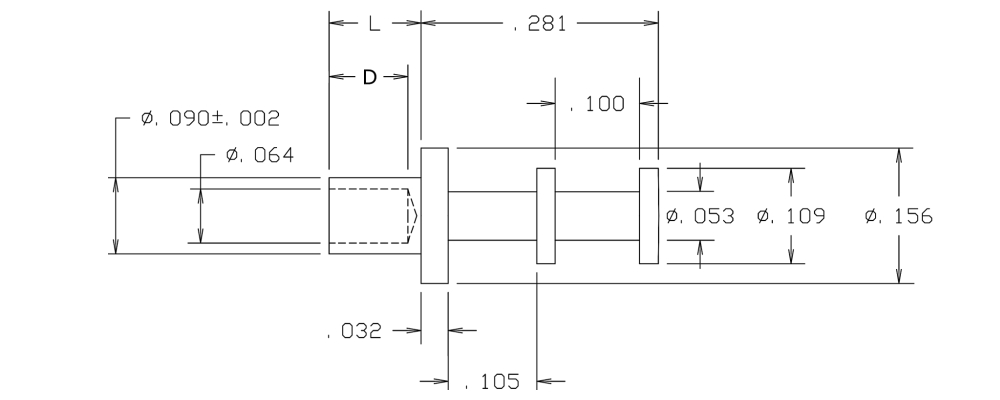

10-203-4-05
10-203-4-05
10-203-4-05
0.453" - - Swage Mount 0.172" 1/8 0.094 Brass Electro Solder NO

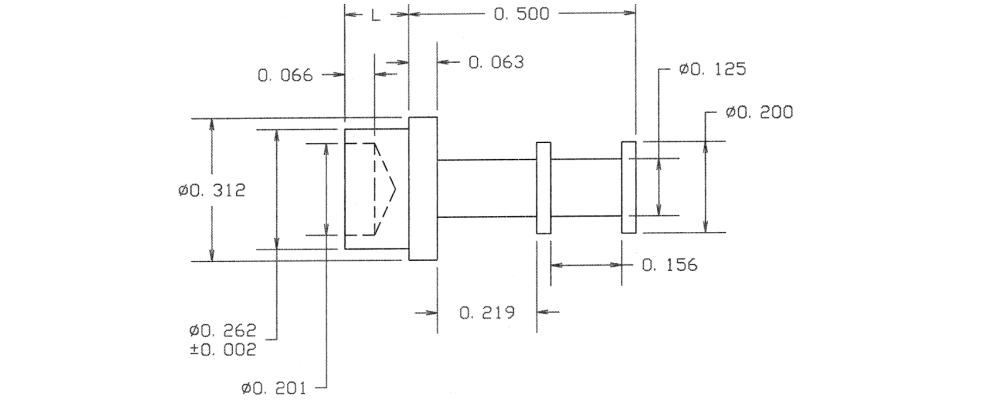

10-211-2-095
10-211-2-095
10-211-2-095
0.609" - - Swage Mount 0.109" 1/16 0.266 Brass Hot Solder Dip NO

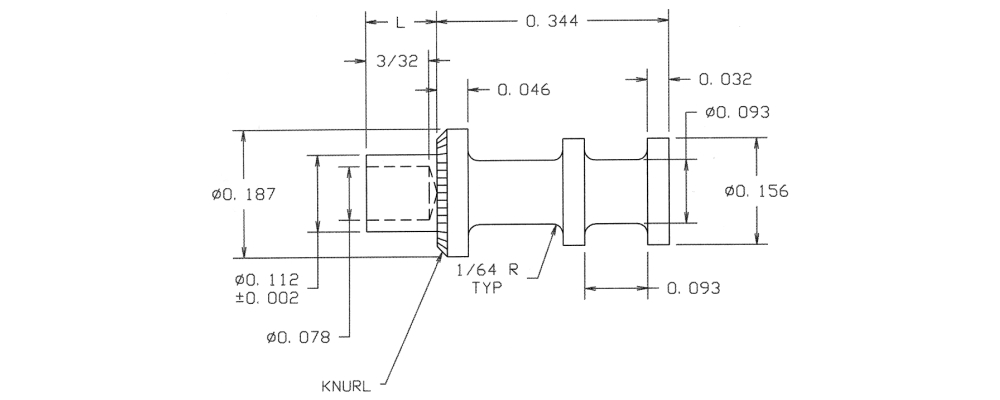

10-217-4-088
10-217-4-088
10-217-4-088
0.509" - - Swage Mount 0.165" 1/8 0.116 Brass Bright Tin-Lead NO

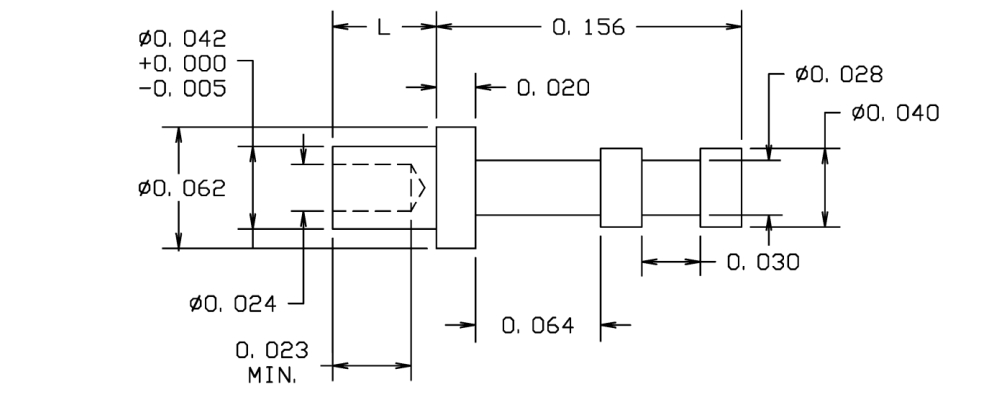

10-227-4-05
10-227-4-05
10-227-4-05
0.303" - - Swage Mount 0.147" 1/8 0.043 Brass Electro Solder NO

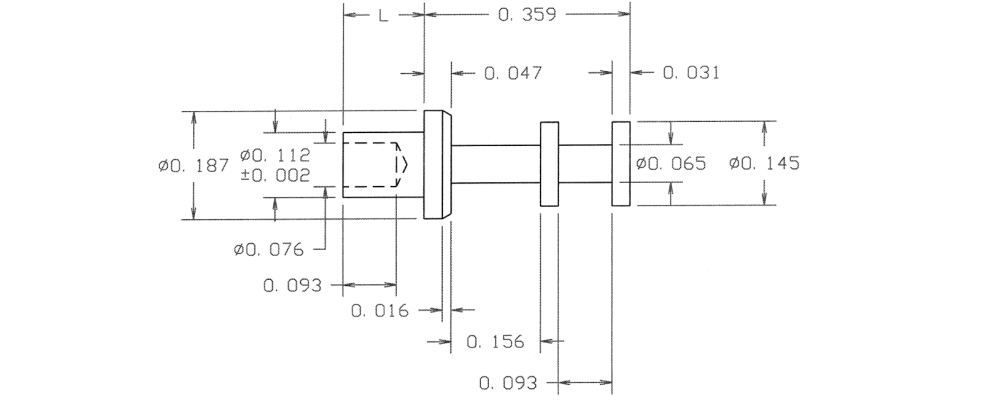

10-247-6-035
10-247-6-035
10-247-6-035
0.593" - - Swage Mount 0.234" 3/16 0.116 Brass Gold YES

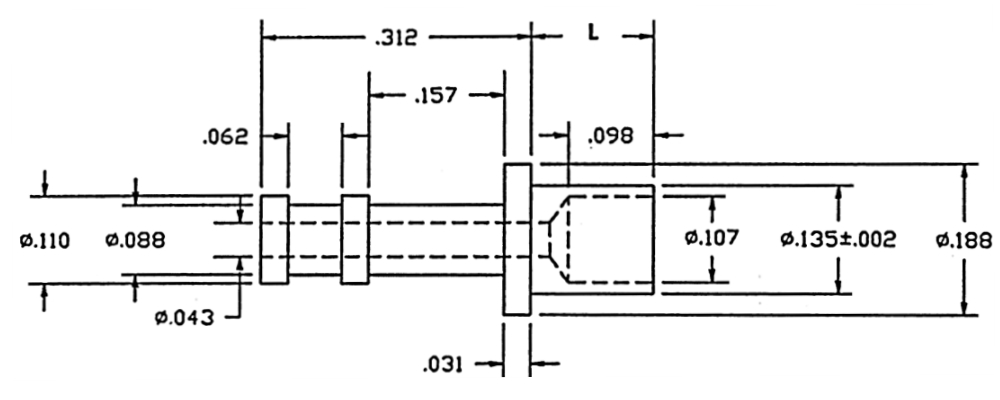

10-304-3-088
10-304-3-088
10-304-3-088
0.453" - - Swage Mount 0.141" 3/32 0.1405 Brass Bright Tin-Lead NO

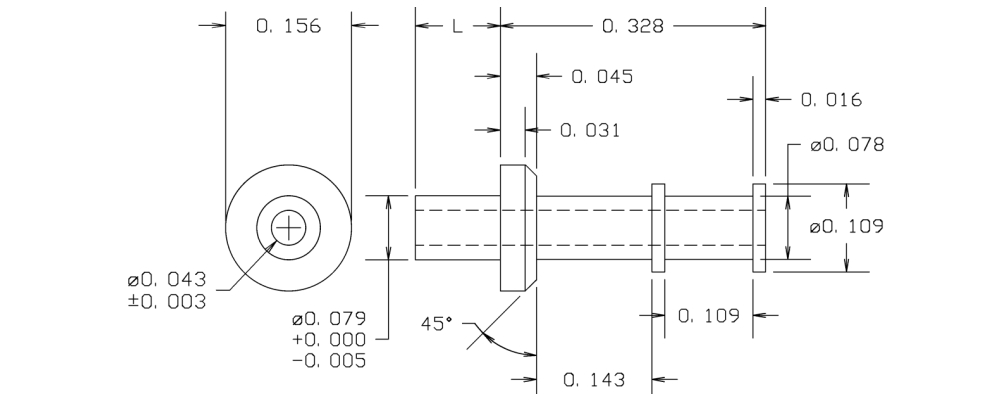

10-312-1-01
10-312-1-01
10-312-1-01
0.403" - - Swage Mount 0.075" 1/32 0.082 Brass Silver YES
10-323-2-044
10-323-2-044
10-323-2-044
0.240" - - Swage Mount 0.084" 1/16 0.076 Brass Bright Tin YES

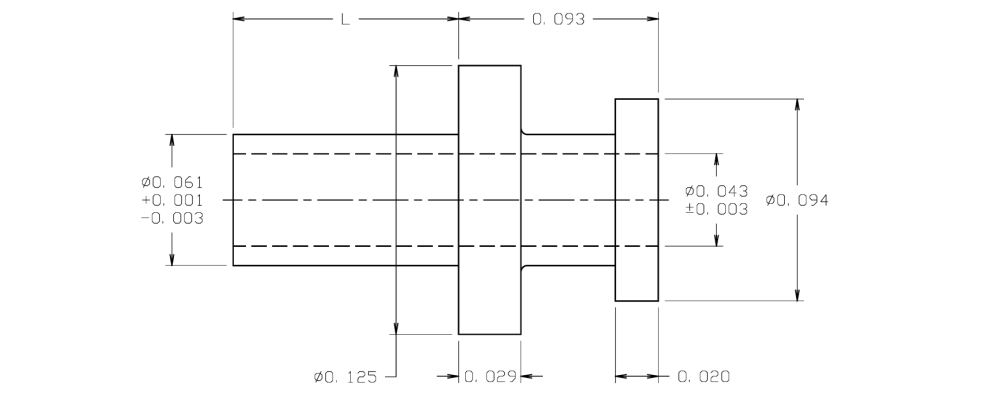

10-360-2-03
10-360-2-03
10-360-2-03
0.198" - - Swage Mount 0.105" 1/16 0.063 Brass Gold YES
