Commercial
Non-Insulated
Terminals

Filter

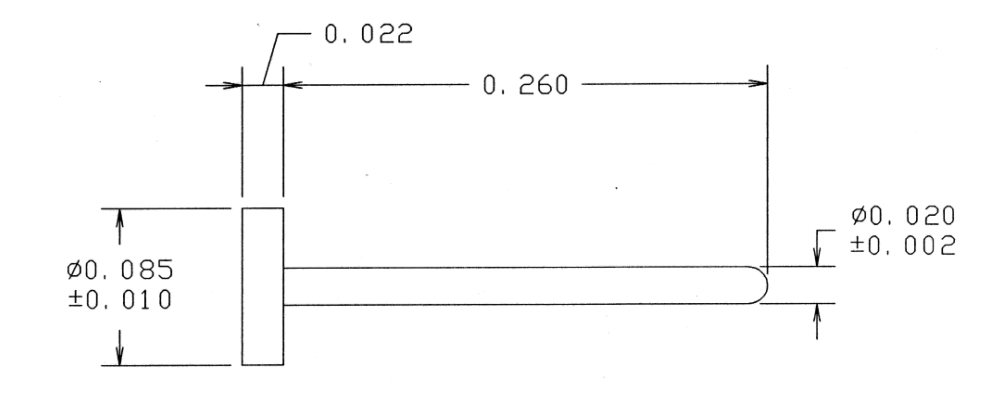

09-8563-1-095
09-8563-1-095
09-8563-1-095
0.282" 0.020 - Solder 0.260" 15/64 0.024 Beryllium Copper Hot Solder Dip NO

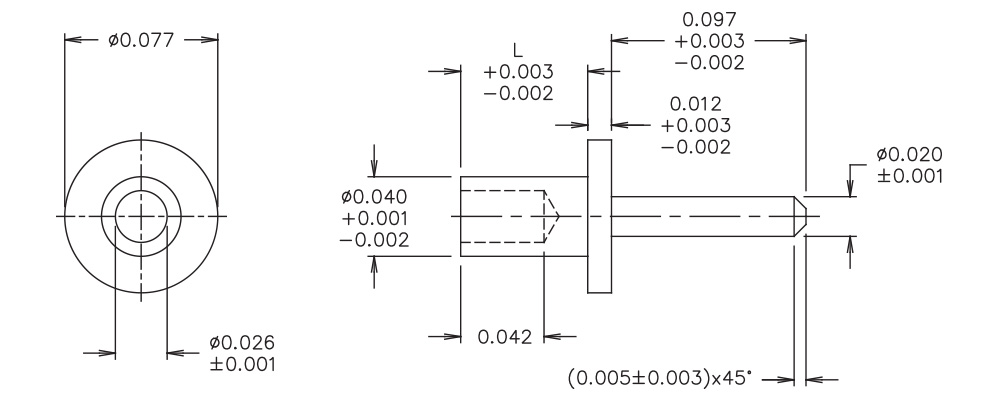

09-8689-3-044
09-8689-3-044
09-8689-3-044
0.204" 0.020 - Swage Mount 0.094" 1/16 0.043 Brass Bright Tin YES

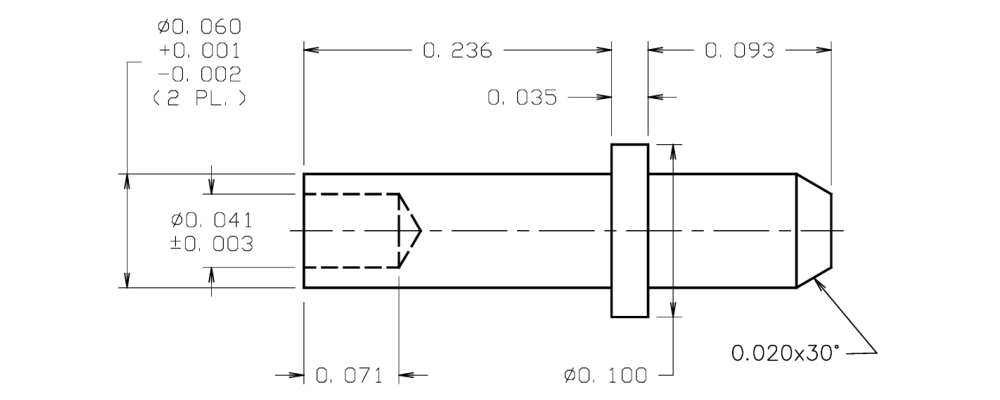

09-8802-6-04
09-8802-6-04
09-8802-6-04
0.364" 0.060 (+0.001/-0.002) - Swage Mount 0.236" 3/16 0.063 Brass Electro-Tin YES

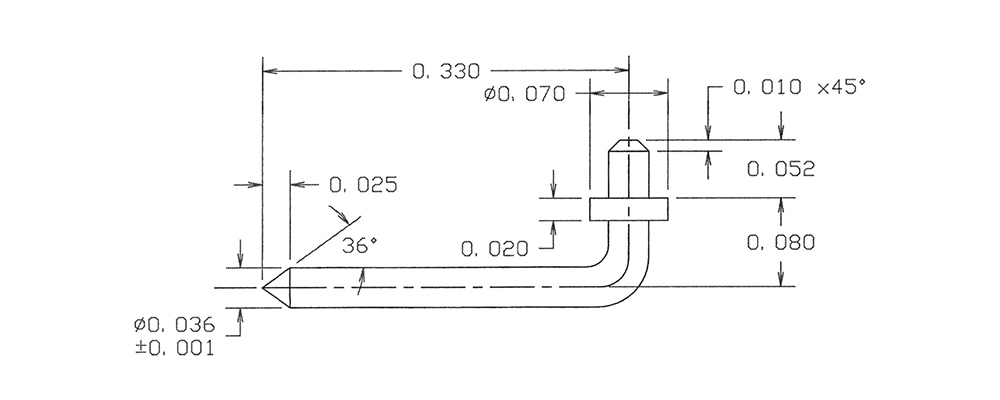

09-8861-1-05
09-8861-1-05
09-8861-1-05
0.365" 0.036 - Solder 0.052" 1/64 TO 1/32 0.039 Brass Electro Solder NO
10-104-11-044
10-104-11-044
10-104-11-044
0.129" - - Swage Mount 0.035" 1/64 0.052 Brass Bright Tin YES
10-111-2-044
10-111-2-044
10-111-2-044
0.286" - - Swage Mount 0.105" 1/16 0.094 Brass Bright Tin YES
10-130-4-088
10-130-4-088
10-130-4-088
0.278" - - Swage Mount 0.141" 1/8 0.094 Brass Bright Tin-Lead NO
10-203-4-044
10-203-4-044
10-203-4-044
0.453" - - Swage Mount 0.172" 1/8 0.094 Brass Bright Tin YES
10-211-2-088
10-211-2-088
10-211-2-088
0.609" - - Swage Mount 0.109" 1/16 0.266 Brass Bright Tin-Lead NO

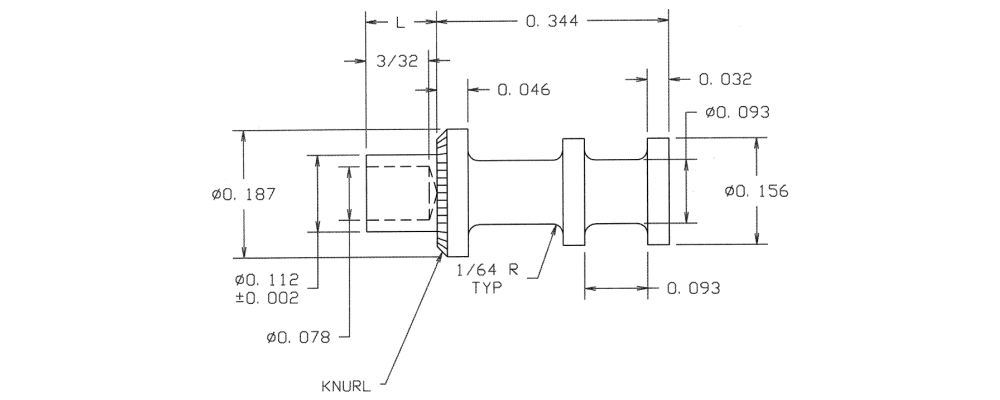

10-217-4-05
10-217-4-05
10-217-4-05
0.509" - - Swage Mount 0.165" 1/8 0.116 Brass Electro Solder NO

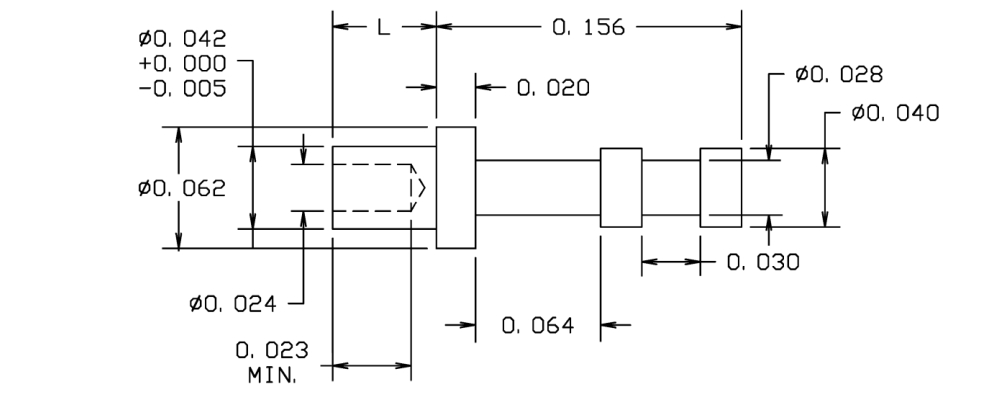

10-227-4-044
10-227-4-044
10-227-4-044
0.303" - - Swage Mount 0.147" 1/8 0.043 Brass Bright Tin YES
10-247-6-03
10-247-6-03
10-247-6-03
0.593" - - Swage Mount 0.234" 3/16 0.116 Brass Gold YES
10-304-3-05
10-304-3-05
10-304-3-05
0.453" - - Swage Mount 0.141" 3/32 0.1405 Brass Electro Solder NO

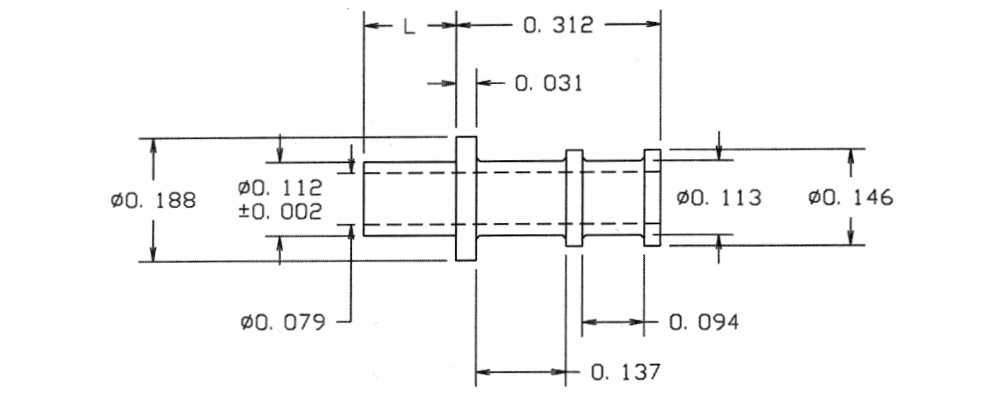

10-311-8-088
10-311-8-088
10-311-8-088
0.609" - - Swage Mount 0.297" 1/4 0.116 Brass Bright Tin-Lead NO
10-323-2-04
10-323-2-04
10-323-2-04
0.240" - - Swage Mount 0.084" 1/16 0.076 Brass Electro-Tin YES

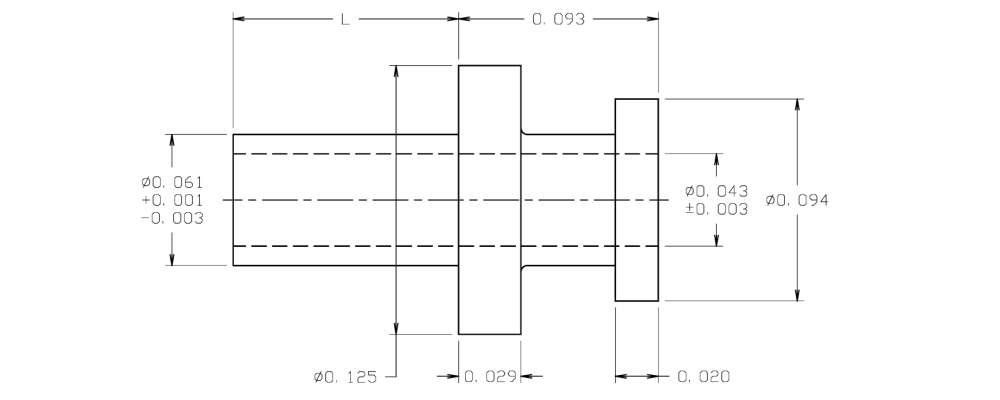

10-360-2-01
10-360-2-01
10-360-2-01
0.198" - - Swage Mount 0.105" 1/16 0.063 Brass Silver YES
10-417-3-035
10-417-3-035
10-417-3-035
0.532" - - Swage Mount 0.141" 3/32 0.116 Brass Gold YES
10-426-1-05
10-426-1-05
10-426-1-05
0.294" - - Swage Mount 0.075" 1/32 0.094 Brass Electro Solder NO

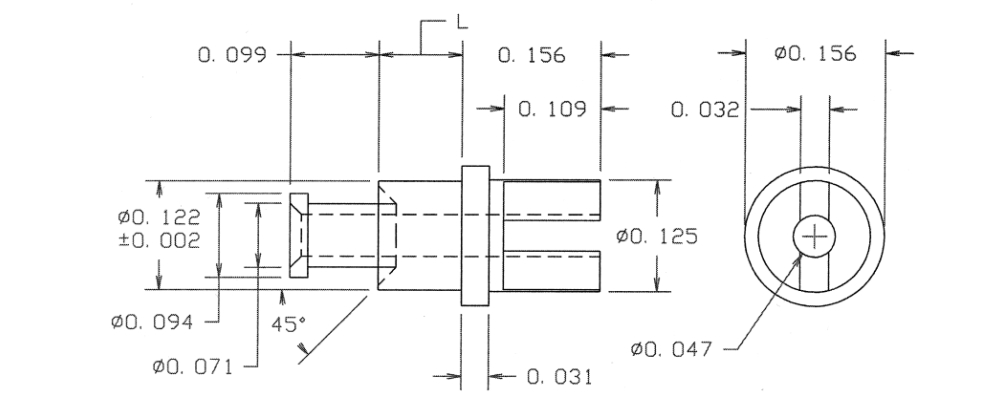

10-443-6-05
10-443-6-05
10-443-6-05
0.474" - SLOTTED/TURRET Swage Mount 0.219" 3/16 0.125 Brass Electro Solder NO

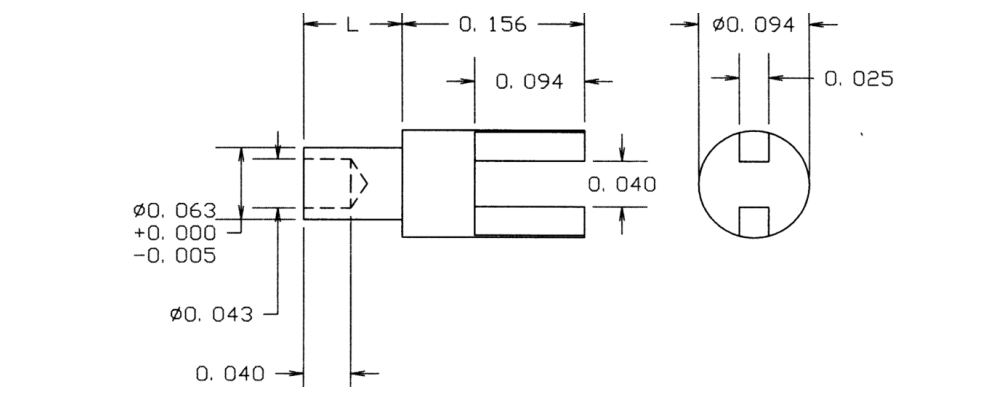

10-459-6-04
10-459-6-04
10-459-6-04
0.365" - - Swage Mount 0.209" 3/16 0.064 Brass Electro-Tin YES
