Commercial
Non-Insulated
Terminals

Filter

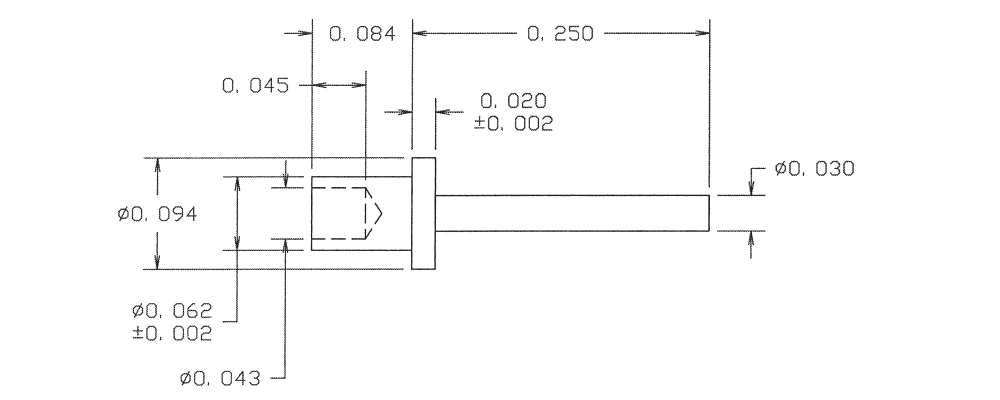

10-868-2-04
10-868-2-04
10-868-2-04
0.334" 0.030 - Swage Mount 0.084" 1/16 0.067 Brass Electro-Tin YES

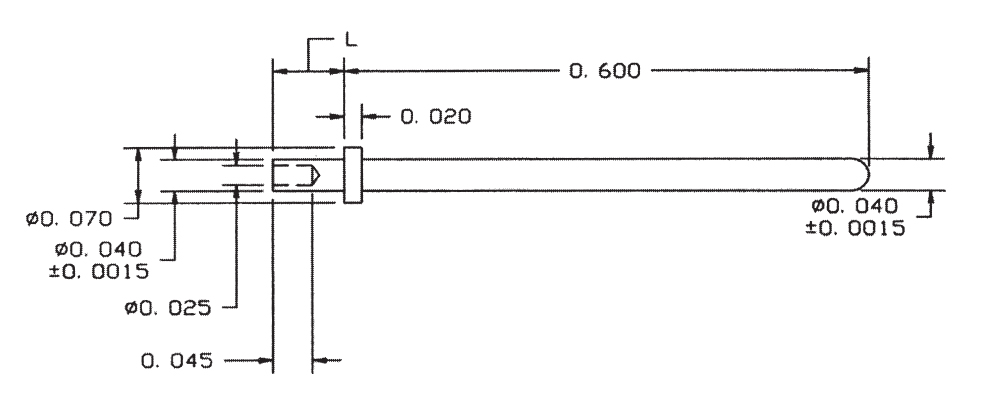

10-892-2-03
10-892-2-03
10-892-2-03
0.682" 0.0405 - Swage Mount 0.082" 1/16 0.043 Brass Gold YES

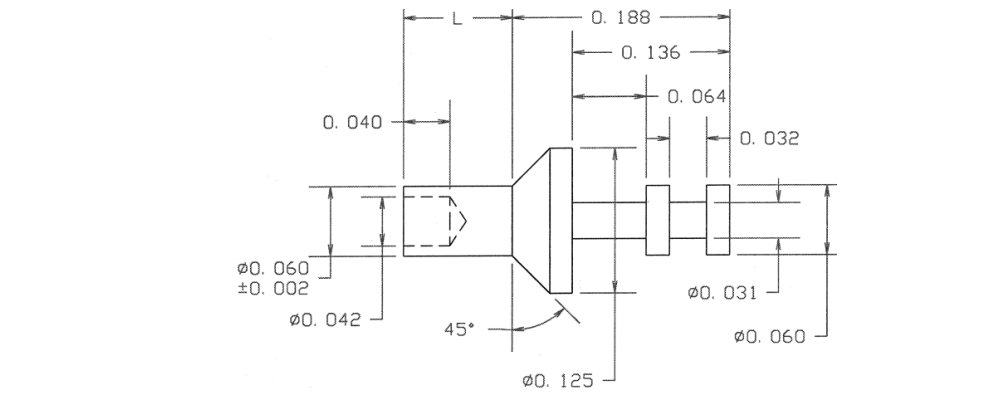

10-905-4-01
10-905-4-01
10-905-4-01
0.344" - - Swage Mount 0.156" 1/8 0.0635 Brass Silver YES

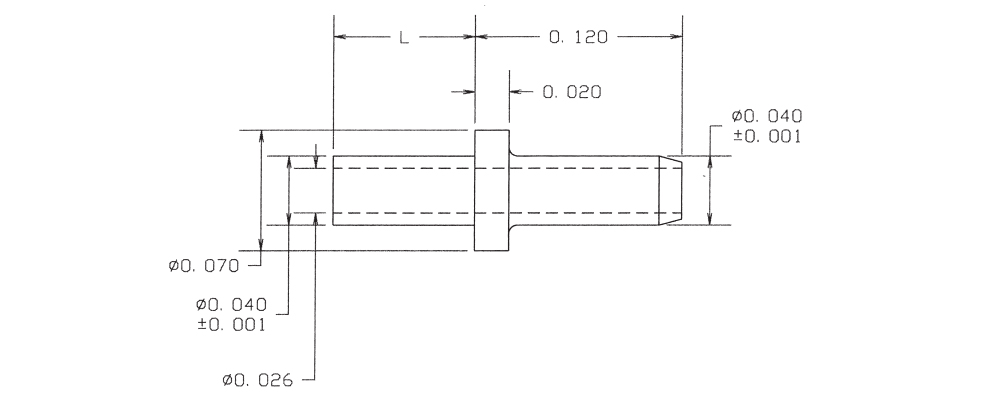

10-920-3-088
10-920-3-088
10-920-3-088
0.233" 0.040 - Swage Mount 0.113" 3/32 0.043 Brass Bright Tin-Lead NO
10-936-3-035
10-936-3-035
10-936-3-035
0.208" - - Swage Mount 0.115" 3/32 0.052 Brass Gold YES
14-345-4-04
14-345-4-04
14-345-4-04
0.499" - - Swage Mount 0.172" 1/8 0.116 LEADED Red Brass Electro-Tin YES
14-986-2-088
14-986-2-088
14-986-2-088
0.275" 0.050 - Swage Mount 0.094" 1/16 0.033 LEADED Red Brass Bright Tin-Lead NO
10-408-3-01
10-408-3-01
10-408-3-01
0.447" - - Swage Mount 0.135" 3/32 0.116 Brass Silver YES
10-438-1-044
10-438-1-044
10-438-1-044
0.390" - - Swage Mount 0.078" 1/32 0.116 Brass Bright Tin YES
10-453-8-03
10-453-8-03
10-453-8-03
0.364" - - Swage Mount 0.270" 1/4 0.052 Brass Gold YES

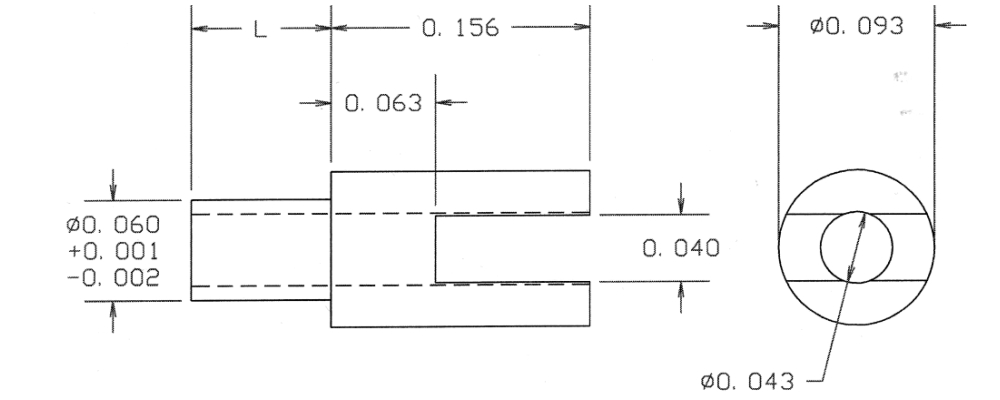

10-477-5-05
10-477-5-05
10-477-5-05
0.335" - - Swage Mount 0.179" 5/32 0.063 Brass Electro Solder NO

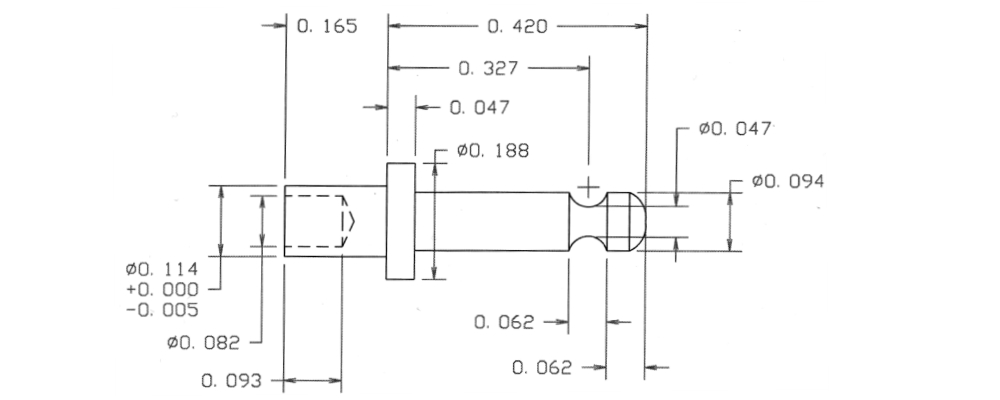

09-0020-4-01
09-0020-4-01
09-0020-4-01
0.585" 0.094 - Swage Mount 0.165" 1/8 0.116 Brass Silver YES

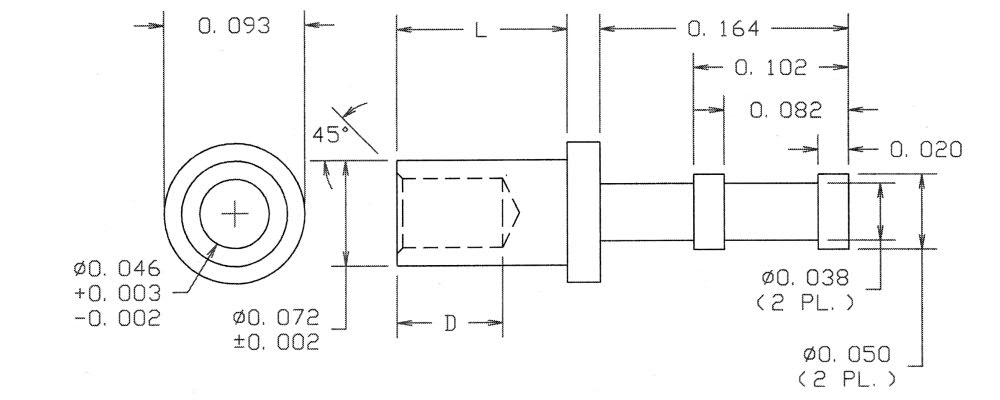

09-0067-4A-088
09-0067-4A-088
09-0067-4A-088
0.311" - - Swage Mount 0.125" 3/32 0.076 Brass Bright Tin-Lead NO

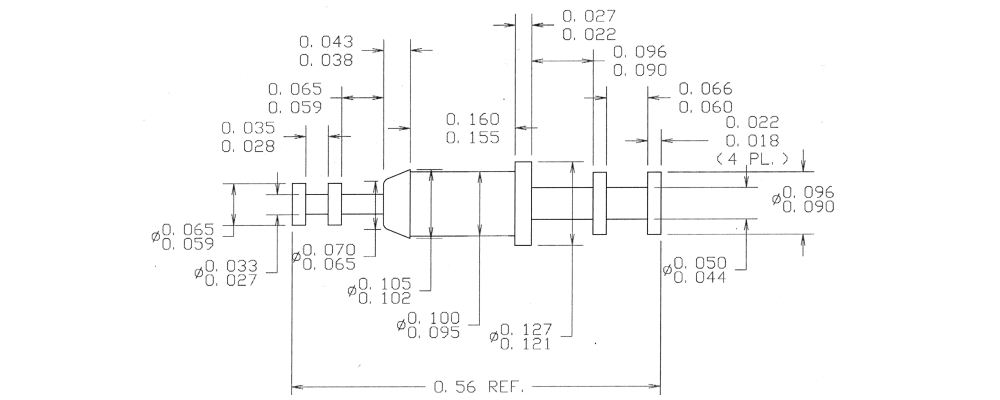

09-0159-2-01
09-0159-2-01
09-0159-2-01
0.560" - Double Turret/Double Turret Solder 0.156" 1/32 TO 5/32 0.109 Brass Silver YES

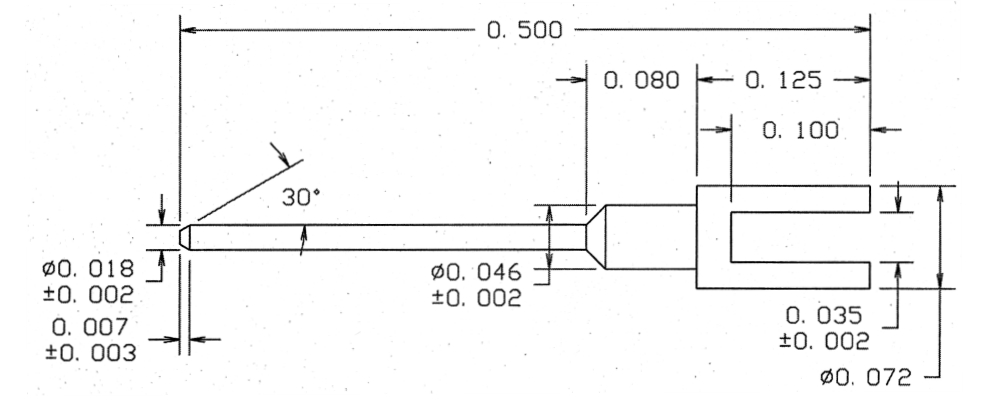

09-0186-2-088
09-0186-2-088
09-0186-2-088
0.500" 0.018 SLOTTED/PIN Solder 0.080" 1/16 0.052 Brass Bright Tin-Lead NO

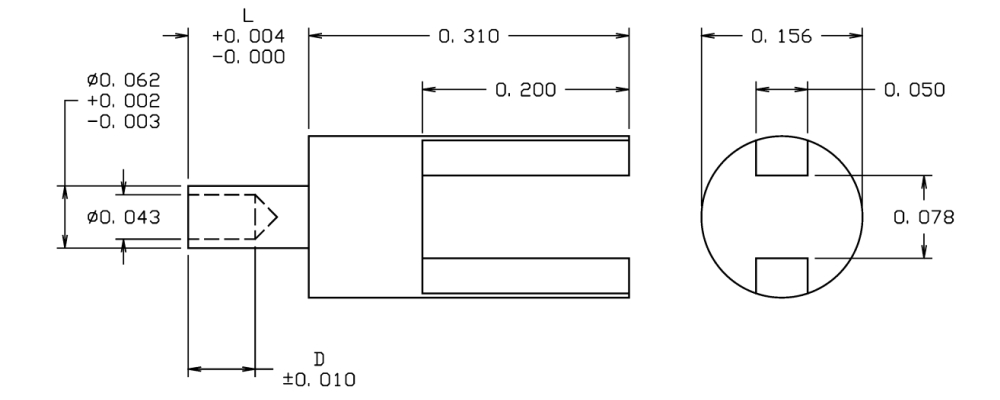

09-0234-2-044
09-0234-2-044
09-0234-2-044
0.397" - - Swage Mount 0.087" 1/16 0.067 Brass Bright Tin YES

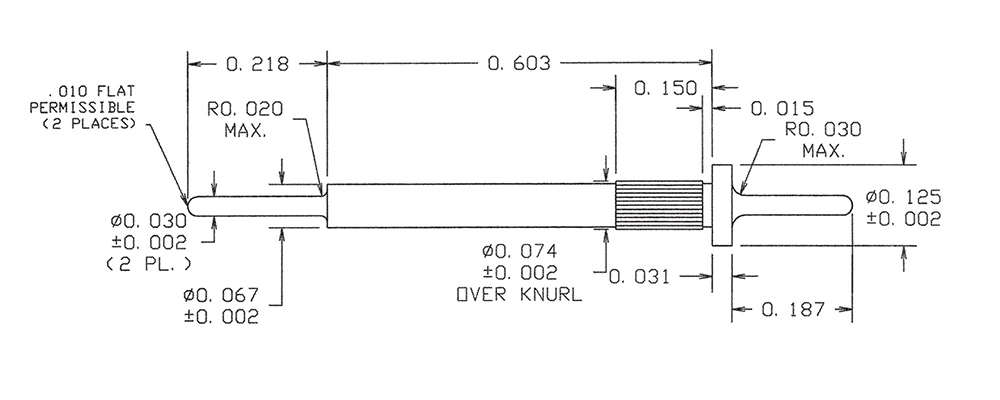

09-0275-4-035
09-0275-4-035
09-0275-4-035
1.039" 0.030 Pin/Pin Press Fit/Solder 0.150" 5/32 0.073 Brass Gold YES

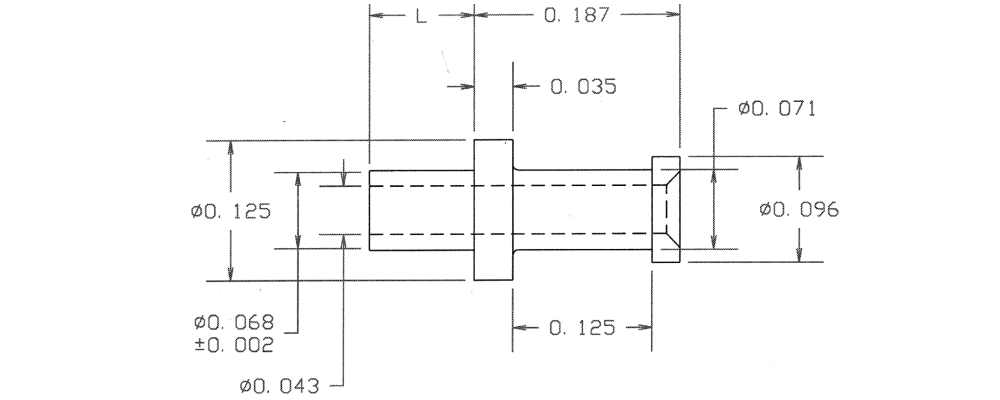

09-0342-3-035
09-0342-3-035
09-0342-3-035
0.312" - - Swage Mount 0.125" 3/32 0.073 Brass Gold YES
09-7010-1-044
09-7010-1-044
09-7010-1-044
0.202" 0.050 - Swage Mount 0.062" 1/32 0.055 Brass Bright Tin YES

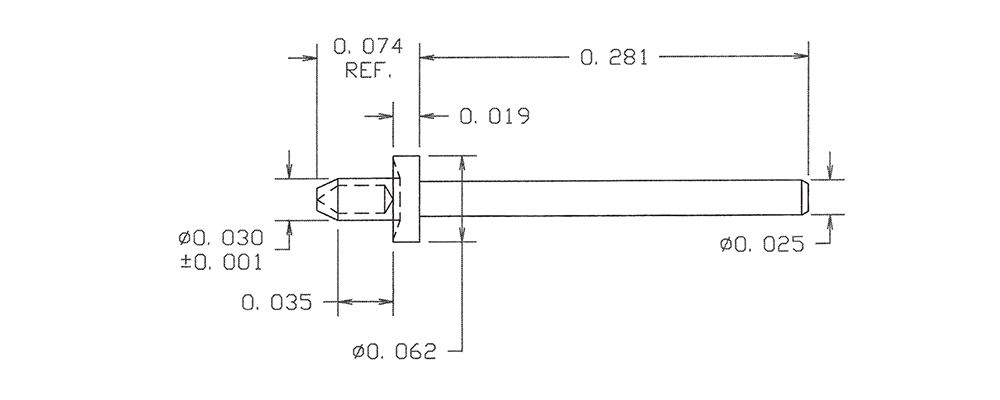

09-7108-1A-03
09-7108-1A-03
09-7108-1A-03
0.355" 0.025 - RIVET MOUNT 0.035" 1/100 0.033 Brass Gold YES
