Commercial
Non-Insulated
Terminals

Filter
10-438-1-035
10-438-1-035
10-438-1-035
0.390" - - Swage Mount 0.078" 1/32 0.116 Brass Gold YES
10-453-6-088
10-453-6-088
10-453-6-088
0.301" - - Swage Mount 0.207" 3/16 0.052 Brass Bright Tin-Lead NO

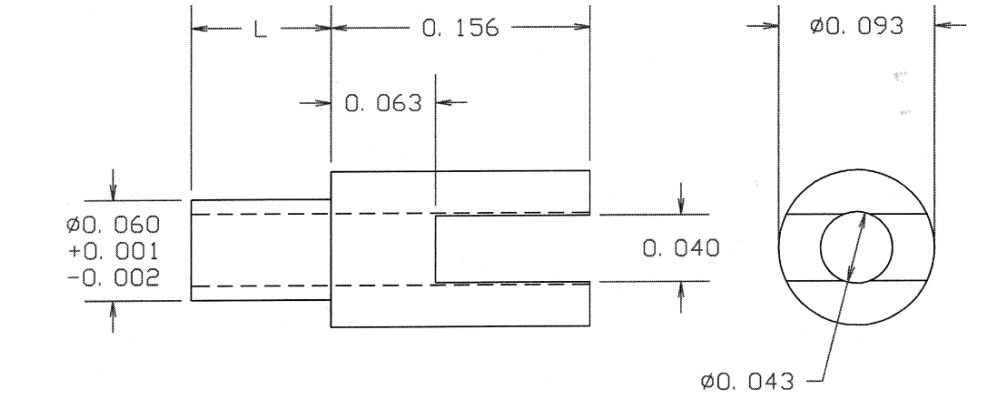

10-477-5-04
10-477-5-04
10-477-5-04
0.335" - - Swage Mount 0.179" 5/32 0.063 Brass Electro-Tin YES
09-0012-3-088
09-0012-3-088
09-0012-3-088
0.207" - - Solder 0.113" 3/32 0.052 Beryllium Copper Bright Tin-Lead NO

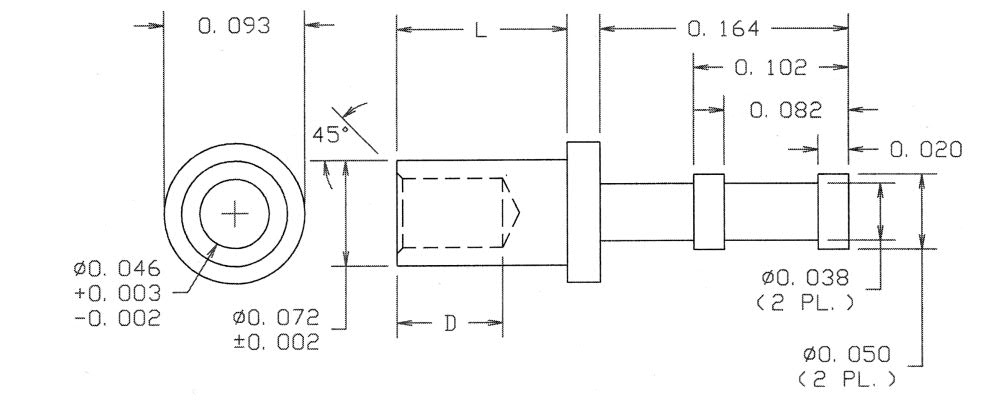

09-0067-4A-044
09-0067-4A-044
09-0067-4A-044
0.311" - - Swage Mount 0.125" 3/32 0.076 Brass Bright Tin YES

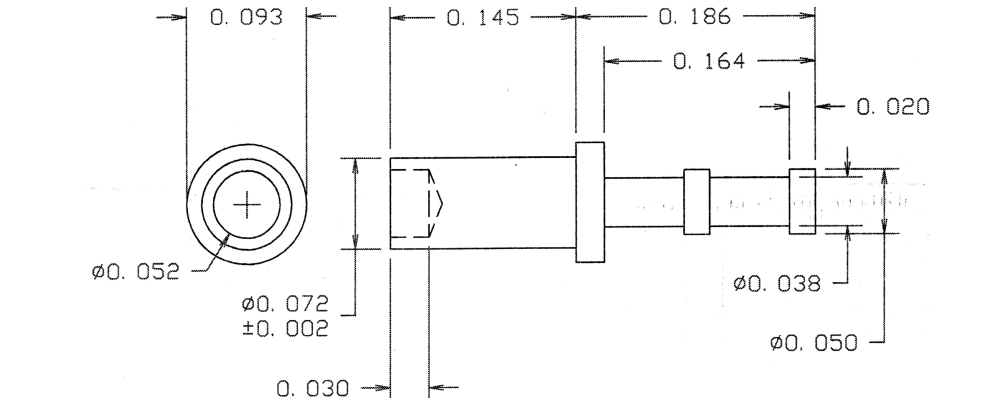

09-0155-4-088
09-0155-4-088
09-0155-4-088
0.331" - - Swage Mount 0.145" 1/8 0.076 Brass Bright Tin-Lead NO

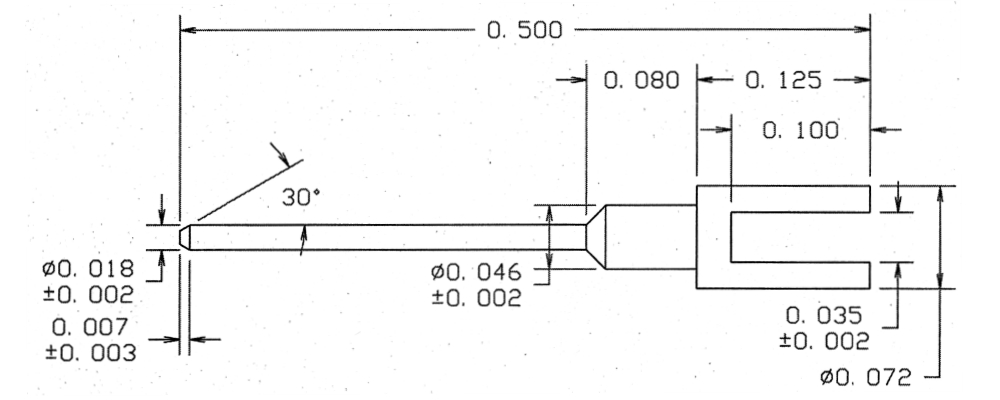

09-0186-2-044
09-0186-2-044
09-0186-2-044
0.500" 0.018 SLOTTED/PIN Solder 0.080" 1/16 0.052 Brass Bright Tin YES

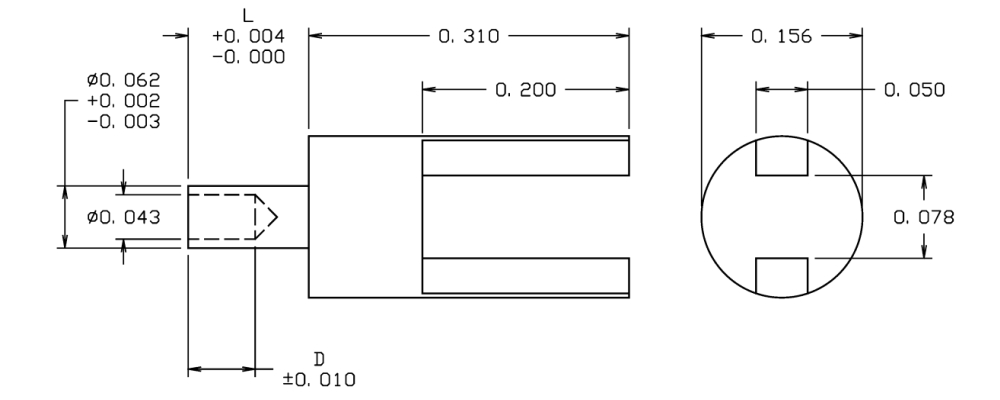

09-0234-2-035
09-0234-2-035
09-0234-2-035
0.397" - - Swage Mount 0.087" 1/16 0.067 Brass Gold YES

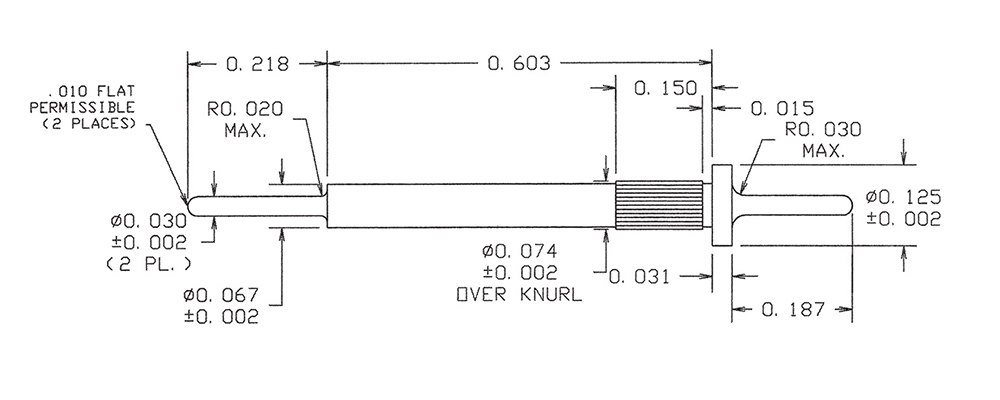

09-0275-4-01
09-0275-4-01
09-0275-4-01
1.039" 0.030 Pin/Pin Press Fit/Solder 0.150" 5/32 0.073 Brass Silver YES
09-0342-3-01
09-0342-3-01
09-0342-3-01
0.312" - - Swage Mount 0.125" 3/32 0.073 Brass Silver YES
09-7010-1-035
09-7010-1-035
09-7010-1-035
0.202" 0.050 - Swage Mount 0.062" 1/32 0.055 Brass Gold YES

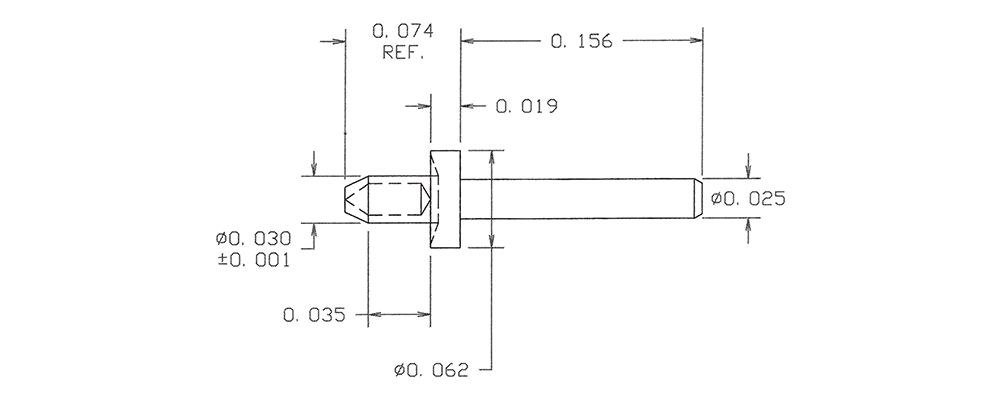

09-7107-1A-088
09-7107-1A-088
09-7107-1A-088
0.230" 0.025 - RIVET MOUNT 0.035" 1/100 0.033 Brass Bright Tin-Lead NO

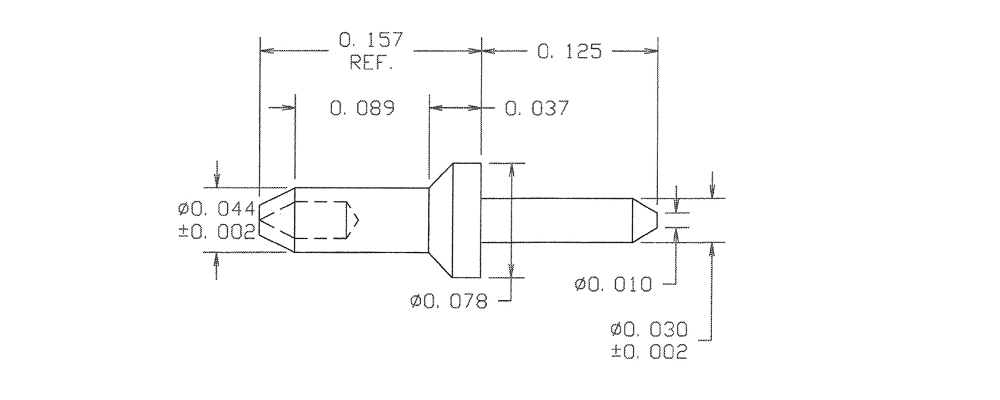

09-7145-2-04
09-7145-2-04
09-7145-2-04
0.282" 0.030 - RIVET MOUNT 0.089" 1/16 0.048 Brass Electro-Tin YES

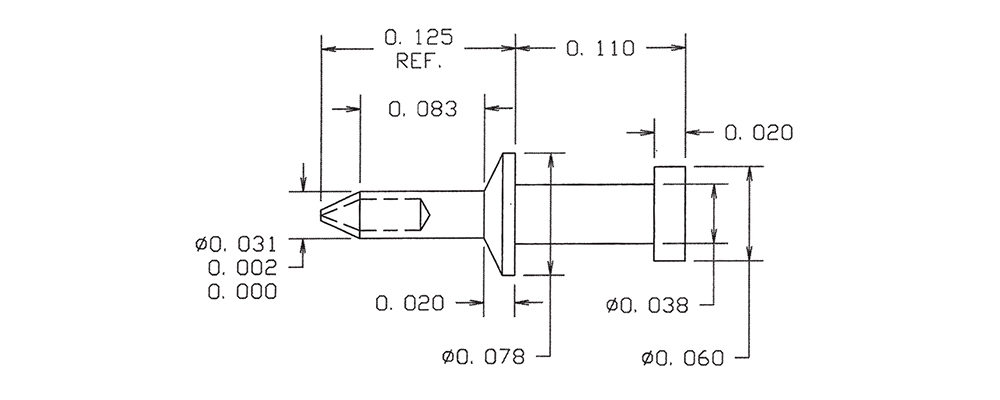

09-7171-2-01
09-7171-2-01
09-7171-2-01
0.235" - - RIVET MOUNT 0.082" 1/16 0.035 Brass Silver YES

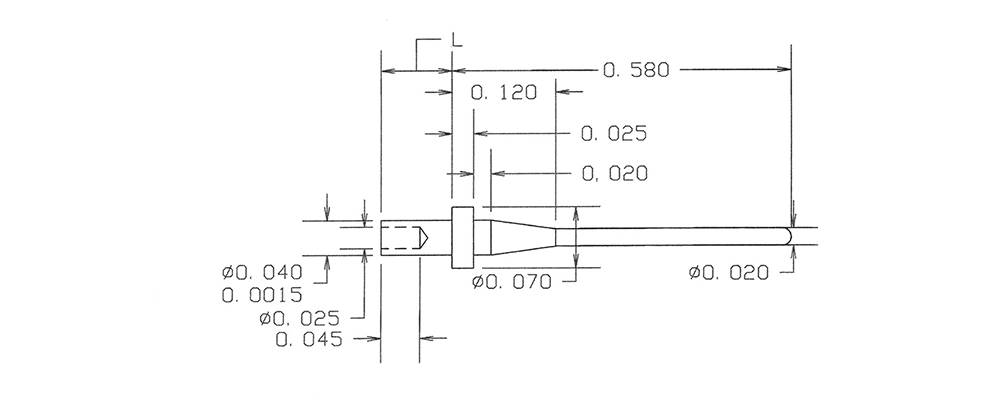

09-8012-2-044
09-8012-2-044
09-8012-2-044
0.662" 0.020 - Swage Mount 0.082" 1/16 0.043 Brass Bright Tin YES

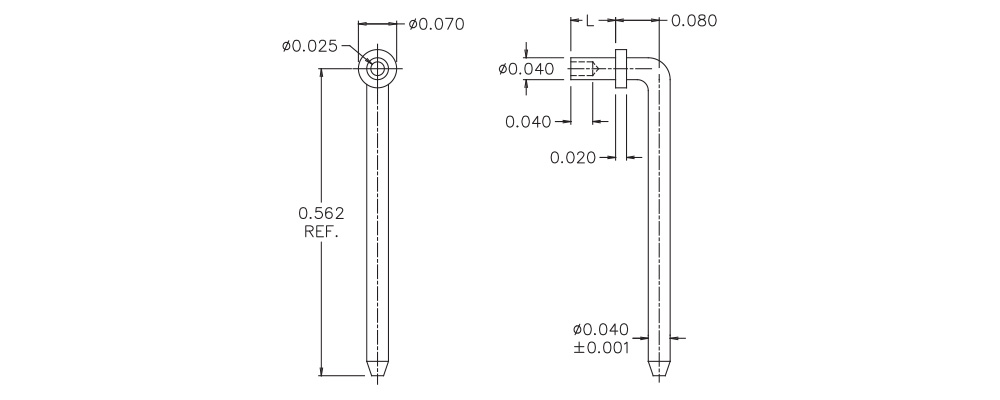

09-8048-2-03
09-8048-2-03
09-8048-2-03
0.597" 0.040 - Swage Mount 0.082" 1/16 0.043 Brass Gold YES

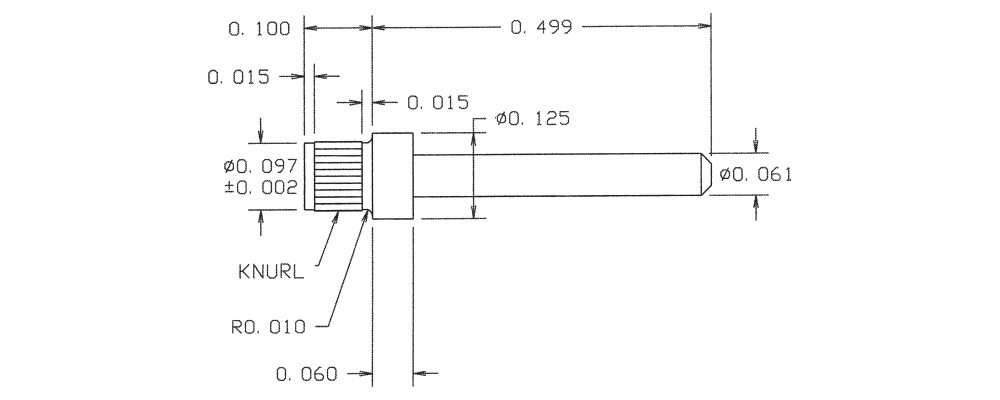

09-8088-2-044
09-8088-2-044
09-8088-2-044
0.599" 0.061 - Press Fit/Solder 0.100" 1/16 0.094 Brass Bright Tin YES

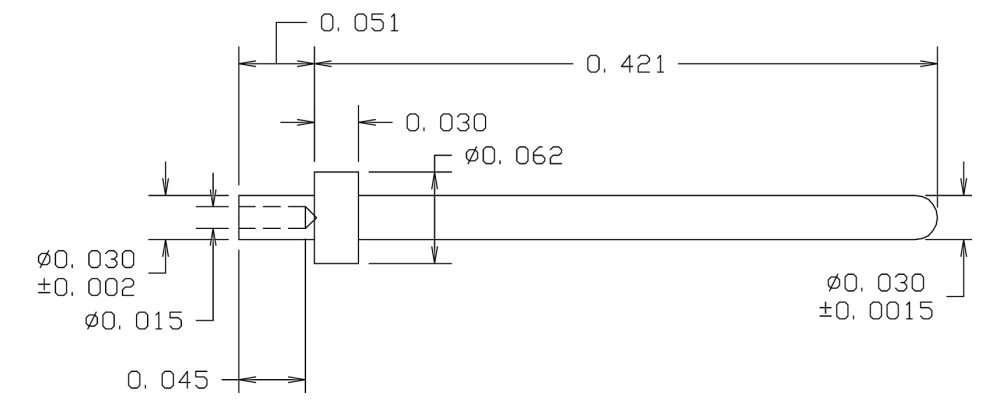

09-8147-1-03
09-8147-1-03
09-8147-1-03
0.472" 0.0305 - Swage Mount 0.051" 1/32 0.033 Brass Gold YES
09-8175-1-05
09-8175-1-05
09-8175-1-05
0.526" 0.025 - Swage Mount 0.051" 1/32 0.042 Brass Electro Solder NO

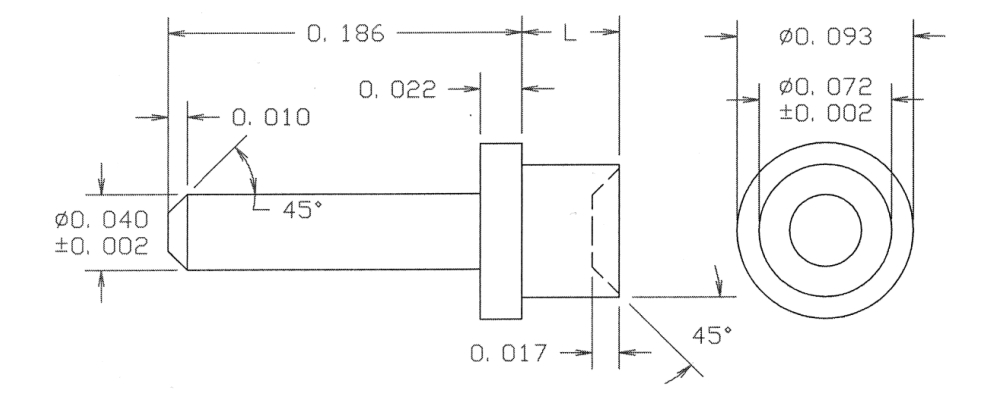

09-8311-1-05
09-8311-1-05
09-8311-1-05
0.237" 0.040 - Swage Mount 0.051" 1/32 0.076 Brass Electro Solder NO
