Commercial
Non-Insulated
Terminals

Filter
10-304-3-095
10-304-3-095
10-304-3-095
0.453" - - Swage Mount 0.141" 3/32 0.1405 Brass Hot Solder Dip NO
10-312-1-03
10-312-1-03
10-312-1-03
0.403" - - Swage Mount 0.075" 1/32 0.082 Brass Gold YES
10-323-2-05
10-323-2-05
10-323-2-05
0.240" - - Swage Mount 0.084" 1/16 0.076 Brass Electro Solder NO

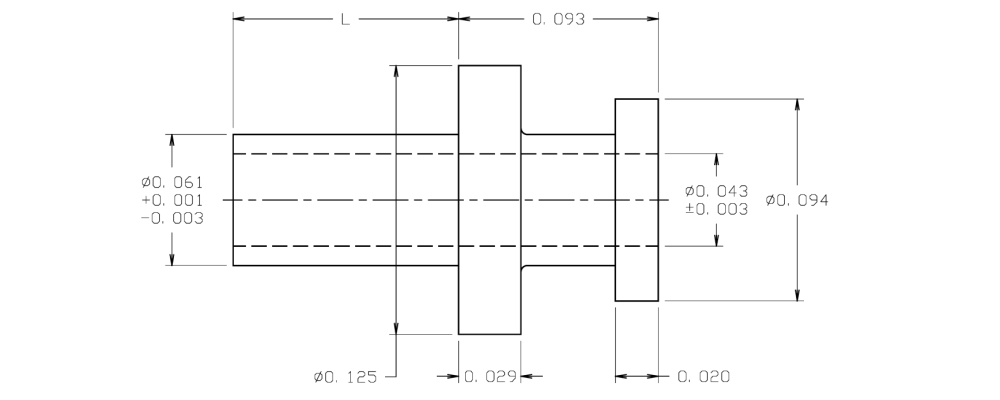

10-360-2-035
10-360-2-035
10-360-2-035
0.198" - - Swage Mount 0.105" 1/16 0.063 Brass Gold YES
10-417-3-044
10-417-3-044
10-417-3-044
0.532" - - Swage Mount 0.141" 3/32 0.116 Brass Bright Tin YES
10-426-1-095
10-426-1-095
10-426-1-095
0.294" - - Swage Mount 0.075" 1/32 0.094 Brass Hot Solder Dip NO
10-444-1-01
10-444-1-01
10-444-1-01
0.178" - - Swage Mount 0.053" 1/32 0.043 Brass Silver YES

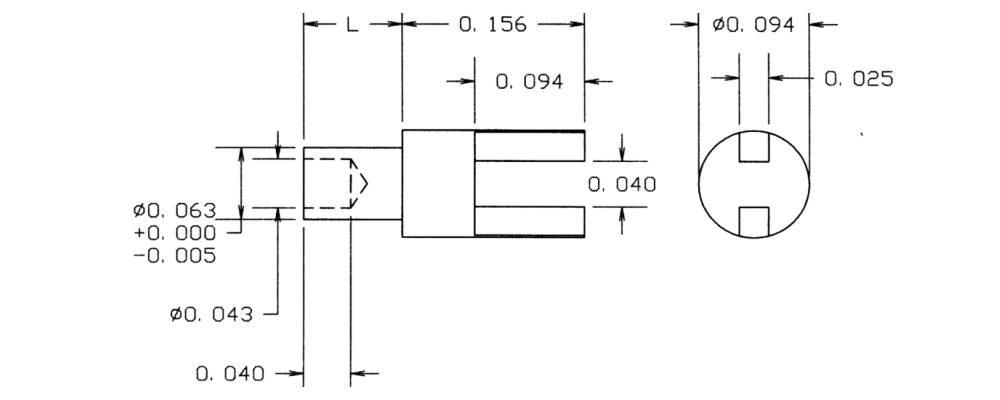

10-459-6-05
10-459-6-05
10-459-6-05
0.365" - - Swage Mount 0.209" 3/16 0.064 Brass Electro Solder NO
10-482-1-01
10-482-1-01
10-482-1-01
0.406" - - Swage Mount 0.078" 1/32 0.116 Brass Silver YES
10-502-6-095
10-502-6-095
10-502-6-095
0.475" - TURRET/DOUBLE TURRET Swage Mount 0.207" 3/16 0.076 Brass Hot Solder Dip NO

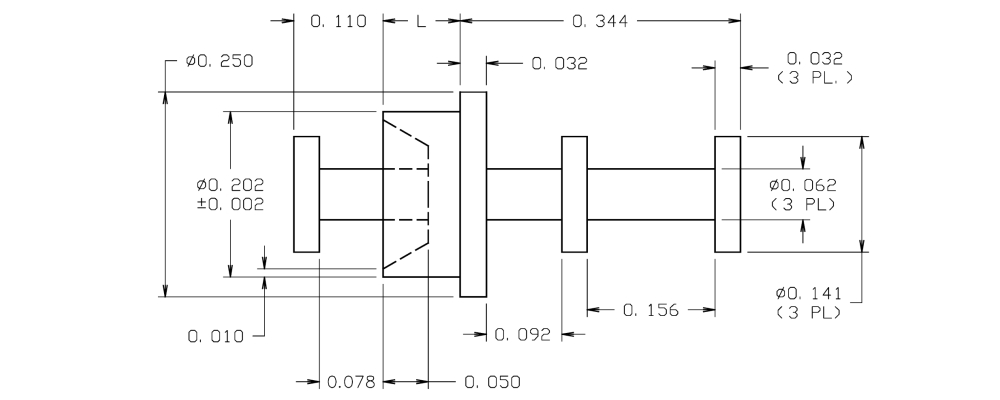

10-508-4A-095
10-508-4A-095
10-508-4A-095
0.609" - TURRET/DOUBLE TURRET Swage Mount 0.165" 1/8 0.206 Brass Hot Solder Dip NO
10-515-2-095
10-515-2-095
10-515-2-095
0.871" 0.094 TURRET/PIN Swage Mount 0.105" 1/16 0.185 Brass Hot Solder Dip NO
10-526-3-095
10-526-3-095
10-526-3-095
0.656" - TURRET/DOUBLE TURRET Swage Mount 0.125" 3/32 0.206 Brass Hot Solder Dip NO
10-544-2-095
10-544-2-095
10-544-2-095
0.335" - Turret/Turret Swage Mount 0.094" 1/16 0.094 Brass Hot Solder Dip NO
10-562-3-095
10-562-3-095
10-562-3-095
0.603" - Double Turret/Double Turret Swage Mount 0.135" 3/32 0.159 Brass Hot Solder Dip NO
10-606-3-04
10-606-3-04
10-606-3-04
0.451" - - Swage Mount 0.135" 3/32 0.094 Brass Electro-Tin YES

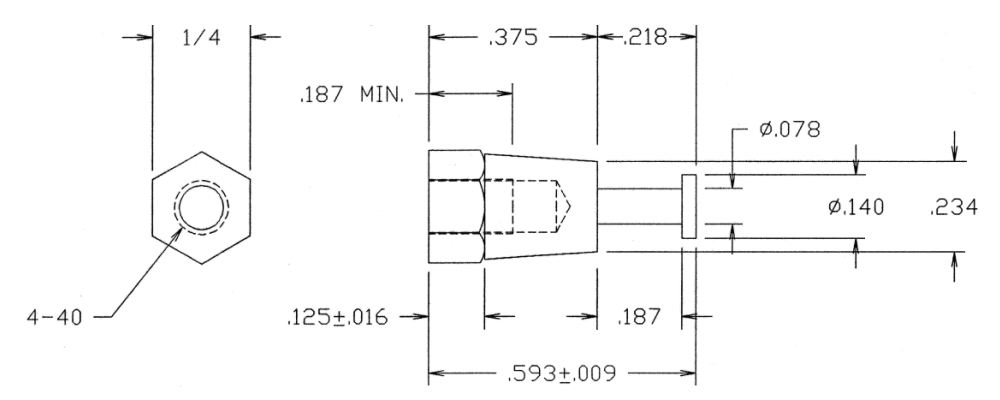

10-711-1-044
10-711-1-044
10-711-1-044
0.593" - - 4-40 Screw - - CLEARANCE FOR #4 Screw Brass Bright Tin YES
10-8015-2-044
10-8015-2-044
10-8015-2-044
0.457" 0.040 TURRET/PIN Swage Mount 0.082" 1/16 0.076 Brass Bright Tin YES
10-8025-2-035
10-8025-2-035
10-8025-2-035
0.379" 0.040 TURRET/PIN Swage Mount 0.082" 1/16 0.076 Brass Gold YES
10-808-2-035
10-808-2-035
10-808-2-035
0.580" - - Swage Mount 0.109" 1/16 0.094 Brass Gold YES
