Commercial
Non-Insulated
Terminals

Filter

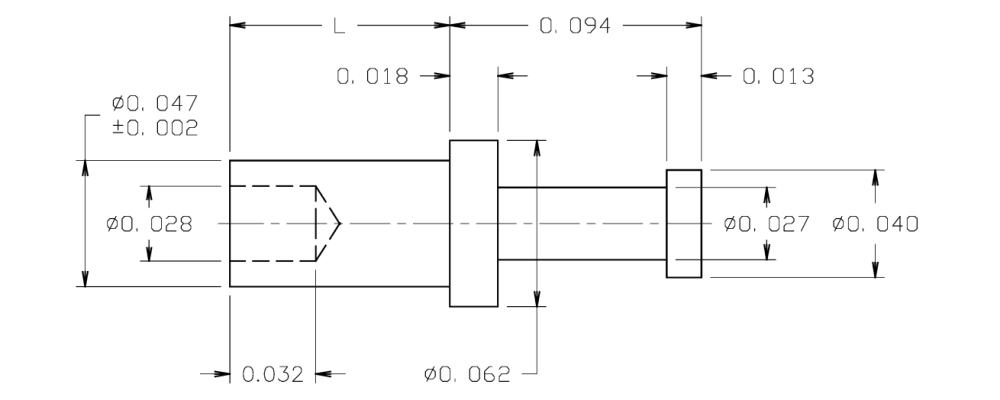

10-104-11-04
10-104-11-04
10-104-11-04
0.129" - - Swage Mount 0.035" 1/64 0.052 Brass Electro-Tin YES

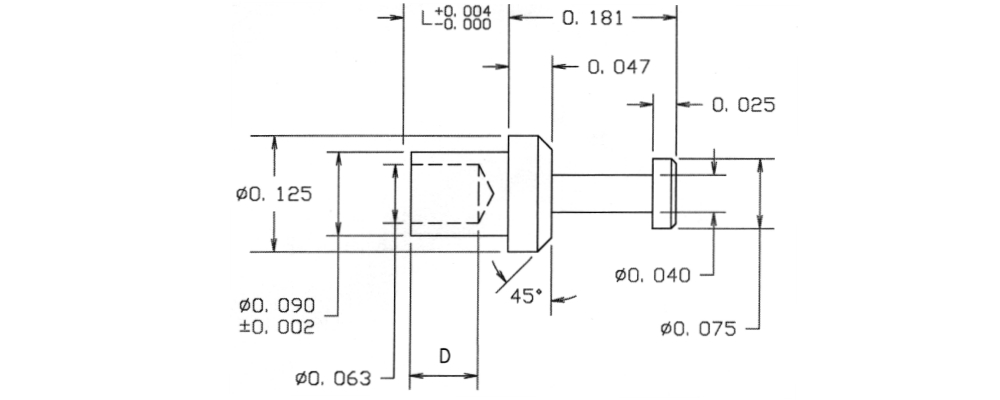

10-111-2-04
10-111-2-04
10-111-2-04
0.286" - - Swage Mount 0.105" 1/16 0.094 Brass Electro-Tin YES

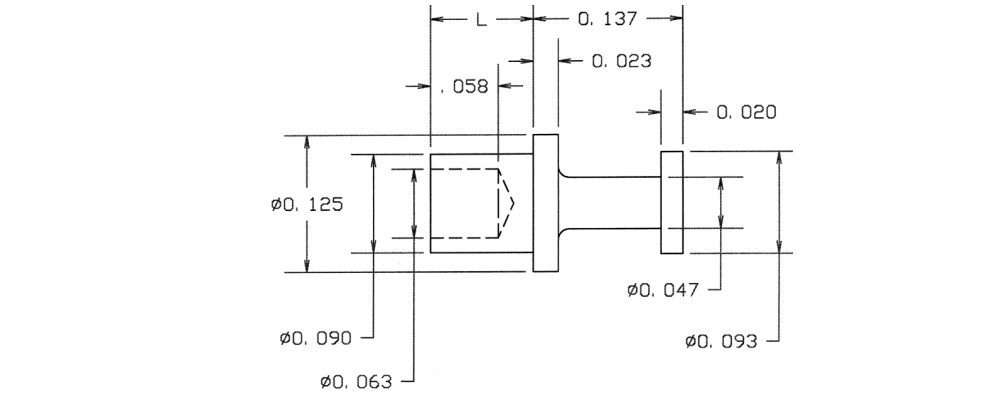

10-130-4-05
10-130-4-05
10-130-4-05
0.278" - - Swage Mount 0.141" 1/8 0.094 Brass Electro Solder NO

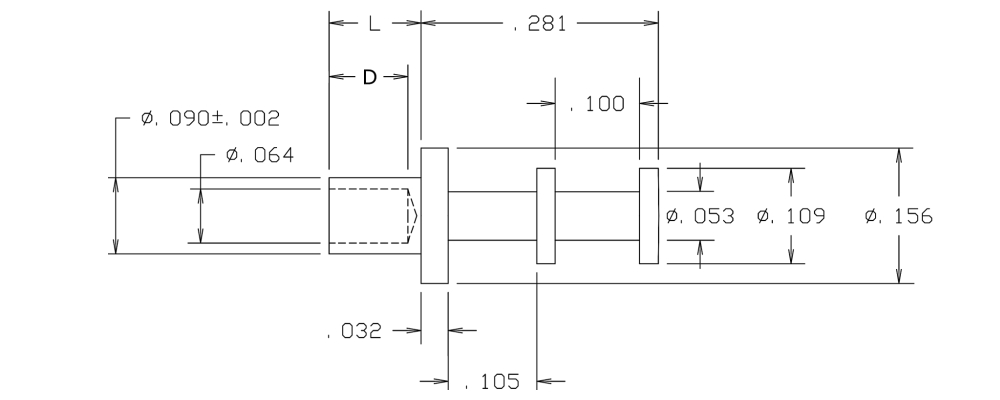

10-203-4-04
10-203-4-04
10-203-4-04
0.453" - - Swage Mount 0.172" 1/8 0.094 Brass Electro-Tin YES

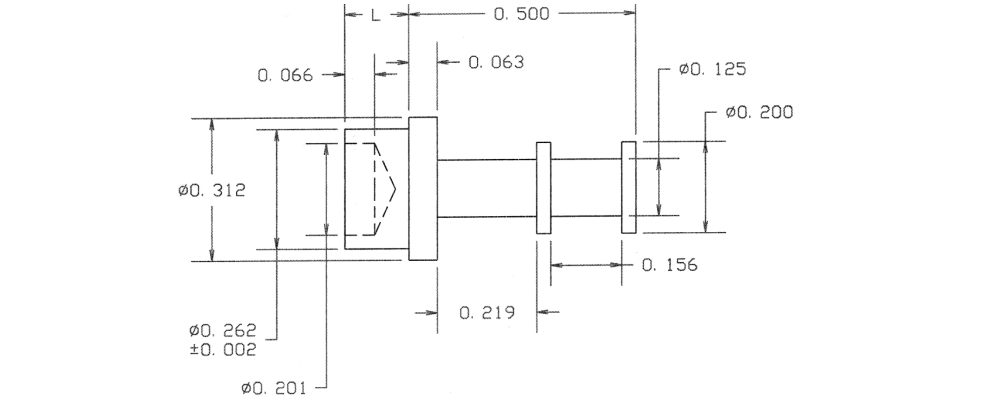

10-211-2-05
10-211-2-05
10-211-2-05
0.609" - - Swage Mount 0.109" 1/16 0.266 Brass Electro Solder NO
10-217-4-044
10-217-4-044
10-217-4-044
0.509" - - Swage Mount 0.165" 1/8 0.116 Brass Bright Tin YES

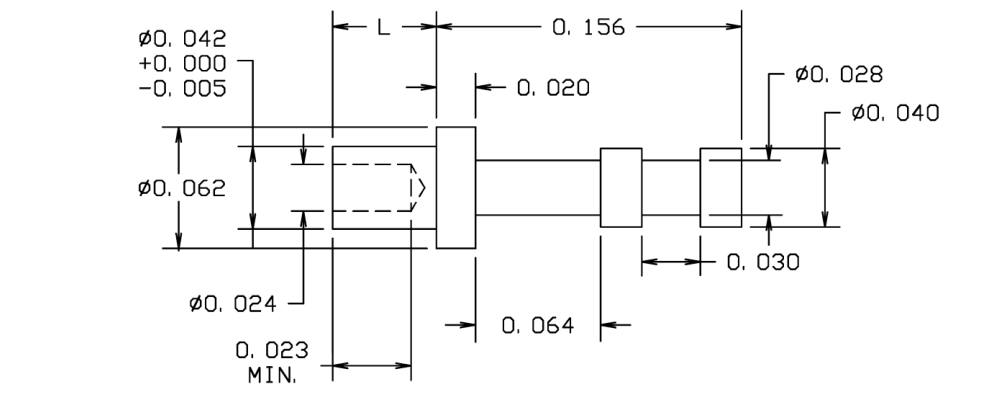

10-227-4-04
10-227-4-04
10-227-4-04
0.303" - - Swage Mount 0.147" 1/8 0.043 Brass Electro-Tin YES
10-247-6-01
10-247-6-01
10-247-6-01
0.593" - - Swage Mount 0.234" 3/16 0.116 Brass Silver YES

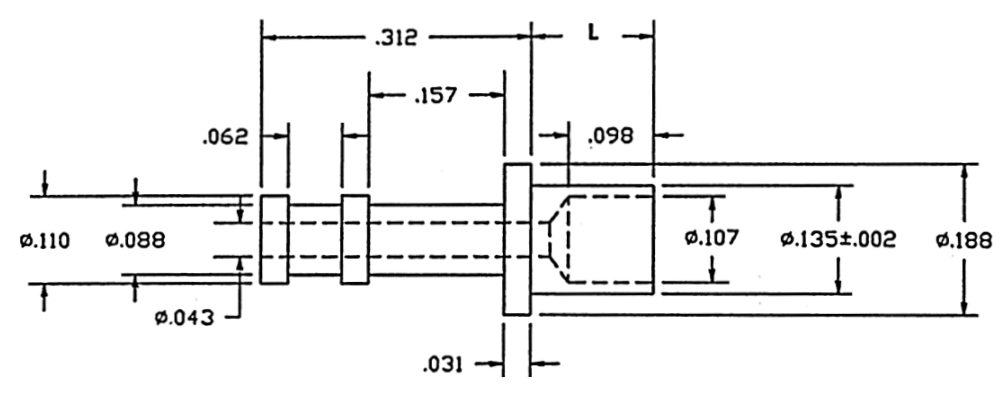

10-304-3-044
10-304-3-044
10-304-3-044
0.453" - - Swage Mount 0.141" 3/32 0.1405 Brass Bright Tin YES

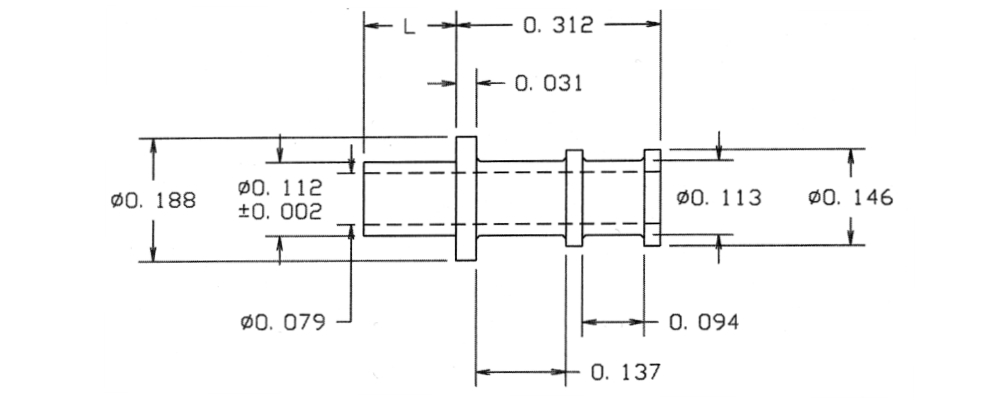

10-311-8-05
10-311-8-05
10-311-8-05
0.609" - - Swage Mount 0.297" 1/4 0.116 Brass Electro Solder NO
10-323-2-035
10-323-2-035
10-323-2-035
0.240" - - Swage Mount 0.084" 1/16 0.076 Brass Gold YES

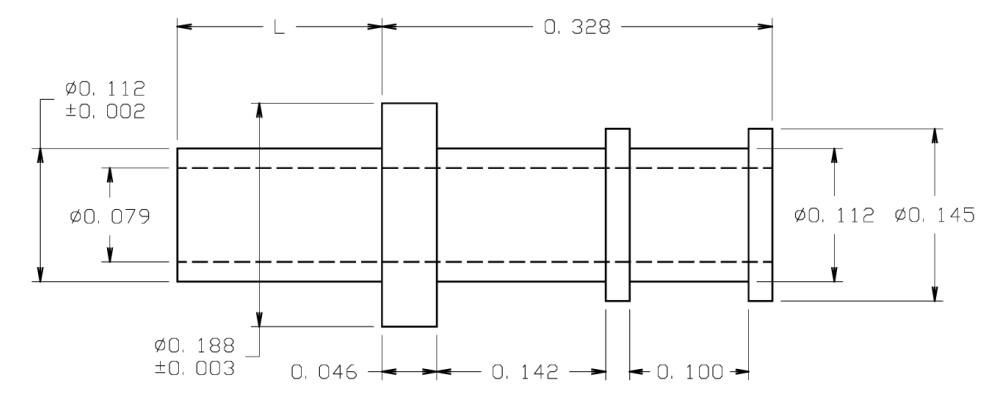

10-349-4-088
10-349-4-088
10-349-4-088
0.500" - - Swage Mount 0.172" 1/8 0.116 Brass Bright Tin-Lead NO

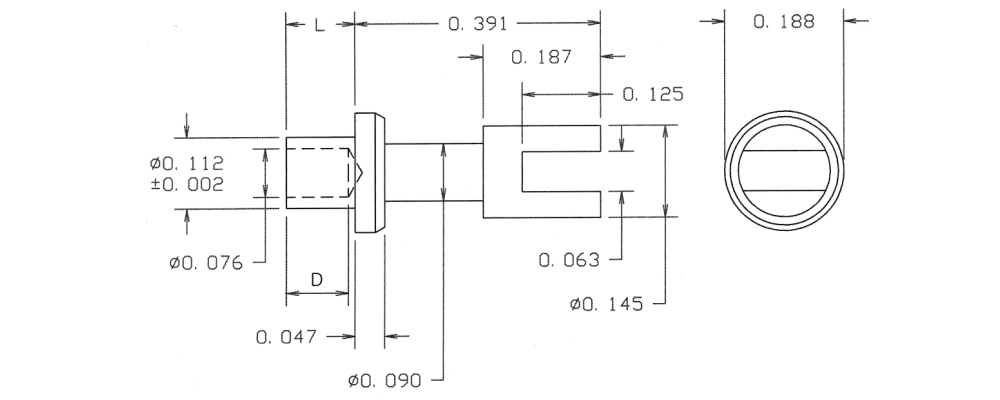

10-417-3-03
10-417-3-03
10-417-3-03
0.532" - - Swage Mount 0.141" 3/32 0.116 Brass Gold YES

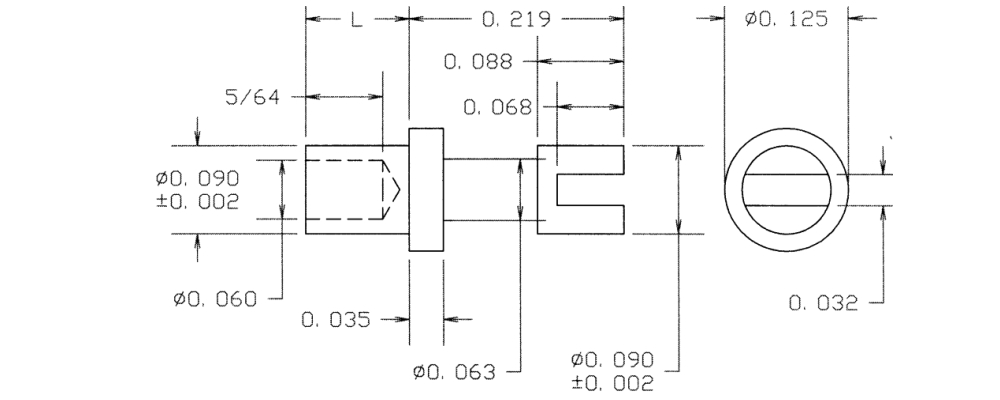

10-426-1-044
10-426-1-044
10-426-1-044
0.294" - - Swage Mount 0.075" 1/32 0.094 Brass Bright Tin YES

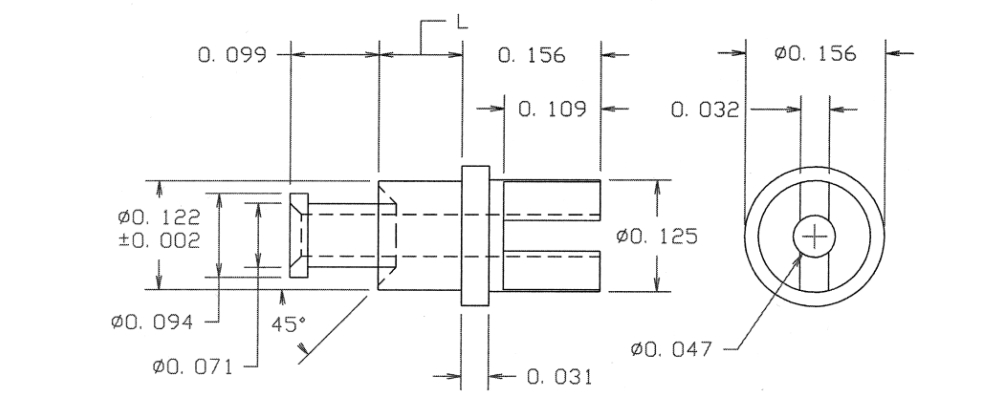

10-443-6-044
10-443-6-044
10-443-6-044
0.474" - SLOTTED/TURRET Swage Mount 0.219" 3/16 0.125 Brass Bright Tin YES
10-459-6-035
10-459-6-035
10-459-6-035
0.365" - - Swage Mount 0.209" 3/16 0.064 Brass Gold YES
10-470-4-044
10-470-4-044
10-470-4-044
0.540" - - Swage Mount 0.165" 1/8 0.154 Brass Bright Tin YES
10-502-6-044
10-502-6-044
10-502-6-044
0.475" - TURRET/DOUBLE TURRET Swage Mount 0.207" 3/16 0.076 Brass Bright Tin YES

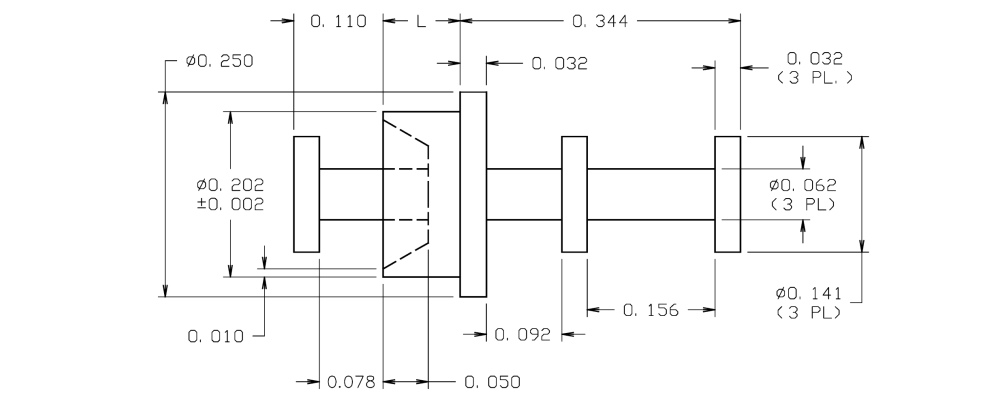

10-508-4A-044
10-508-4A-044
10-508-4A-044
0.609" - TURRET/DOUBLE TURRET Swage Mount 0.165" 1/8 0.206 Brass Bright Tin YES

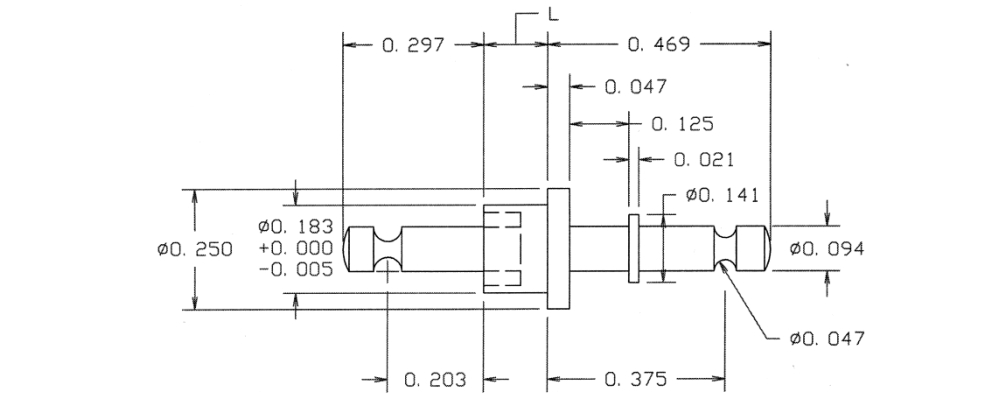

10-515-2-044
10-515-2-044
10-515-2-044
0.871" 0.094 TURRET/PIN Swage Mount 0.105" 1/16 0.185 Brass Bright Tin YES
