Commercial
Non-Insulated
Terminals

Filter
09-0067-4A-04
09-0067-4A-04
09-0067-4A-04
0.311" - - Swage Mount 0.125" 3/32 0.076 Brass Electro-Tin YES

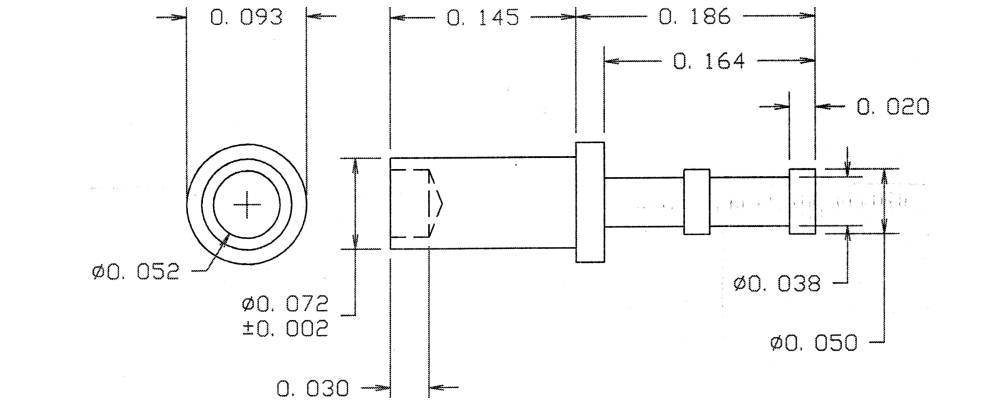

09-0155-4-05
09-0155-4-05
09-0155-4-05
0.331" - - Swage Mount 0.145" 1/8 0.076 Brass Electro Solder NO

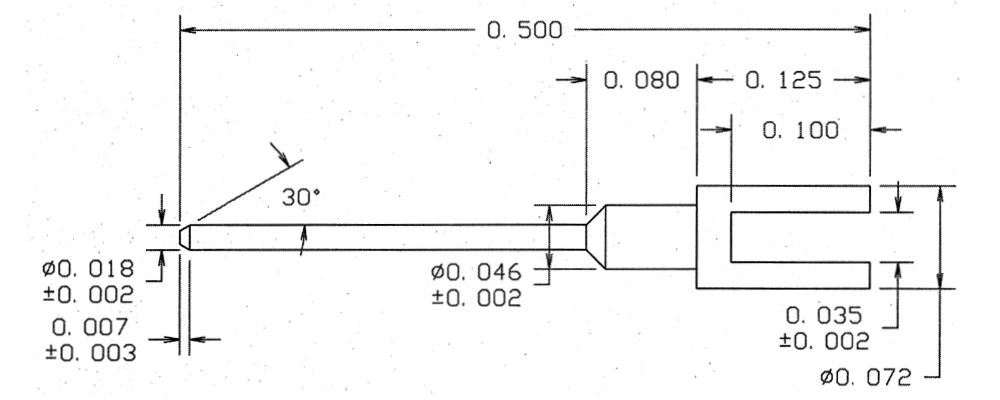

09-0186-2-04
09-0186-2-04
09-0186-2-04
0.500" 0.018 SLOTTED/PIN Solder 0.080" 1/16 0.052 Brass Electro-Tin YES

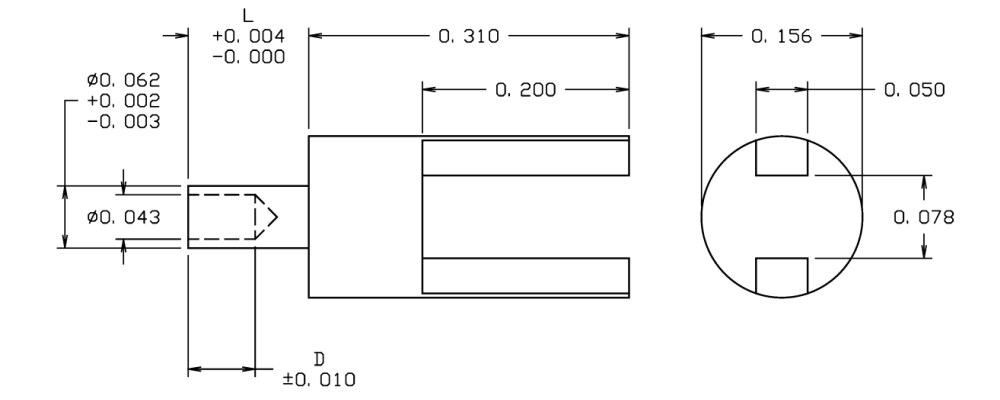

09-0234-2-03
09-0234-2-03
09-0234-2-03
0.397" - - Swage Mount 0.087" 1/16 0.067 Brass Gold YES

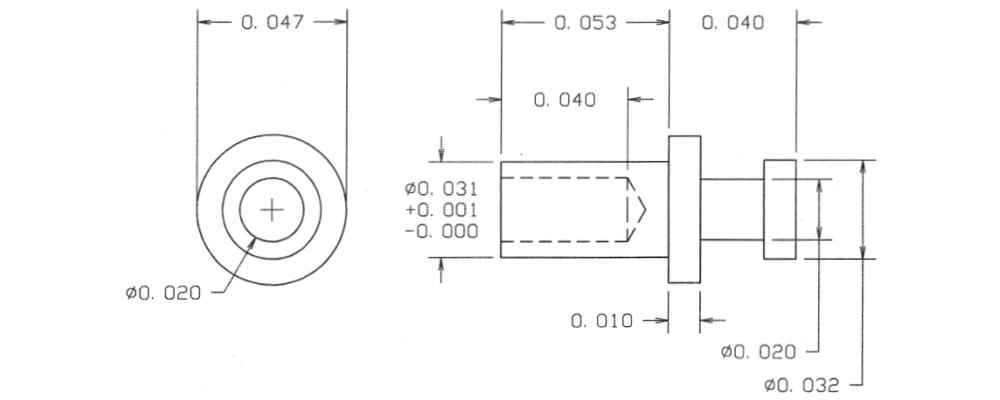

09-0274-1-095
09-0274-1-095
09-0274-1-095
0.093" - - Swage Mount 0.053" 1/32 0.033 Brass Hot Solder Dip NO

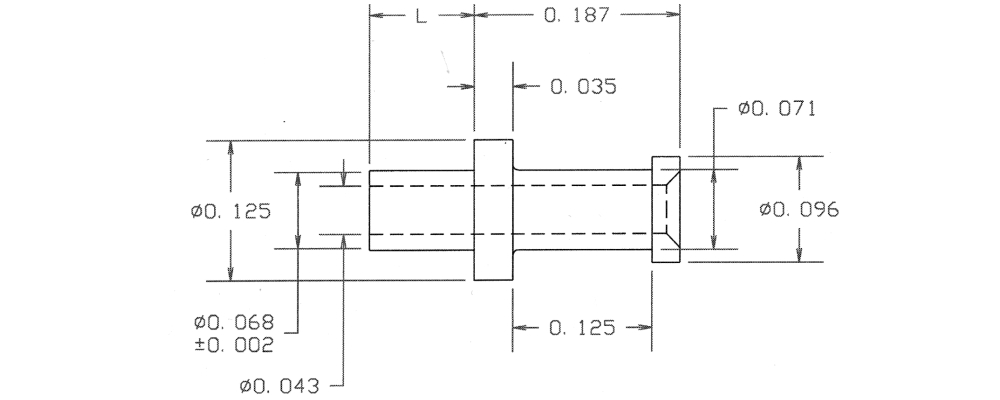

09-0342-2-088
09-0342-2-088
09-0342-2-088
0.281" - - Swage Mount 0.094" 1/16 0.073 Brass Bright Tin-Lead NO

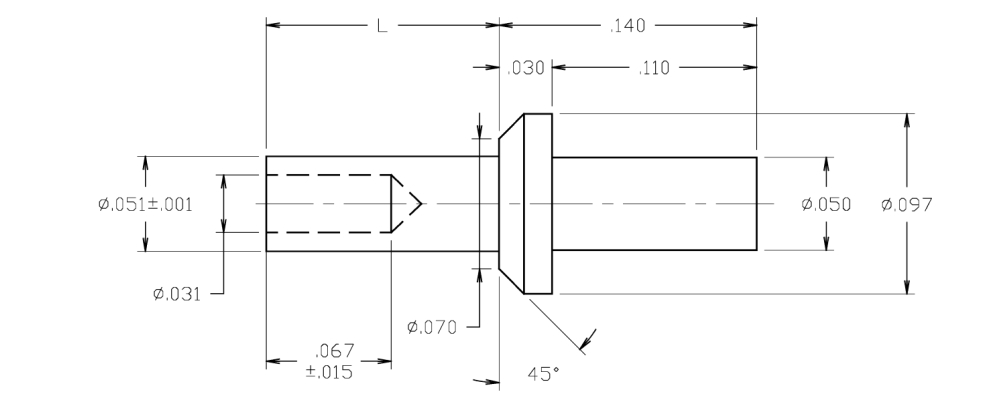

09-7010-1-03
09-7010-1-03
09-7010-1-03
0.202" 0.050 - Swage Mount 0.062" 1/32 0.055 Brass Gold YES

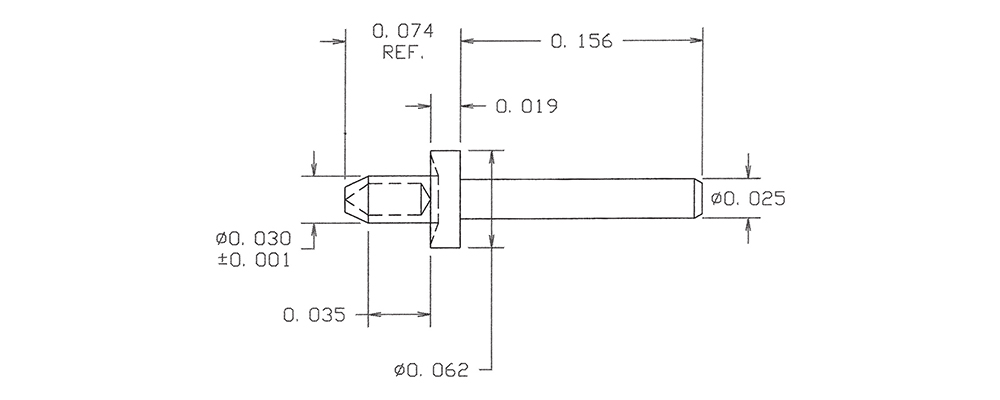

09-7107-1A-05
09-7107-1A-05
09-7107-1A-05
0.230" 0.025 - RIVET MOUNT 0.035" 1/100 0.033 Brass Electro Solder NO

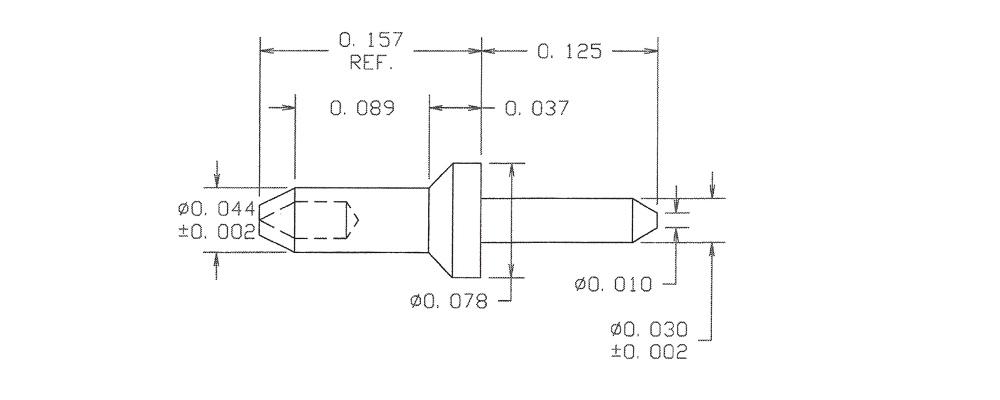

09-7145-2-035
09-7145-2-035
09-7145-2-035
0.282" 0.030 - RIVET MOUNT 0.089" 1/16 0.048 Brass Gold YES

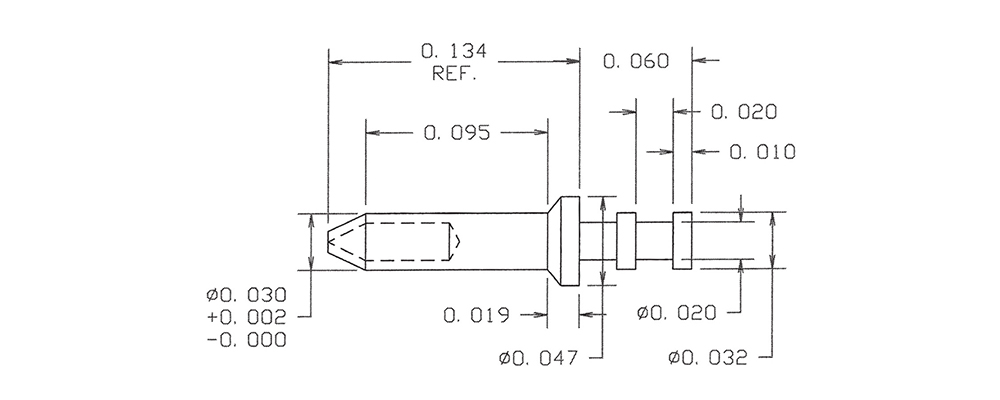

09-7170-2B-088
09-7170-2B-088
09-7170-2B-088
0.194" - - RIVET MOUNT 0.095" 19/256 0.035 Brass Bright Tin-Lead NO

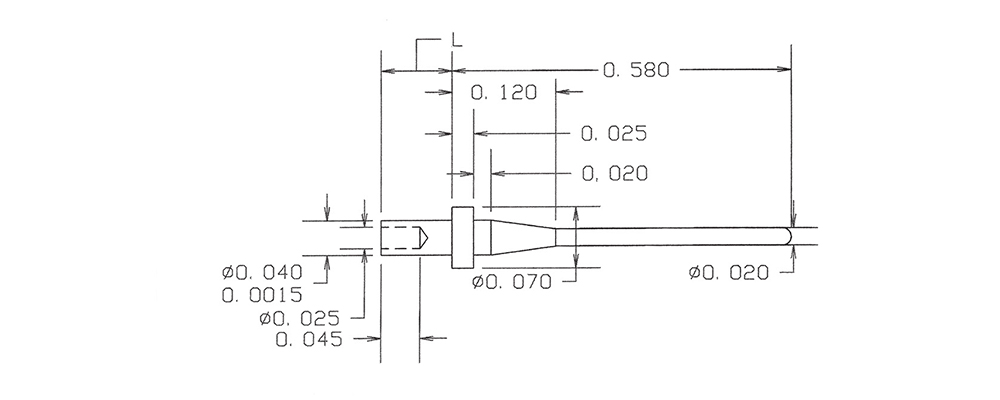

09-8012-2-04
09-8012-2-04
09-8012-2-04
0.662" 0.020 - Swage Mount 0.082" 1/16 0.043 Brass Electro-Tin YES

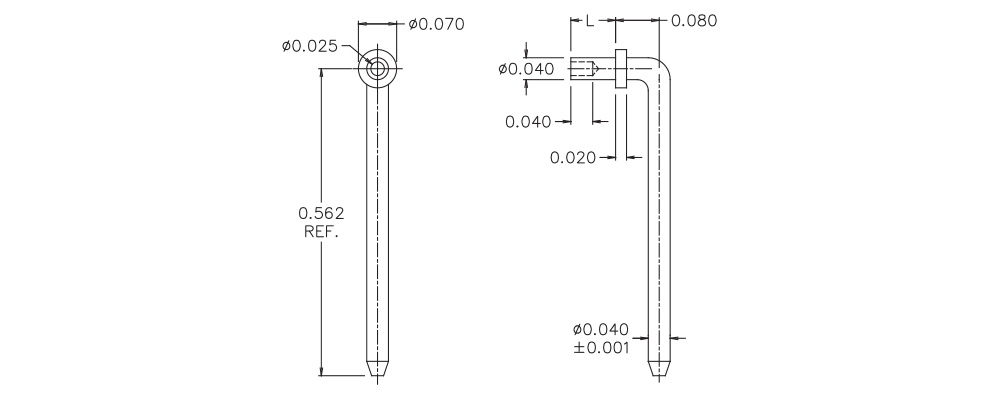

09-8048-2-01
09-8048-2-01
09-8048-2-01
0.597" 0.040 - Swage Mount 0.082" 1/16 0.043 Brass Silver YES
09-8088-2-04
09-8088-2-04
09-8088-2-04
0.599" 0.061 - Press Fit/Solder 0.100" 1/16 0.094 Brass Electro-Tin YES

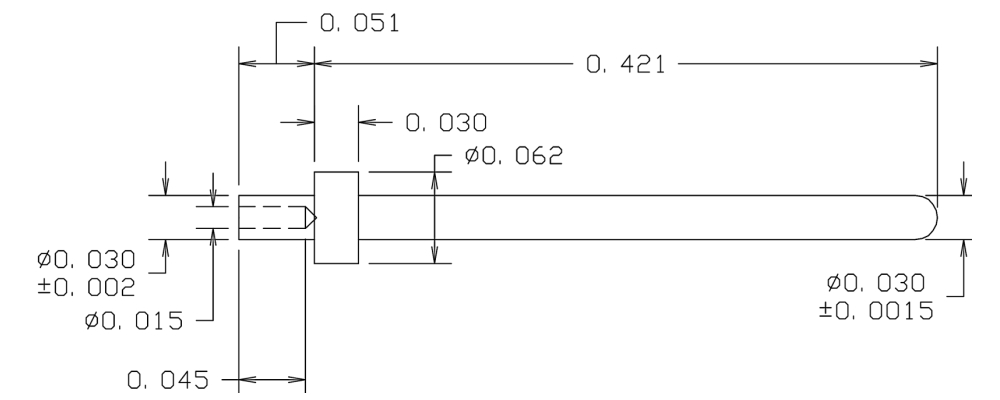

09-8147-1-01
09-8147-1-01
09-8147-1-01
0.472" 0.0305 - Swage Mount 0.051" 1/32 0.033 Brass Silver YES

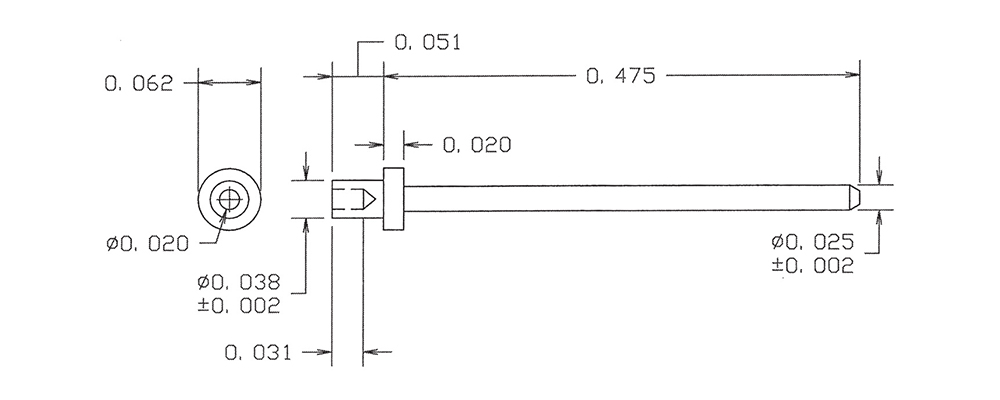

09-8175-1-044
09-8175-1-044
09-8175-1-044
0.526" 0.025 - Swage Mount 0.051" 1/32 0.042 Brass Bright Tin YES

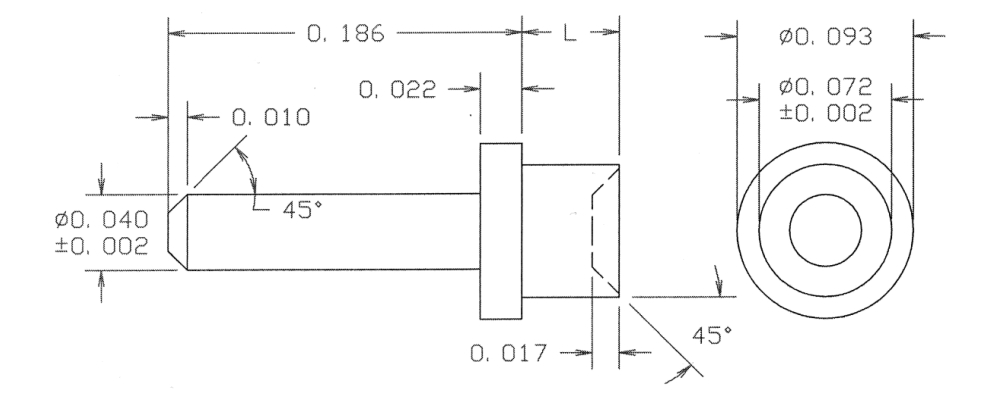

09-8311-1-044
09-8311-1-044
09-8311-1-044
0.237" 0.040 - Swage Mount 0.051" 1/32 0.076 Brass Bright Tin YES

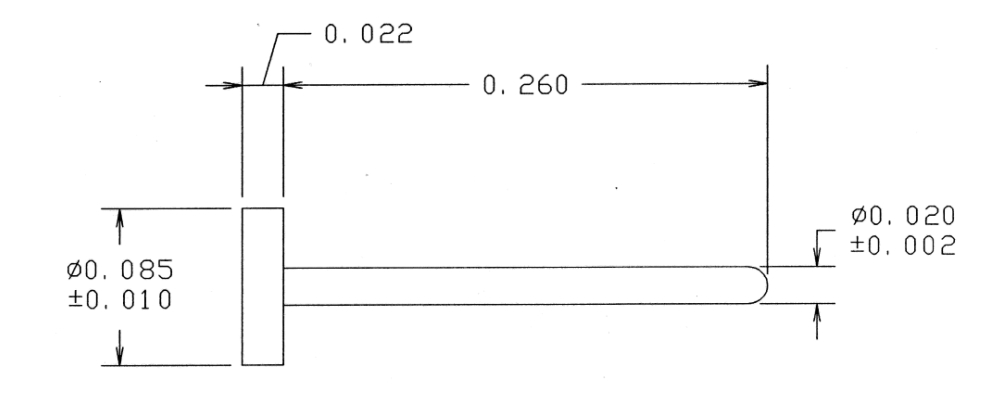

09-8563-1-088
09-8563-1-088
09-8563-1-088
0.282" 0.020 - Solder 0.260" 15/64 0.024 Beryllium Copper Bright Tin-Lead NO

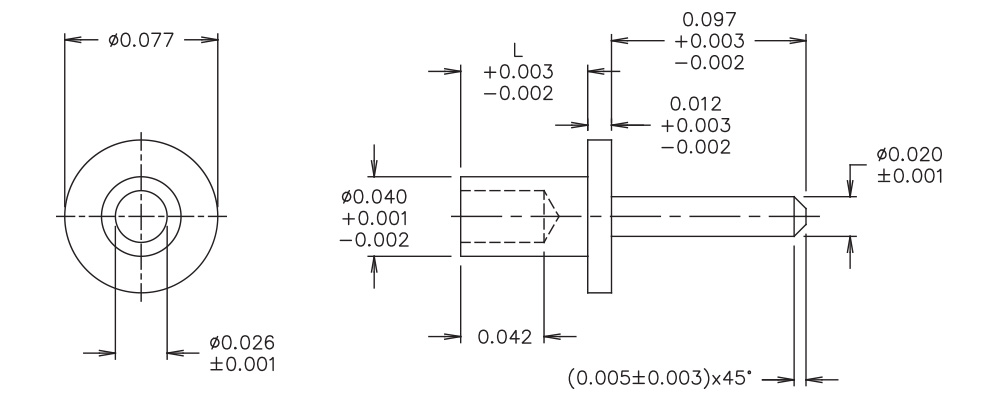

09-8689-3-04
09-8689-3-04
09-8689-3-04
0.204" 0.020 - Swage Mount 0.094" 1/16 0.043 Brass Electro-Tin YES

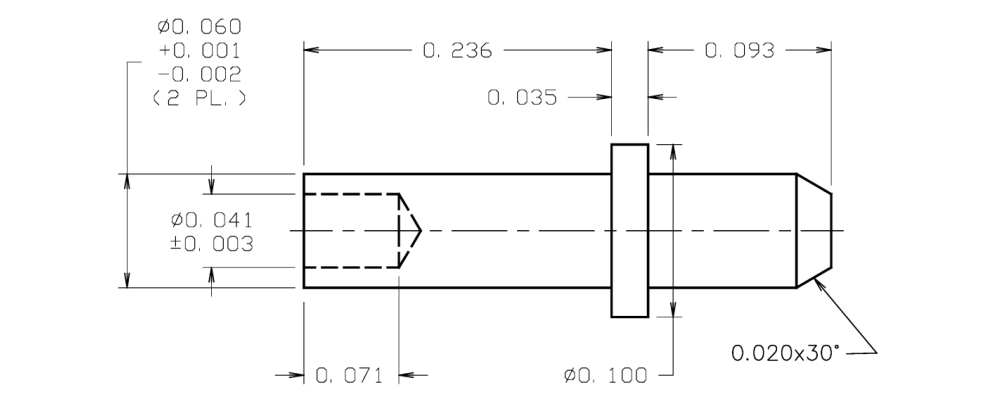

09-8802-6-035
09-8802-6-035
09-8802-6-035
0.364" 0.060 (+0.001/-0.002) - Swage Mount 0.236" 3/16 0.063 Brass Gold YES

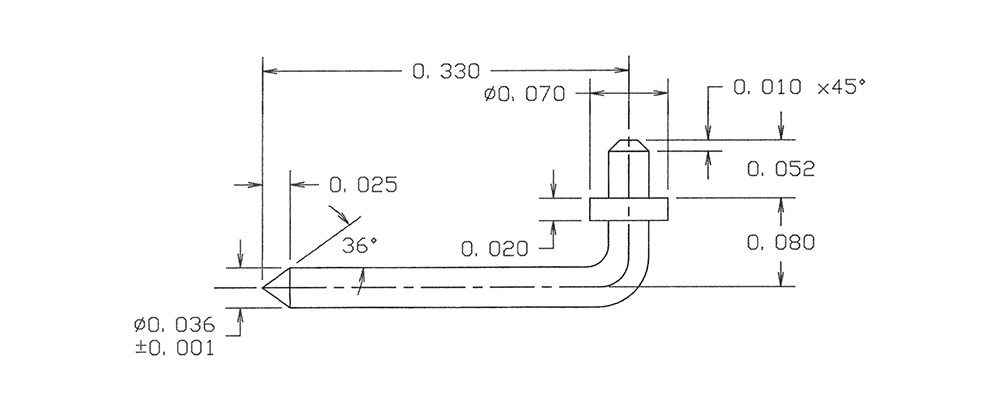

09-8861-1-044
09-8861-1-044
09-8861-1-044
0.365" 0.036 - Solder 0.052" 1/64 TO 1/32 0.039 Brass Bright Tin YES
