Commercial
Non-Insulated
Terminals

Filter

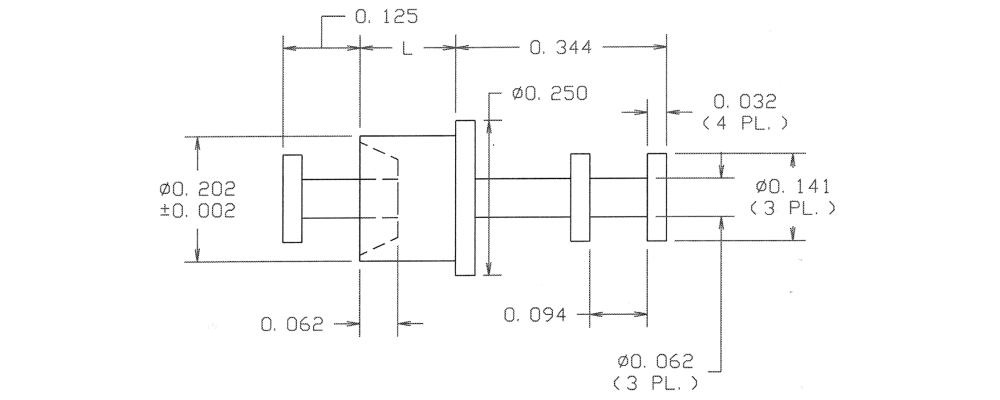

09-0033-3-04
09-0033-3-04
09-0033-3-04
0.625" - TURRET/DOUBLE TURRET Swage Mount 0.156" 1/8 0.206 Brass Electro-Tin YES

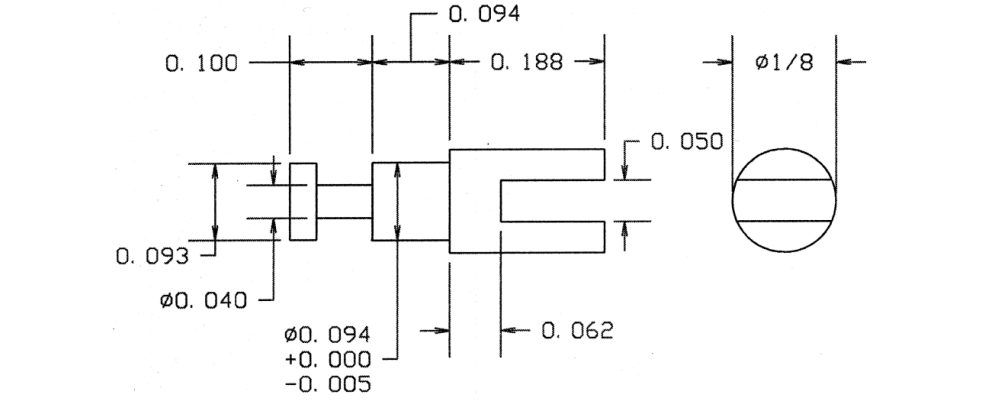

09-0087-2-044
09-0087-2-044
09-0087-2-044
0.382" - SLOTTED/TURRET Solder 0.094" 1/16 0.096 Brass Bright Tin YES

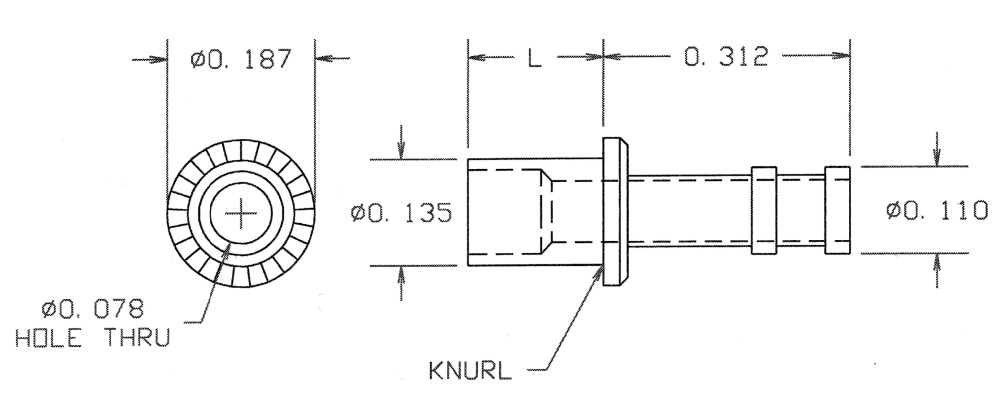

09-0168-1-044
09-0168-1-044
09-0168-1-044
0.390" - - Swage Mount 0.078" 1/32 0.141 Brass Bright Tin YES

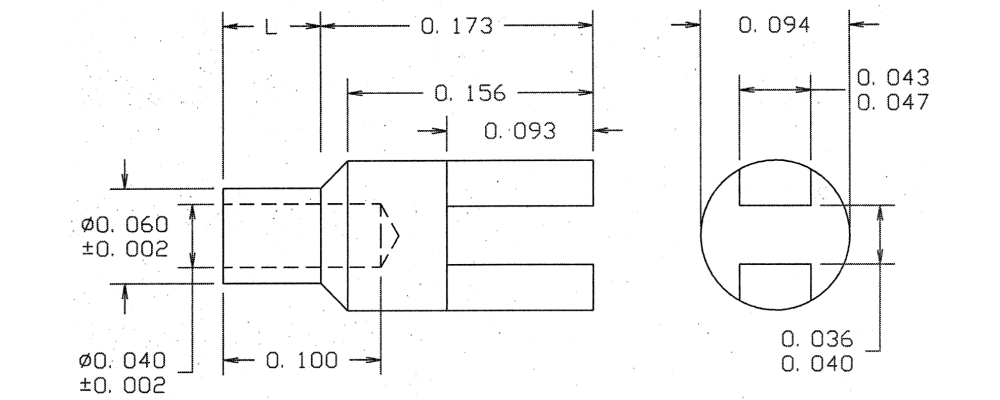

09-0208-2-01
09-0208-2-01
09-0208-2-01
0.267" - - Swage Mount 0.094" 1/16 0.067 LEADED Red Brass Silver YES

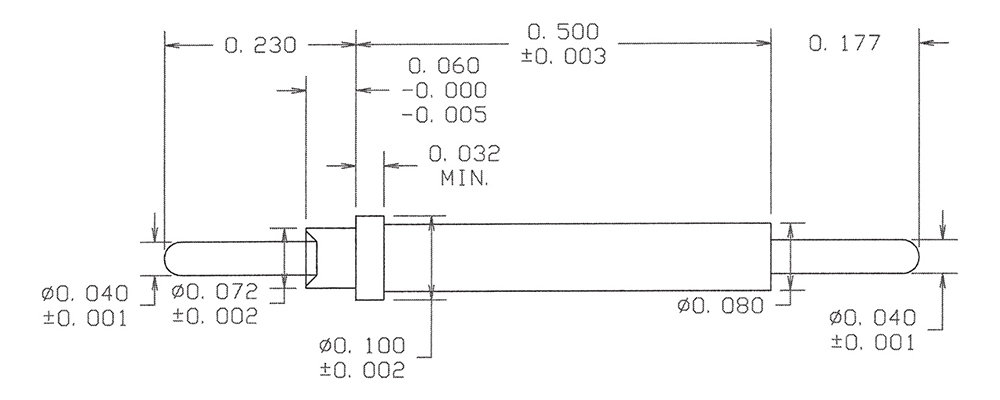

09-0242-1-088
09-0242-1-088
09-0242-1-088
0.907" 0.040 Pin/Pin Swage Mount 0.060" 1/32 0.076 Brass Bright Tin-Lead NO

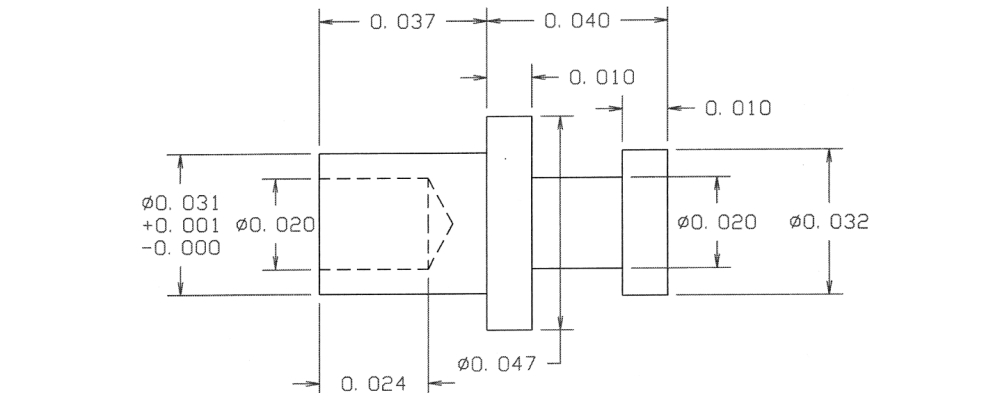

09-0288-1-088
09-0288-1-088
09-0288-1-088
0.077" - - Swage Mount 0.037" 1/64 0.035 Brass Bright Tin-Lead NO
09-0353-3-095
09-0353-3-095
09-0353-3-095
0.405" - - Swage Mount 0.115" 3/32 0.067 Brass Hot Solder Dip NO

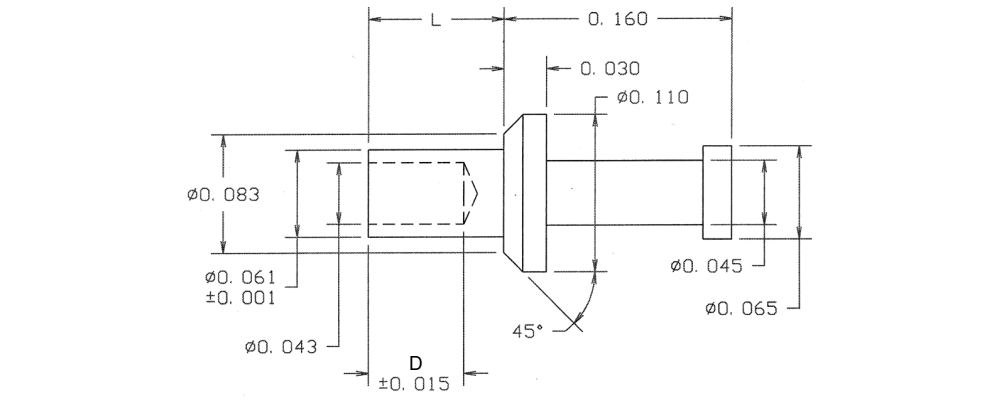

09-7012-4-04
09-7012-4-04
09-7012-4-04
0.310" - - Swage Mount 0.150" 1/8 0.067 Brass Electro-Tin YES

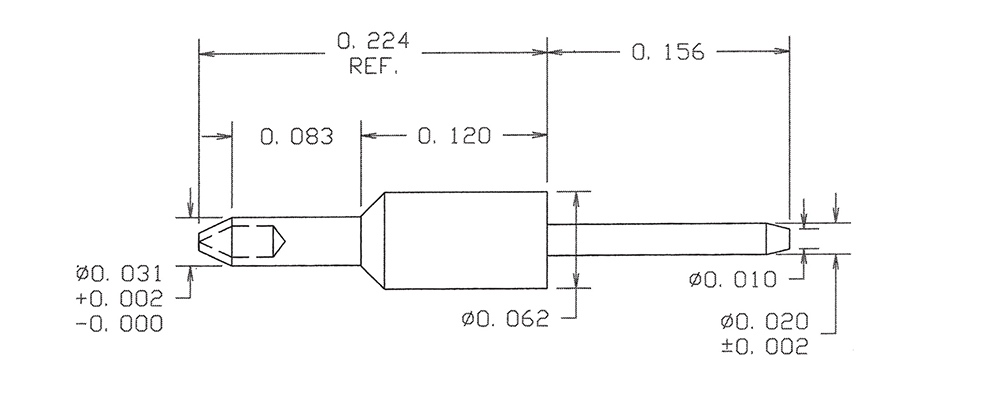

09-7119-2-03
09-7119-2-03
09-7119-2-03
0.380" 0.020 - RIVET MOUNT 0.083" 1/16 0.035 Brass Gold YES

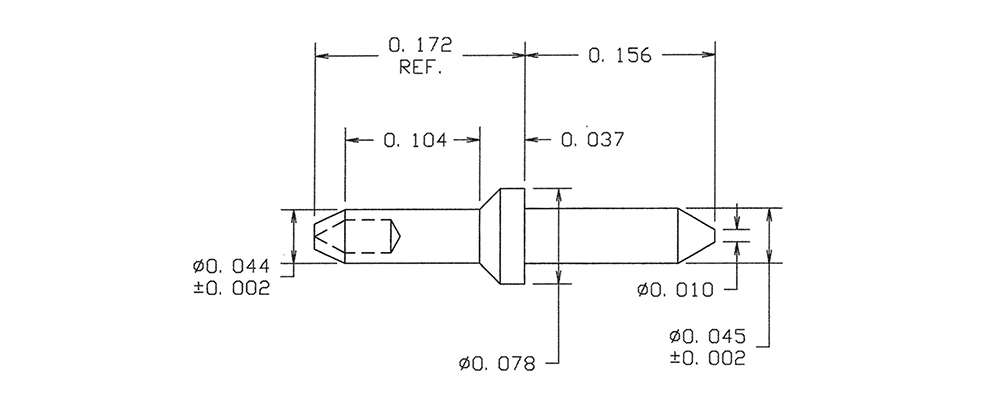

09-7149-2-05
09-7149-2-05
09-7149-2-05
0.328" 0.045 - RIVET MOUNT 0.104" 1/16 0.048 Brass Electro Solder NO

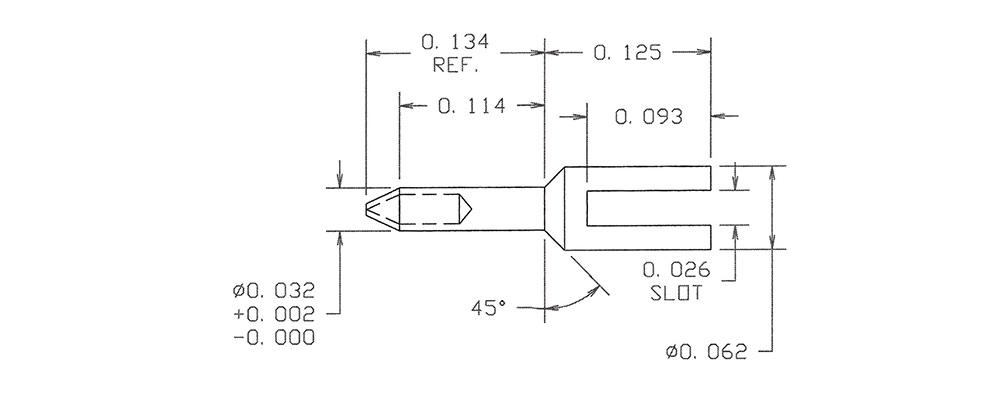

09-7181-3-035
09-7181-3-035
09-7181-3-035
0.259" - - RIVET MOUNT 0.114" 3/32 0.036 Brass Gold YES
09-8024-1-088
09-8024-1-088
09-8024-1-088
0.371" 0.031 - Swage Mount 0.051" 1/32 0.035 Brass Bright Tin-Lead NO

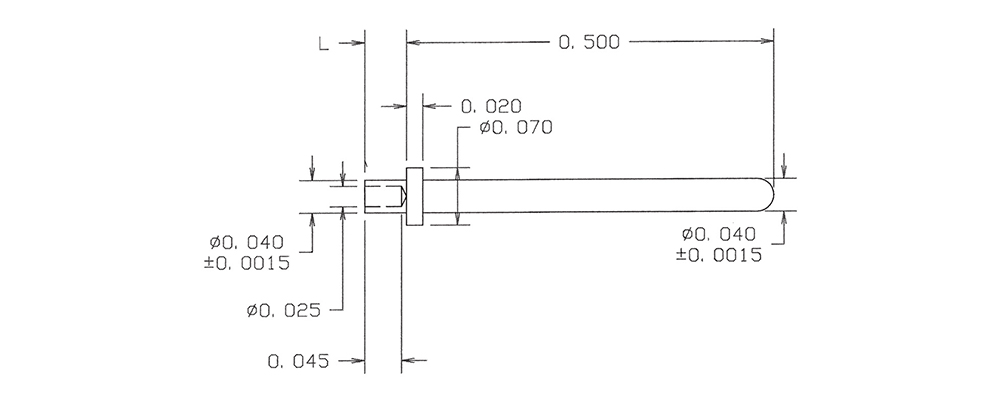

09-8059-2-035
09-8059-2-035
09-8059-2-035
0.582" 0.0405 - Swage Mount 0.082" 1/16 0.043 Brass Gold YES

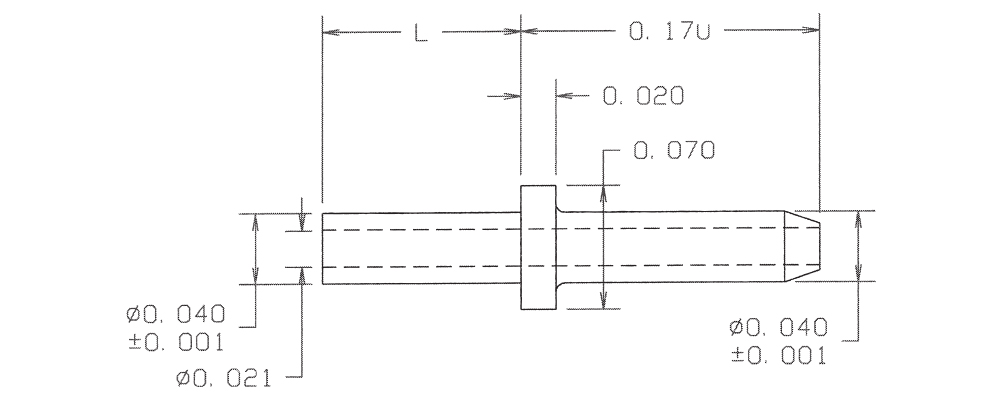

09-8112-1-088
09-8112-1-088
09-8112-1-088
0.221" 0.040 - Swage Mount 0.051" 1/32 0.043 Brass Bright Tin-Lead NO

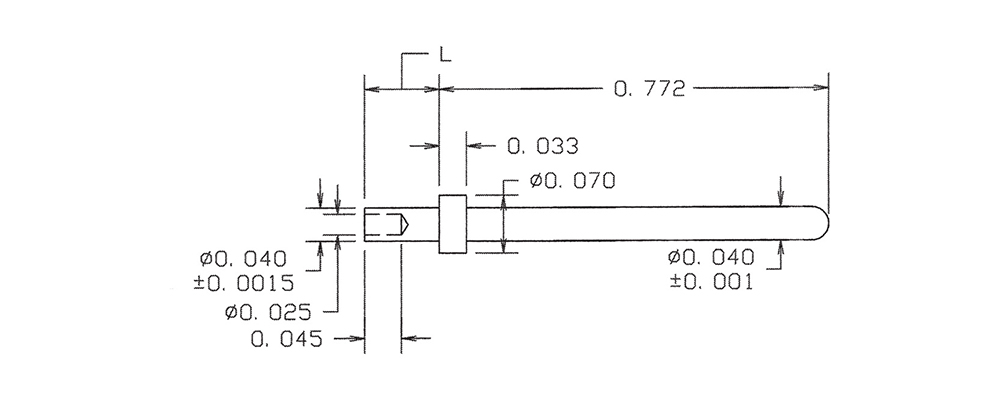

09-8155-1-04
09-8155-1-04
09-8155-1-04
0.823" 0.040 - Swage Mount 0.051" 1/32 0.043 Brass Electro-Tin YES

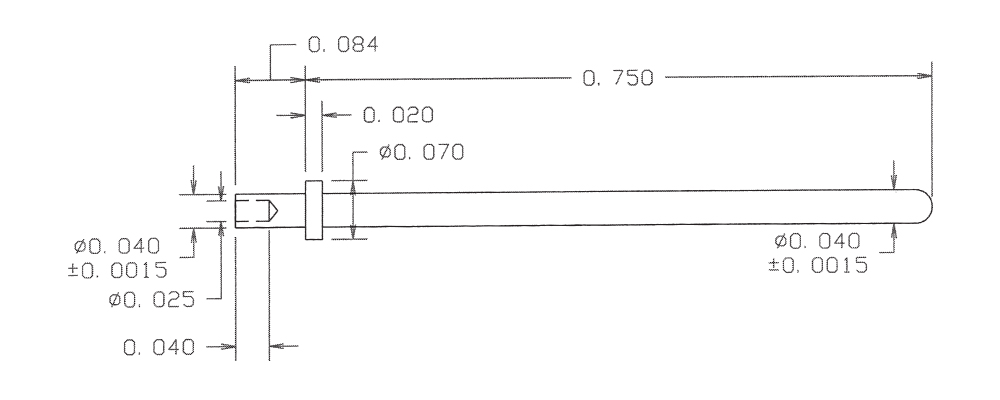

09-8184-2-01
09-8184-2-01
09-8184-2-01
0.834" 0.0405 - Swage Mount 0.084" 1/16 0.043 Brass Silver YES

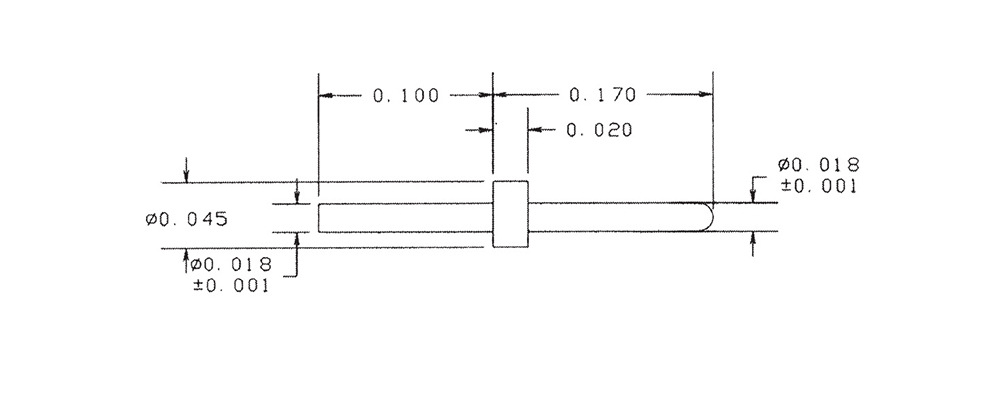

09-8349-2-088
09-8349-2-088
09-8349-2-088
0.270" 0.018 - Solder 0.100" 1/64 TO 1/16 0.020 Brass Bright Tin-Lead NO

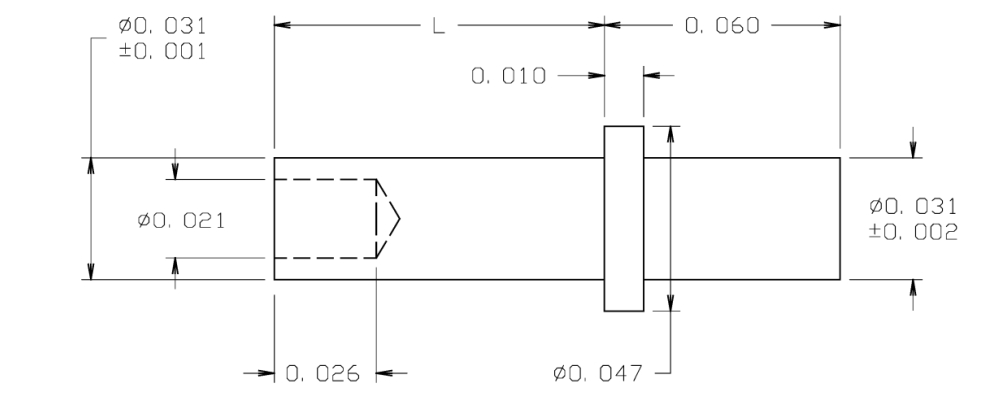

09-8598-2-05
09-8598-2-05
09-8598-2-05
0.144" - - Swage Mount 0.084" 1/16 0.035 Brass Electro Solder NO

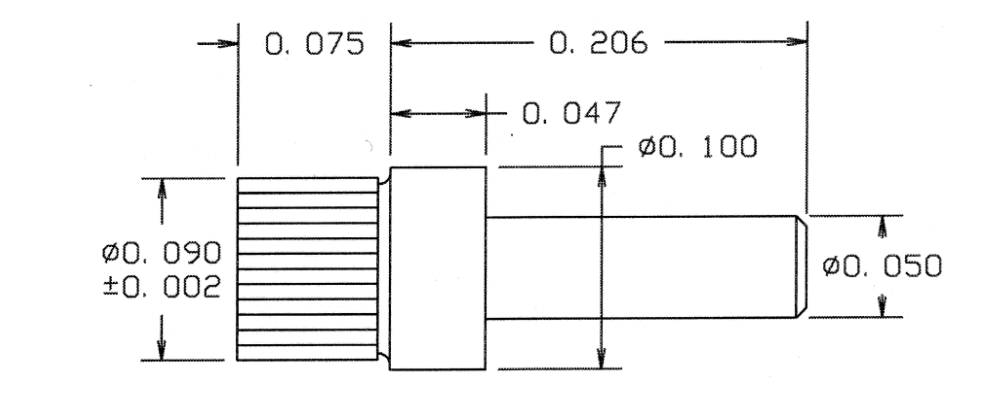

09-8706-1-03
09-8706-1-03
09-8706-1-03
0.281" 0.050 - Press Fit/Solder 0.075" 1/16 0.086 Brass Gold YES

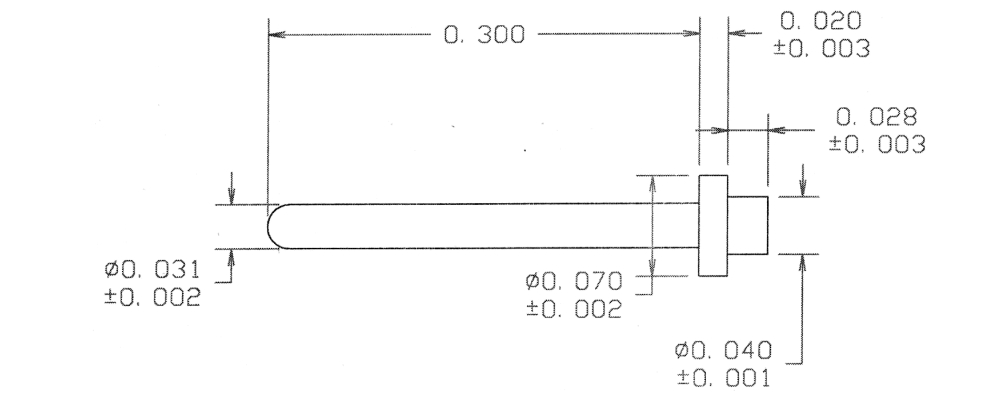

09-8817-1-088
09-8817-1-088
09-8817-1-088
0.348" 0.031 - Solder 0.028" 1/64 0.043 Brass Bright Tin-Lead NO
