Commercial
Non-Insulated
Terminals

Filter
10-840-4-044
10-840-4-044
10-840-4-044
0.548" - - Swage Mount 0.165" 1/8 0.1495 Brass Bright Tin YES
10-220-3-044
10-220-3-044
10-220-3-044
0.271" - - Swage Mount 0.115" 3/32 0.064 Brass Bright Tin YES

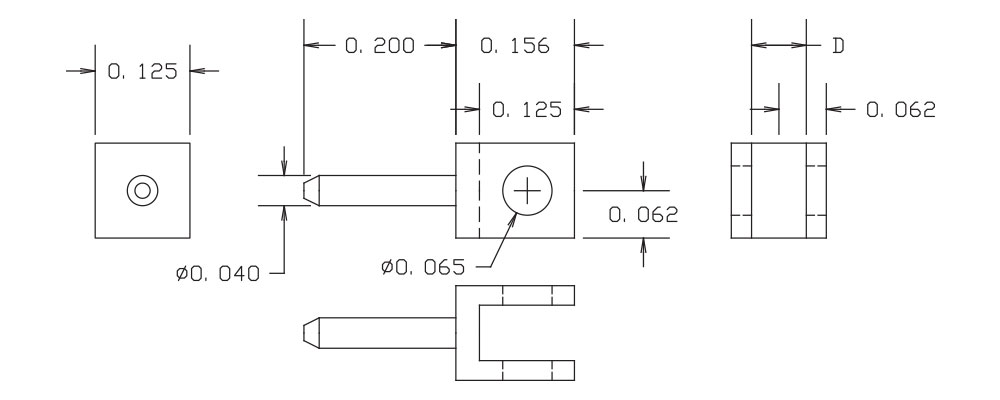

09-9502-1-04
09-9502-1-04
09-9502-1-04
0.356" 0.040 - 0-80 Screw - 1/32 CLEARANCE FOR #0 Screw Brass Electro-Tin YES
10-413-3-04
10-413-3-04
10-413-3-04
0.269" - - Swage Mount 0.113" 3/32 0.052 Brass Electro-Tin YES
09-8063-1-088
09-8063-1-088
09-8063-1-088
0.506" 0.020 - Swage Mount 0.051" 1/32 0.043 Brass Bright Tin-Lead NO
09-8067-1-088
09-8067-1-088
09-8067-1-088
0.771" 0.0405 - Swage Mount 0.051" 1/32 0.043 Brass Bright Tin-Lead NO
10-444-11-088
10-444-11-088
10-444-11-088
0.162" - - Swage Mount 0.037" 1/64 0.043 Brass Bright Tin-Lead NO
10-515-5-088
10-515-5-088
10-515-5-088
0.961" 0.094 TURRET/PIN Swage Mount 0.195" 5/32 0.185 Brass Bright Tin-Lead NO
10-231-4-05
10-231-4-05
10-231-4-05
0.320" - - Swage Mount 0.165" 1/8 0.116 Brass Electro Solder NO
10-216-4-05
10-216-4-05
10-216-4-05
0.402" - - Swage Mount 0.165" 1/8 0.094 Brass Electro Solder NO
09-0084-2-05
09-0084-2-05
09-0084-2-05
0.730" - - Swage Mount 0.105" 1/16 0.094 Brass Electro Solder NO
09-0249-2-05
09-0249-2-05
09-0249-2-05
0.175" - - Swage Mount 0.082" 1/16 0.070 Brass Electro Solder NO
09-0259-1-05
09-0259-1-05
09-0259-1-05
0.557" (0.040 (+0.000/-0.003))/(0.040) Pin/Pin Solder 0.064" 1/32 0.070 Brass Electro Solder NO
10-971-1-05
10-971-1-05
10-971-1-05
0.571" 0.040 - Swage Mount 0.051" 1/32 0.043 Brass Electro Solder NO
09-8084-2-05
09-8084-2-05
09-8084-2-05
0.332" 0.0405 - Swage Mount 0.082" 1/16 0.043 Brass Electro Solder NO
09-8809-2-05
09-8809-2-05
09-8809-2-05
0.269" 0.030 - Swage Mount 0.084" 1/16 0.096 Brass Electro Solder NO
10-206-1-05
10-206-1-05
10-206-1-05
0.244" - - Swage Mount 0.053" 1/32 0.076 Brass Electro Solder NO
10-845-4-05
10-845-4-05
10-845-4-05
0.493" - - Swage Mount 0.165" 1/8 0.116 Brass Electro Solder NO
10-8016-1-05
10-8016-1-05
10-8016-1-05
0.581" 0.080 - Swage Mount 0.051" 1/32 0.094 Brass Electro Solder NO
09-0034-1-04
09-0034-1-04
09-0034-1-04
0.172" - - Swage Mount 0.066" 1/32 0.067 Brass Electro-Tin YES
