Commercial
Non-Insulated
Terminals

Filter
10-417-2-03
10-417-2-03
10-417-2-03
0.500" - - Swage Mount 0.109" 1/16 0.116 Brass Gold YES

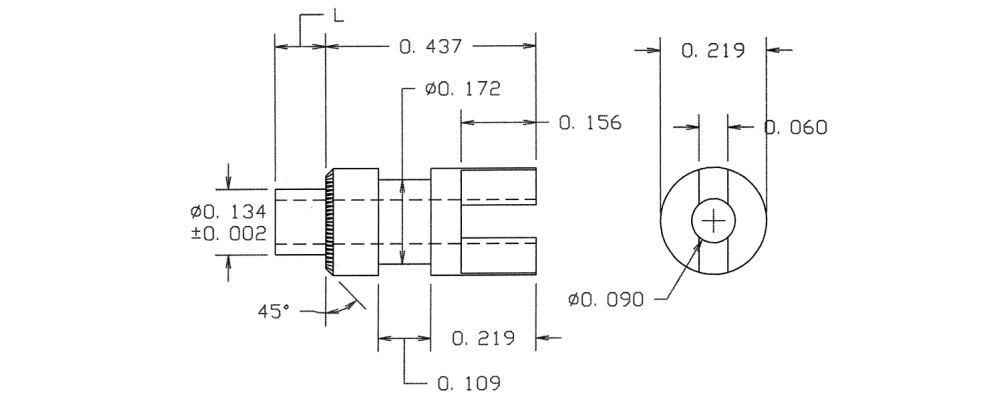

10-424-4-04
10-424-4-04
10-424-4-04
0.602" - - Swage Mount 0.165" 1/8 0.141 Brass Electro-Tin YES
10-443-4-04
10-443-4-04
10-443-4-04
0.411" - SLOTTED/TURRET Swage Mount 0.156" 1/8 0.125 Brass Electro-Tin YES

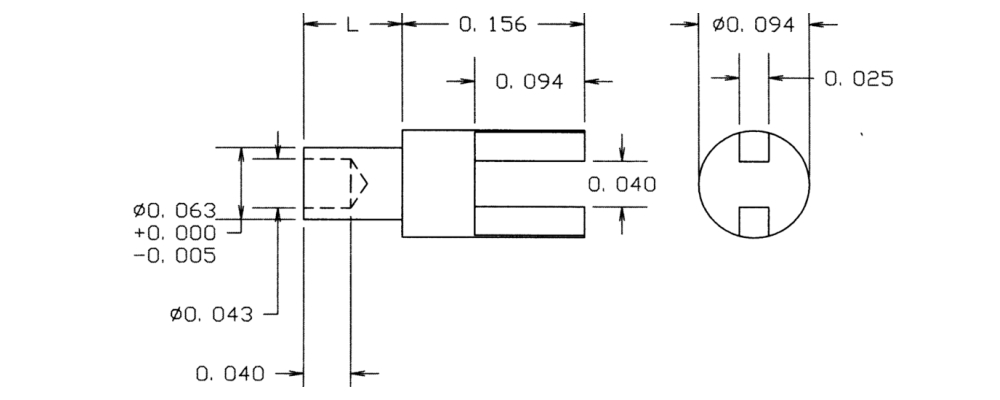

10-459-5-035
10-459-5-035
10-459-5-035
0.334" - - Swage Mount 0.178" 5/32 0.064 Brass Gold YES

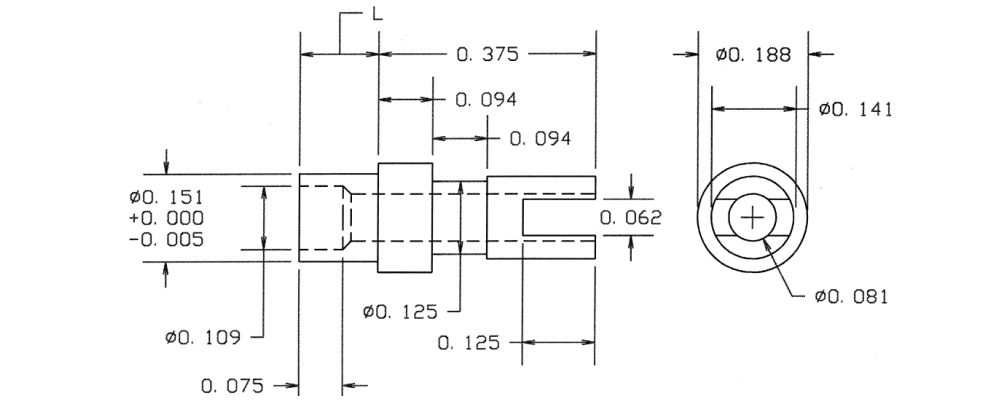

10-470-3-04
10-470-3-04
10-470-3-04
0.510" - - Swage Mount 0.135" 3/32 0.154 Brass Electro-Tin YES
10-502-4-044
10-502-4-044
10-502-4-044
0.413" - TURRET/DOUBLE TURRET Swage Mount 0.145" 1/8 0.076 Brass Bright Tin YES
10-508-4-044
10-508-4-044
10-508-4-044
0.600" - TURRET/DOUBLE TURRET Swage Mount 0.156" 1/8 0.206 Brass Bright Tin YES

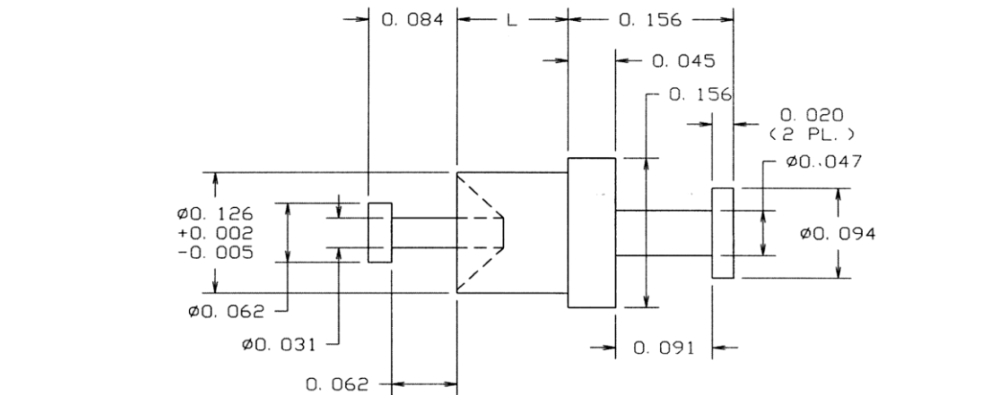

10-514-4-044
10-514-4-044
10-514-4-044
0.405" - Turret/Turret Swage Mount 0.165" 1/8 0.129 Brass Bright Tin YES
10-526-2-044
10-526-2-044
10-526-2-044
0.625" - TURRET/DOUBLE TURRET Swage Mount 0.094" 1/16 0.206 Brass Bright Tin YES
10-544-1-044
10-544-1-044
10-544-1-044
0.303" - Turret/Turret Swage Mount 0.062" 1/32 0.094 Brass Bright Tin YES
10-562-2-044
10-562-2-044
10-562-2-044
0.573" - Double Turret/Double Turret Swage Mount 0.105" 1/16 0.159 Brass Bright Tin YES
10-606-2-01
10-606-2-01
10-606-2-01
0.421" - - Swage Mount 0.105" 1/16 0.094 Brass Silver YES
10-710-8-01
10-710-8-01
10-710-8-01
0.722" - DOUBLE TURRET/THREAD Swage Mount 0.285" 1/4 0.144 Brass Silver YES
10-8015-1-01
10-8015-1-01
10-8015-1-01
0.426" 0.040 TURRET/PIN Swage Mount 0.051" 1/32 0.076 Brass Silver YES

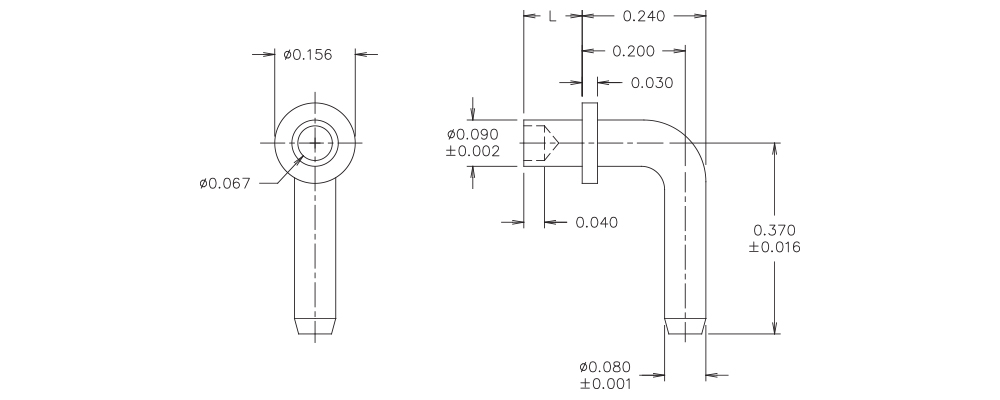

10-8024-3-05
10-8024-3-05
10-8024-3-05
0.448" 0.080 - Swage Mount 0.113" 3/32 0.094 Brass Electro Solder NO

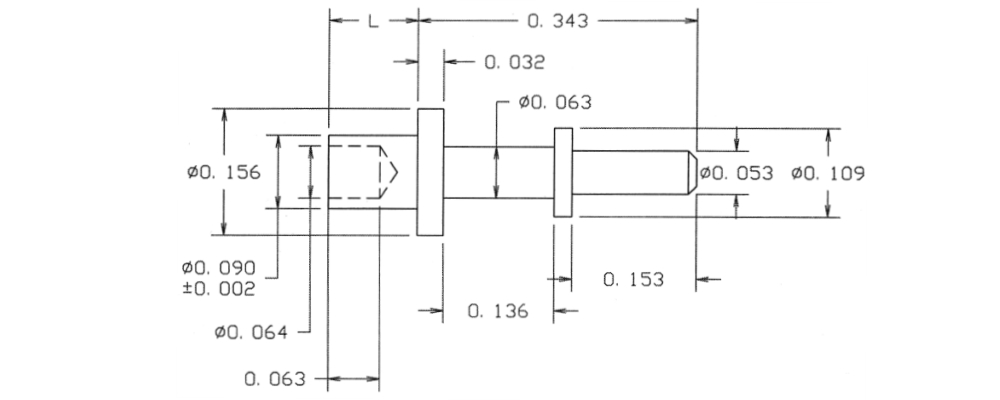

10-807-8-095
10-807-8-095
10-807-8-095
0.640" - - Swage Mount 0.297" 1/4 0.094 Brass Hot Solder Dip NO

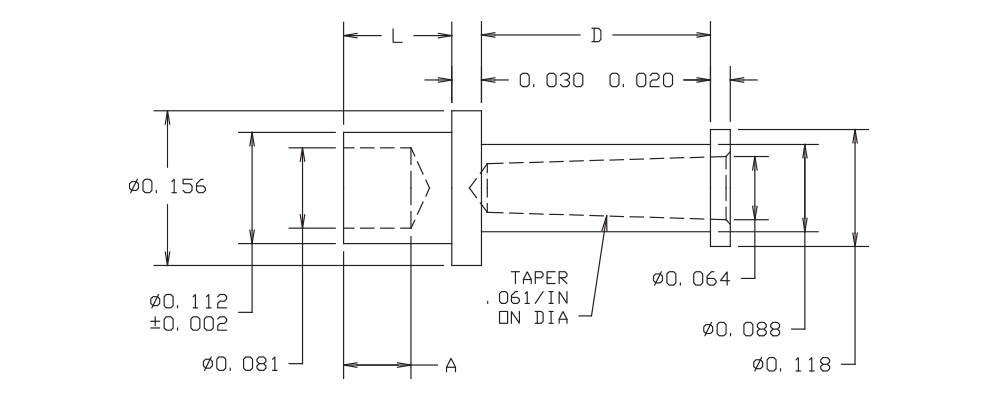

10-814-8-044
10-814-8-044
10-814-8-044
0.547" - - Swage Mount 0.297" 1/4 0.116 Brass Bright Tin YES

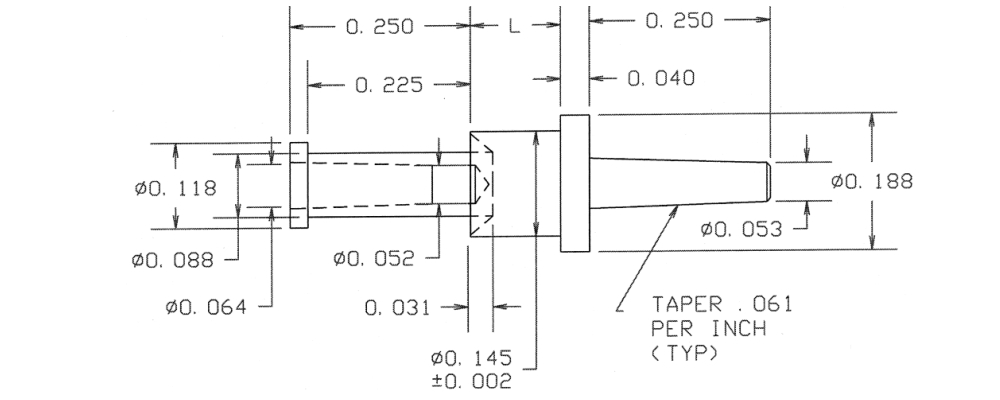

10-824-6-01
10-824-6-01
10-824-6-01
0.759" 0.053 (TAPER) TURRET/TAPER PIN Swage Mount 0.219" 3/16 0.147 Brass Silver YES

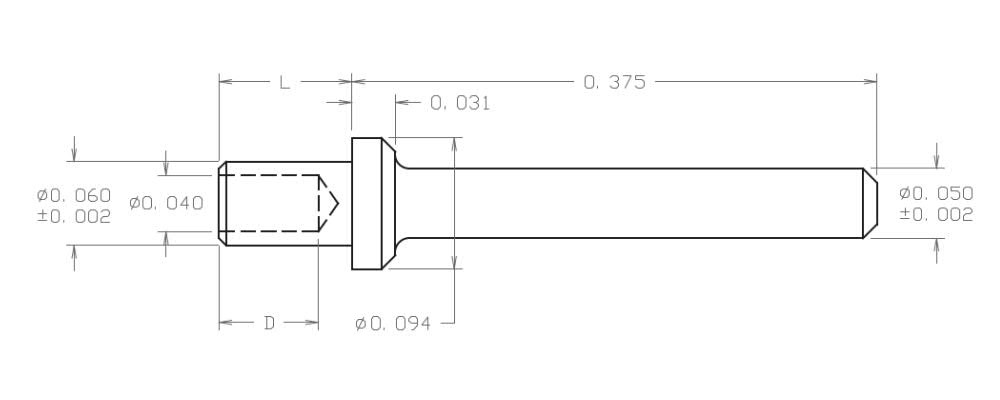

10-834-4-088
10-834-4-088
10-834-4-088
0.531" 0.050 - Swage Mount 0.156" 1/8 0.064 Brass Bright Tin-Lead NO
10-845-6-04
10-845-6-04
10-845-6-04
0.558" - - Swage Mount 0.230" 3/16 0.116 Brass Electro-Tin YES
