Commercial
Non-Insulated
Terminals

Filter

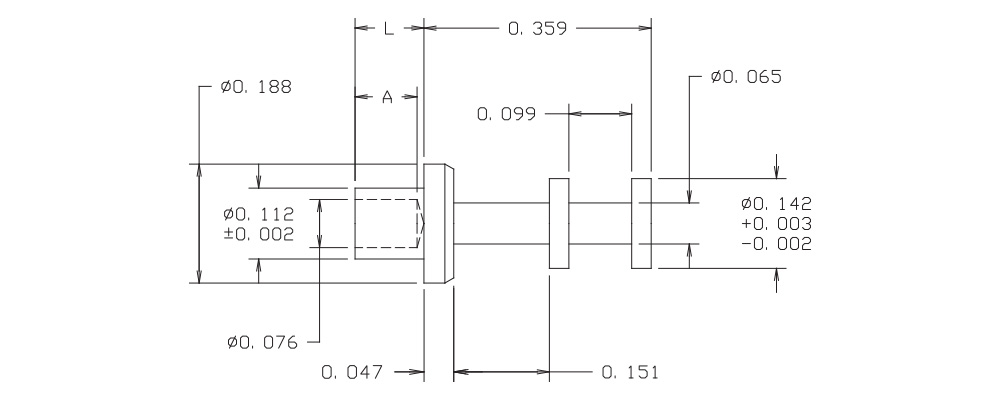

10-204-8-044
10-204-8-044
10-204-8-044
0.656" - - Swage Mount 0.297" 1/4 0.116 Brass Bright Tin YES

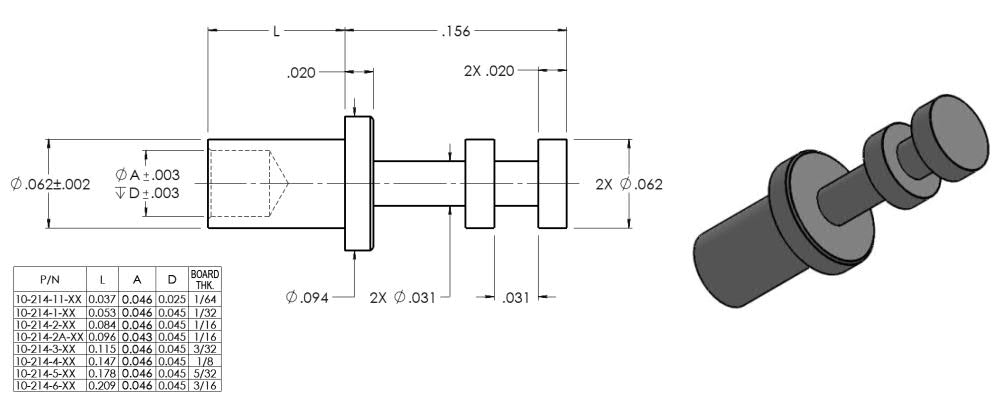

10-214-1-035
10-214-1-035
10-214-1-035
0.209" - - Swage Mount 0.053" 1/32 0.067 Brass Gold YES

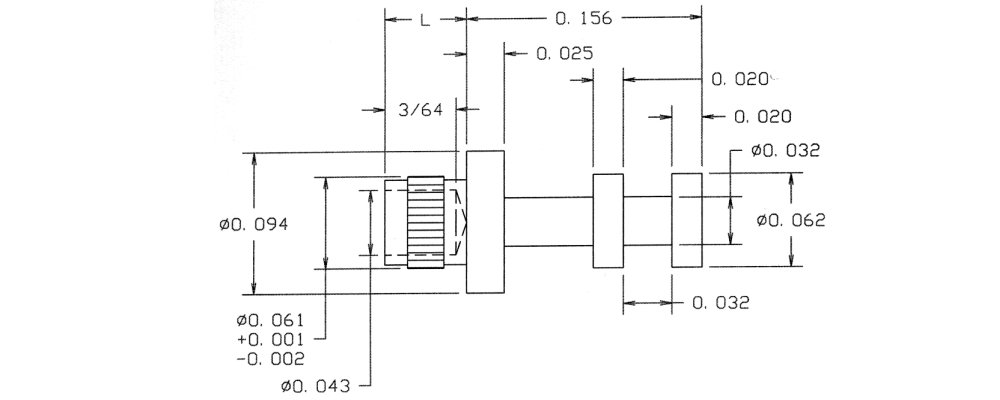

10-220-2-088
10-220-2-088
10-220-2-088
0.240" - - Swage Mount 0.084" 1/16 0.064 Brass Bright Tin-Lead NO
10-231-3-035
10-231-3-035
10-231-3-035
0.290" - - Swage Mount 0.135" 3/32 0.116 Brass Gold YES

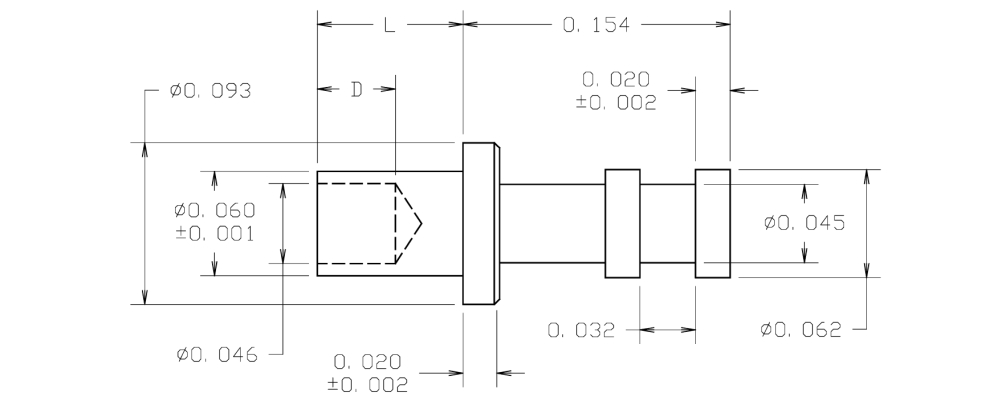

10-254-3-03
10-254-3-03
10-254-3-03
0.271" - - Swage Mount 0.115" 3/32 0.063 Brass Gold YES

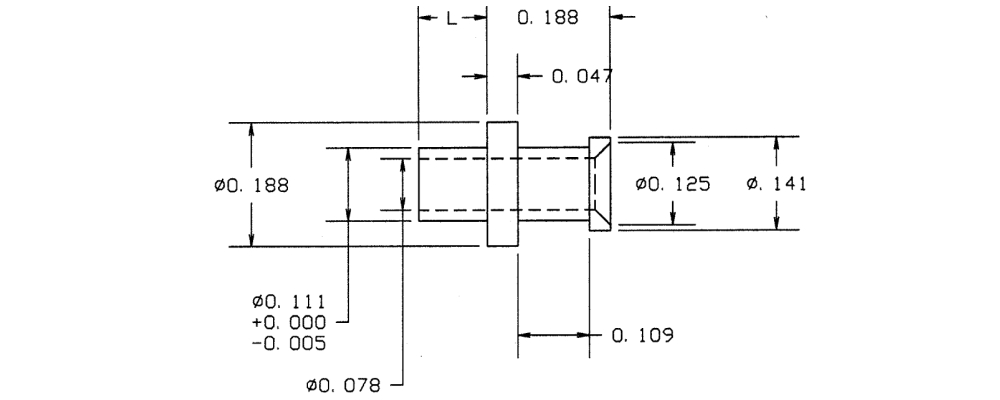

10-306-3-04
10-306-3-04
10-306-3-04
0.323" - - Swage Mount 0.135" 3/32 0.113 Brass Electro-Tin YES

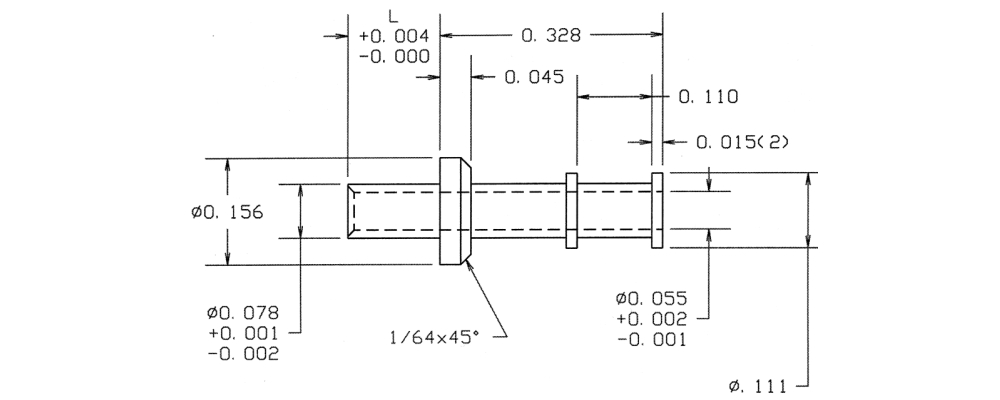

10-313-4-01
10-313-4-01
10-313-4-01
0.493" - - Swage Mount 0.165" 1/8 0.081 Brass Silver YES

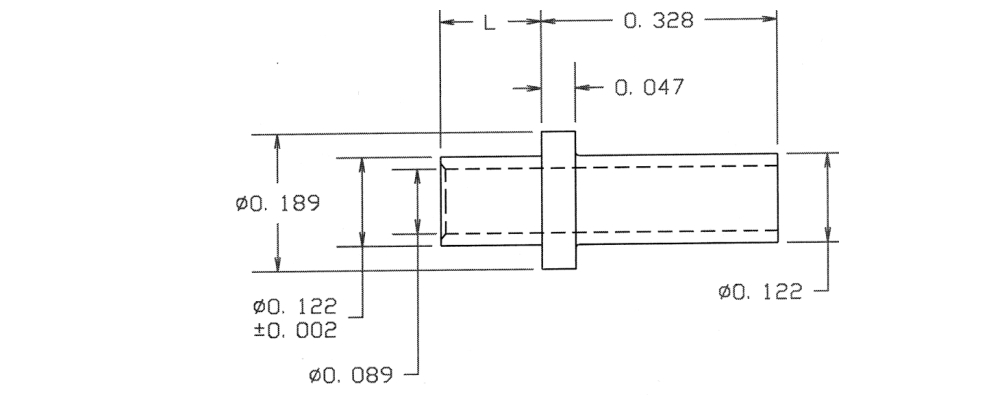

10-329-3-044
10-329-3-044
10-329-3-044
0.469" - - Swage Mount 0.141" 3/32 0.125 Brass Bright Tin YES

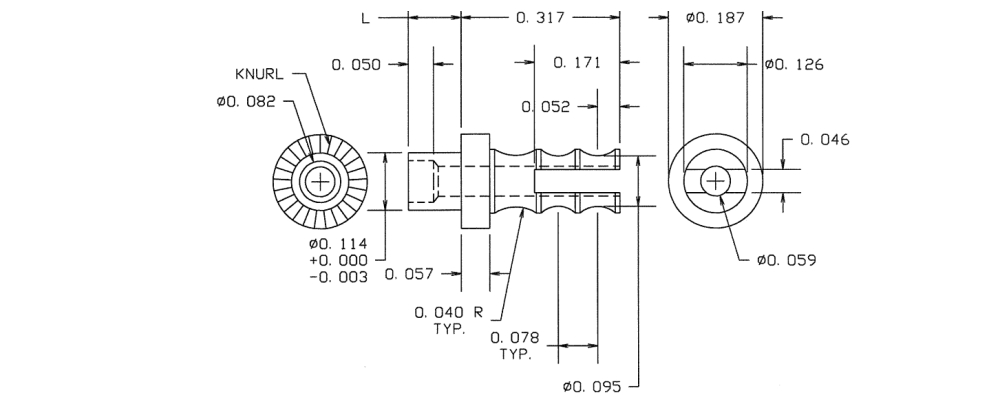

10-404-1-03
10-404-1-03
10-404-1-03
0.392" - - Swage Mount 0.075" 1/32 0.116 Brass Gold YES

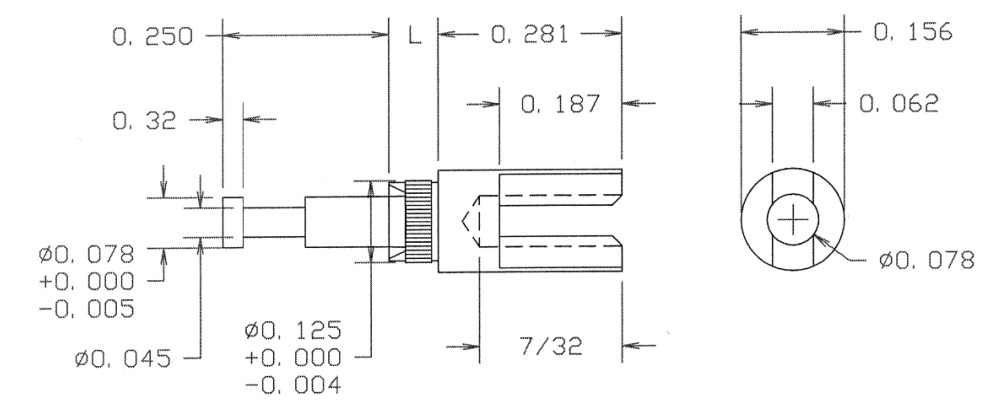

10-418-3A-088
10-418-3A-088
10-418-3A-088
0.654" - Turret/Turret Swage Mount 0.123" 3/32 0.120 Brass Bright Tin-Lead NO

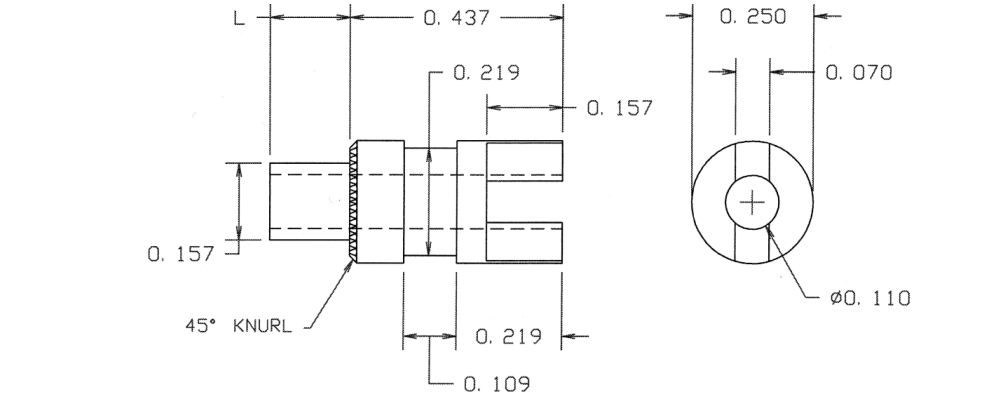

10-432-2-035
10-432-2-035
10-432-2-035
0.542" - - Swage Mount 0.105" 1/16 0.161 Brass Gold YES
10-446-1-04
10-446-1-04
10-446-1-04
0.445" - SLOTTED/DOUBLE TURRET Swage Mount 0.062" 1/32 0.096 Brass Electro-Tin YES

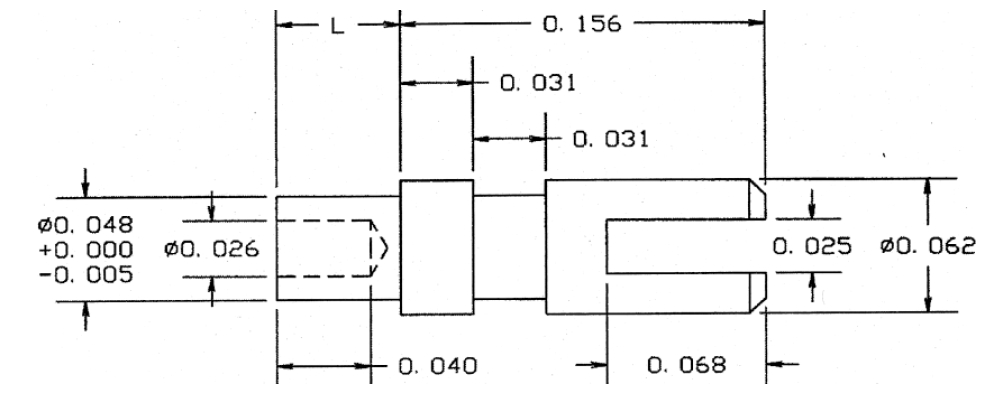

10-462-2-04
10-462-2-04
10-462-2-04
0.240" - - Swage Mount 0.084" 1/16 0.052 Brass Electro-Tin YES
10-489-3-04
10-489-3-04
10-489-3-04
0.281" - - Swage Mount 0.125" 3/32 0.067 Brass Electro-Tin YES

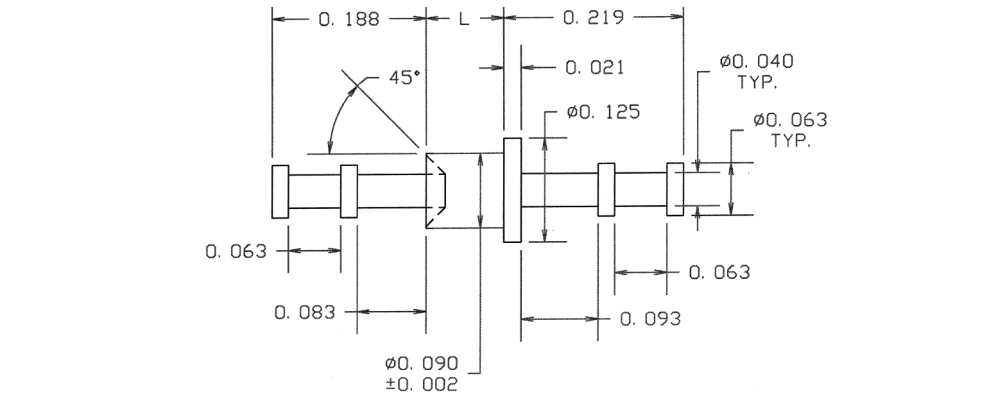

10-504-1-05
10-504-1-05
10-504-1-05
0.469" - Double Turret/Double Turret Swage Mount 0.062" 1/32 0.094 Brass Electro Solder NO

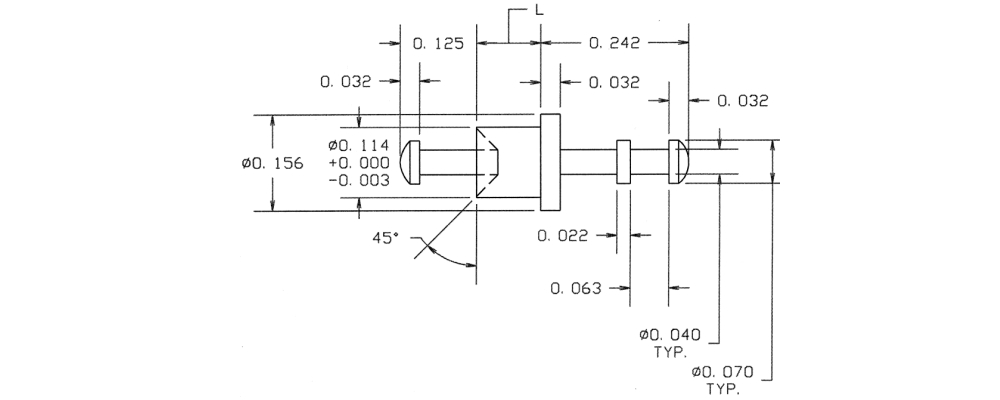

10-510-1-05
10-510-1-05
10-510-1-05
0.442" - TURRET/DOUBLE TURRET Swage Mount 0.075" 1/32 0.116 Brass Electro Solder NO

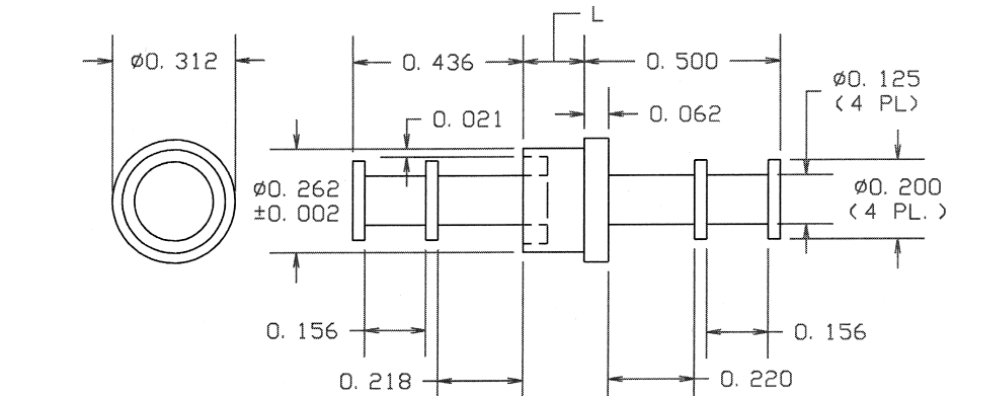

10-519-6-05
10-519-6-05
10-519-6-05
1.155" - Double Turret/Double Turret Swage Mount 0.219" 3/16 0.266 Brass Electro Solder NO

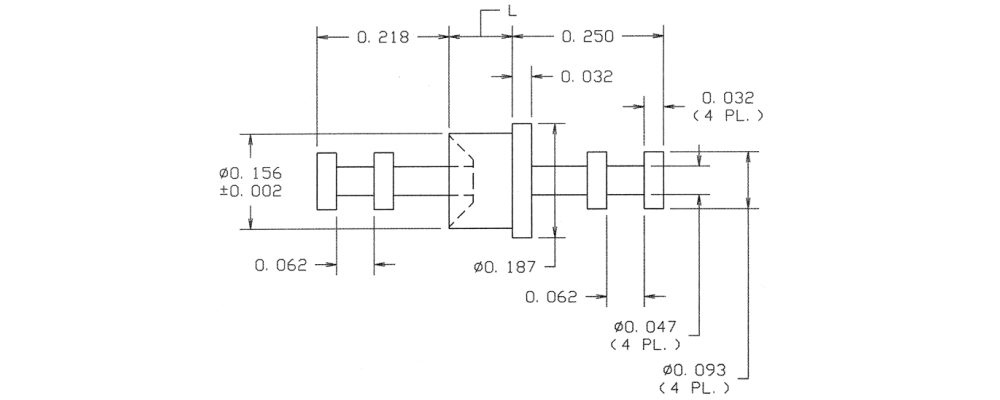

10-532-1-05
10-532-1-05
10-532-1-05
0.543" - Double Turret/Double Turret Swage Mount 0.075" 1/32 0.159 Brass Electro Solder NO

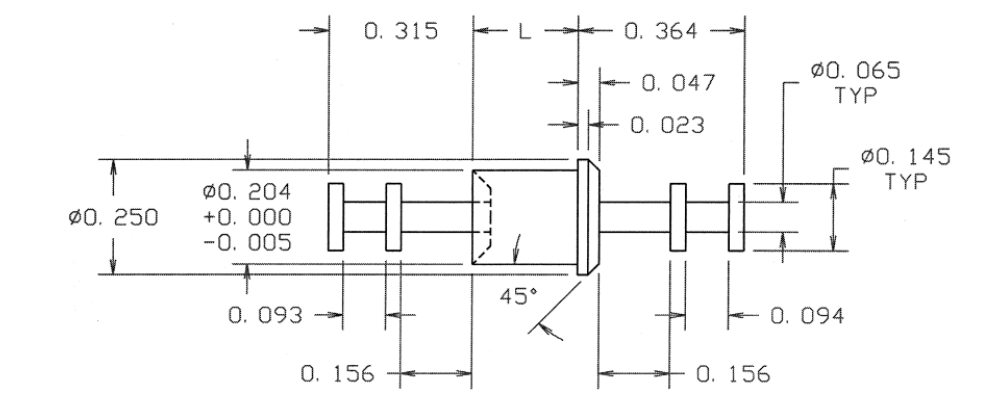

10-549-6-05
10-549-6-05
10-549-6-05
0.909" - Double Turret/Double Turret Swage Mount 0.230" 3/16 0.206 Brass Electro Solder NO

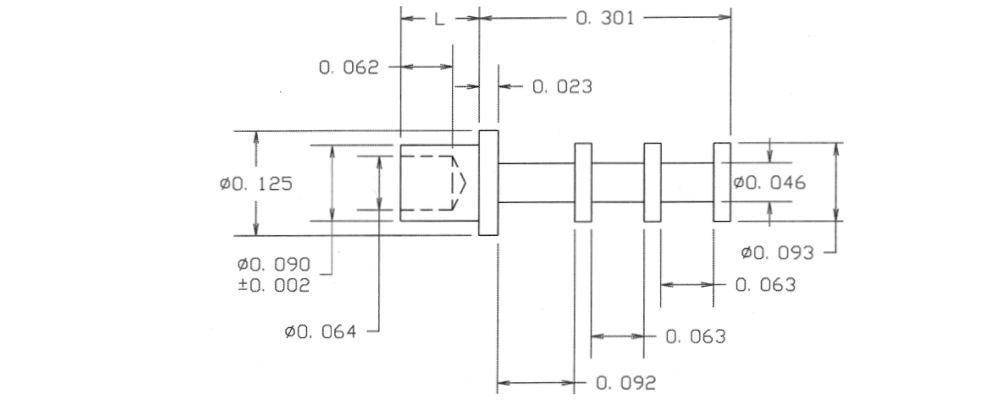

10-601-2-05
10-601-2-05
10-601-2-05
0.395" - - Swage Mount 0.094" 1/16 0.094 Brass Electro Solder NO
