Commercial
Non-Insulated
Terminals

Filter
09-0242-1-05
09-0242-1-05
09-0242-1-05
0.907" 0.040 Pin/Pin Swage Mount 0.060" 1/32 0.076 Brass Electro Solder NO

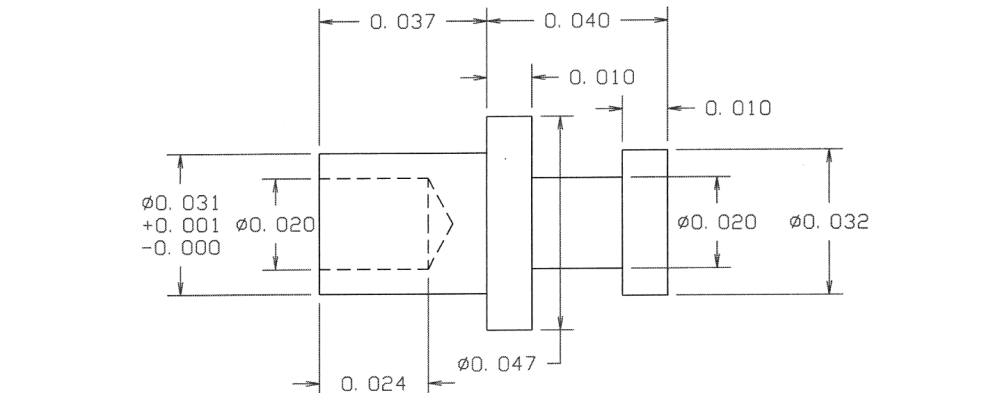

09-0288-1-05
09-0288-1-05
09-0288-1-05
0.077" - - Swage Mount 0.037" 1/64 0.035 Brass Electro Solder NO

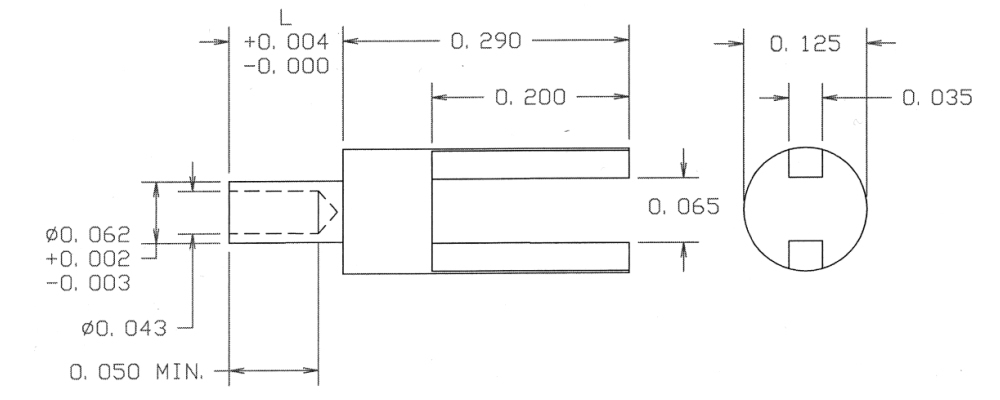

09-0353-3-088
09-0353-3-088
09-0353-3-088
0.405" - - Swage Mount 0.115" 3/32 0.067 Brass Bright Tin-Lead NO

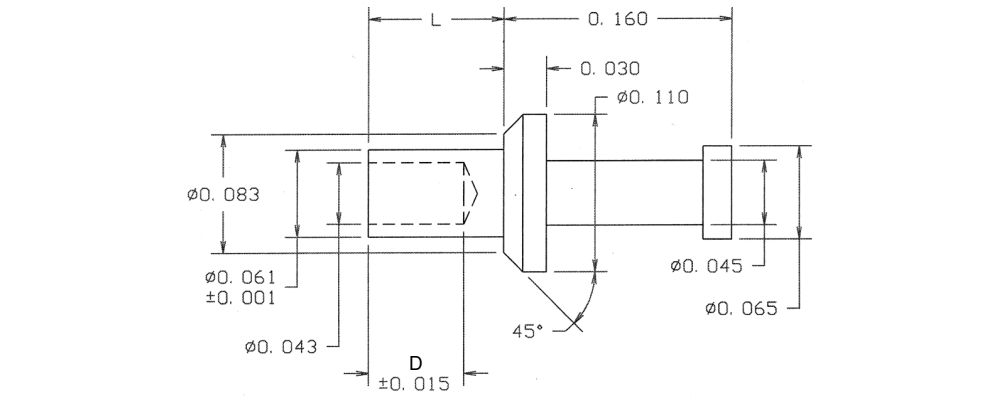

09-7012-4-035
09-7012-4-035
09-7012-4-035
0.310" - - Swage Mount 0.150" 1/8 0.067 Brass Gold YES

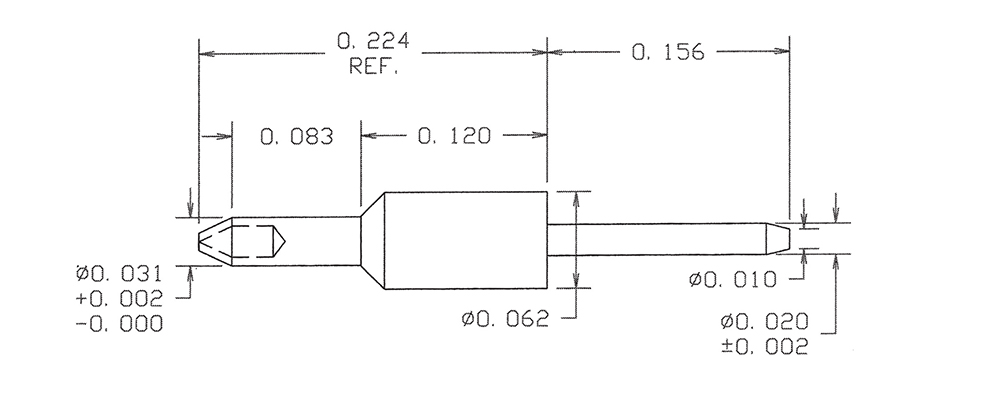

09-7119-2-01
09-7119-2-01
09-7119-2-01
0.380" 0.020 - RIVET MOUNT 0.083" 1/16 0.035 Brass Silver YES

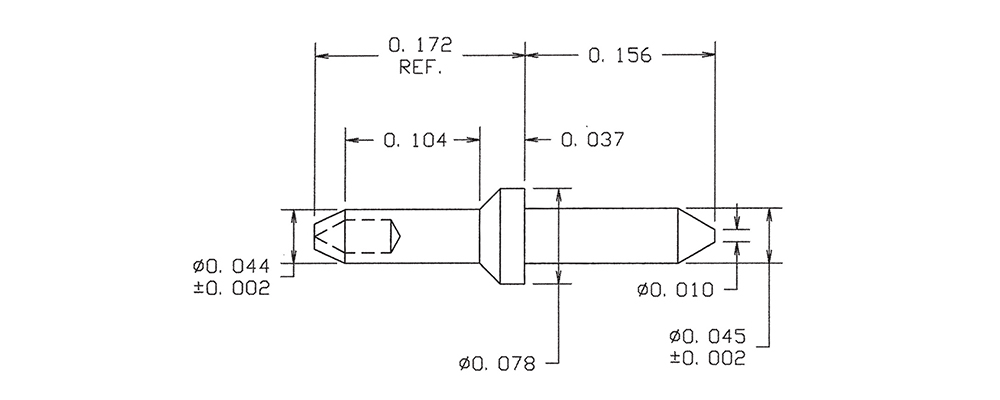

09-7149-2-044
09-7149-2-044
09-7149-2-044
0.328" 0.045 - RIVET MOUNT 0.104" 1/16 0.048 Brass Bright Tin YES
09-7181-3-03
09-7181-3-03
09-7181-3-03
0.259" - - RIVET MOUNT 0.114" 3/32 0.036 Brass Gold YES

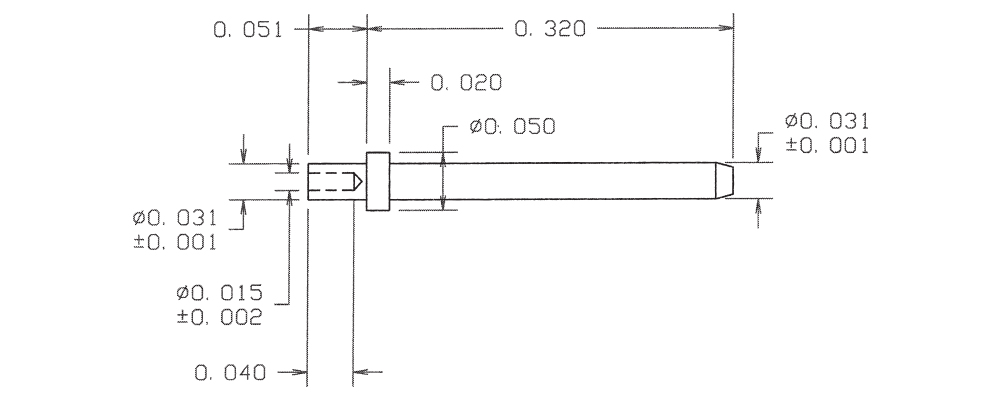

09-8024-1-05
09-8024-1-05
09-8024-1-05
0.371" 0.031 - Swage Mount 0.051" 1/32 0.035 Brass Electro Solder NO

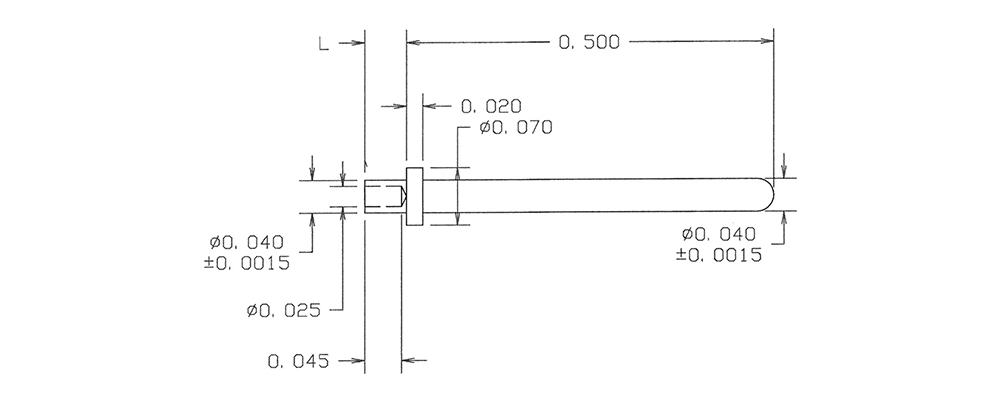

09-8059-2-03
09-8059-2-03
09-8059-2-03
0.582" 0.0405 - Swage Mount 0.082" 1/16 0.043 Brass Gold YES

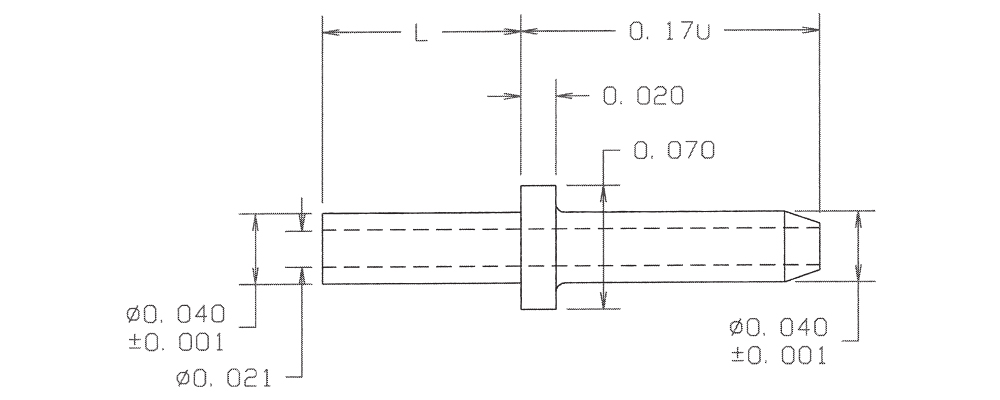

09-8112-1-05
09-8112-1-05
09-8112-1-05
0.221" 0.040 - Swage Mount 0.051" 1/32 0.043 Brass Electro Solder NO

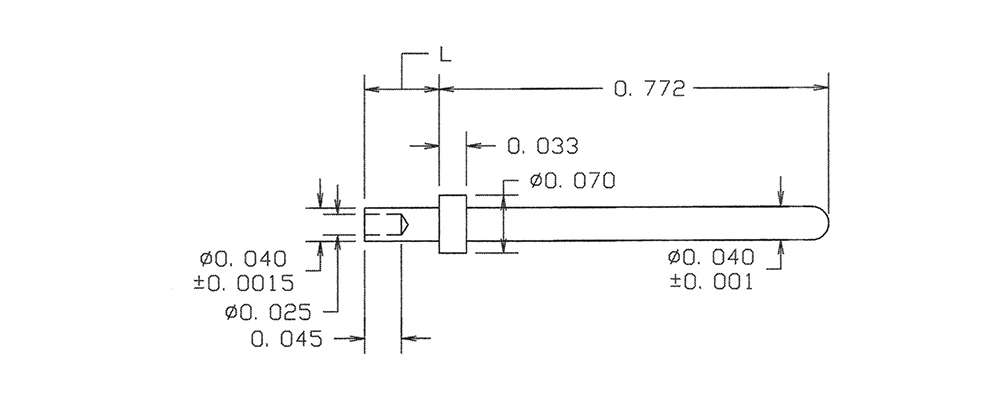

09-8155-1-035
09-8155-1-035
09-8155-1-035
0.823" 0.040 - Swage Mount 0.051" 1/32 0.043 Brass Gold YES

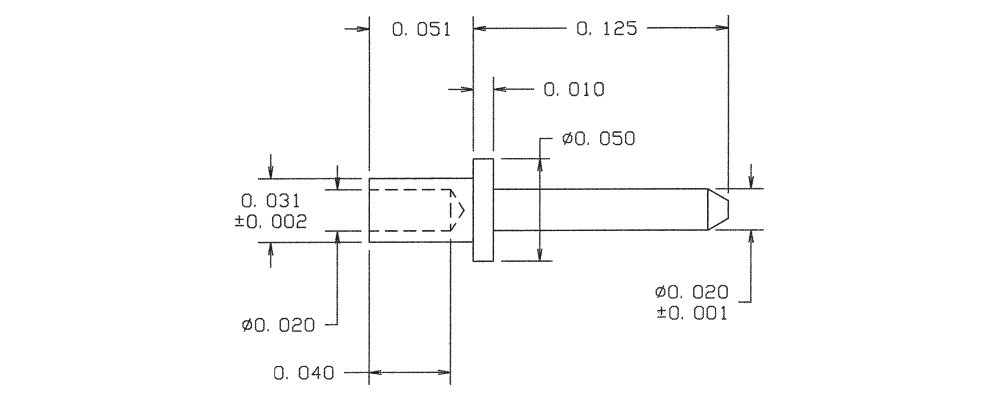

09-8183-1-088
09-8183-1-088
09-8183-1-088
0.176" 0.020 - Swage Mount 0.051" 1/32 0.035 Brass Bright Tin-Lead NO

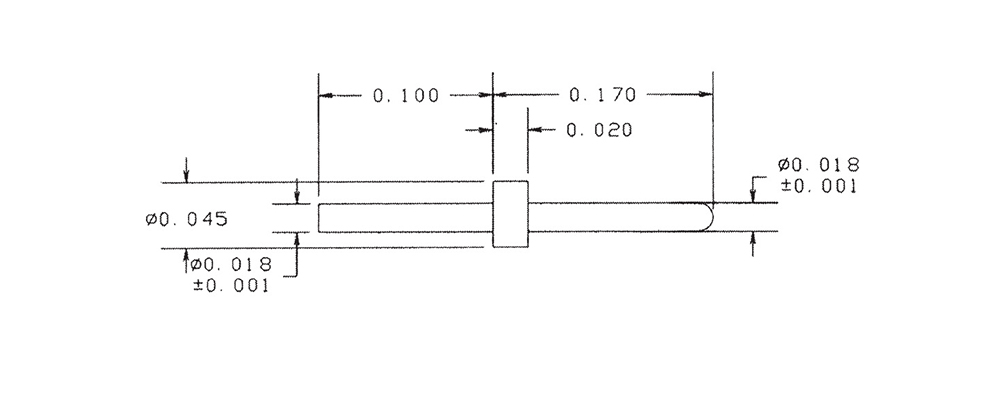

09-8349-2-05
09-8349-2-05
09-8349-2-05
0.270" 0.018 - Solder 0.100" 1/64 TO 1/16 0.020 Brass Electro Solder NO

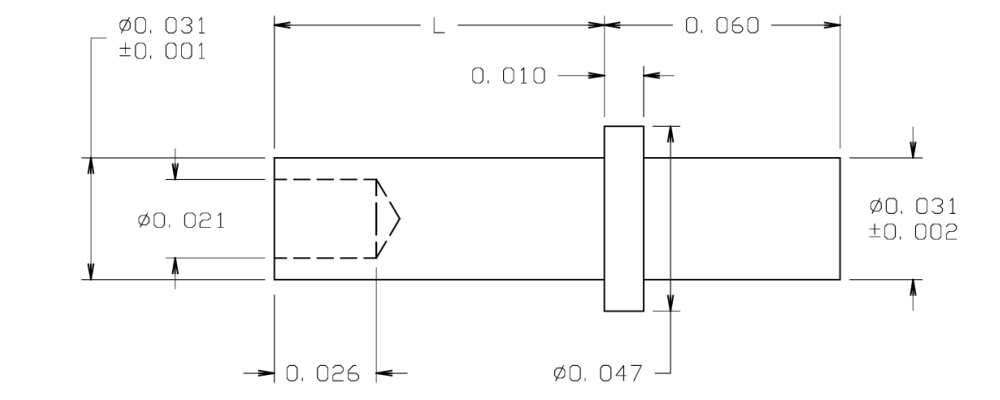

09-8598-2-044
09-8598-2-044
09-8598-2-044
0.144" - - Swage Mount 0.084" 1/16 0.035 Brass Bright Tin YES

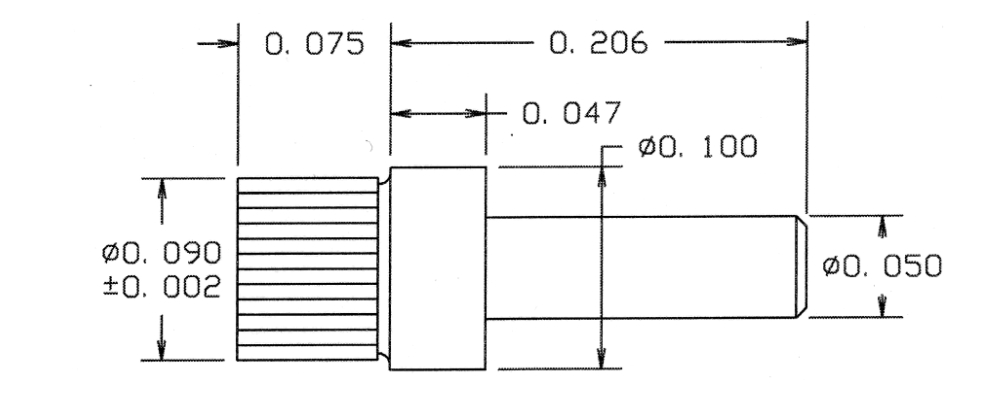

09-8706-1-01
09-8706-1-01
09-8706-1-01
0.281" 0.050 - Press Fit/Solder 0.075" 1/16 0.086 Brass Silver YES

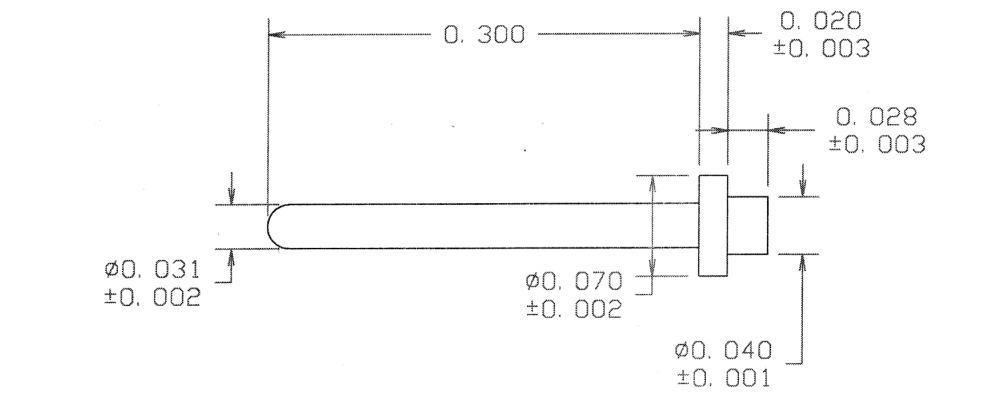

09-8817-1-05
09-8817-1-05
09-8817-1-05
0.348" 0.031 - Solder 0.028" 1/64 0.043 Brass Electro Solder NO

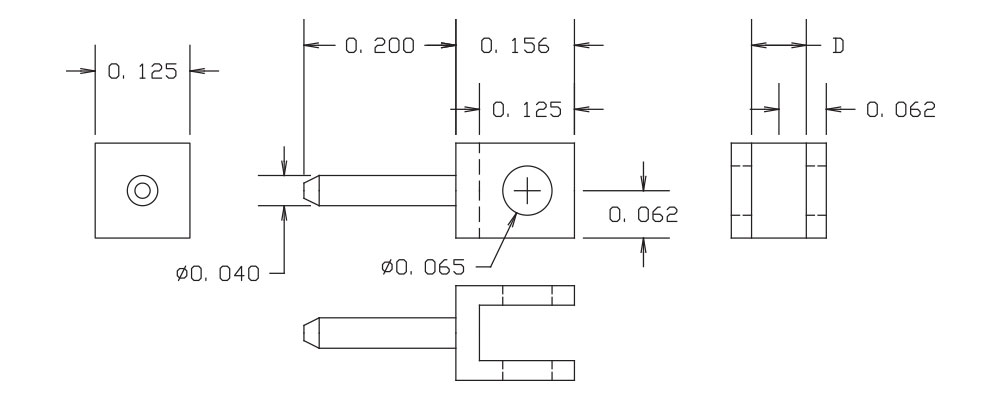

09-9502-2-05
09-9502-2-05
09-9502-2-05
0.356" 0.040 - 0-80 Screw - 1/16 CLEARANCE FOR #0 Screw Brass Electro Solder NO

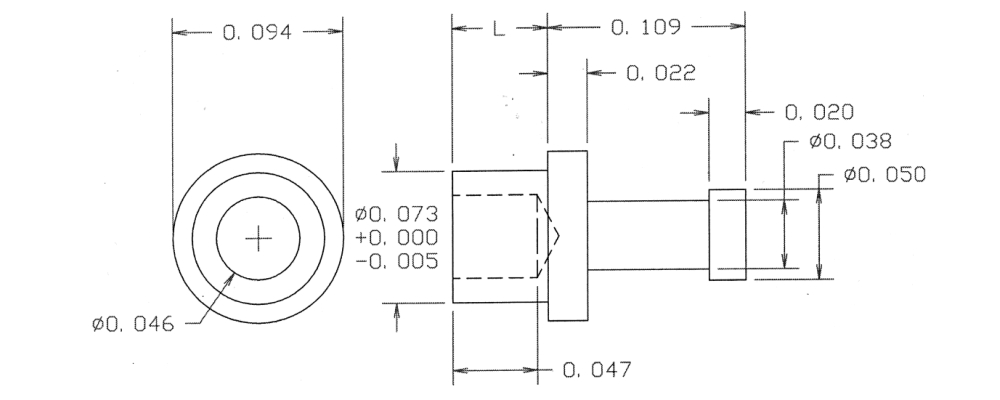

10-105-4-044
10-105-4-044
10-105-4-044
0.256" - - Swage Mount 0.147" 1/8 0.076 Brass Bright Tin YES

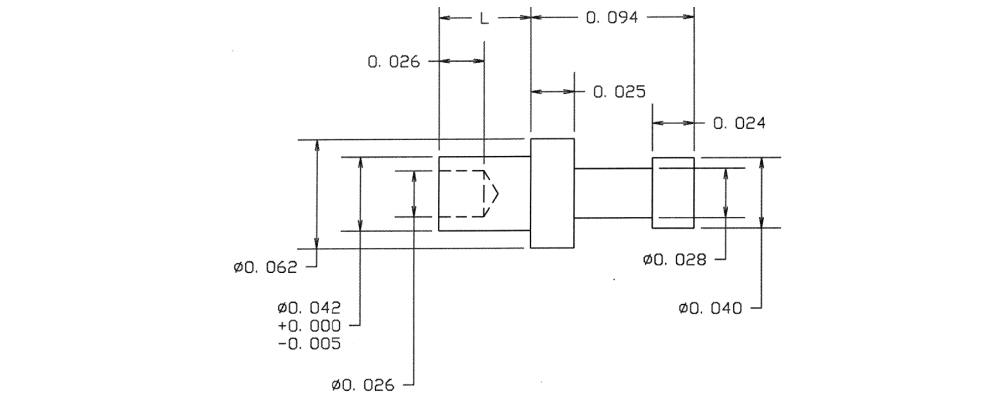

10-114-1-044
10-114-1-044
10-114-1-044
0.147" - - Swage Mount 0.053" 1/32 0.043 Brass Bright Tin YES

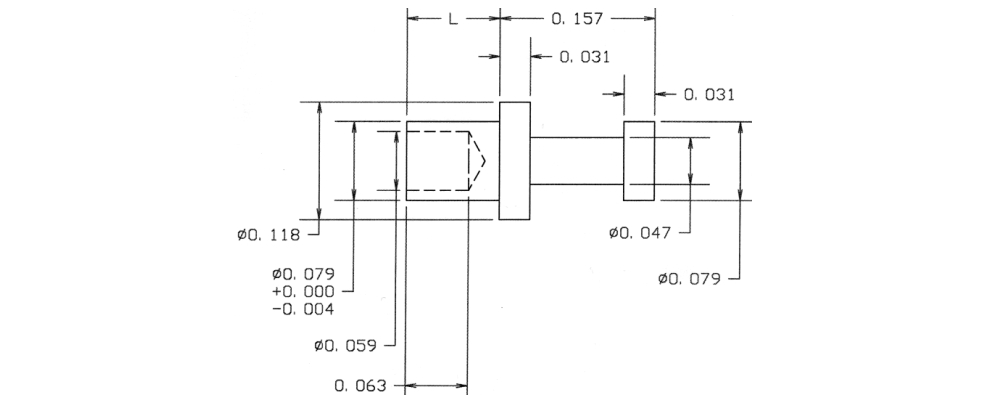

10-134-4-088
10-134-4-088
10-134-4-088
0.313" - - Swage Mount 0.156" 1/8 0.081 Brass Bright Tin-Lead NO
