Commercial
Non-Insulated
Terminals

Filter
10-809-4-035
10-809-4-035
10-809-4-035
0.258" - - Swage Mount 0.172" 1/8 0.116 Brass Gold YES
10-816-4-088
10-816-4-088
10-816-4-088
0.365" - - Swage Mount 0.165" 1/8 0.1495 Brass Bright Tin-Lead NO
10-826-5-035
10-826-5-035
10-826-5-035
0.523" - - Swage Mount 0.195" 5/32 0.081 Brass Gold YES
10-837-3-03
10-837-3-03
10-837-3-03
0.469" 0.050 Pin/Pin Swage Mount 0.125" 3/32 0.111 Brass Gold YES
10-850-2-05
10-850-2-05
10-850-2-05
0.363" 0.040 - Swage Mount 0.093" 1/16 0.094 Brass Electro Solder NO

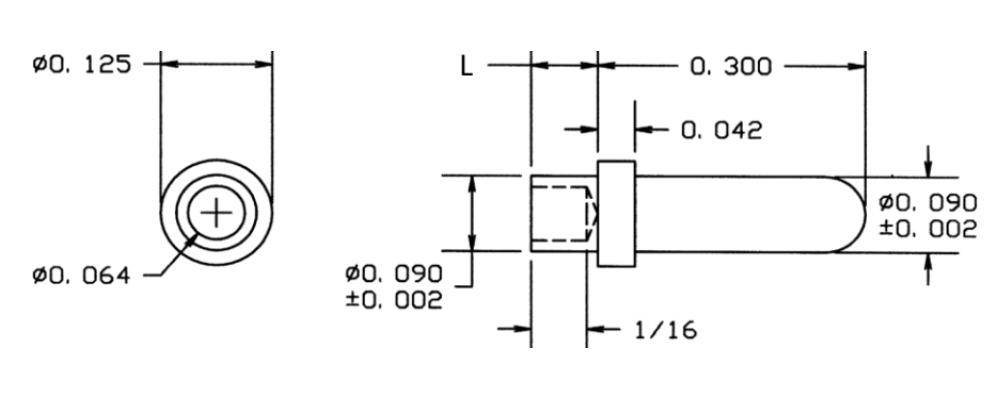

10-874-1-088
10-874-1-088
10-874-1-088
0.375" 0.090 - Swage Mount 0.075" 1/32 0.094 Brass Bright Tin-Lead NO
10-895-1-05
10-895-1-05
10-895-1-05
0.400" 0.020 - - - - - Brass Electro Solder NO

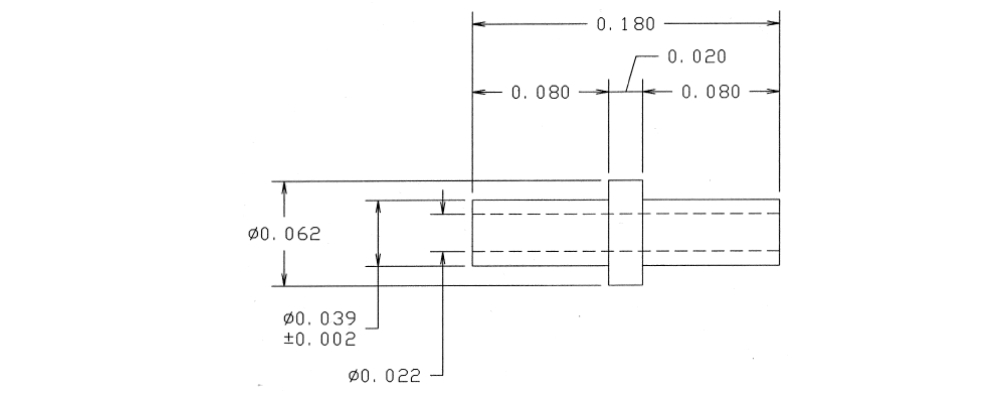

10-910-2-05
10-910-2-05
10-910-2-05
0.180" 0.039 - Swage Mount 0.080" 1/16 0.043 Brass Electro Solder NO

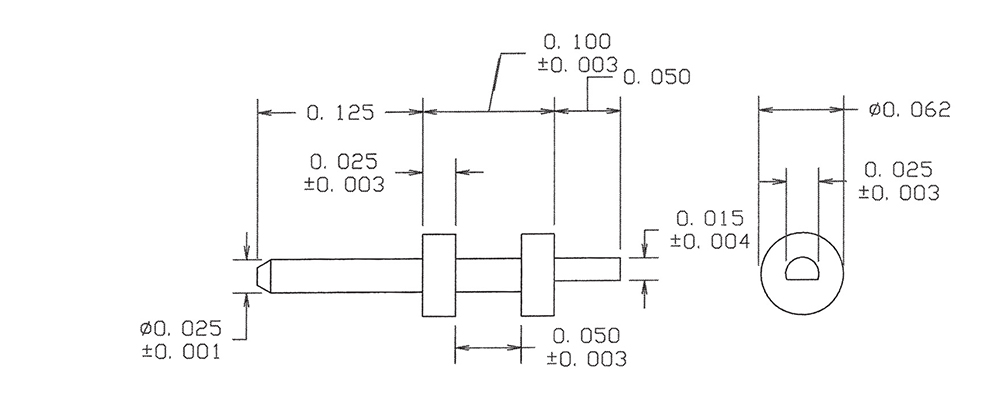

10-924-1-05
10-924-1-05
10-924-1-05
0.275" 0.025 - - - - - Brass Electro Solder NO

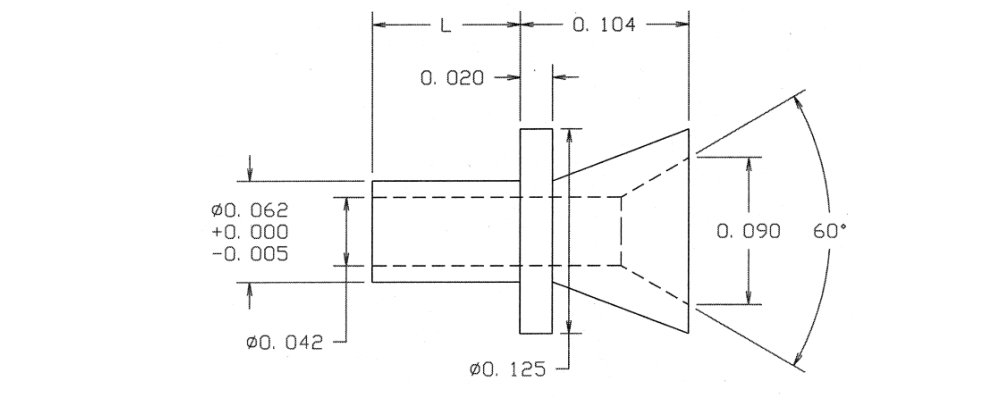

10-961-1-088
10-961-1-088
10-961-1-088
0.166" - - Swage Mount 0.062" 1/32 0.0635 Brass Bright Tin-Lead NO
14-347-5-035
14-347-5-035
14-347-5-035
0.655" - - Swage Mount 0.195" 5/32 0.116 LEADED Red Brass Gold YES

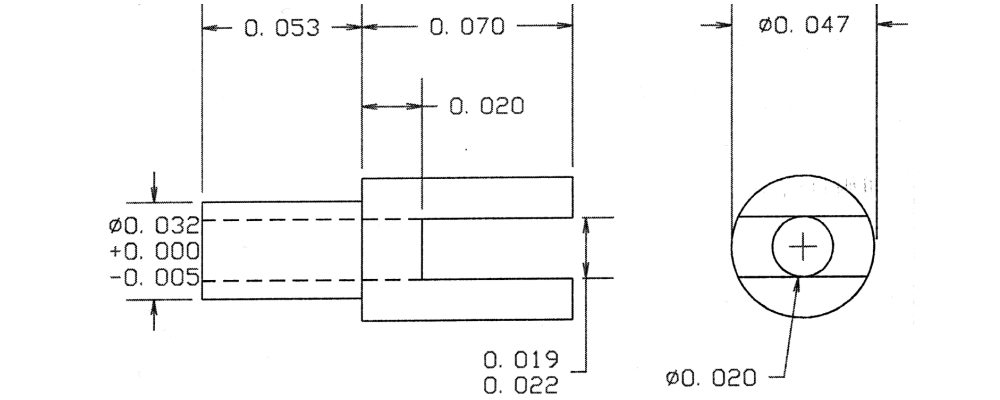

09-0089-1-04
09-0089-1-04
09-0089-1-04
0.123" - - Swage Mount 0.053" 1/32 0.035 Brass Electro-Tin YES

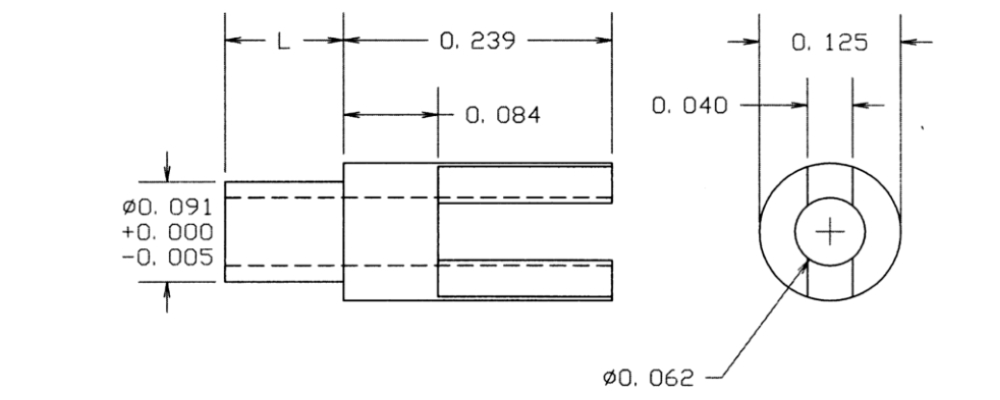

10-412-1-088
10-412-1-088
10-412-1-088
0.314" - - Swage Mount 0.075" 1/32 0.094 Brass Bright Tin-Lead NO
10-439-5-04
10-439-5-04
10-439-5-04
0.676" - - Swage Mount 0.195" 5/32 0.1875 Brass Electro-Tin YES
10-461-11-01
10-461-11-01
10-461-11-01
0.349" - - Swage Mount 0.037" 1/64 0.043 Brass Silver YES
10-903-4-044
10-903-4-044
10-903-4-044
0.344" - - Swage Mount 0.156" 1/8 0.063 Brass Bright Tin YES

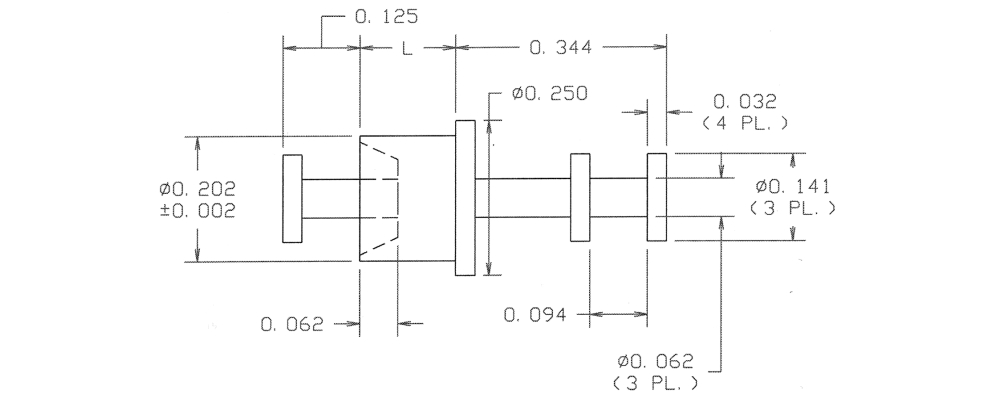

09-0033-3-035
09-0033-3-035
09-0033-3-035
0.625" - TURRET/DOUBLE TURRET Swage Mount 0.156" 1/8 0.206 Brass Gold YES

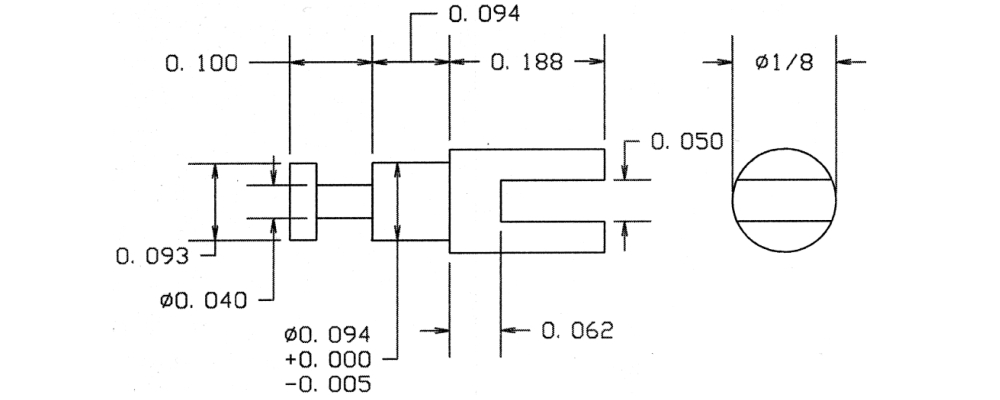

09-0087-2-04
09-0087-2-04
09-0087-2-04
0.382" - SLOTTED/TURRET Solder 0.094" 1/16 0.096 Brass Electro-Tin YES

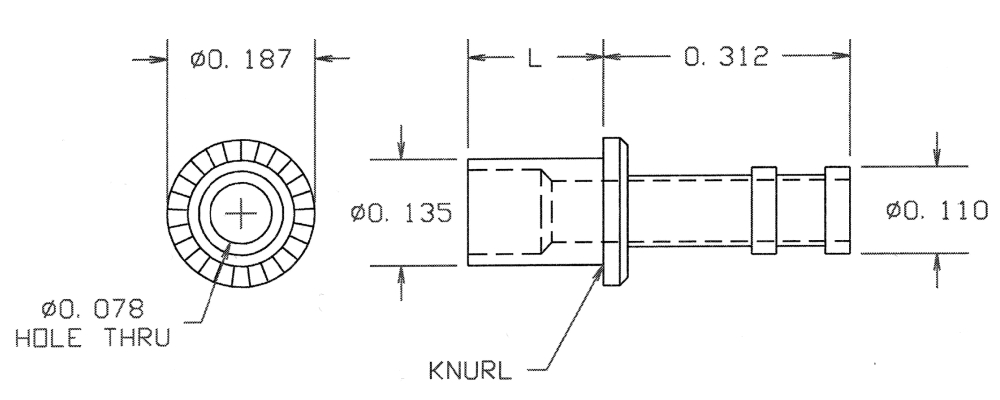

09-0168-1-04
09-0168-1-04
09-0168-1-04
0.390" - - Swage Mount 0.078" 1/32 0.141 Brass Electro-Tin YES

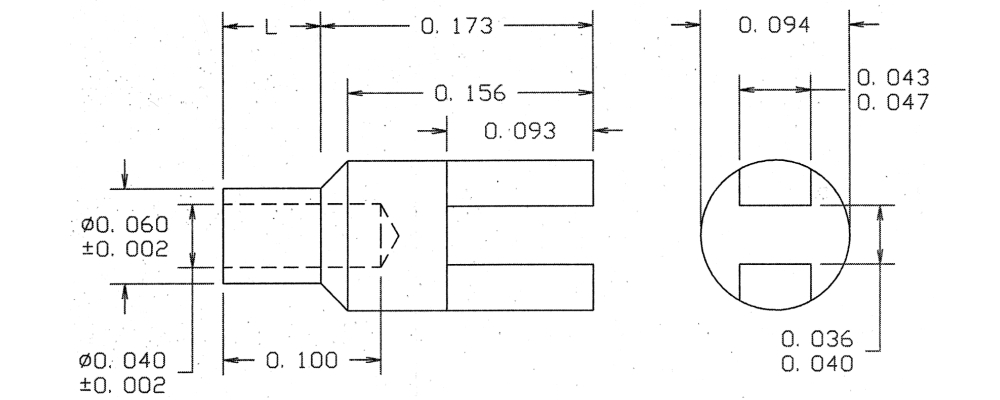

09-0208-1-095
09-0208-1-095
09-0208-1-095
0.235" - - Swage Mount 0.062" 1/32 0.067 LEADED Red Brass Hot Solder Dip NO
