Commercial
Non-Insulated
Terminals

Filter

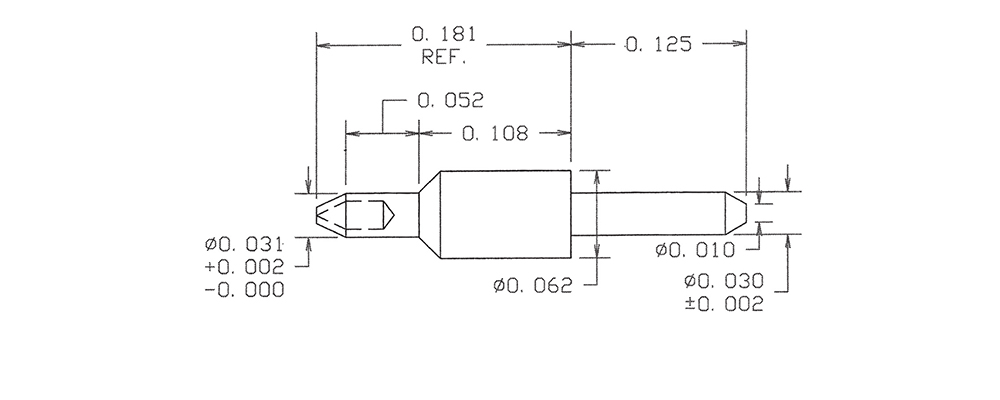

09-7118-1-088
09-7118-1-088
09-7118-1-088
0.306" 0.030 - RIVET MOUNT 0.052" 1/32 0.035 Brass Bright Tin-Lead NO
09-7149-2-04
09-7149-2-04
09-7149-2-04
0.328" 0.045 - RIVET MOUNT 0.104" 1/16 0.048 Brass Electro-Tin YES

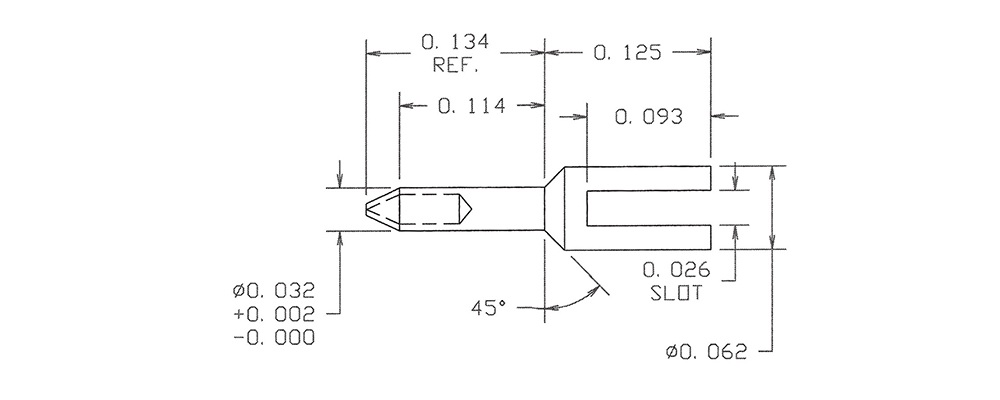

09-7181-3-01
09-7181-3-01
09-7181-3-01
0.259" - - RIVET MOUNT 0.114" 3/32 0.036 Brass Silver YES

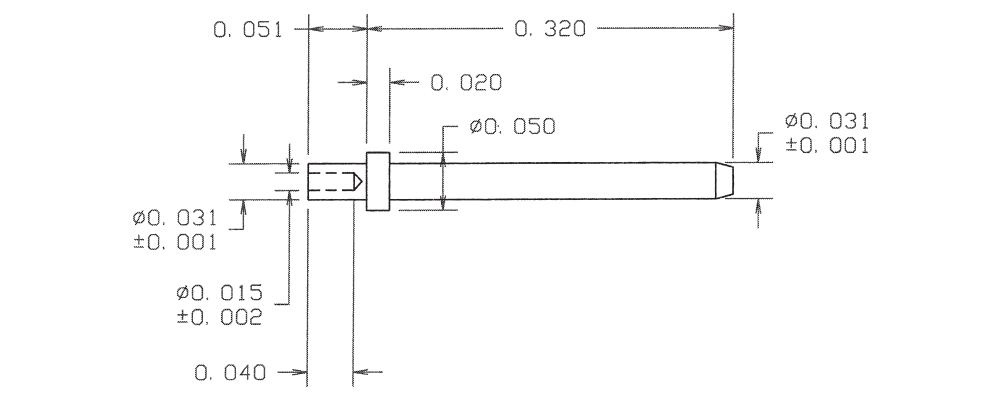

09-8024-1-044
09-8024-1-044
09-8024-1-044
0.371" 0.031 - Swage Mount 0.051" 1/32 0.035 Brass Bright Tin YES

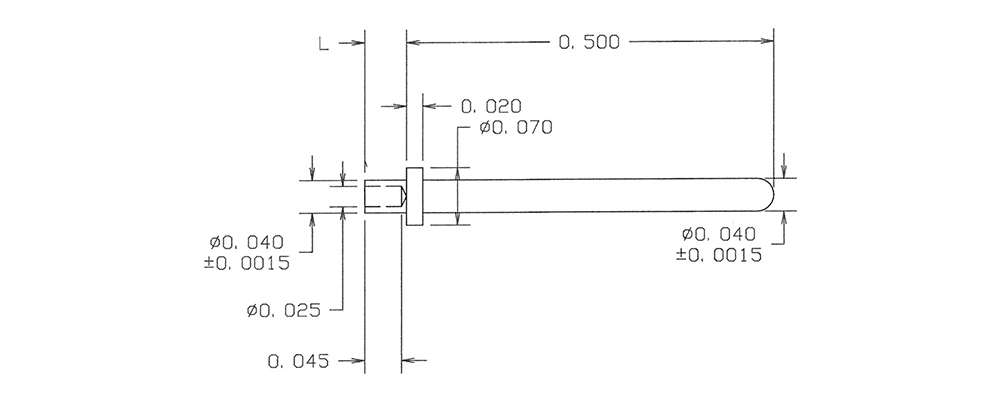

09-8059-2-01
09-8059-2-01
09-8059-2-01
0.582" 0.0405 - Swage Mount 0.082" 1/16 0.043 Brass Silver YES

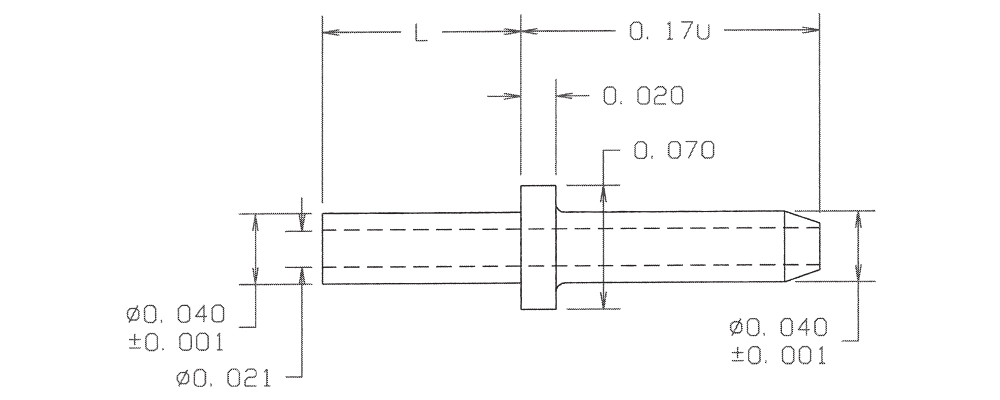

09-8112-1-044
09-8112-1-044
09-8112-1-044
0.221" 0.040 - Swage Mount 0.051" 1/32 0.043 Brass Bright Tin YES

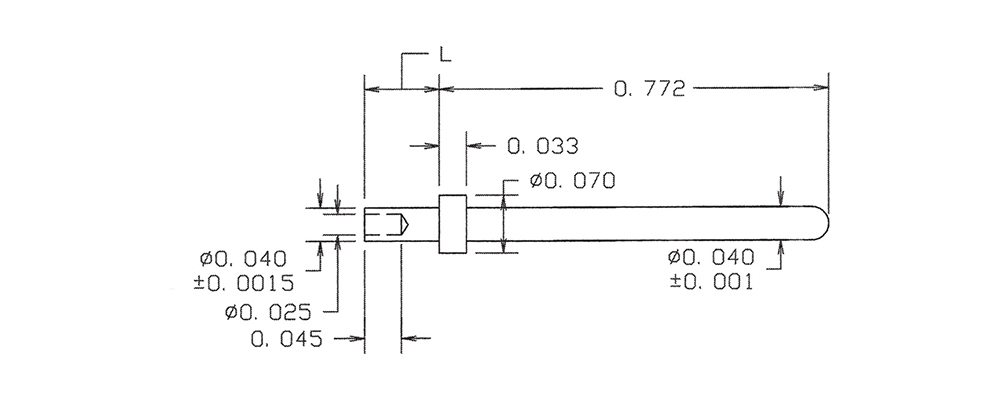

09-8155-1-03
09-8155-1-03
09-8155-1-03
0.823" 0.040 - Swage Mount 0.051" 1/32 0.043 Brass Gold YES

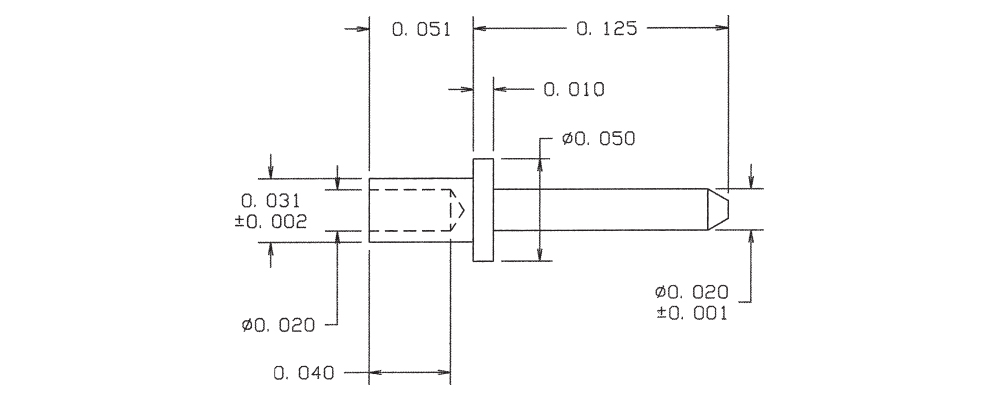

09-8183-1-05
09-8183-1-05
09-8183-1-05
0.176" 0.020 - Swage Mount 0.051" 1/32 0.035 Brass Electro Solder NO

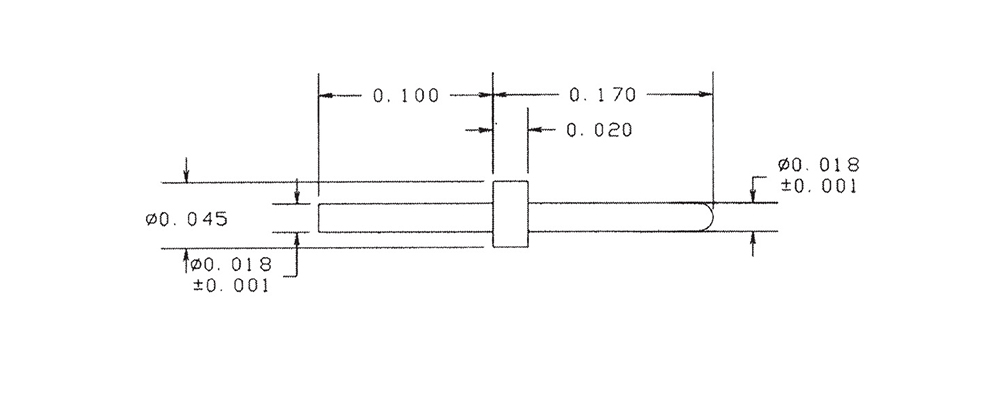

09-8349-2-044
09-8349-2-044
09-8349-2-044
0.270" 0.018 - Solder 0.100" 1/64 TO 1/16 0.020 Brass Bright Tin YES

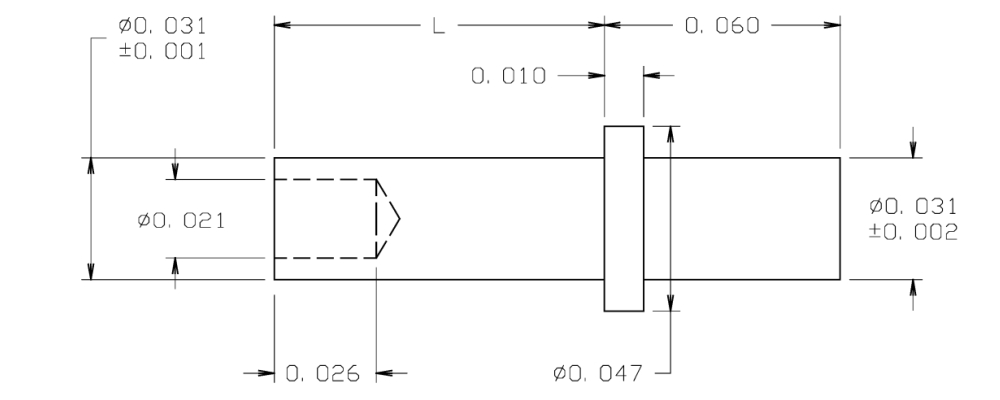

09-8598-2-04
09-8598-2-04
09-8598-2-04
0.144" - - Swage Mount 0.084" 1/16 0.035 Brass Electro-Tin YES

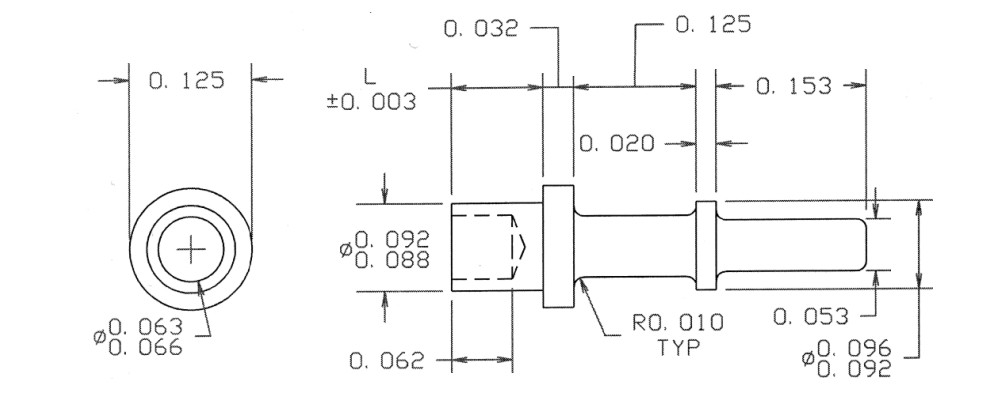

09-8705-4-095
09-8705-4-095
09-8705-4-095
0.502" - - Swage Mount 0.172" 1/8 0.094 LEADED Red Brass Hot Solder Dip NO

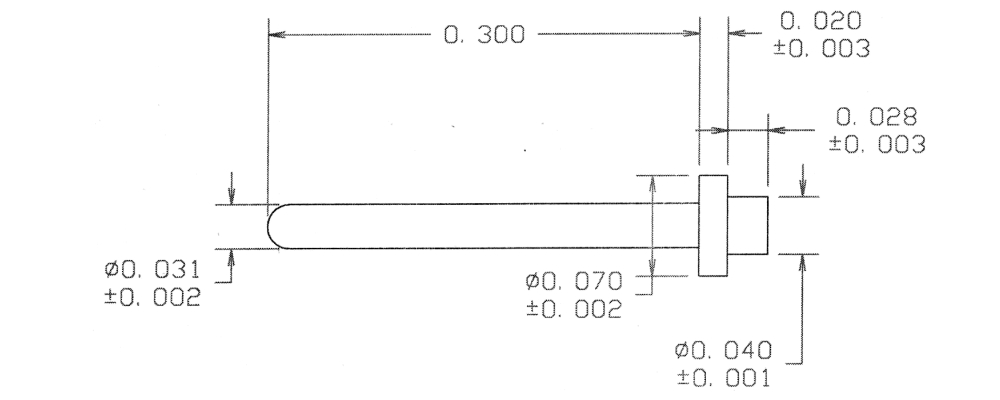

09-8817-1-044
09-8817-1-044
09-8817-1-044
0.348" 0.031 - Solder 0.028" 1/64 0.043 Brass Bright Tin YES

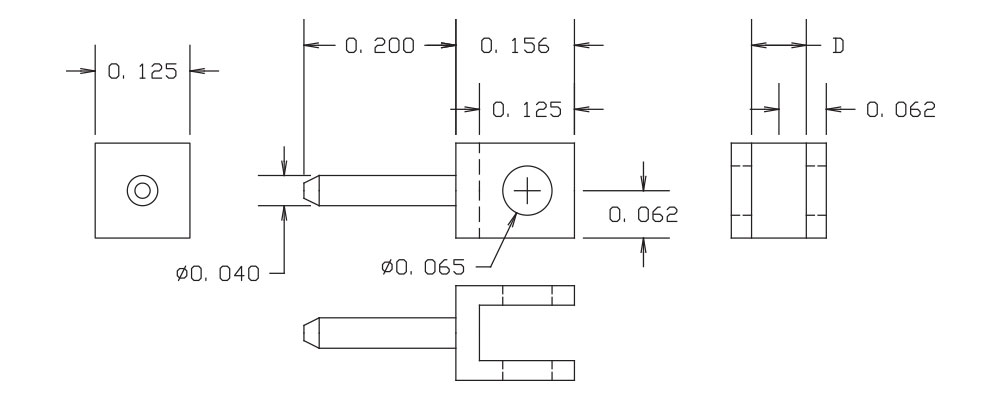

09-9502-2-044
09-9502-2-044
09-9502-2-044
0.356" 0.040 - 0-80 Screw - 1/16 CLEARANCE FOR #0 Screw Brass Bright Tin YES

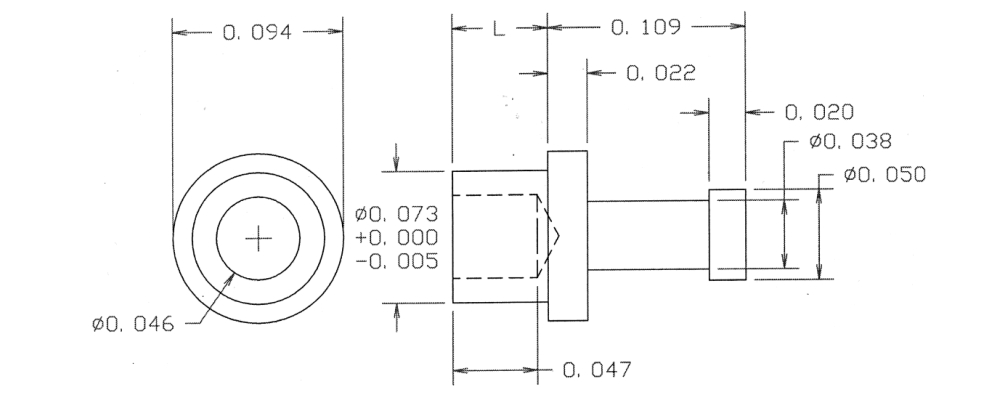

10-105-4-04
10-105-4-04
10-105-4-04
0.256" - - Swage Mount 0.147" 1/8 0.076 Brass Electro-Tin YES

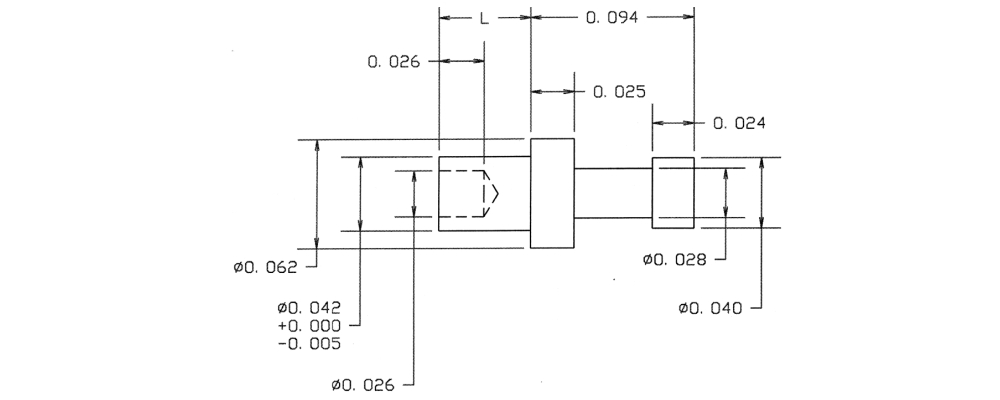

10-114-1-04
10-114-1-04
10-114-1-04
0.147" - - Swage Mount 0.053" 1/32 0.043 Brass Electro-Tin YES

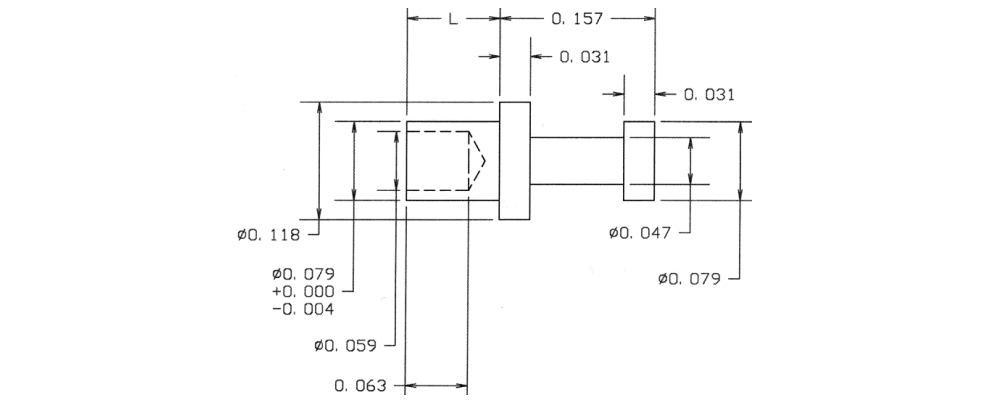

10-134-4-05
10-134-4-05
10-134-4-05
0.313" - - Swage Mount 0.156" 1/8 0.081 Brass Electro Solder NO

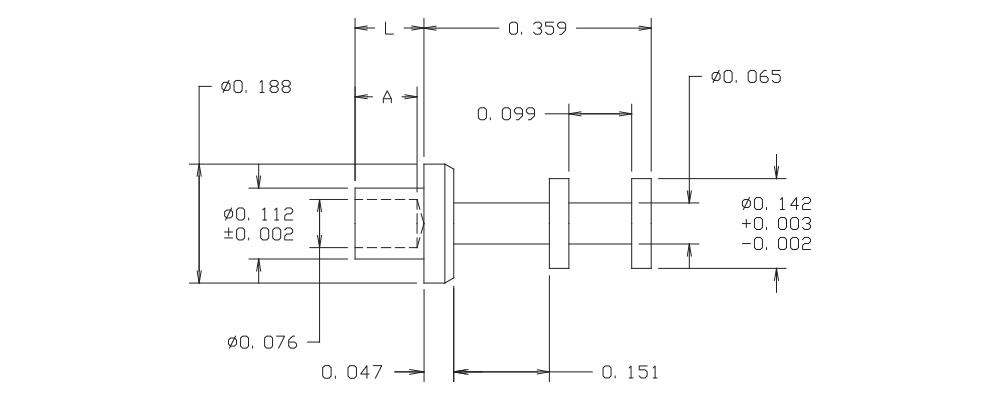

10-204-8-04
10-204-8-04
10-204-8-04
0.656" - - Swage Mount 0.297" 1/4 0.116 Brass Electro-Tin YES

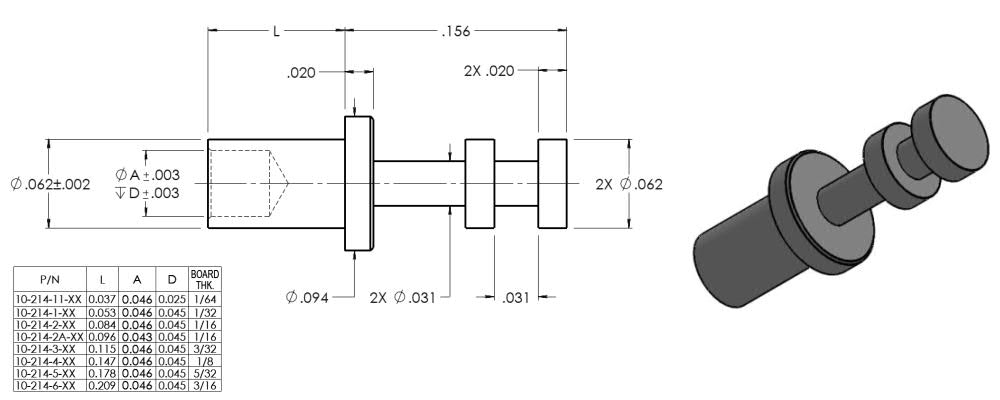

10-214-1-03
10-214-1-03
10-214-1-03
0.209" - - Swage Mount 0.053" 1/32 0.067 Brass Gold YES

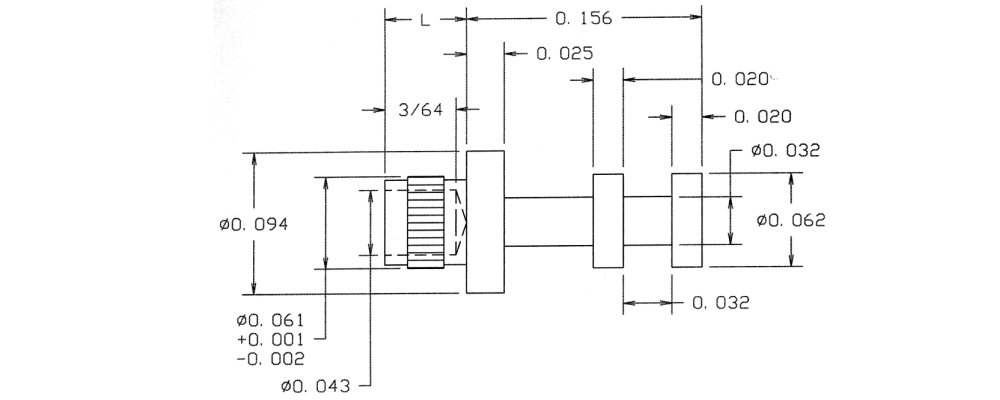

10-220-2-05
10-220-2-05
10-220-2-05
0.240" - - Swage Mount 0.084" 1/16 0.064 Brass Electro Solder NO

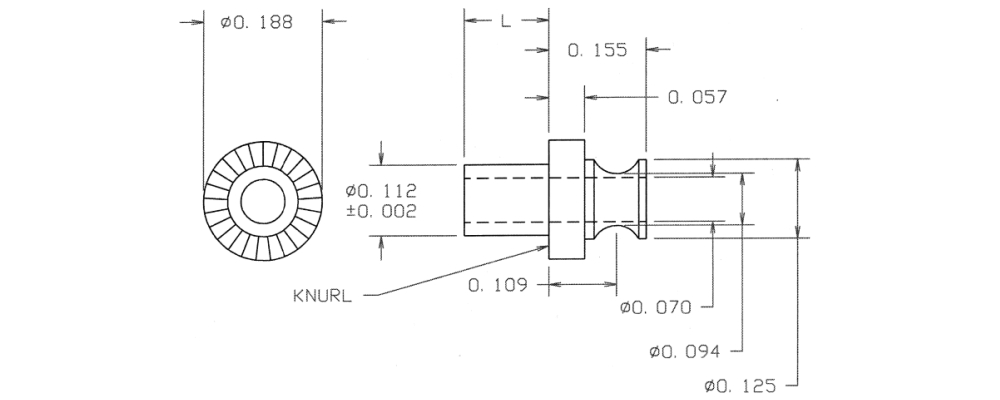

10-231-3-03
10-231-3-03
10-231-3-03
0.290" - - Swage Mount 0.135" 3/32 0.116 Brass Gold YES
