Commercial
Non-Insulated
Terminals

Filter

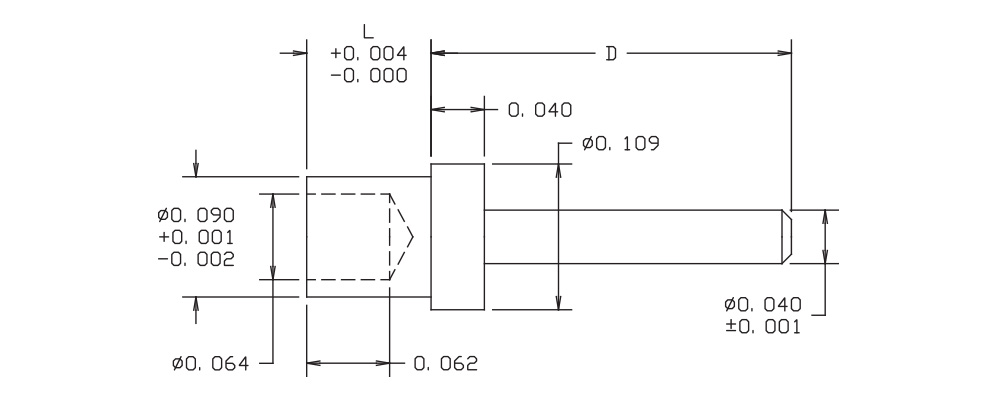

10-850-2-044
10-850-2-044
10-850-2-044
0.363" 0.040 - Swage Mount 0.093" 1/16 0.094 Brass Bright Tin YES

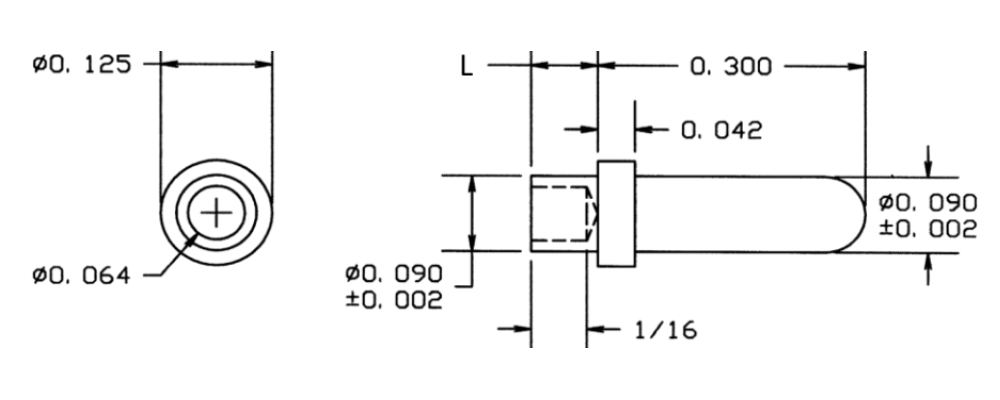

10-874-1-05
10-874-1-05
10-874-1-05
0.375" 0.090 - Swage Mount 0.075" 1/32 0.094 Brass Electro Solder NO

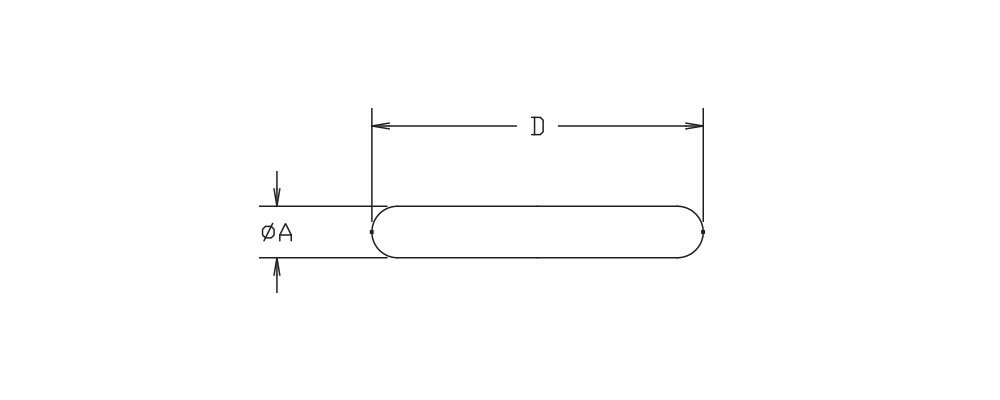

10-895-1-044
10-895-1-044
10-895-1-044
0.400" 0.020 - - - - - Brass Bright Tin YES

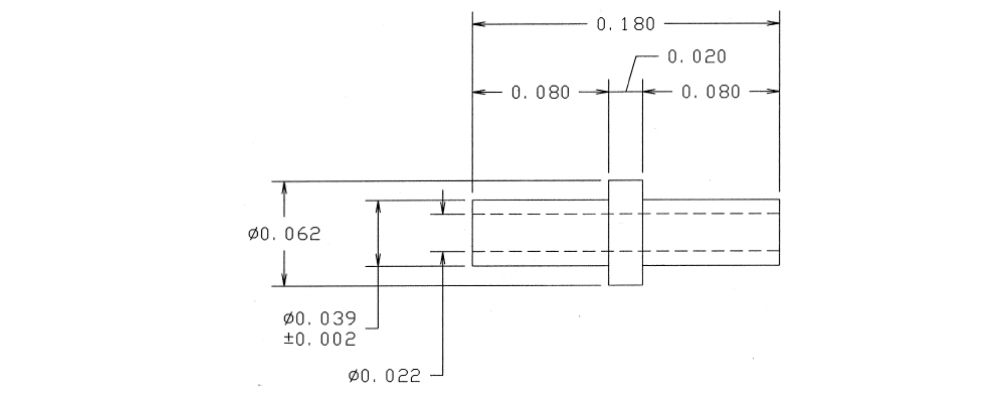

10-910-2-044
10-910-2-044
10-910-2-044
0.180" 0.039 - Swage Mount 0.080" 1/16 0.043 Brass Bright Tin YES

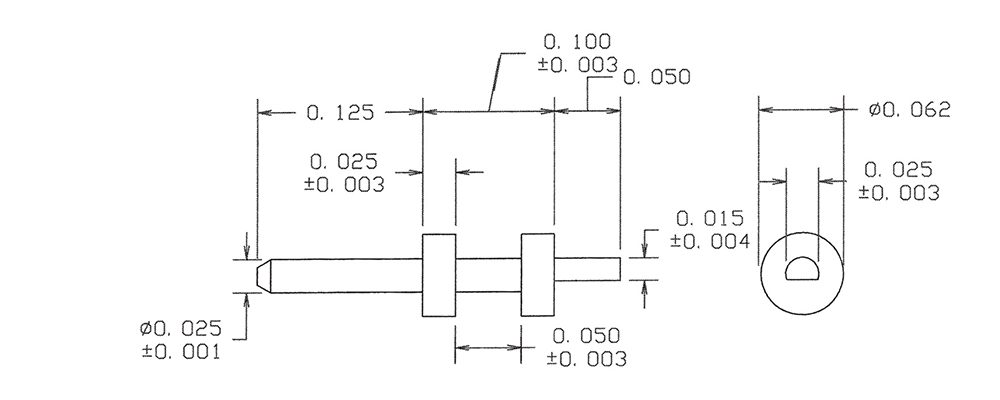

10-924-1-044
10-924-1-044
10-924-1-044
0.275" 0.025 - - - - - Brass Bright Tin YES
10-961-1-05
10-961-1-05
10-961-1-05
0.166" - - Swage Mount 0.062" 1/32 0.0635 Brass Electro Solder NO

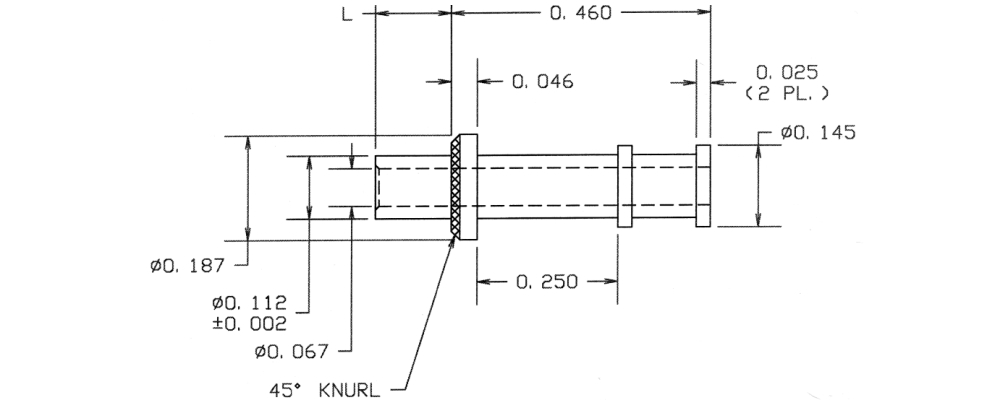

14-347-5-03
14-347-5-03
14-347-5-03
0.655" - - Swage Mount 0.195" 5/32 0.116 LEADED Red Brass Gold YES

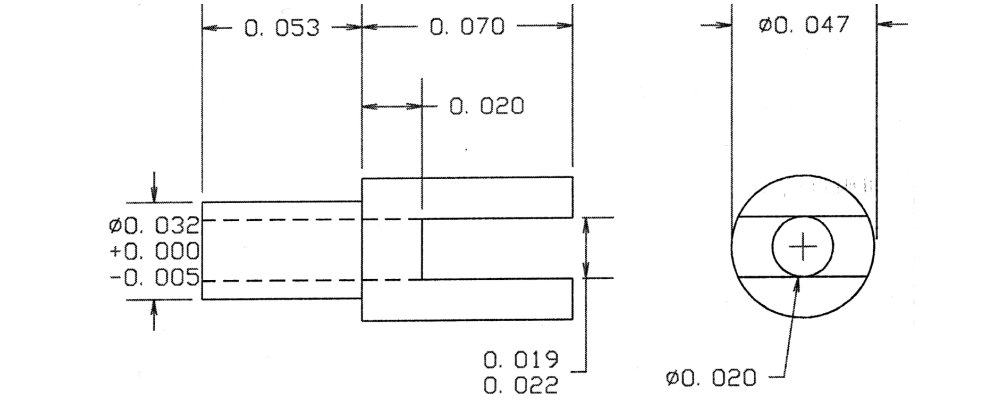

09-0089-1-035
09-0089-1-035
09-0089-1-035
0.123" - - Swage Mount 0.053" 1/32 0.035 Brass Gold YES
10-412-1-05
10-412-1-05
10-412-1-05
0.314" - - Swage Mount 0.075" 1/32 0.094 Brass Electro Solder NO

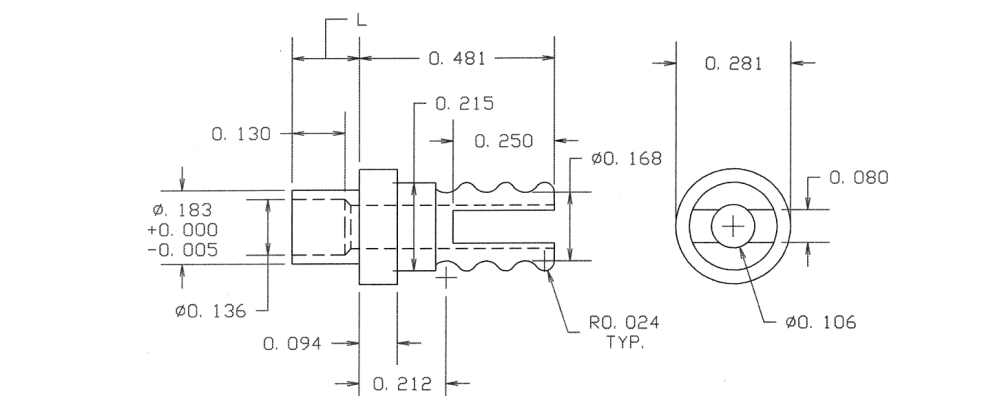

10-439-5-035
10-439-5-035
10-439-5-035
0.676" - - Swage Mount 0.195" 5/32 0.1875 Brass Gold YES

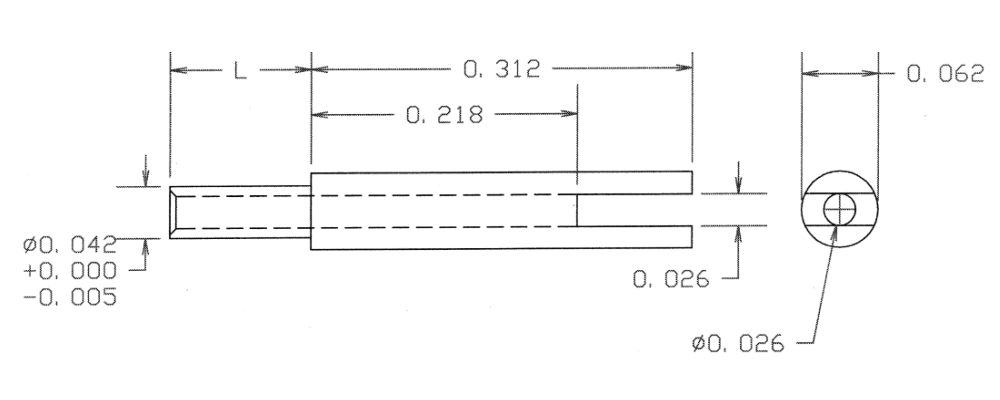

10-461-1-088
10-461-1-088
10-461-1-088
0.365" - - Swage Mount 0.053" 1/32 0.043 Brass Bright Tin-Lead NO

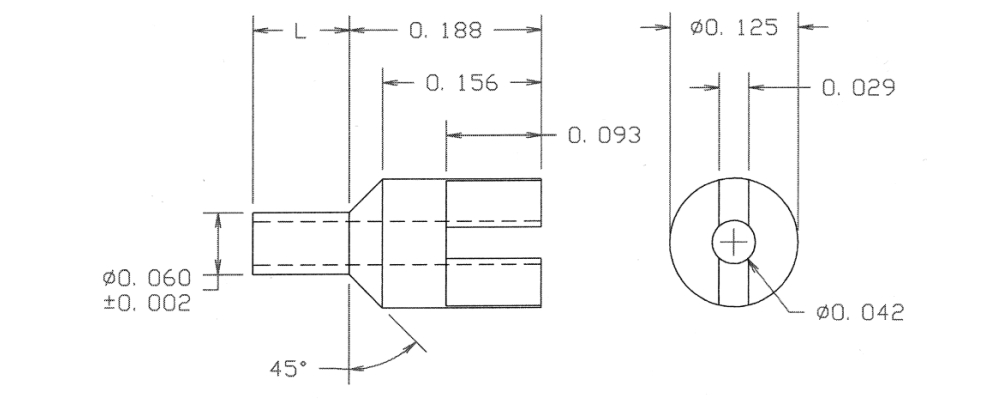

10-903-4-04
10-903-4-04
10-903-4-04
0.344" - - Swage Mount 0.156" 1/8 0.063 Brass Electro-Tin YES

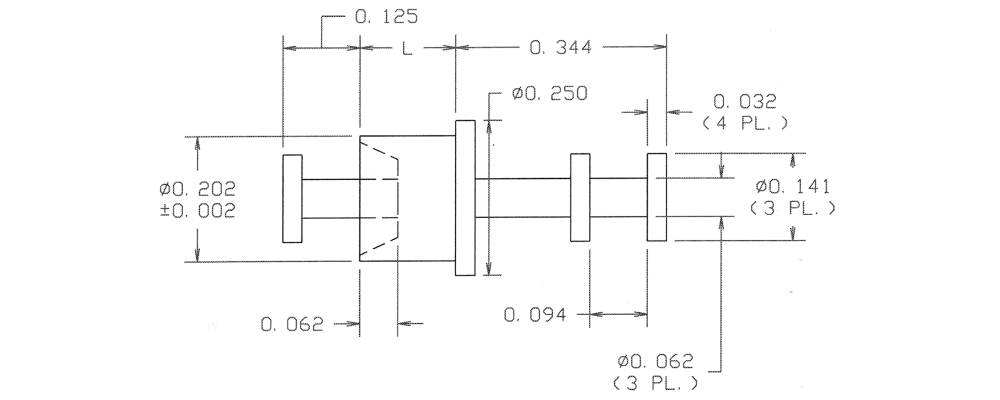

09-0033-3-03
09-0033-3-03
09-0033-3-03
0.625" - TURRET/DOUBLE TURRET Swage Mount 0.156" 1/8 0.206 Brass Gold YES

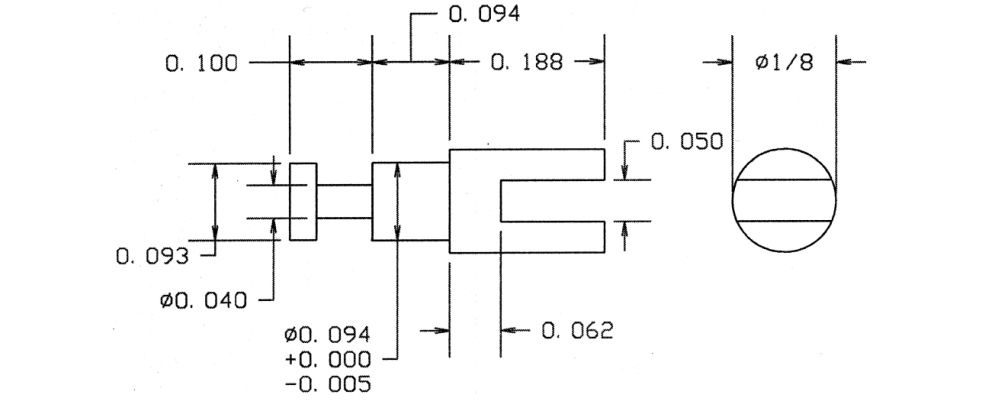

09-0087-2-035
09-0087-2-035
09-0087-2-035
0.382" - SLOTTED/TURRET Solder 0.094" 1/16 0.096 Brass Gold YES

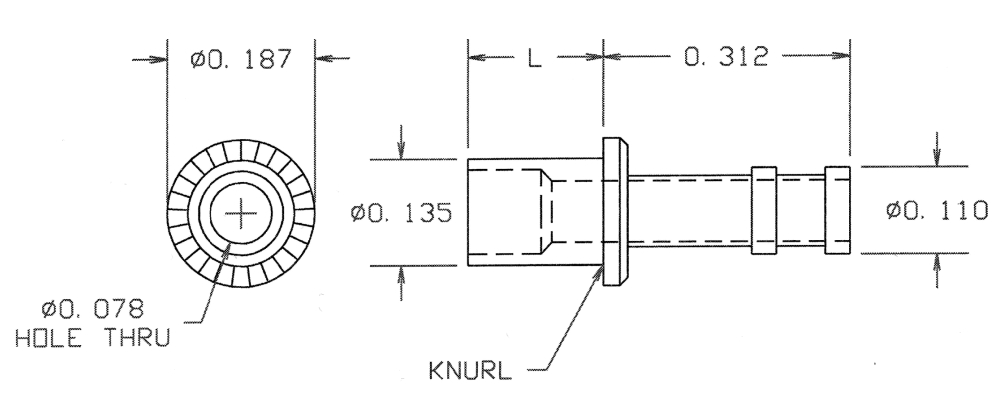

09-0168-1-035
09-0168-1-035
09-0168-1-035
0.390" - - Swage Mount 0.078" 1/32 0.141 Brass Gold YES

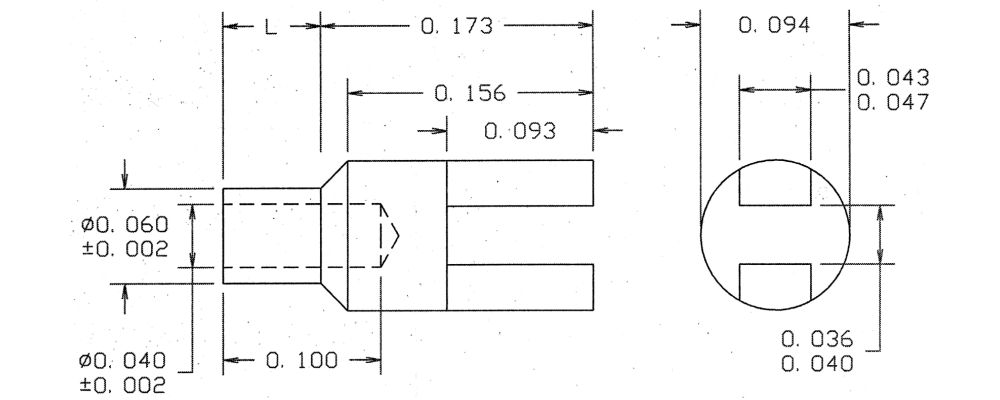

09-0208-1-088
09-0208-1-088
09-0208-1-088
0.235" - - Swage Mount 0.062" 1/32 0.067 LEADED Red Brass Bright Tin-Lead NO

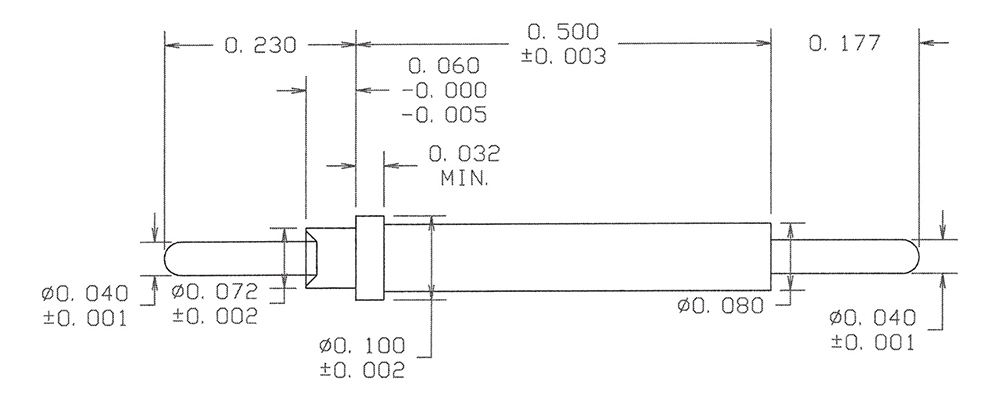

09-0242-1-044
09-0242-1-044
09-0242-1-044
0.907" 0.040 Pin/Pin Swage Mount 0.060" 1/32 0.076 Brass Bright Tin YES

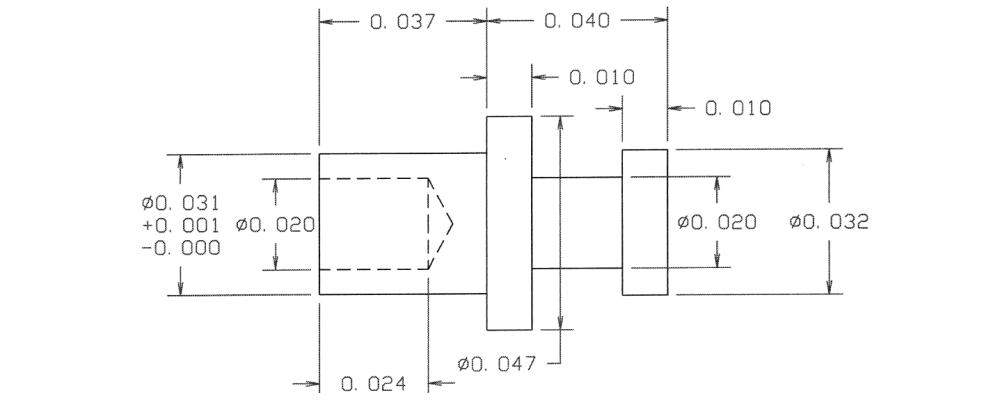

09-0288-1-044
09-0288-1-044
09-0288-1-044
0.077" - - Swage Mount 0.037" 1/64 0.035 Brass Bright Tin YES

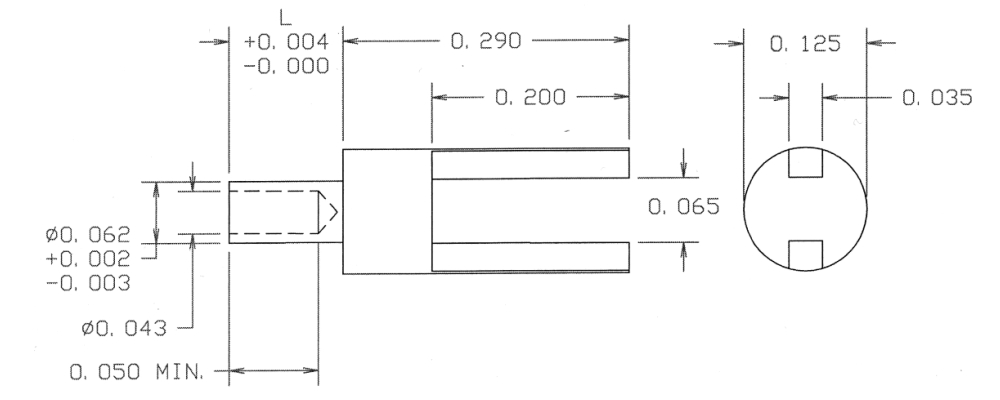

09-0353-3-05
09-0353-3-05
09-0353-3-05
0.405" - - Swage Mount 0.115" 3/32 0.067 Brass Electro Solder NO

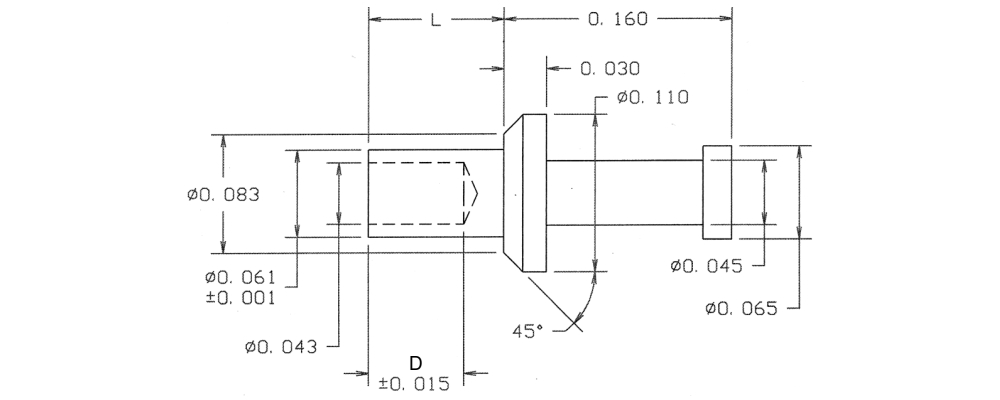

09-7012-4-03
09-7012-4-03
09-7012-4-03
0.310" - - Swage Mount 0.150" 1/8 0.067 Brass Gold YES
