Commercial
Non-Insulated
Terminals

Filter

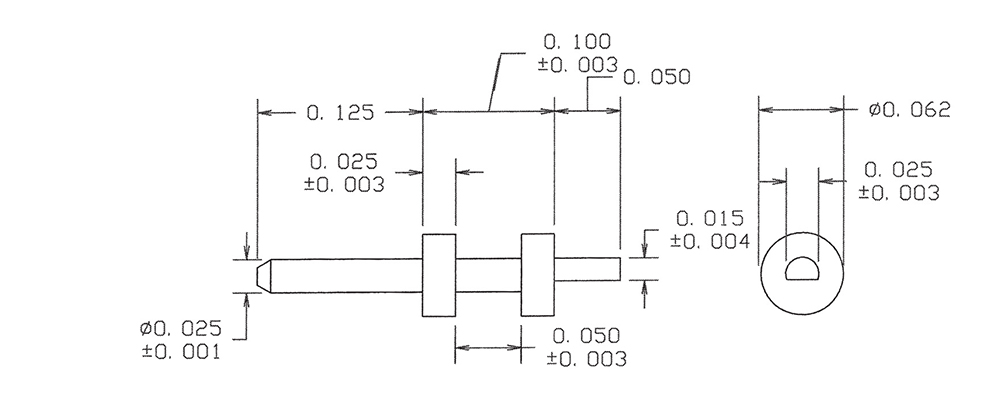

10-924-1-04
10-924-1-04
10-924-1-04
0.275" 0.025 - - - - - Brass Electro-Tin YES
10-961-1-044
10-961-1-044
10-961-1-044
0.166" - - Swage Mount 0.062" 1/32 0.0635 Brass Bright Tin YES

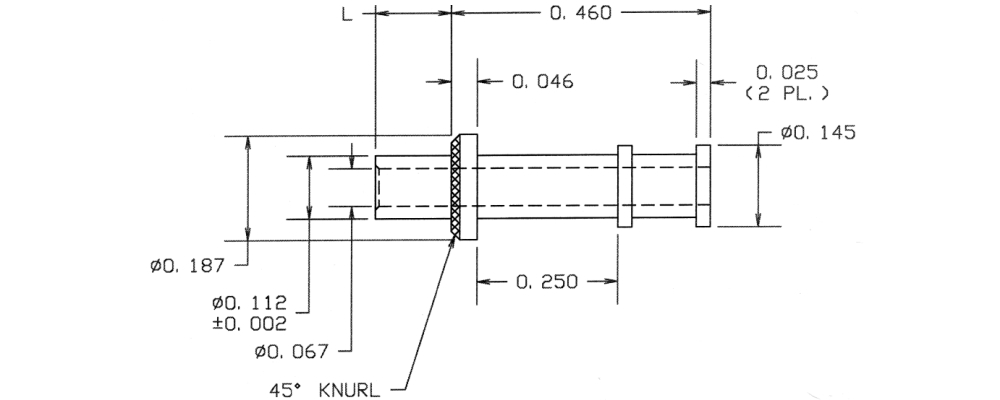

14-347-5-01
14-347-5-01
14-347-5-01
0.655" - - Swage Mount 0.195" 5/32 0.116 LEADED Red Brass Silver YES

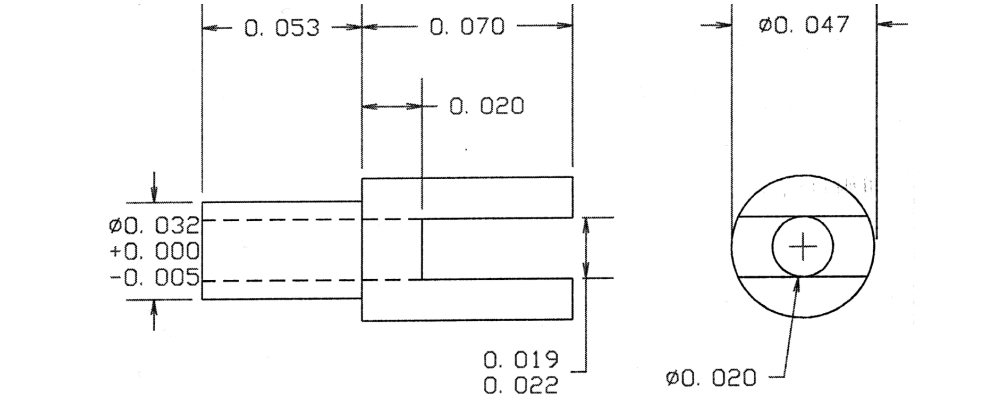

09-0089-1-03
09-0089-1-03
09-0089-1-03
0.123" - - Swage Mount 0.053" 1/32 0.035 Brass Gold YES

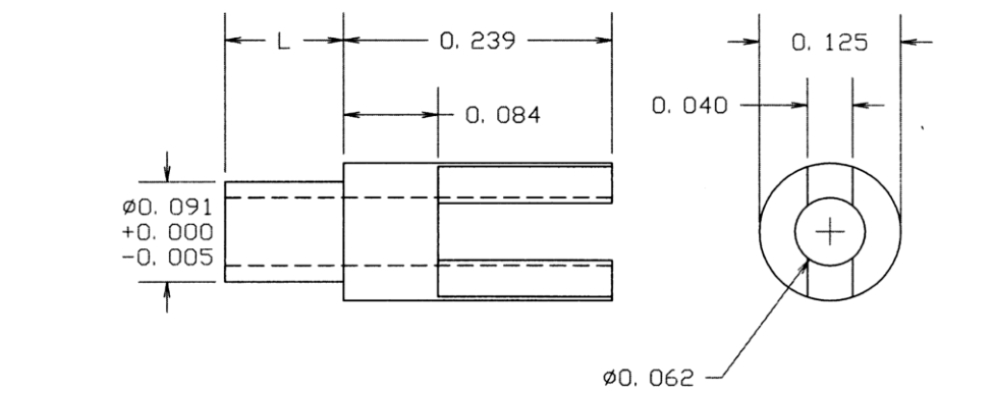

10-412-1-044
10-412-1-044
10-412-1-044
0.314" - - Swage Mount 0.075" 1/32 0.094 Brass Bright Tin YES

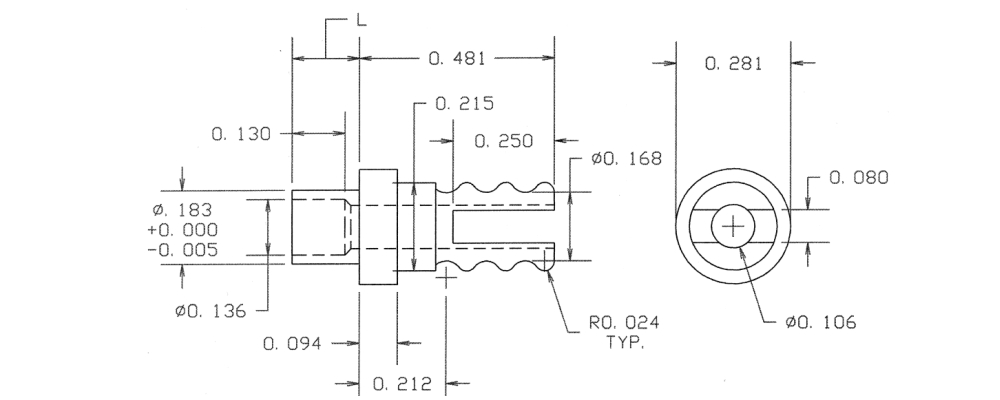

10-439-5-03
10-439-5-03
10-439-5-03
0.676" - - Swage Mount 0.195" 5/32 0.1875 Brass Gold YES

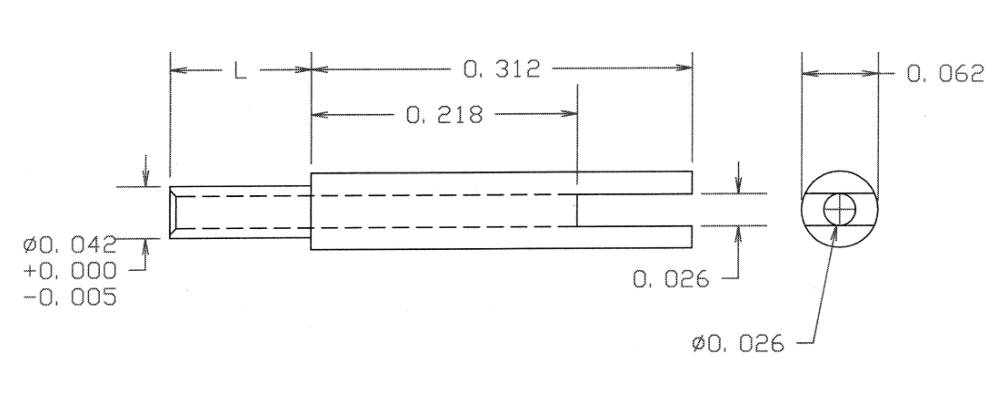

10-461-1-05
10-461-1-05
10-461-1-05
0.365" - - Swage Mount 0.053" 1/32 0.043 Brass Electro Solder NO

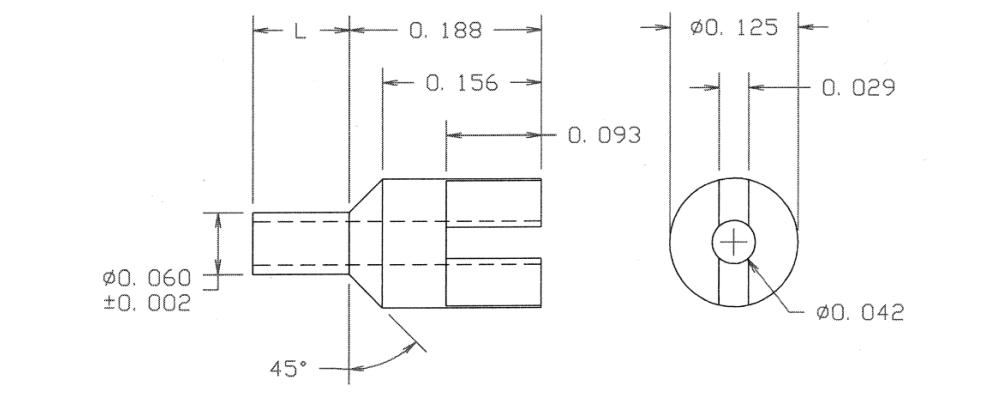

10-903-4-035
10-903-4-035
10-903-4-035
0.344" - - Swage Mount 0.156" 1/8 0.063 Brass Gold YES

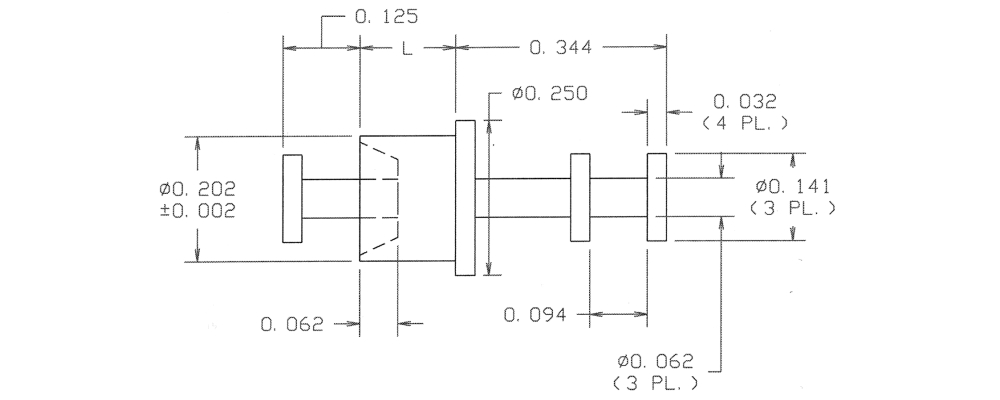

09-0033-3-01
09-0033-3-01
09-0033-3-01
0.625" - TURRET/DOUBLE TURRET Swage Mount 0.156" 1/8 0.206 Brass Silver YES

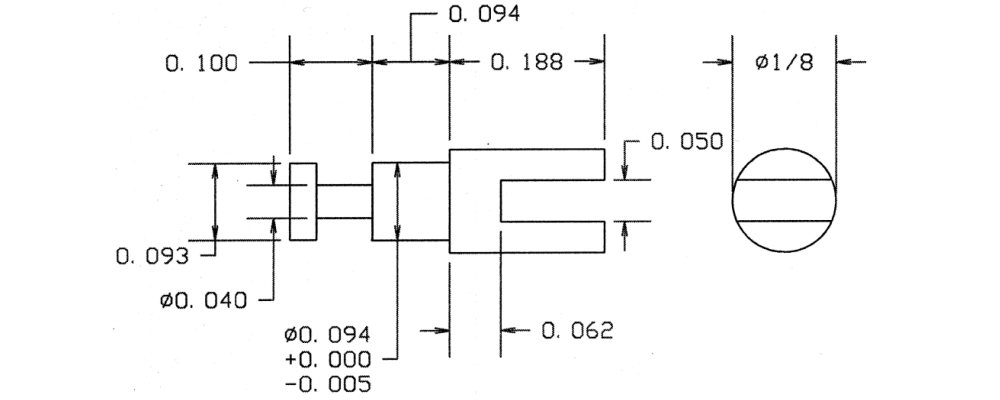

09-0087-2-03
09-0087-2-03
09-0087-2-03
0.382" - SLOTTED/TURRET Solder 0.094" 1/16 0.096 Brass Gold YES

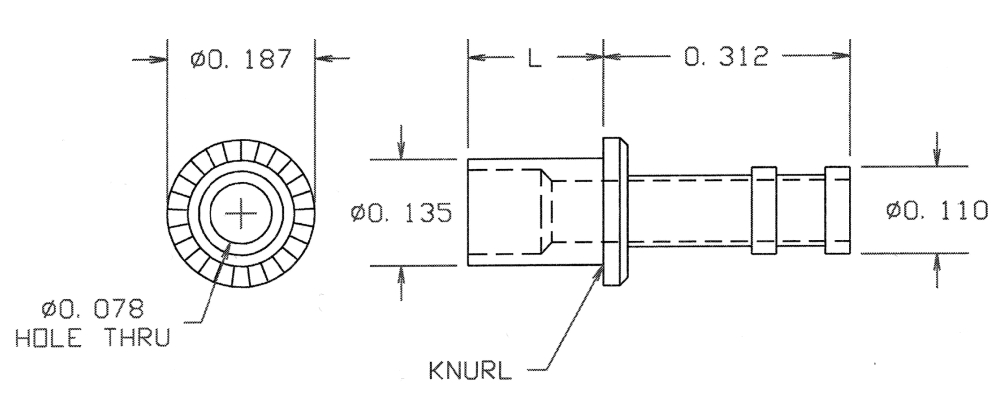

09-0168-1-03
09-0168-1-03
09-0168-1-03
0.390" - - Swage Mount 0.078" 1/32 0.141 Brass Gold YES

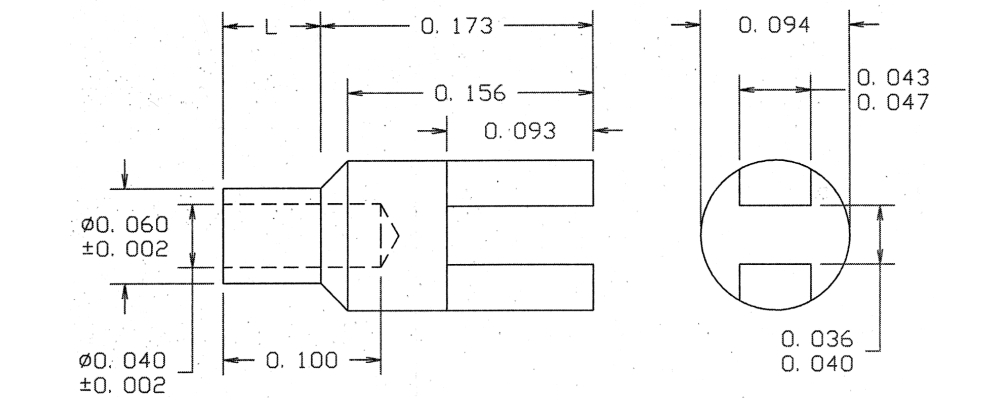

09-0208-1-05
09-0208-1-05
09-0208-1-05
0.235" - - Swage Mount 0.062" 1/32 0.067 LEADED Red Brass Electro Solder NO

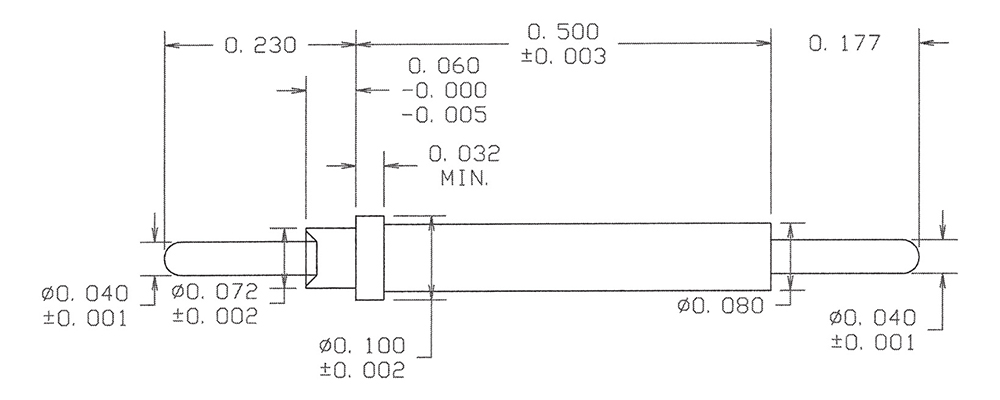

09-0242-1-04
09-0242-1-04
09-0242-1-04
0.907" 0.040 Pin/Pin Swage Mount 0.060" 1/32 0.076 Brass Electro-Tin YES

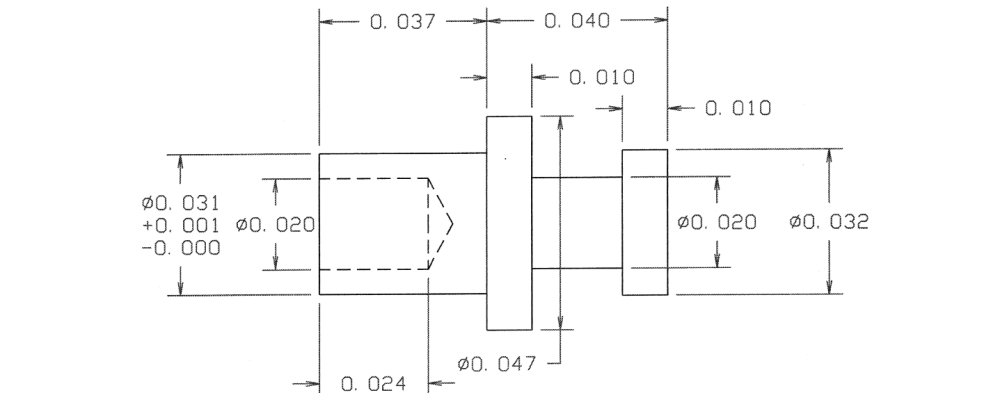

09-0288-1-04
09-0288-1-04
09-0288-1-04
0.077" - - Swage Mount 0.037" 1/64 0.035 Brass Electro-Tin YES
09-0353-3-044
09-0353-3-044
09-0353-3-044
0.405" - - Swage Mount 0.115" 3/32 0.067 Brass Bright Tin YES

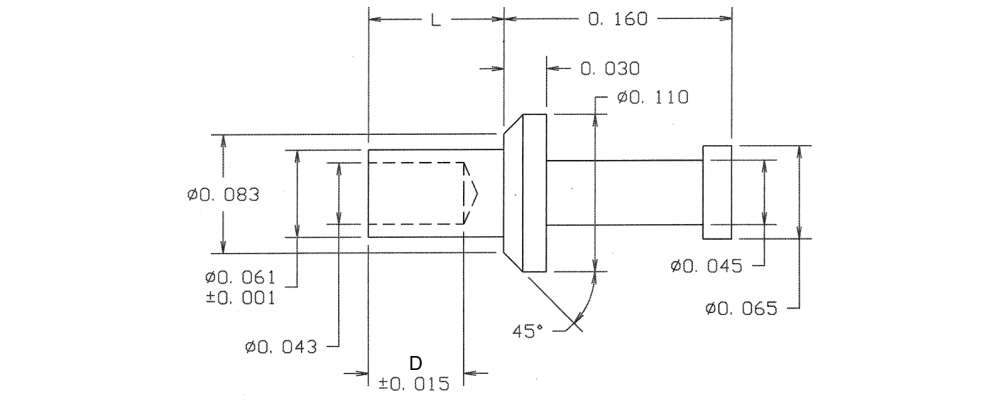

09-7012-4-01
09-7012-4-01
09-7012-4-01
0.310" - - Swage Mount 0.150" 1/8 0.067 Brass Silver YES

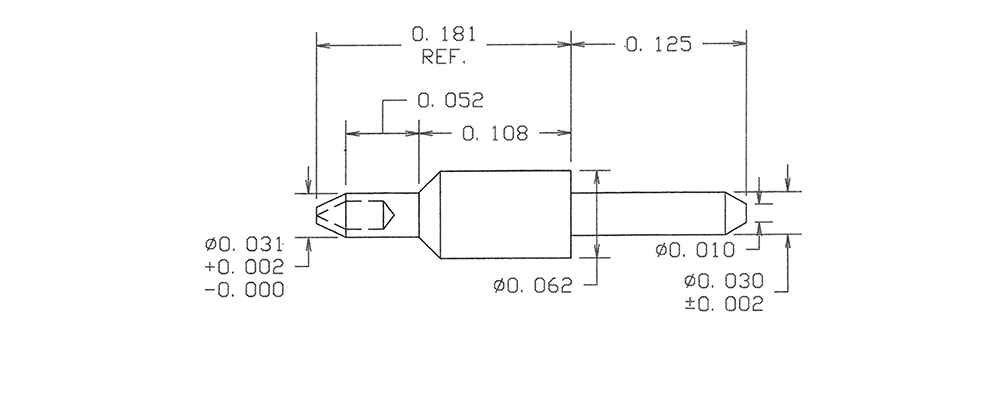

09-7118-1-05
09-7118-1-05
09-7118-1-05
0.306" 0.030 - RIVET MOUNT 0.052" 1/32 0.035 Brass Electro Solder NO

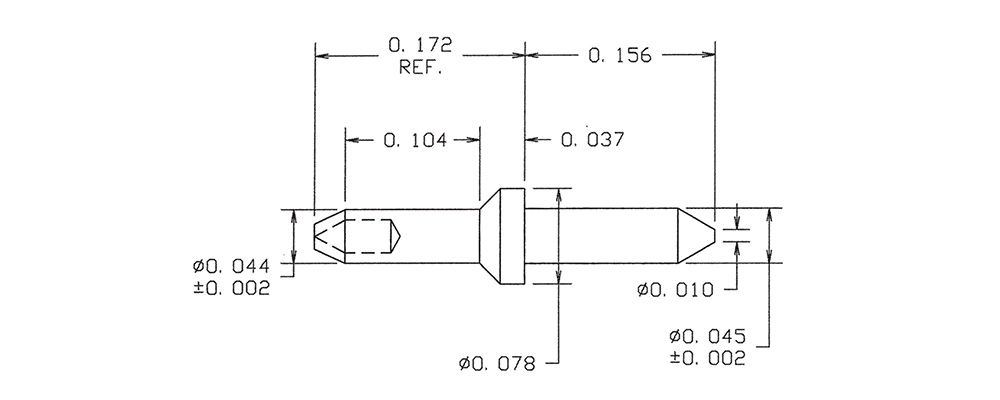

09-7149-2-035
09-7149-2-035
09-7149-2-035
0.328" 0.045 - RIVET MOUNT 0.104" 1/16 0.048 Brass Gold YES

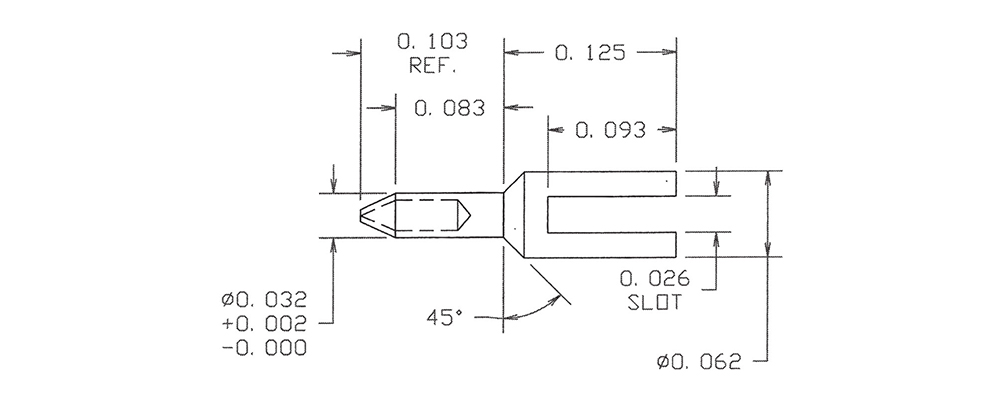

09-7181-2-088
09-7181-2-088
09-7181-2-088
0.228" - - RIVET MOUNT 0.083" 1/16 0.036 Brass Bright Tin-Lead NO

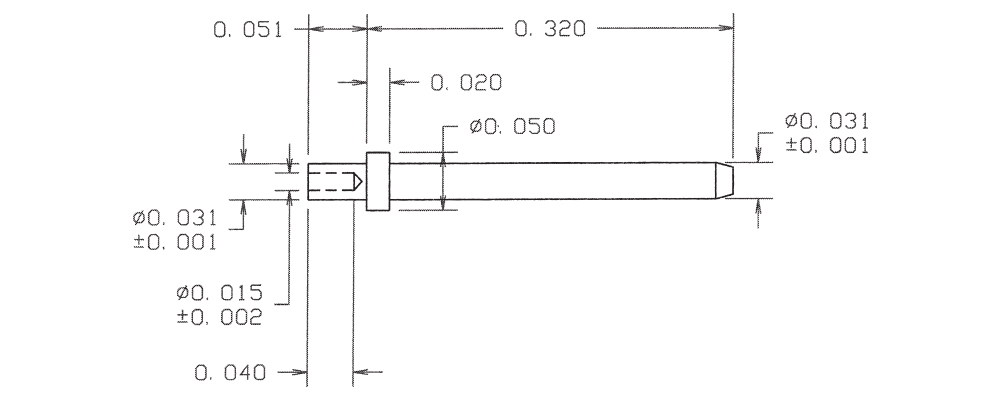

09-8024-1-04
09-8024-1-04
09-8024-1-04
0.371" 0.031 - Swage Mount 0.051" 1/32 0.035 Brass Electro-Tin YES
