Commercial
Insulated
Pin Terminals

Filter
1102-66-04419
1102-66-04419
1102-66-04419
0.621" - - Press Fit Up to 3/16 0.158 Brass Bright Tin - - PTFE White YES

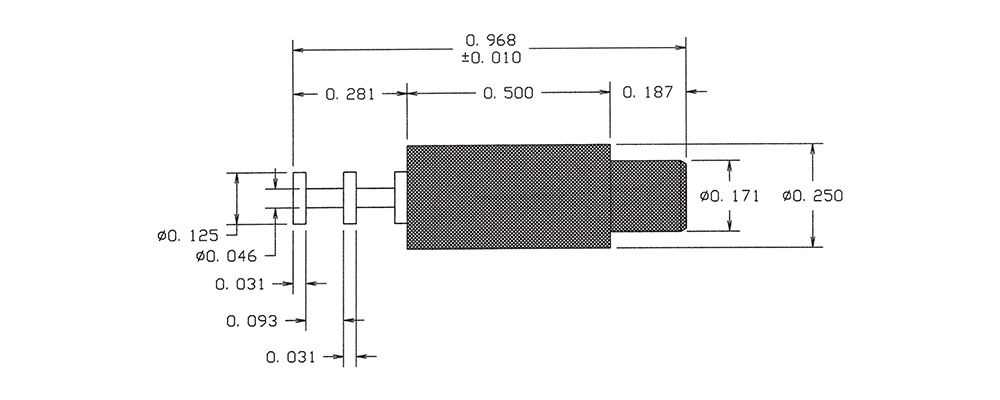

1102-70-08815
1102-70-08815
1102-70-08815
0.968" - - Press Fit 5/32 0.158 Brass Bright Tin-Lead - - PTFE Green NO
1102-76-0311
1102-76-0311
1102-76-0311
0.655" - - Press Fit Up to 3/16 0.236 Brass Gold - - PTFE Brown NO
1102-80-0417
1102-80-0417
1102-80-0417
0.843" - - Press Fit 5/32 0.203 Brass Electro-Tin - - PTFE Violet YES

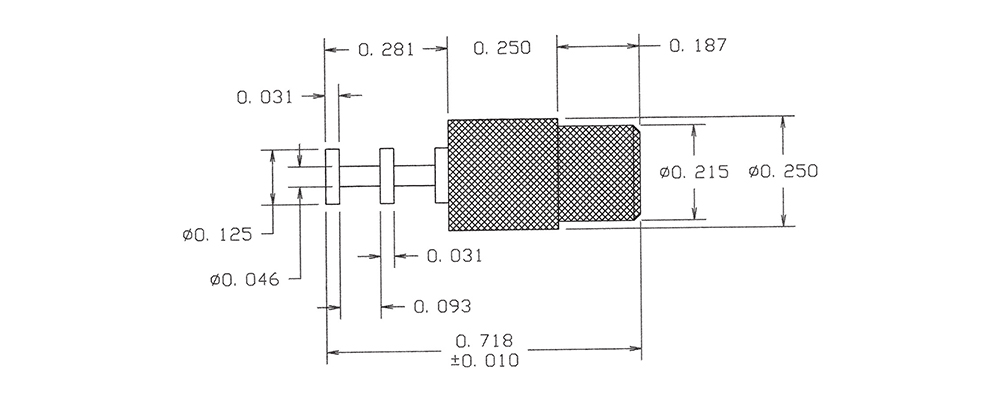

1102-84-0513
1102-84-0513
1102-84-0513
0.718" - - Press Fit 5/32 0.203 Brass Electro Solder - - PTFE Orange NO

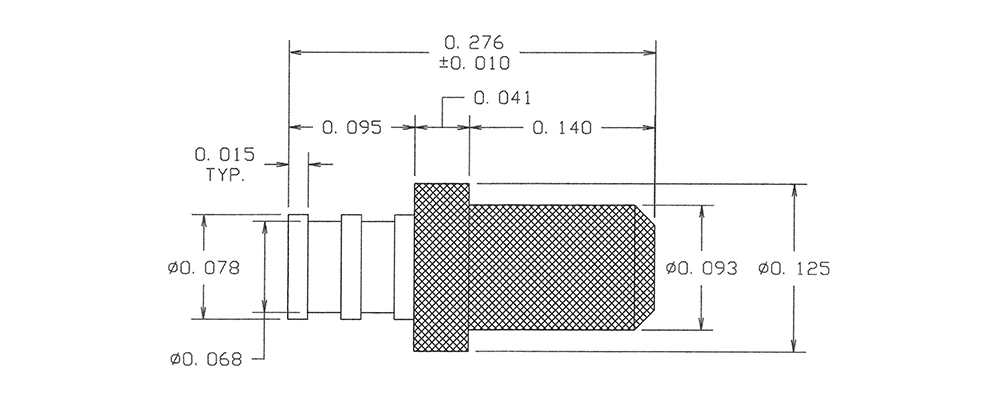

1102-91-08819
1102-91-08819
1102-91-08819
0.276" - - Press Fit 3/32 0.086 Brass Bright Tin-Lead - - PTFE White NO
1102R-01-0315
1102R-01-0315
1102R-01-0315
0.310" - - Press Fit 1/16 0.086 Brass Gold - - PTFE Green YES
1102R-18-04411
1102R-18-04411
1102R-18-04411
0.500" - - Press Fit Up to 3/16 0.136 Brass Bright Tin - - PTFE Brown NO

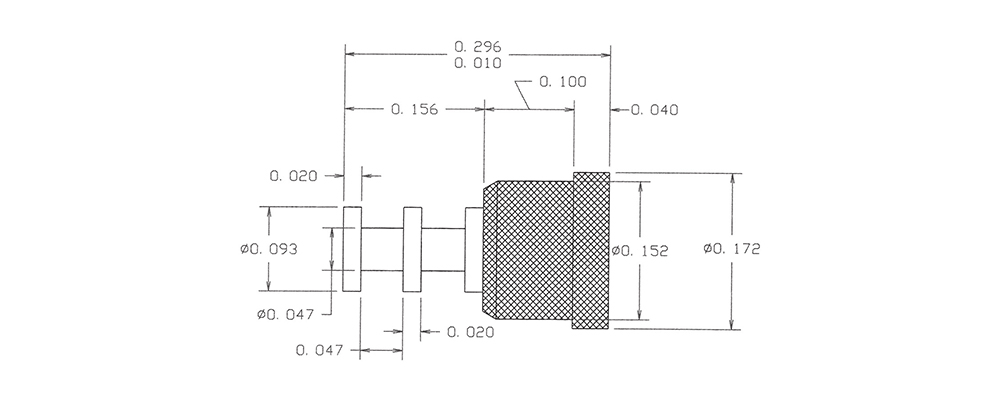

1102R-26-0517
1102R-26-0517
1102R-26-0517
0.296" - - Press Fit 1/16 0.140 Brass Electro Solder - - PTFE Violet NO
1102R-74-0113
1102R-74-0113
1102R-74-0113
0.375" - - Press Fit 3/32 0.172 Brass Silver - - PTFE Orange NO
1102R-92-0319
1102R-92-0319
1102R-92-0319
0.460" - - Press Fit 3/32 0.172 Brass Gold - - PTFE White YES

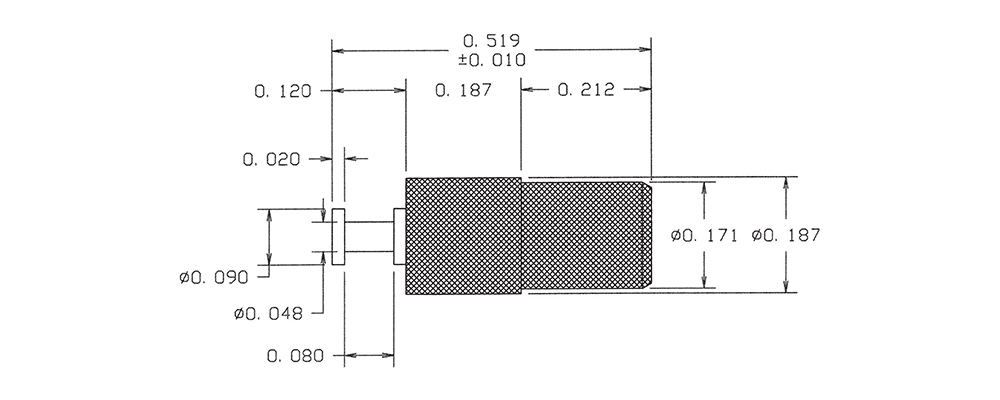

1103-07-04415
1103-07-04415
1103-07-04415
0.519" - - Press Fit Up to 3/16 0.158 Brass Bright Tin - - PTFE Green YES

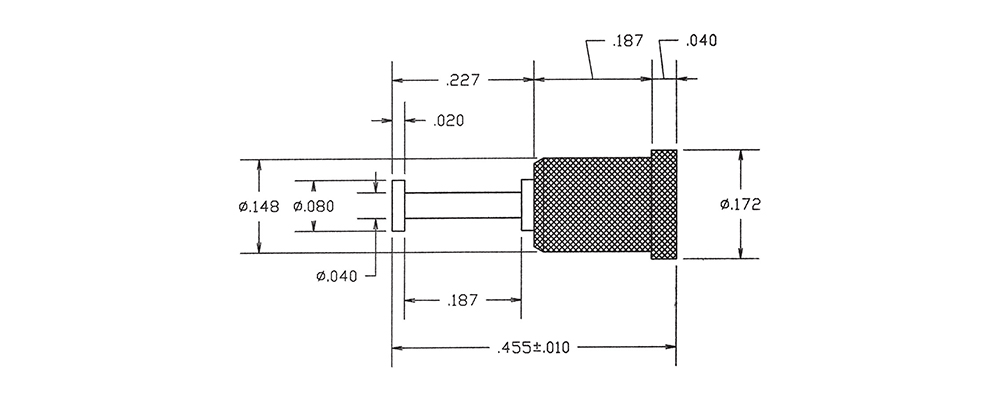

1103R-05-08811
1103R-05-08811
1103R-05-08811
0.455" - - Press Fit 5/32 0.136 Brass Bright Tin-Lead - - PTFE Brown NO
1104-04-0117
1104-04-0117
1104-04-0117
0.392" - - Press Fit 1/16 0.136 Brass Silver - - PTFE Violet YES
1105-01-0413
1105-01-0413
1105-01-0413
1.187" - Double Turret/Double Turret Press Fit Up to 5/16 0.205 Brass Electro-Tin - - PTFE Orange NO
1106-02-04419
1106-02-04419
1106-02-04419
0.478" - - Press Fit 1/8 0.158 Brass Bright Tin - - PTFE White YES

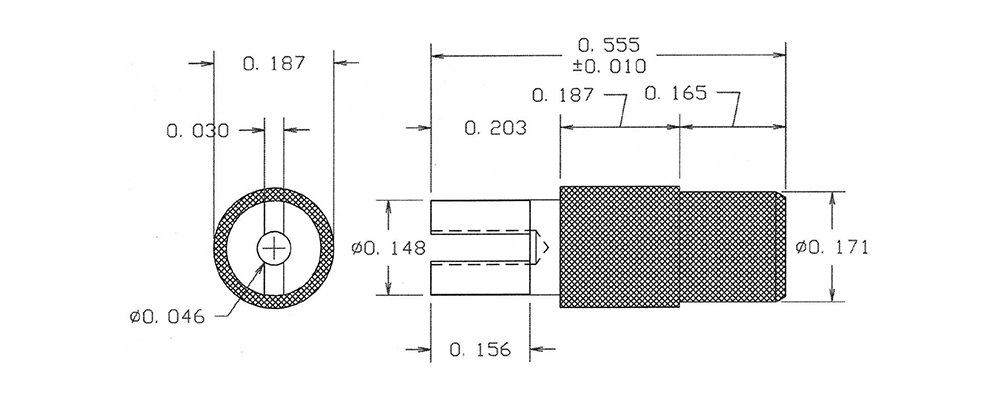

1106-06-08815
1106-06-08815
1106-06-08815
0.555" - - Press Fit 1/8 0.158 Brass Bright Tin-Lead - - PTFE Green NO
1106-11-0311
1106-11-0311
1106-11-0311
0.703" - - Press Fit 1/16 0.158 Brass Gold - - PTFE Brown NO
1106-15-0417
1106-15-0417
1106-15-0417
1.190" - - Press Fit 5/32 0.158 Brass Electro-Tin - - PTFE Violet YES
1106-19-0513
1106-19-0513
1106-19-0513
1.190" - - Press Fit 5/32 0.205 Brass Electro Solder - - PTFE Orange NO
